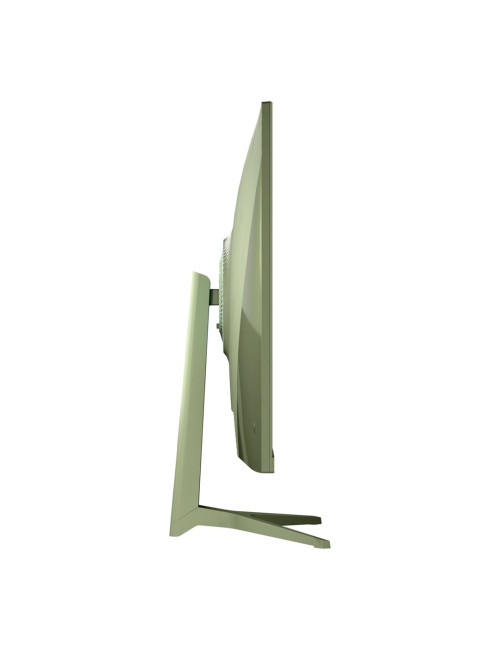

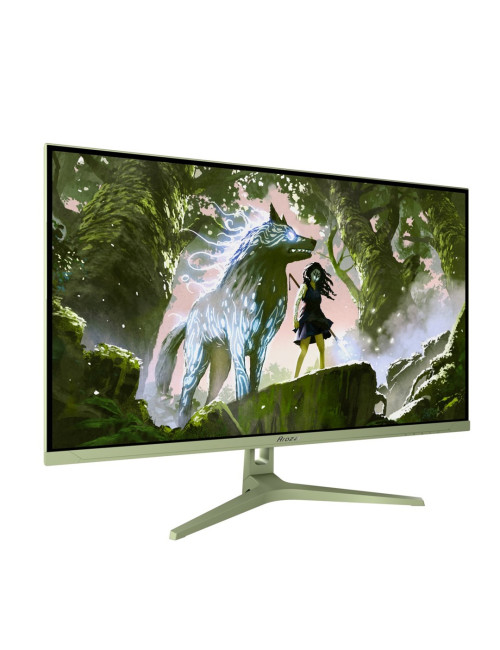

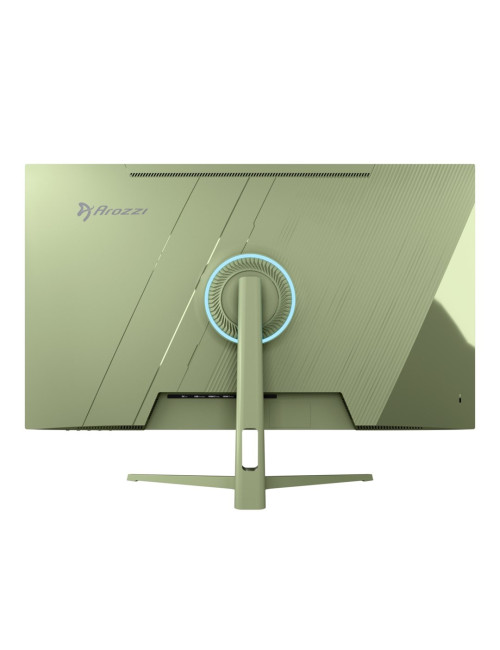

Product Details
Data sheet
- Package type
- Box
- Package depth
- 137 mm
- Package height
- 500 mm
- Package width
- 785 mm
- Package weight
- 7.3 kg

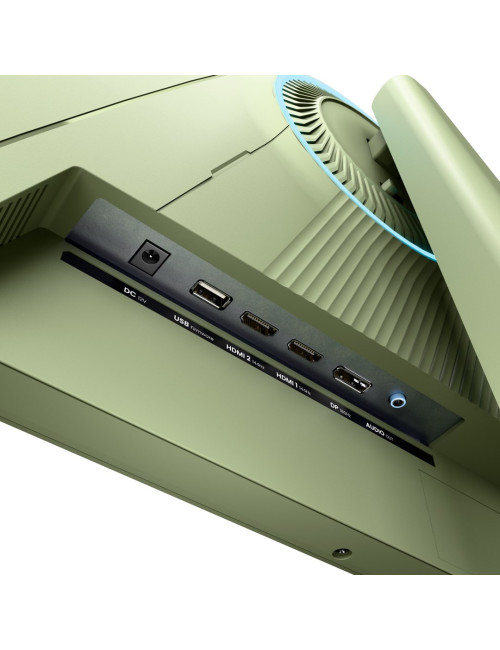

- Headphone connectivity
- 3.5 mm
- Headphone out
- Yes
- HDMI ports quantity
- 2
- DisplayPorts quantity
- 1
- Display technology
- LED
- Display diagonal
- 80 cm (31.5")
- Built-in camera
- No
- LED backlight
- Yes
- Power consumption (typical)
- 48 W
- Response time
- 1 ms
- HD type
- Quad HD
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Native aspect ratio
- 16:9
- Built-in speaker(s)
- Yes
- VESA mounting
- Yes
- Tilt adjustment
- Yes
- RMS rated power
- 6 W
- Width (with stand)
- 715 mm
- Depth (with stand)
- 200 mm
- Height (with stand)
- 520 mm
- Panel type
- IPS
- Maximum refresh rate
- 180 Hz
- HDMI version
- 2.0
- DisplayPort version
- 1.4
- Number of speakers
- 2
- HDMI
- Yes
- Touchscreen
- No
- Display number of colours
- 1.07 billion colours
- Power consumption (off)
- 0.5 W
- Display diagonal (metric)
- 80 cm
- Headphone outputs
- 1
- Colour Gamut
- 100%
- Firmware upgradeable
- Yes
- Screen shape
- Flat
- Built-in USB hub
- No
- Product colour
- Green
- Market positioning
- Gaming
- Energy consumption (SDR) per 1000 hours
- 33 kWh
- Energy efficiency class (SDR)
- G
- Width (without stand)
- 715 mm
- Weight (with stand)
- 5.6 kg
- Flicker-free technology
- Yes
- Low Blue Light technology
- Yes
- Display resolution
- 2560 x 1440 pixels
- Display brightness (typical)
- 300 cd/m²
- Tilt angle range
- 5 - 15°

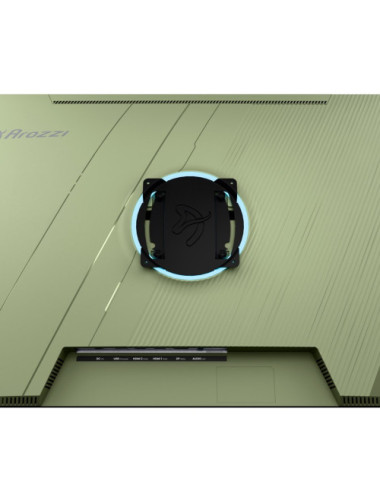

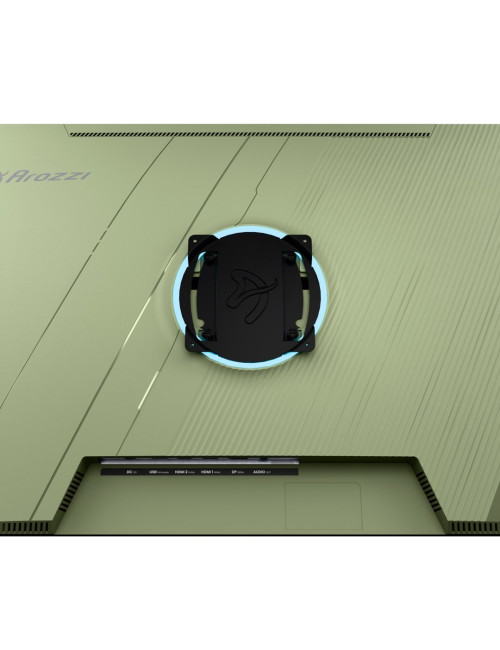

- Panel mounting interface
- 100 x 100 mm
- sRGB coverage (typical)
- 100%
- High Dynamic Range (HDR) supported
- Yes
- Energy efficiency scale
- A to G
- Energy efficiency class (HDR)
- G
- Energy consumption (HDR) per 1000 hours
- 34 kWh
- VESA Adaptive Sync support
- Yes
- DCI-P3 coverage
- 73%
- Colour gamut standard
- sRGB
- Response time (MPRT)
- 1 ms
- Firmware upgradeable via
- USB
