Product Details
Data sheet
- Package depth
- 139 mm
- Package height
- 455 mm
- Package width
- 650 mm
- Package weight
- 7.42 kg
- Cables included
- DisplayPort
- Headphone out
- Yes
- Power supply type
- Internal
- Audio output
- Yes
- Mean time between failures (MTBF)
- 70000 h
- HDMI ports quantity
- 1
- DisplayPorts quantity
- 1
- Display technology
- LED
- Display diagonal
- 60.5 cm (23.8")
- Backlight type
- W-LED
- Power cable length
- 1.8 m
- Built-in camera
- No
- LED backlight
- Yes
- Power consumption (typical)
- 15.74 W
- HDCP
- Yes
- Response time
- 4 ms
- HD type
- Full HD
- Contrast ratio (typical)
- 1500:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Native aspect ratio
- 16:9
- Built-in speaker(s)
- Yes
- VESA mounting
- Yes
- Swivelling
- Yes
- Tilt adjustment
- Yes
- Height adjustment
- YES
- Cable lock slot
- Yes
- USB hub version
- 2.0 / 3.2 Gen 1 (3.1 Gen 1)
- USB Type-A downstream ports quantity
- 4
- RMS rated power
- 4 W
- Swivel angle range
- 0 - 175°

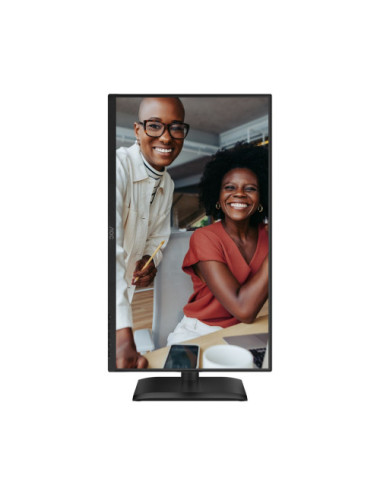

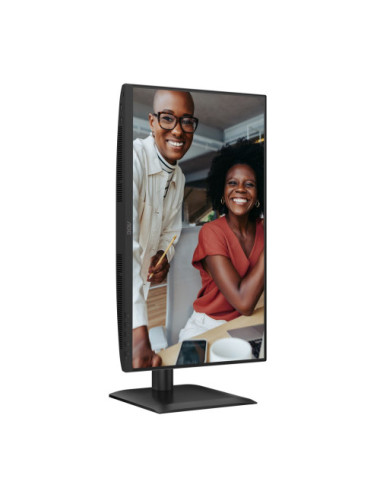

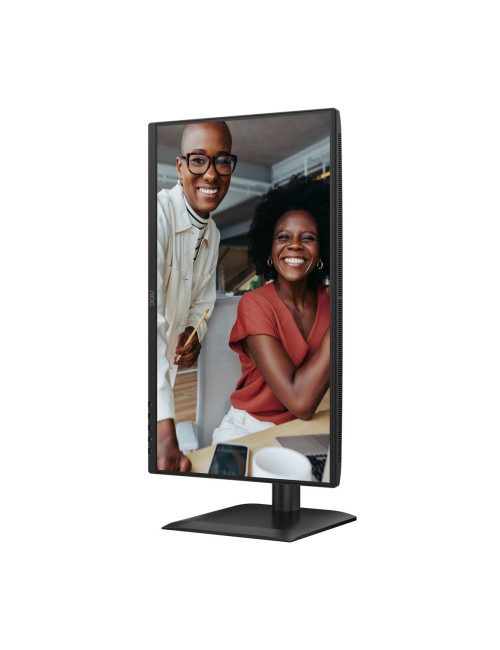

- Pivot
- YES
- Pivot angle
- -90 - 90°
- Power consumption (standby)
- 0.3 W
- Width (with stand)
- 542.4 mm
- Depth (with stand)
- 222 mm
- Height (with stand)
- 507.4 mm
- Panel type
- IPS
- Maximum refresh rate
- 120 Hz
- HDMI version
- 1.4
- DisplayPort version
- 1.2
- Contrast ratio (dynamic)
- 20000000:1
- Number of speakers
- 2
- HDMI
- Yes
- Touchscreen
- No
- Display number of colours
- 16.7 million colours
- Power consumption (off)
- 0.3 W
- Pixel pitch
- 0.2745 x 0.2745 mm
- Pixel density
- 93 ppi
- Display diagonal (metric)
- 60.4 cm
- Ethernet LAN
- Yes
- Headphone outputs
- 1
- Cable lock slot type
- Kensington
- Digital horizontal frequency
- 30 - 140 kHz
- Cable management
- Yes
- Screen shape
- Flat
- Built-in USB hub
- Yes
- Product colour
- Black
- Market positioning
- Office
- Detachable stand
- Yes
- Energy consumption (SDR) per 1000 hours
- 11 kWh
- Energy efficiency class (SDR)
- C
- Width (without stand)
- 542.4 mm
- Weight (with stand)
- 5.65 kg
- Height (without stand)
- 320.2 mm
- Depth (without stand)
- 51 mm
- Flicker-free technology
- Yes
- Low Blue Light technology
- Yes
- Display resolution
- 1920 x 1080 pixels
- Display brightness (typical)
- 300 cd/m²
- Digital vertical frequency
- 48 - 120 Hz
- Surface hardness
- 3H
- Tilt angle range
- -5 - 30°
- Panel mounting interface
- 100 x 100 mm
- Sustainability certificates
- TCO
- Weight (without stand)
- 3.63 kg
- sRGB coverage (typical)
- 111.1%
- High Dynamic Range (HDR) supported
- Yes
- Energy efficiency scale
- A to G
- Anti-glare screen
- Yes
- Energy efficiency class (HDR)
- D
- Energy consumption (HDR) per 1000 hours
- 12 kWh
- HDCP version
- 1.4/2.2
- VESA Adaptive Sync support
- Yes
- Number of USB Type-C upstream ports quantity
- 1
- AMD FreeSync refresh rate range
- 48 - 120 Hz
- DisplayPort cable length
- 1.8 m
- Front bezel colour
- Black
- HDMI cable length
- 1.8 m
- Doesn't contain
- Mercury
- USB Power Delivery up to
- 90 W
- Haze rate
- 25%
- Warranty period
- 5 year(s)
- Local dimming
- Yes
- Compliance certificates
- CE
- DisplayPort out quantity
- 1
- Response time measurement type
- GTG (Gray to Gray)
- USB Power Delivery (USB PD)
- Yes

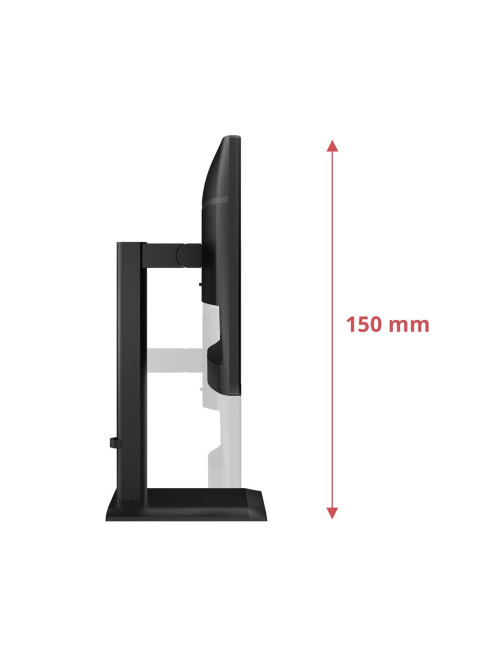

- Adjustable height (max)
- 15 cm
Quick Compare
Product |
|
|
|
ASUS ZenScreen MB14AC Portable USB 14i
|
Availability |
|
|
|
|
Price |
€239.41
|
€239.52
|
€239.74
|
€240.17
|
Description |
34 " | 3440 x 1440 pixels | UltraWide Quad HD | 21:9 | LCD | VA | 1 ms | Curved | Contrast 3500:1 | Maximum refresh rate 200 Hz | Pixel pitch 0.2318 x 0.2318 mm | 2xHDMI ports quantity | 2xDisplayPorts quantity | Headphone out Yes | VESA Yes | ASUS ZenScreen MB14AC is designed to keep you productive, wherever you are. It‘s the portable monitor with a hybrid USB-C signal solution(DP Alt mode+ USB 3.0), which means that it only needs a single USB-C cable for both power and video transmission. With a slim 9mm profile, and weighing just 0.59kg, ZenScreen MB14AC is also a compact 14-inch companion monitor to meet different needs for laptop users. | ||
Colour |
Dark grey | |||
Dimensions (WxDxH) |
32.494 cm x 1.12 cm x 20.803 cm | |||
Weight |
590 g | |||
Package weight |
7.92 kg | |||
Cables included |
DisplayPort | |||
Storage relative humidity (H-H) |
5 - 90% | |||
Operating temperature (T-T) |
0 - 40 °C | |||
Operating relative humidity (H-H) |
10 - 80% | |||
Storage temperature (T-T) |
-20 - 60 °C | |||
Device type |
LED-backlit LCD monitor - 14" | |||
Headphone out |
Yes | |||
Power supply type |
Internal | |||
Microphone in |
No | |||
Quick start guide |
Yes | |||
HDMI ports quantity |
1 | |||
DisplayPorts quantity |
2 | |||
Display technology |
LCD | |||
Wi-Fi |
No | |||
Display diagonal |
60.5 cm (23.8") | |||
Backlight type |
Edge LED | |||
Voltage |
DC 5 V | |||
Built-in camera |
No | |||
Power consumption (max) |
72 W | |||
Power consumption (typical) |
13.7 W | |||
HDCP |
Yes | |||
Response time |
8 ms | 5 ms (grey-to-grey) | ||
HD type |
Full HD | |||
Contrast ratio (typical) |
1000:1 | |||
Viewing angle, horizontal |
178° | |||
Viewing angle, vertical |
178° | |||
Native aspect ratio |
16:9 | |||
Built-in speaker(s) |
No | |||
VESA mounting |
Yes | |||
Swivelling |
Yes | |||
Tilt adjustment |
Yes | |||
Height adjustment |
YES | |||
Cable lock slot |
Yes | |||
Horizontal scan range |
31 - 135 kHz | |||
Vertical scan range |
48 - 120 Hz | |||
Viewable size, horizontal |
52.7 cm | |||
Viewable size, vertical |
29.6 cm | |||
USB hub version |
3.2 Gen 2 (3.1 Gen 2) | |||
USB Type-A downstream ports quantity |
3 | |||
NVIDIA G-SYNC |
No | |||
Swivel angle range |
-45 - 45° | |||
Pivot |
YES | |||
Pivot angle |
-90 - 90° | |||
Power consumption (standby) |
0.5 W | |||
Width (with stand) |
538.6 mm | |||
Depth (with stand) |
181.8 mm | |||
Height (with stand) |
496.5 mm | |||
Panel type |
IPS | IPS | ||
Aspect ratio |
16:9 | |||
Maximum refresh rate |
120 Hz | |||
HDMI version |
1.4 | |||
DisplayPort version |
1.4 | |||
HDMI |
Yes | |||
Touchscreen |
No | |||
Display number of colours |
16.7 million colours | |||
Power consumption (off) |
0.3 W | |||
Pixel pitch |
0.2745 x 0.2745 mm | 0.16 mm | ||
Pixel density |
92.53 ppi | |||
Display diagonal (metric) |
60.47 cm | |||
Contrast ratio |
700:1 | |||
Input current |
1.5 A | |||
Garantija |
36 | |||
USB Type-C downstream ports quantity |
1 | |||
USB upstream port type |
USB Type-C | |||
PRODUCT DESCRIPTION |
ASUS ZenScreen MB14AC - LED monitor - Full HD (1080p) - 14" | |||
Category Code |
LC3 | |||
Vendor Homepage |
https://www.dahuasecurity.com/ro/products/All-Products/Display--Control/Monitors/Gaming-Series/LM34-E330CA V1 | |||
Native resolution |
Full HD (1080p) 1920 x 1080 | |||
AC (power) in |
Yes | |||
AC input voltage |
100 - 240 V | |||
Cable lock slot type |
Kensington | |||
PC Audio in |
No | |||
Brightness |
220 cd/m | |||
AC input frequency |
50/60 Hz | |||
Supported graphics resolutions |
1920 x 1080 (HD 1080) | |||
Operating altitude |
0 - 5000 m | |||
On Screen Display (OSD) |
Yes | |||
Supported video modes |
720p | |||
Energy Class |
Class B | |||
Power Consumption (On mode) |
5 W | |||
Input Connectors |
USB-C | |||
Compliant Standards |
UL, VCCI, BSMI, cUL, WHQL, CB, CCC, FCC, RoHS, KCC, WEEE, UkrSEPRO, RCM, CU-EAC, TUV Rheinland Low Blue Light Certification, TUV Rheinland Flicker Free Certification | |||
Environmental Standards |
ENERGY STAR Qualified | |||
Screen Coating |
Anti-glare | |||
Colour Gamut |
85% | |||
MODEL |
DHI-LM34-E330CA | |||
Stand included |
Yes | |||
Screen shape |
Flat | |||
Built-in USB hub |
Yes | |||
Non-operating altitude |
5000 - 12192 m | |||
Feet colour |
Silver | |||
Heavy metals free |
Hg (mercury) | |||
Product colour |
Black | |||
Market positioning |
Business | |||
Energy consumption (SDR) per 1000 hours |
14 kWh | |||
Energy efficiency class (SDR) |
D | |||
Width (without stand) |
538.6 mm | |||
Weight (with stand) |
5.09 kg | |||
Height (without stand) |
311.2 mm | |||
Depth (without stand) |
49.1 mm | |||
Flicker-free technology |
Yes | |||
AMD FreeSync |
No | |||
Low Blue Light technology |
Yes | |||
Display resolution |
1920 x 1080 pixels | |||
Display brightness (typical) |
250 cd/m² | |||
Surface hardness |
3H | |||
Tilt angle range |
-5 - 21° | |||
Panel mounting interface |
100 x 100 mm | |||
Sustainability certificates |
ENERGY STAR | |||
Weight (without stand) |
3.52 kg | |||
RGB colour space |
DCI-P3 | |||
Response time (fast) |
5 ms | |||
sRGB coverage (typical) |
100% | |||
High Dynamic Range (HDR) supported |
No | |||
Energy efficiency scale |
A to G | |||
Anti-glare screen |
Yes | |||
Energy efficiency class (HDR) |
Not available | |||
HDCP version |
1.4 | |||
Viewable size diagonal |
60.5 cm | |||
Number of USB Type-C upstream ports quantity |
1 | |||
DisplayPort cable length |
1.8 m | |||
Front bezel colour |
Black | |||
Power adapter included |
Yes | |||
Bezel width (bottom) |
8.95 mm | |||
Bezel width (side) |
5.8 mm | |||
Bezel width (top) |
5.8 mm | |||
Doesn't contain |
PVC/BFR | |||
Sustainability compliance |
Yes | |||
Remote control included |
No | |||
Stylus included |
No | |||
European Product Registry for Energy Labelling (EPREL) code |
1585527 | |||
Energy Label QR Code URL |
Https://eprel.ec.europa.eu/qr/419756 | |||
Warnings |
Unplug the monitor from the power source before cleaning. | |||
Product Net Weight |
7.3 kg | |||
Unit Calculated Weight |
10.2 kg | |||
Unit Calculated Volume |
0.038 cubm | |||
CnCode |
85285210 | |||
Energy Efficiency (EPREL Registration Number) |
2383609 | |||
Energy Efficiency (EPREL Version Number) |
1 | |||
Energy Efficiency (Data Sheet (Link)) |
https://eprel.ec.europa.eu/api/product/2383609/fiches?language EN | |||
Energy Efficiency (Energy efficiency class) |
F | |||
Summary |
Dahua Technology LM34-E330CA. Display diagonal: 86.4 cm (34" ), Display resolution: 3440 x 1440 pixels, HD type: UltraWide Quad HD, Display technology: LCD, Response time: 1 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178° , Viewing a | |||
Packaging data (Package width) |
21124 mm | |||
Packaging data (Package depth) |
193 mm | |||
Packaging data (Package height) |
1468 mm | |||
Packaging data (Package weight) |
10200 g | |||
Display (Display diagonal) |
34 " | |||
Display (Display resolution) |
3440 x 1440 pixels | |||
Display (Display technology) |
LCD | |||
Display (HD type) |
UltraWide Quad HD | |||
Display (Native aspect ratio) |
21:9 | |||
Display (Screen shape) |
Curved | |||
Display (Viewing angle, horizontal) |
178 | |||
Display (Viewing angle, vertical) |
178 | |||
Ports & interfaces (HDMI ports quantity) |
2 | |||
Ports & interfaces (HDMI version) |
2.0 | |||
Design (Product colour) |
Black | |||
Power (Power consumption (standby)) |
0.5 W | |||
Weight & dimensions (Depth (without stand)) |
132.1 mm | |||
Weight & dimensions (Height (without stand)) |
361.5 mm | |||
Weight & dimensions (Width (without stand)) |
810 mm | |||
Weight & dimensions (Weight (without stand)) |
7300 g | |||
Power (Power consumption (max)) |
70 W | |||
Power (Power consumption (typical)) |
47 W | |||
Display (Contrast ratio (typical)) |
3500:1 | |||
Display (Display brightness (typical)) |
300 cd/m | |||
Display (Maximum refresh rate) |
200 Hz | |||
Display (Panel type) |
VA | |||
Display (Pixel pitch) |
0.2318 x 0.2318 mm | |||
Display (Response time) |
1 ms | |||
Display (Touchscreen) |
No | |||
Display (Viewable size, horizontal) |
797.22 mm | |||
Display (Viewable size, vertical) |
333.72 mm | |||
Performance (Flicker-free technology) |
Yes | |||
Performance (Low Blue Light technology) |
Yes | |||
Multimedia (Built-in camera) |
No | |||
Multimedia (Built-in speaker(s)) |
No | |||
Design (Market positioning) |
Gaming | |||
Ports & interfaces (Built-in USB hub) |
No | |||
Ports & interfaces (DisplayPort version) |
1.4 | |||
Ports & interfaces (DisplayPorts quantity) |
2 | |||
Ports & interfaces (HDMI) |
Yes | |||
Ports & interfaces (Headphone out) |
Yes | |||

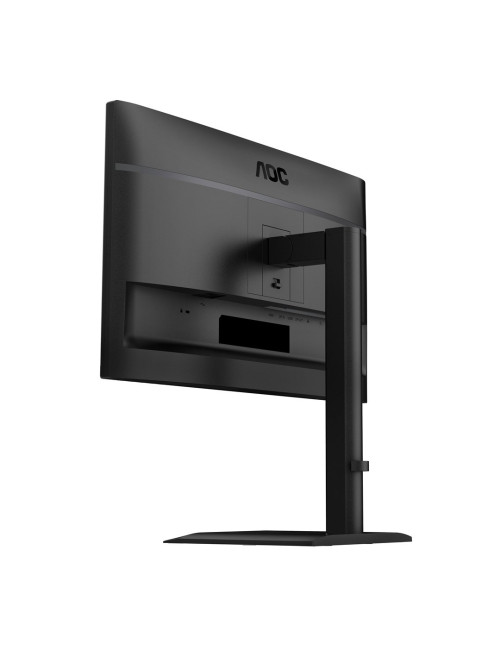

Ergonomics (Height adjustment) |
Yes | |||
Ergonomics (Panel mounting interface) |
100 x 100 mm | |||
Ergonomics (Tilt adjustment) |
Yes | |||
Ergonomics (Tilt angle range) |
-5 - 15 | |||
Ergonomics (VESA mounting) |
Yes | |||
Display (High Dynamic Range (HDR) supported) |
Yes | |||
Display (High Dynamic Range (HDR) technology) |
High Dynamic Range 10 (HDR10) | |||
Power (Power supply type) |
External | |||
Ergonomics (Adjustable height (max)) |
100 mm | |||
Ergonomics (Swivel angle range) |
-35 - 35 | |||
Ergonomics (Swivelling) |
Yes | |||
Display (Screen curvature rating) |
1500R | |||
Display (Colour depth) |
8 bit | |||
Display (Backlight type) |
Edge LED | |||
Display (Haze rate) |
25 % | |||
Display (NTSC coverage (typical)) |
85 % | |||
Power (AC adapter output voltage) |
19 V | |||
Operational conditions (Operating relative humidity (H-H)) |
10 - 85 % | |||
Operational conditions (Operating temperature (T-T)) |
0 - 40 C | |||
Operational conditions (Storage relative humidity (H-H)) |
5 - 90 % | |||
Operational conditions (Storage temperature (T-T)) |
-20 - 60 C | |||
Power (Input current) |
3.42 A | |||
