- FHD resolution
- VA panel
- USB hub
- 75 Hz refresh rate
- Adaptive sync
- Display port
- Frameless design
- Flicker free
- Low blue light
- Full ergonomics
- Height adjustable stand
Product Details
Data sheet
- Colour
- Black
- Weight
- 4.75 kg
- Device type
- LED-backlit LCD monitor - 24"
- Features
- USB 3.2 Gen 1 hub
- Voltage
- AC 100-240 V (50/60 Hz)
- Response time
- 4 ms (grey-to-grey)
- Panel type
- VA
- Aspect ratio
- 16:9
- Pixel pitch
- 0.2745 mm
- Contrast ratio
- 3000:1 / 50000000:1 (dynamic)
- PRODUCT DESCRIPTION

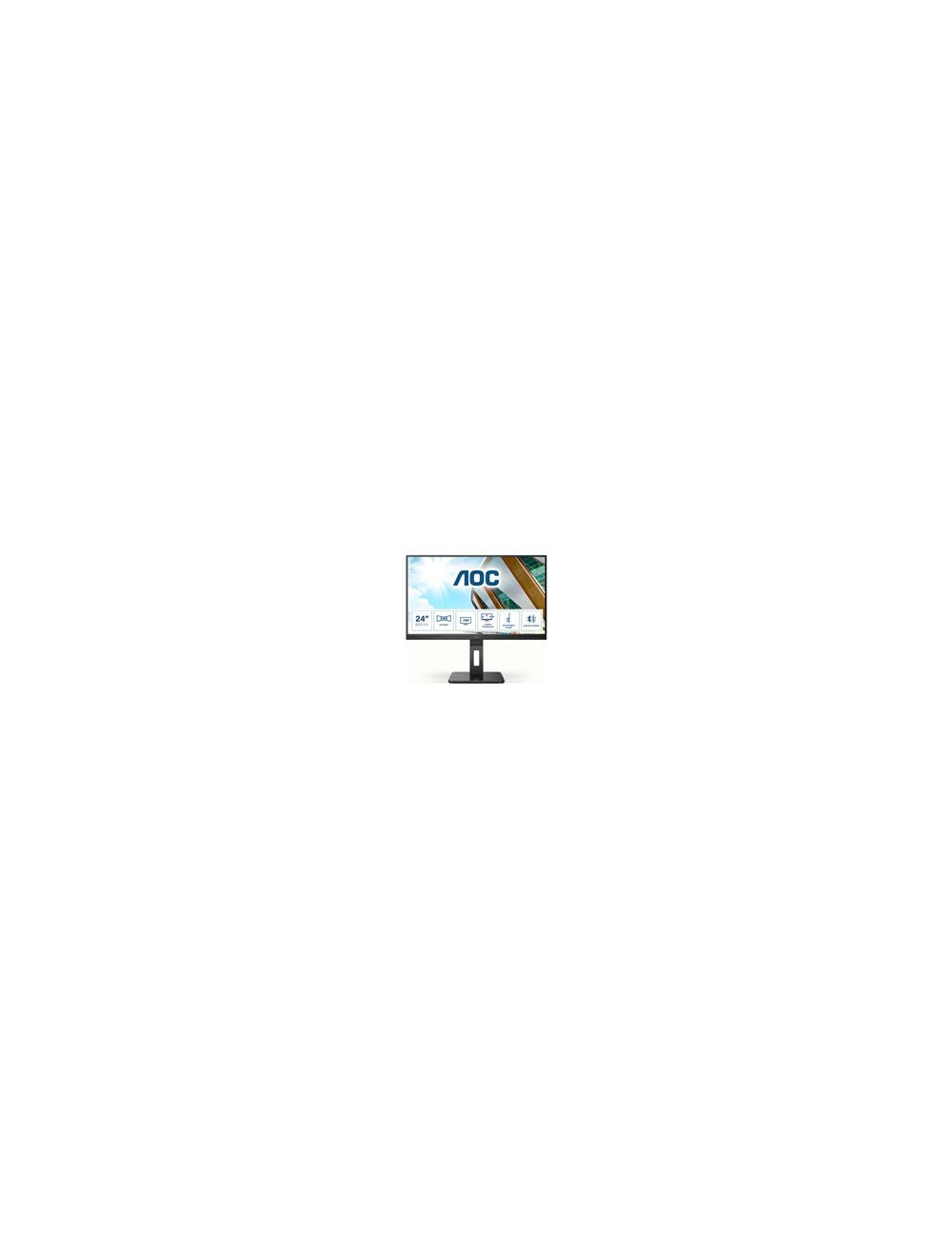

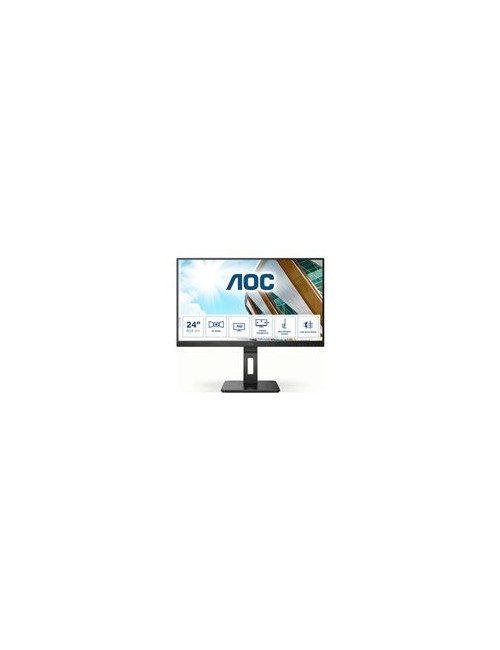

- AOC Pro-line 24P2QM - P2 Series - LED monitor - Full HD (1080p) - 24"
- Native resolution
- Full HD (1080p) 1920 x 1080 at 75 Hz
- Brightness
- 300 cd/m
- Manufacturer Warranty
- 3-year warranty
- Colour Support
- 16.7 million colours
- Input Connectors
- HDMI, DVI, DisplayPort, VGA
- Display Position Adjustments
- Height, pivot (rotation), swivel, tilt
- Compliant Standards
- DisplayPort 1.2, HDCP 1.4
- Dimensions (WxDxH) - with stand
- 54.02 cm x 20.1 cm x 51.3 cm
- Environmental Standards
- TCO Certified Displays 9
- Screen Coating
- Anti-glare, 6H Hard Coating
- Colour Gamut
- 90% NTSC (CIE 1931), 94% Adobe RGB (CIE 1931), 113% NTSC (CIE 1976), 127% sRGB (CIE 1931), 94% DCI-P3 (CIE 1931), 129% sRGB (CIE 1976), 103% DCI-P3 (CIE 1976), 111% Adobe RGB (CIE 1976)
Quick Compare
Product |
|
|
Lenovo Legion 27-10 27"FHD 300nits IPS 240Hz AG HDMI DP Raven Black 3Y
|
|
Availability |
|
|
|
|
Price |
€150.77
|
€151.04
|
€151.04
|
€151.04
|
Description |
||||
Windows operating systems supported |
Windows 10 | Windows 10 | Windows 10 | |
Package type |
Box | |||
Package depth |
224 mm | 112 mm | 170 mm | 145 mm |
Package height |
446 mm | 422 mm | 462 mm | 420 mm |
Package width |
730 mm | 734 mm | 706 mm | 615 mm |
Package weight |
8.4 kg | 7.3 kg | 6.3 kg | |
Headphone connectivity |
3.5 mm | 3.5 mm | ||
Cables included |
DisplayPort | HDMI | DisplayPort | |
Storage relative humidity (H-H) |
5 - 95% | 5 - 95% | ||
Operating temperature (T-T) |
0 - 40 °C | 0 - 40 °C | ||
Operating relative humidity (H-H) |
8 - 80% | 10 - 80% | ||
Storage temperature (T-T) |
-20 - 60 °C | -20 - 60 °C | ||
Built-in microphone |
No | |||
Headphone out |
Yes | No | No | No |
Power supply type |
Internal | Internal | Internal | |
Quick start guide |
Yes | Yes | Yes | |
Audio output |
Yes | Yes | ||
HDMI ports quantity |
2 | 1 | 2 | 2 |
DisplayPorts quantity |
1 | 1 | 1 | 1 |
Display technology |
LCD | LCD | LCD | LCD |
Display diagonal |
68.6 cm (27") | 60.5 cm (23.8") | 68.6 cm (27") | 62.2 cm (24.5") |
Backlight type |
LED | W-LED | W-LED | W-LED |
Power cable length |
1.8 m | |||
Built-in camera |
No | No | No | No |
VGA (D-Sub) ports quantity |
1 | |||
LED backlight |
Yes | Yes | Yes | |
Power consumption (max) |
66 W | 36 W | 43 W | |
Power consumption (typical) |
16 W | 12 W | 20 W | 24.5 W |
HDCP |
Yes | |||
Response time |
1 ms | 6 ms | 4 ms | 6 ms |
HD type |
Full HD | Full HD | Full HD | Full HD |
Contrast ratio (typical) |
1000:1 | 1500:1 | 1000:1 | 1000:1 |
Viewing angle, horizontal |
178° | 178° | 178° | 178° |
Viewing angle, vertical |
178° | 178° | 178° | 178° |
Native aspect ratio |
16:9 | 16:9 | 16:9 | 16:9 |
Built-in speaker(s) |
Yes | No | No | No |
VESA mounting |
Yes | Yes | Yes | Yes |
Swivelling |
Yes | Yes | Yes | Yes |
Tilt adjustment |
Yes | Yes | Yes | Yes |
Height adjustment |
YES | YES | YES | YES |
Cable lock slot |
Yes | Yes | Yes | Yes |
Viewable size, horizontal |
59.8 cm | 52.7 cm | 59.7 cm | 54.4 cm |
Viewable size, vertical |
33.6 cm | 29.6 cm | 33.6 cm | 30.3 cm |
USB hub version |
3.2 Gen 1 (3.1 Gen 1) | |||
Number of upstream ports |
1 | |||
USB Type-A downstream ports quantity |
3 | |||
RMS rated power |
4 W | |||
NVIDIA G-SYNC |
Yes | No | Yes | Yes |
Swivel angle range |
-15 - 15° | -45 - 45° | -30 - 30° | -30 - 30° |
Pivot |
YES | YES | YES | YES |
Pivot angle |
-90 - 90° | -90 - 90° | -90 - 90° | -90 - 90° |
Power consumption (standby) |
0.5 W | 0.5 W | 0.5 W | |
Width (with stand) |
615 mm | 539.8 mm | 613.1 mm | 557 mm |
Depth (with stand) |
215 mm | 190 mm | 214 mm | 214 mm |
Height (with stand) |
547 mm | 536.5 mm | 514.3 mm | |
Panel type |
IPS | IPS | IPS | IPS |
Maximum refresh rate |
180 Hz | 120 Hz | 240 Hz | 320 Hz |
HDMI version |
2.0 | 1.4 | 2.1 | 2.1 |
DisplayPort version |
1.4 | 1.2 | 1.4 | 1.4 |
Contrast ratio (dynamic) |
3000000:1 | 3000000:1 | 3000000:1 | |
Number of speakers |
2 | |||
HDMI |
Yes | Yes | Yes | Yes |
Touchscreen |
No | No | No | No |
Display number of colours |
16.7 million colours | 16.7 million colours | 16.7 million colours | 16.7 million colours |
Power consumption (off) |
0.3 W | 0.3 W | 0.3 W | 0.3 W |
Pixel pitch |
0.311 x 0.311 mm | 0.2745 x 0.2745 mm | 0.3108 x 0.3108 mm | 0.2832 x 0.2802 mm |
Pixel density |
95 ppi | 82 ppi | 90 ppi | |
Display diagonal (metric) |
69 cm | |||
USB Type-C downstream ports quantity |
1 | |||
USB upstream port type |
USB Type-B | |||
Warranty card |
Yes | |||
Headphone outputs |
1 | |||
AC input voltage |
100 - 240 V | 100 - 240 V | 100 - 240 V | 100 - 240 V |
Cable lock slot type |
Kensington | Kensington | Kensington | Kensington |
Power consumption (PowerSave) |
0.5 W | |||
AC input frequency |
50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
Digital horizontal frequency |
30 - 225 kHz | |||
Cable management |
Yes | Yes | ||
Colour Gamut |
90% | 99% | ||
Stand included |
Yes | Yes | Yes | |
Colour depth |
8 bit | 8 bit | 8 bit | |
Wall mountable |
Yes | |||
Screen shape |
Flat | Flat | Flat | Flat |
Built-in USB hub |
No | Yes | No | |
Feet colour |
Black | Black | Black | Black |
Product colour |
Black | Black | Black | Black |
Market positioning |
Gaming | Gaming | Gaming | |
Energy consumption (SDR) per 1000 hours |
17 kWh | 12 kWh | 21 kWh | 19 kWh |
Energy efficiency class (SDR) |
D | C | E | E |
Width (without stand) |
615 mm | 539.8 mm | 613.1 mm | 557 mm |
Weight (with stand) |
5.9 kg | 5.1 kg | 6 kg | 5.2 kg |
Height (without stand) |
369 mm | 314.8 mm | 366.4 mm | 332.1 mm |
Depth (without stand) |
60 mm | 45.3 mm | 42.3 mm | 47.2 mm |
Flicker-free technology |
Yes | Yes | ||
AMD FreeSync |
Yes | No | Yes | Yes |
Low Blue Light technology |
Yes | Yes | Yes | Yes |
Display resolution |
1920 x 1080 pixels | 1920 x 1080 pixels | 1920 x 1080 pixels | 1920 x 1080 pixels |
Display brightness (typical) |
350 cd/m² | 250 cd/m² | 300 cd/m² | 300 cd/m² |
Digital vertical frequency |
48 - 180 Hz | |||
Tilt angle range |
-5 - 23° | -5 - 23° | -5 - 22° | -5 - 22° |
Panel mounting interface |
100 x 100 mm | 100 x 100 mm | 100 x 100 mm | 100 x 100 mm |
Weight (without stand) |
3.7 kg | 3 kg | 3.9 kg | 3.1 kg |
Response time (fast) |
4 ms | |||
sRGB coverage (typical) |
125% | 99% | 99% | 99% |
High Dynamic Range (HDR) supported |
Yes | Yes | Yes | |
Energy efficiency scale |
A to G | A to G | A to G | A to G |
AMD FreeSync type |
FreeSync Premium | FreeSync Premium | FreeSync Premium | |
Anti-glare screen |
Yes | Yes | Yes | Yes |
Energy efficiency class (HDR) |
G | Not available | F | G |
Energy consumption (HDR) per 1000 hours |
34 kWh | 23 kWh | 26 kWh | |
NVIDIA G-SYNC type |
G-SYNC Compatible | G-SYNC Compatible | G-SYNC Compatible | |
High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10) | High Dynamic Range 10 (HDR10) | High Dynamic Range 10 (HDR10) | |
Motion blur reduction |
Yes | |||
HDCP version |
2.2 | |||
Display brightness (peak) |
400 cd/m² | |||
VESA Adaptive Sync support |
Yes | |||
DisplayPort cable length |
1.8 m | |||
Front bezel colour |
Black | Black | ||
Game mode |
Yes | |||
DCI-P3 coverage |
80% | |||
Bezel width (bottom) |
1.05 cm | 2 cm | 2.04 cm | |
Bezel width (side) |
2 mm | 1.8 mm | 1.8 mm | |
Bezel width (top) |
2 mm | 1.8 mm | 1.8 mm | |
Number of USB Type-B upstream ports quantity |
1 | |||
USB Power Delivery up to |
15 W | |||
Colour name |
Raven Black | Raven Black | Eclipse Black | |
Screws included |
Yes | Yes | ||
Colour gamut standard |
DCI-P3 | Rec. 709 | ||
European Product Registry for Energy Labelling (EPREL) code |
1806419 | 2195670 | 2342409 | 2338560 |
Response time (MPRT) |
0.5 ms | 0.5 ms | ||
USB Power Delivery (USB PD) |
Yes | |||
Adjustable height (max) |
12 cm | 15.5 cm | 13.5 cm | 13.5 cm |
Warnings |
Do not expose to water or excessive moisture. | Place the monitor on a flat and stable surface to avoid tipping and damage. | Unplug the monitor from the power source before cleaning. | |
