- 24-inch Full HD (1080p) display with WLED backlight for vivid image clarity
- Comprehensive color coverage with 102.5% sRGB and 75.7% DCI-P3
- Versatile connectivity with HDMI and USB-C interfaces, including a built-in USB hub
- Ergonomic design with height and tilt adjustments for optimal viewing comfort
- Eye comfort technologies including Flicker-Free and Low Blue Light Mode
Product Details
Data sheet
- Colour
- Black
- Weight
- 4.56 kg
- Device type
- LED-backlit LCD monitor - 24"
- Features
- USB 3.2 Gen 1/USB-C hub, USB PD 65 Watt
- Voltage
- AC 100-240 V (50/60 Hz)
- Response time
- 4 ms (grey-to-grey), 1 ms (MPRT)
- Panel type
- IPS
- Aspect ratio
- 16:9
- Pixel pitch
- 0.2745 mm
- Contrast ratio
- 1300:1 / 20000000:1 (dynamic)
- PRODUCT DESCRIPTION

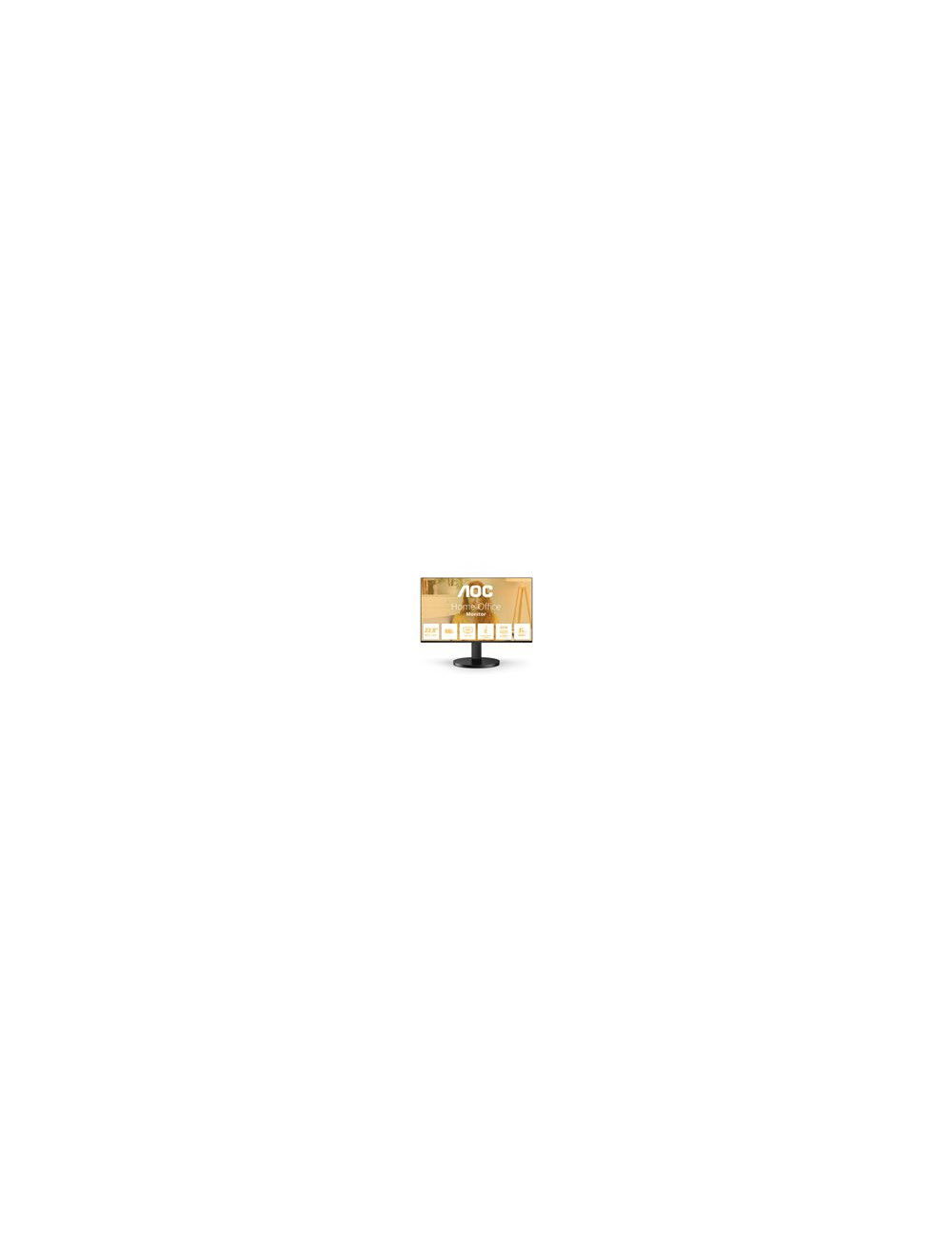

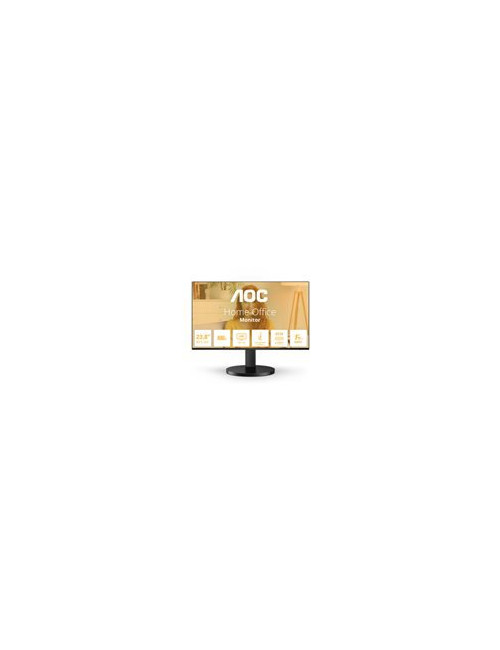

- AOC Basic-line 24B3CF2 - LED monitor - Full HD (1080p) - 24" - HDR
- Native resolution
- Full HD (1080p) 1920 x 1080 at 100 Hz
- Brightness
- 250 cd/m
- Manufacturer Warranty
- 3-year warranty
- Energy Class
- Class E
- Adaptive-Sync Technology
- AMD Adaptive-Sync
- Colour Support
- 16.7 million colours
- Input Connectors
- HDMI, USB-C
- Display Position Adjustments
- Height, tilt
- Compliant Standards
- Plug and Play, DDC/CI, HDCP 1.4
- Screen Coating
- Anti-glare, 3H Hard Coating, Haze 25%
- Colour Gamut
- 81.6% DCI-P3 (CIE 1976), 87.8% Adobe RGB (CIE 1976), 102.5% sRGB (CIE 1976), 89.4% NTSC (CIE 1976), 102.5% BT.709 (CIE 1976), 59.5% BT.2020 (CIE 1976), 102.7% sRGB (CIE 1931), 75.7% DCI-P3 (CIE 1931), 76.1% Adobe RGB (CIE 1931), 72.7% NTSC (CIE 1931), 102
- Dimensions (WxDxH) - with stand (highest position)
- 54.24 cm x 22.98 cm x 46.99 cm
