IIYAMA

    IIYAMA 217.4cm TE8612MIS-B4AG 16:9 M-Touch

    €2,209.37
    Tax included
    Quantity

    Product Details

    WLONONWCRNZCB
    2 Items

    Data sheet

    Plug and Play
    Yes
    Purpose
    Universal
    Package depth
    2110 mm
    Package height
    1291 mm
    Package width
    2110 mm
    Package weight
    64.5 kg
    Batteries included
    Yes
    Headphone connectivity
    3.5 mm

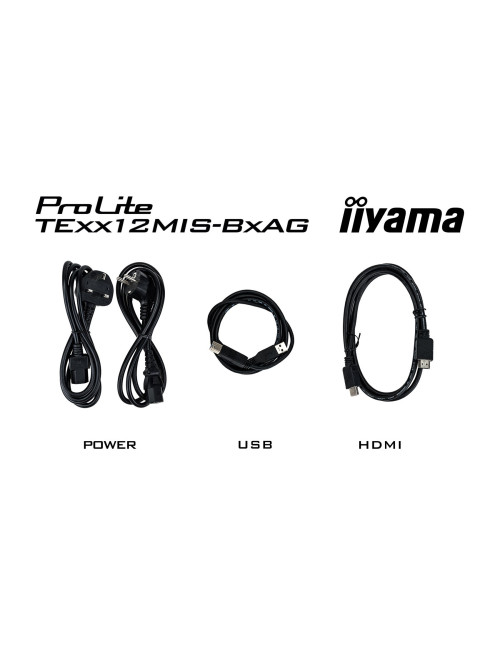

    Cables included
    AC
    Operating temperature (T-T)
    0 - 40 °C
    Storage temperature (T-T)
    -20 - 60 °C
    Mounting type
    Wall
    USB port
    Yes
    Power supply type
    Internal
    Quick start guide
    Yes
    Audio output
    3.5mm
    Mean time between failures (MTBF)
    50000 h
    Processor family
    ARM Cortex
    HDMI ports quantity
    3
    DisplayPorts quantity
    1
    Display technology
    LCD
    Wi-Fi
    Yes
    Internal memory
    8 GB
    Compatible memory cards
    MicroSD (TransFlash)
    Wi-Fi standards
    Wi-Fi 6 (802.11ax)
    Operating system installed
    Android
    Internal storage capacity
    128 GB
    Display diagonal
    2.17 m (85.6")
    Operating system version
    14
    Backlight type
    Direct LED
    USB version
    3.2 Gen 1 (3.1 Gen 1)
    USB ports quantity
    5
    LED backlight
    Yes
    Power consumption (typical)
    181 W
    HDCP
    Yes
    Display brightness
    400 cd/m²
    Response time
    6.5 ms
    HD type
    4K Ultra HD
    Contrast ratio (typical)
    1200:1
    Viewing angle, horizontal
    178°
    Viewing angle, vertical
    178°
    Native aspect ratio
    16:9
    Built-in speaker(s)
    Yes
    VESA mounting
    Yes
    Horizontal scan range
    30 - 135 kHz
    RMS rated power
    32 W
    On Screen Display (OSD) languages
    Swedish
    Power consumption (standby)
    0.5 W
    Placement supported
    Indoor
    Panel type
    IPS
    HDMI version
    2.0
    DisplayPort version
    1.2
    Contrast ratio (dynamic)
    4000:1
    Card reader integrated
    Yes
    Touchscreen
    Yes
    DisplayPorts in
    1
    Display number of colours
    1.07 billion colours
    Power consumption (off)
    0.3 W
    Pixel pitch
    0.493 x 0.493 mm
    Display diagonal (metric)
    217.4 cm
    Ethernet LAN (RJ-45) ports
    1
    LED backlighting type
    Direct-LED
    Touchscreen technology
    PureTouch-IR
    Housing material
    Metal
    Ethernet LAN data rates
    1000
    Ethernet LAN
    Yes
    USB connector type
    USB Type-A
    Headphone outputs
    1
    AC input voltage
    100 - 240 V
    PC Audio in
    Yes
    AC input frequency
    50/60 Hz
    RS-232C
    Yes
    Number of built-in speakers
    2
    On Screen Display (OSD)
    Yes
    Orientation
    Horizontal
    Built-in processor
    Yes
    Product colour
    Black
    Energy consumption (SDR) per 1000 hours
    181 kWh
    Energy efficiency class (SDR)
    G
    Display resolution
    3840 x 2160 pixels
    Surface hardness
    7H
    Panel mounting interface
    800 x 600
    Energy efficiency scale
    A to G
    Anti-glare screen
    Yes
    Number of OSD languages
    14
    HDCP version
    2.2
    Bezel width (bottom)
    3 cm
    Bezel width (side)
    1.65 cm
    Bezel width (top)
    1.65 cm
    Active display area (W x H)
    1895 x 1066 mm
    USB Power Delivery up to
    65 W
    Warranty period
    5 year(s)
    Remote control included
    Yes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
    3
    Processor manufacturer
    ARM
    USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
    2
    On-board graphics card model
    ARM Mali-G52
    Processor architecture
    ARM Cortex-A53+Cortex-A72
    Multi-touch
    Yes
    Glass thickness
    3 mm
    Number of simultaneous touchpoints
    40
    OPS slot
    1
    HDMI output ports quantity
    1
    Product design
    Interactive flat panel
    Operating hours (hours/days)
    24/7
    VGA (D-Sub) input ports
    1
    Computer system
    Yes
    HDMI input ports quantity
    1
    Remote (IR) input
    1
    Audio Return Channel (ARC)
    Yes
    OPS module slot
    Yes
    Compliance certificates
    RoHS
    Display depth
    98 mm
    Display weight
    48.5 kg
    Display height
    1160 mm
    Display width
    1957 mm
    Bezel colour
    black
    USB Power Delivery (USB PD)
    Yes
