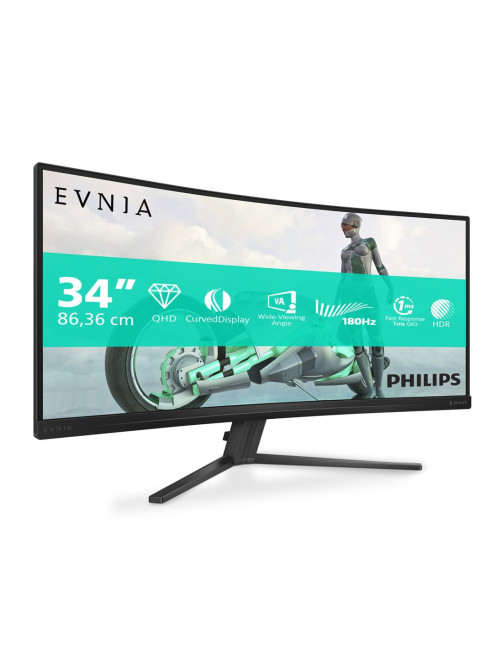

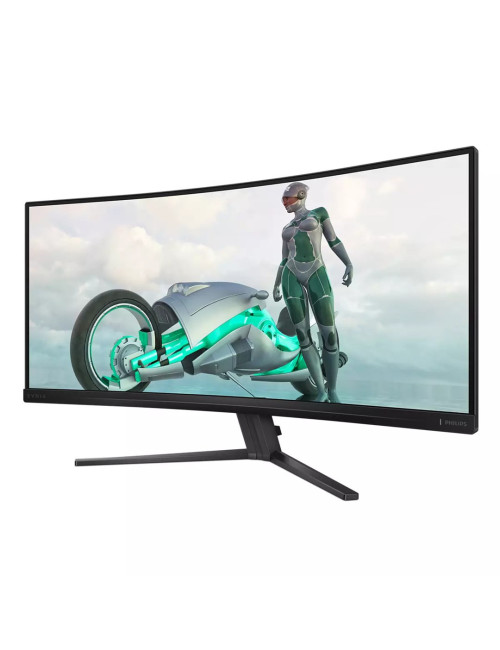

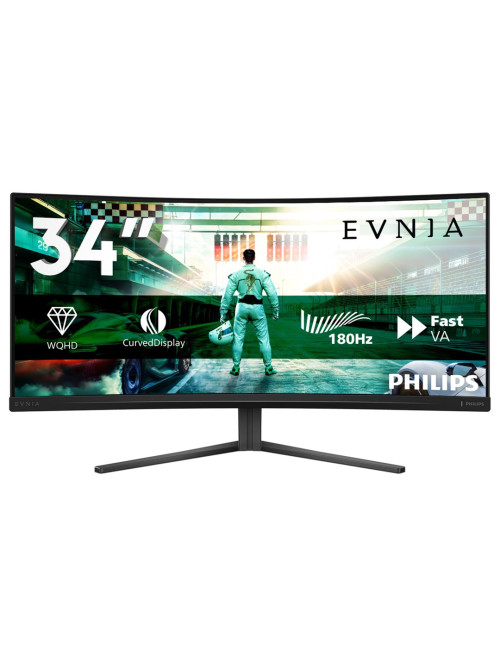

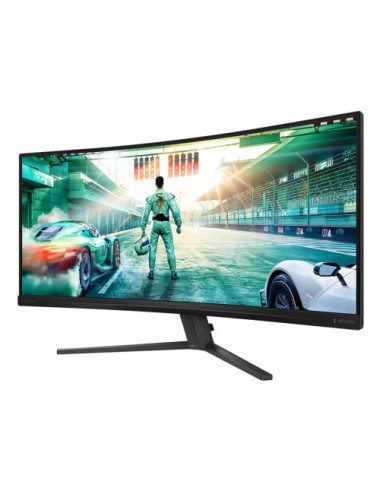

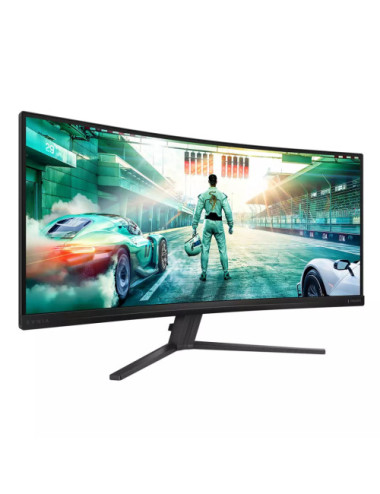

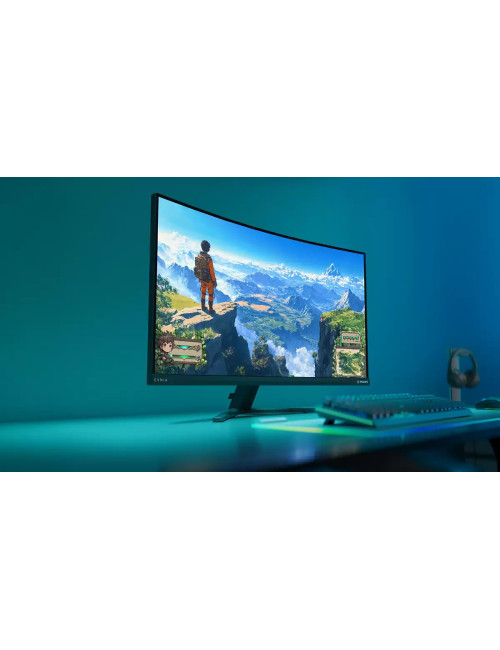

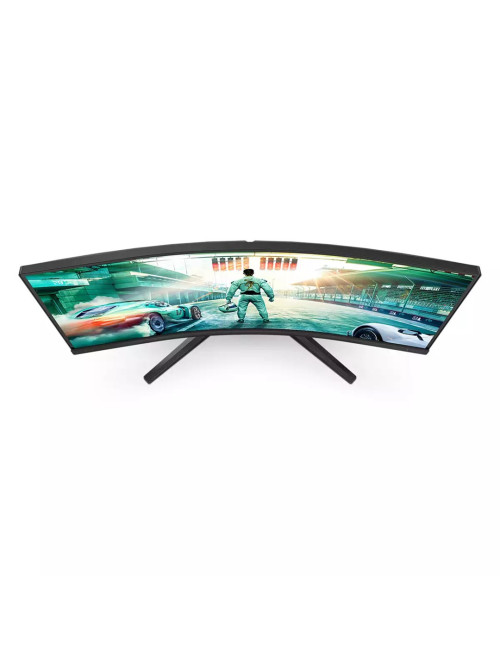

Product Details
Data sheet
- Plug and Play
- Yes
- Package depth
- 188 mm
- Package height
- 480 mm
- Package width
- 930 mm
- Package weight
- 9.47 kg
- Cables included
- AC
- Manual
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
- LED indicators
- Operation
- Headphone out
- Yes
- Power supply type
- Internal
- Audio output
- Yes
- Mean time between failures (MTBF)
- 50000 h

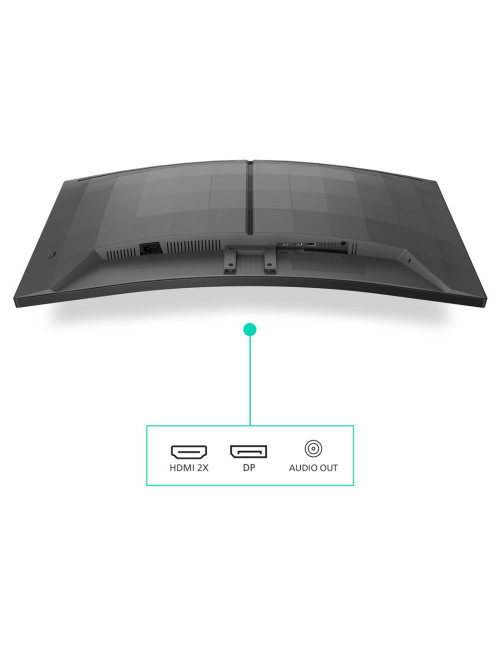

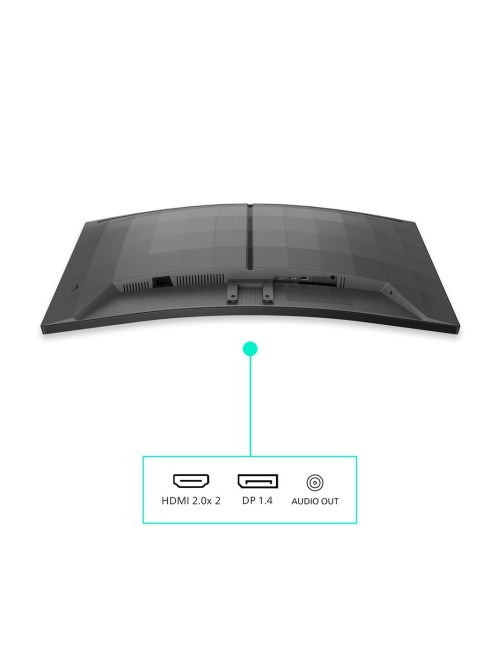

- HDMI ports quantity
- 2
- DisplayPorts quantity
- 2
- Display technology
- LCD
- Display diagonal
- 86.4 cm (34")
- Backlight type
- W-LED
- LED backlight
- Yes
- Power consumption (typical)
- 31 W
- HDCP
- Yes
- Response time
- 1 ms
- HD type
- Wide Quad HD
- Contrast ratio (typical)
- 4000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Native aspect ratio
- 21:9
- VESA mounting
- Yes
- Tilt adjustment
- Yes
- Cable lock slot
- Yes
- Horizontal scan range
- 30 - 255 kHz
- Vertical scan range
- 48 - 180 Hz
- Viewable size, horizontal
- 79.7 cm
- Viewable size, vertical
- 33.4 cm
- DDC/CI
- Yes
- On Screen Display (OSD) languages
- Swedish
- Power consumption (standby)
- 0.5 W
- Width (with stand)
- 808 mm
- Depth (with stand)
- 251 mm
- Height (with stand)
- 464 mm
- Panel type
- Fast VA
- Maximum refresh rate
- 180 Hz
- HDMI version
- 2.0
- DisplayPort version
- 1.4
- HDMI
- Yes
- Touchscreen
- No
- Display sRGB
- Yes
- Display number of colours
- 1.07 billion colours
- Power consumption (off)
- 0.3 W
- Pixel pitch
- 0.23175 x 0.23175 mm
- Pixel density
- 109.68 ppi
- Display diagonal (metric)
- 86.36 cm
- Headphone outputs
- 1
- AC input voltage
- 100 - 240 V
- Cable lock slot type
- Kensington
- AC input frequency
- 50/60 Hz
- Operating altitude
- 0 - 3658 m
- On Screen Display (OSD)
- Yes
- Stand included
- Yes
- Screen shape
- Curved
- Built-in USB hub
- No
- Non-operating altitude
- 0 - 12192 m
- Product colour
- Black
- Market positioning
- Gaming
- Energy consumption (SDR) per 1000 hours
- 31 kWh
- Energy efficiency class (SDR)
- F
- Width (without stand)
- 808 mm
- Weight (with stand)
- 7.33 kg
- Height (without stand)
- 369 mm
- Depth (without stand)
- 69 mm
- Flicker-free technology
- Yes
- Low Blue Light technology
- Yes
- Display resolution
- 3440 x 1440 pixels
- Display brightness (typical)
- 300 cd/m²
- Surface hardness
- 3H

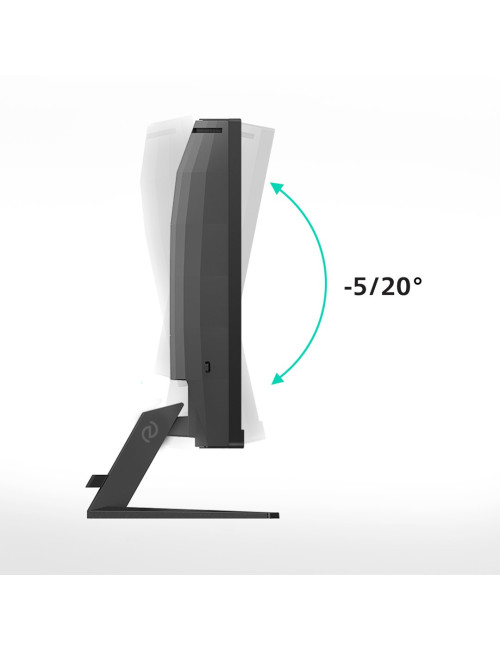

- Tilt angle range
- -5 - 20°
- Panel mounting interface
- 100 x 100 mm
- Weight (without stand)
- 6.5 kg
- sRGB coverage (typical)
- 125%
- High Dynamic Range (HDR) supported
- Yes
- Energy efficiency scale
- A to G
- Anti-glare screen
- Yes

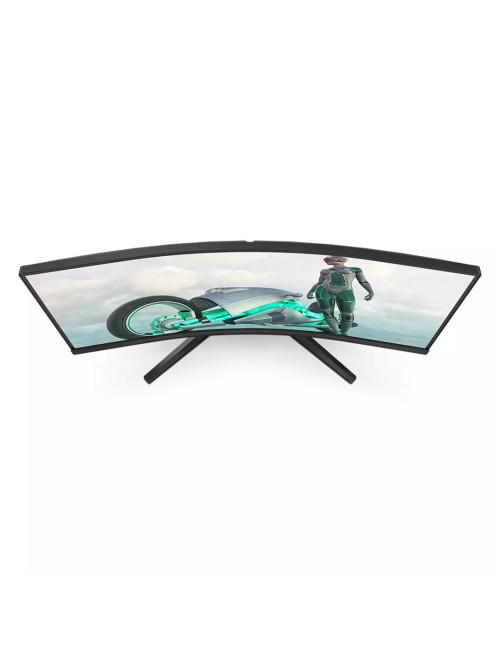

- Screen curvature rating
- 1500R
- Energy efficiency class (HDR)
- G
- Energy consumption (HDR) per 1000 hours
- 60 kWh
- Dynamic contrast ratio marketing name
- Mega Infinity DCR
- High Dynamic Range (HDR) technology
- High Dynamic Range 10 (HDR10)
- NTSC coverage (typical)
- 105%
- Number of OSD languages
- 21
- HDCP version
- 2.2
- VESA Adaptive Sync support
- Yes
- Adobe RGB coverage
- 90%
- Exterior finish type
- Textured
- DCI-P3 coverage
- 94%
- Doesn't contain
- Mercury
- Component video sync
- Separate sync
- EasyRead mode
- Yes
- Picture-in-Picture
- Yes
- Picture-by-Picture (PbP)
- Yes
- Low input lag
- Yes
- Haze rate
- 25%
- Regulatory Approvals
- CB; CE Mark; TUV/ISO9241-307; TUV-BAUART; EAC; EAEU RoHS; UKCA; EMF; FCC; ICES-003; cETLus
- LowBlue mode
- Yes
- Picture enhancement
- SmartImage game
- SmartResponse
- 0.5 ms
- Colour name
- Charcoal
- Philips SmartUniformity
- 93 - 105%
- MultiView
- 2 x Devices; PIP/PBP mode
- Delta E
- 2
- Colour gamut standard
- sRGB
- Compliance certificates
- CB
- Response time measurement type
- GTG (Gray to Gray)
- Monitor sync input signal
- Separate Sync
- User controls
- Power On/Off; Menu/OK; Input/Up; Game Settings/Down; SmartImage game/Back
- Display panel size
- 34 inch/86.36 cm
