Product |
80Plus Bronze PSU | PL650D-FC | 650 W
|

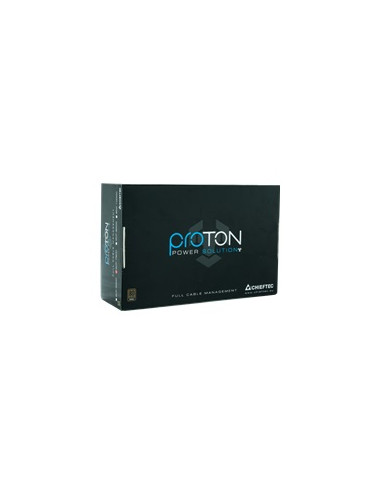

CHIEFTEC BDF 650W CM 80PLUS Bronze PFC
|
Fortron PSU HYDRO K PRO 750
|
CHIEFTEC VITA Series 850W 80 Plus ATX
|
Availability |
|
|
|
|
Price |
€70.67
|
€71.14
|
€71.48
|
€71.86
|
Description |
80Plus Bronze PSU | PL650D-FC | 650 W | With the PROTON series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU. | Fortron PSU HYDRO K PRO 750 |
The Chieftec VITA Series BPX-850-S power supply is a cornerstone for building a reliable, high-performance PC or server system. With its 850 watts of power, it is designed to support demanding computing tasks while ensuring energy efficiency through its 80 PLUS Bronze certification. The power supply is equipped with a 120 mm cooling fan that features speed control, allowing it to operate quietly while effectively dissipating heat. Its compatibility with ATX12V 2.53 specification and a variety of connectors, including 24 pin ATX and 8 pin PCI Express, makes it a versatile choice for a wide range of system builds. Safety is a paramount concern, and the BPX-850-S addresses this with multiple protection features, including overcurrent, overload, overvoltage, and short-circuit protection, a |
Warranty |
60 month(s) | 24 month(s) | ||
Producer product name |
PL650D-FC | HYDRO K PRO 750 | ||
Net weight |
1.10 kg | 1.577 kg | ||
Gross weight |
1.40 kg | 2.077 kg | ||
WEEE tax |
No | Yes | ||
Packing quantity |
1.00 pc(s) | 8 pc(s) | ||
Gross depth master carton |
434 mm | |||
Gross width master carton |
553 mm | |||
Gross height master carton |
237 mm | |||
Net weight master carton |
16.616 kg | |||
Tare weight master carton |
0.967 kg | |||
Volume (m3) |
0.00 m | 0.00504594 m | ||
Tare weight (kg) |
0.30 kg | 0.50 kg | ||
Gross depth (mm) |
160.00 mm | 97 mm | ||
Gross width (mm) |
150.00 mm | 255 mm | ||
Gross height (mm) |
86.00 mm | 204 mm | ||
WEE classification |
CL109:6:2017-04-01 | |||
Paper/Pasteboard |
240.00 g | 450.00 g | ||
Embeeded battery |
No | No | ||
Dimensions (WxDxH) |
15 cm x 14 cm x 8.7 cm | 15 cm x 14 cm x 8.6 cm | ||
Other features |
Fan size 120mm Protection OCP, OVP, SCP, OPP | |||
Certification |
Bronze | |||
Plastic (No PET) |
60.00 g | 50.00 g | ||
Weight |
1.9 kg | |||
Producer product family |
80Plus Bronze PSU | PSU | ||
Device type |
Power supply - active Power Factor Correction (PFC) - internal | Power supply - active Power Factor Correction (PFC) - plug-in module | ||
Form factor |
ATX | |||
Palette Qty |
419 pc(s) | |||
Input voltage |
AC 115-230 V | AC 100-240 V | ||
Output voltage |
+3.3, +5, 12 V | |||
Output current |
+5V - 22 A +3.3V - 22 A +12V1 - 54.2 A -12V - 0.3 A +5VSB - 2.5 A | +5V - 18 A +3.3V - 18 A +12V - 62.5 A -12V - 0.3 A +5VSB - 3 A | ||
PRODUCT DESCRIPTION |
Chieftec Proton Series BDF-650C - power supply - 650 Watt | Chieftec VITA Series BPX-850-S - power supply - 850 Watt | ||
Cooling System |
140 mm fan | 120 mm fan | ||
Nominal power |
650 W | 750 W | ||
Bearing technology |
Hydraulic | |||
80 PLUS certification |
80 PLUS Bronze | 80 PLUS Bronze | ||
Manufacturer Warranty |
2-year warranty | 2-year warranty | ||
Environmental Standards |
ENERGY STAR | |||
Specification Compliance |
ATX12V 2.3 | ATX12V 2.53 | ||
Power Capacity |
650 Watt | 850 Watt | ||
Output connectors |
1 x power 24 pin ATX with detachable 4 pin section 6 x 15 pin Serial ATA power 3 x 4 PIN internal power 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 8 pin PCI Express power with detachable 2 pin section 1 x 4 PIN mini-power connector | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 8 pin PCI Express power with detachable 2 pin section 2 x Molex | ||
Producer |
Deepcool | |||
|
|
|
|
|
