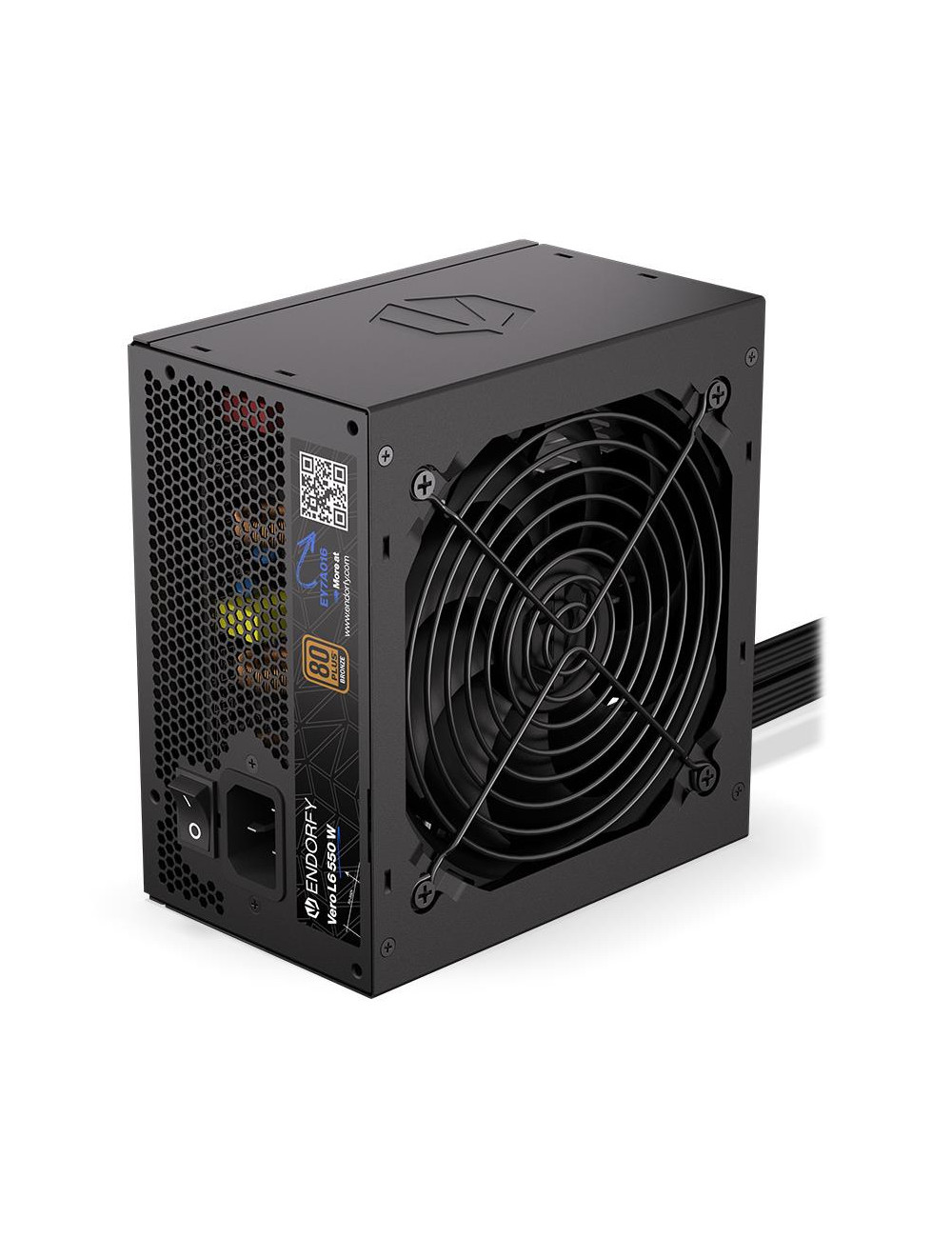

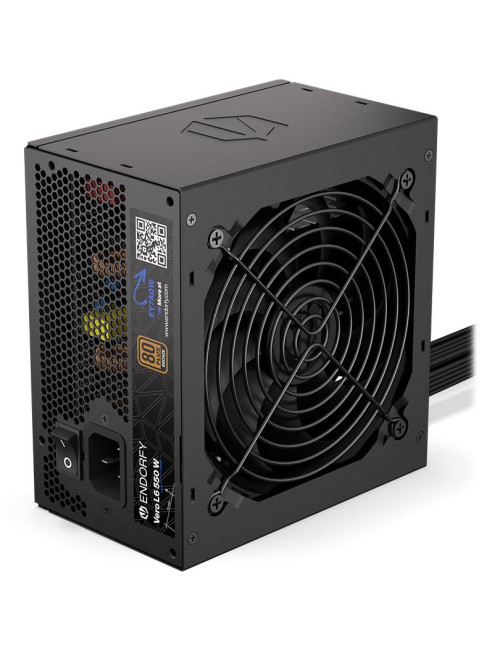

Vero L6 550 W
The Vero L6 550 W delivers the stability you can rely on every day. Built for high-performance and professional setups, it's fully compliant with the ATX 3.1 standard and easily handles next-gen PCIe 5.1 GPUs. Cybenetics Silver and 80 PLUS® Bronze certifications confirm excellent efficiency, while the Cybenetics Noise Rating A- proves quiet operation. Its optimized design and proven Stratus 120 mm fan ensure not only low temperatures but also silent and reliable performance.
Combined with premium-grade capacitors and a comprehensive protection package, the Vero L6 is a piece of hardware you can trust for years to come. Its quality and durability are backed by a 5-year warranty.
ATX 3.1 – ready for next-gen GPUs
The Vero L6 550 W is fully compliant with the ATX 3.1 requirements. Compared to previous ATX versions, it offers improved performance, stability, and capacity for sudden power excursions. The fixed 12V-2x6 300 W cable ensures full compatibility with modern PCIe 5.1 cards, while traditional PCI-E 6+2 PIN connectors are also provided for powering older GPUs.
Quality confirmed by Cybenetics
Thanks to carefully selected components and a refined design, the Vero L6 550 W operates quietly and maintains low temperatures, contributing to a longer lifespan. Its high energy efficiency is confirmed by independent Cybenetics Silver and 80 PLUS® Bronze certifications. The unit has also undergone rigorous testing for acoustic performance and ATX 3.1 compliance – validated by the Cybenetics Noise Rating A- and Cybenetics ATX 3.1 Pass badges.
High-quality capacitors
All capacitors used in the power supply are premium, thoroughly tested components. They maintain their performance even at high operating temperatures (up to 105 °C), ensuring reliable and stable operation even under demanding conditions.
Proven Stratus 120 mm fan
Developed in collaboration with Synergy Cooling, the award-winning Stratus fan keeps the power supply running cool and efficient. Its optimized rotor and frame design, combined with a high-quality FDB bearing, delivers smooth airflow and whisper-quiet operation.
5-year warranty
We’re confident about the quality and reliability of every ENDORFY product. That’s why the Vero L6 550 W power supply comes with a h5-year warranty – a testament to its long-lasting, trouble-free performance.
Protection package
The unit features a full set of electrical and thermal safeguards. This means your system is protected against overloads, voltage spikes, short circuits, and power supply overheating – ensuring stability and safety even in the most unexpected situations.
- ATX 3.1 – ready for next-gen GPUs
- Quality confirmed by Cybenetics
- High-quality capacitors
- Proven Stratus 120 mm fan
- Protection package
Product Details
Data sheet
- Garantija
- 24
- Category Code
- PSU
- Unit Box Height
- 0.1
- Unit Box Length
- 0.22
- Unit Box Width
- 0.27
- Vendor Homepage
- https://endorfy.com/en/product/vero-l6-550-w/
- Units per Shipping Box
- 1
- Unit Calculated Weight
- 2.08 kg
- Unit Calculated Volume
- 0.00594 cubm
- CnCode
- 85044095
- Summary
- ENDORFY Vero L6. Total power: 550 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 57 cm, SATA power cable length: 500,800 mm. Purpose: PC, Power supply unit (PSU) form f
- Weight & dimensions (Weight)
- 1550 g
- Weight & dimensions (Width)
- 150 mm
- Weight & dimensions (Depth)
- 140 mm
- Weight & dimensions (Height)
- 87 mm
- Packaging data (Package width)
- 273 mm
- Packaging data (Package depth)
- 220 mm
- Packaging data (Package height)
- 100 mm
- Packaging data (Package weight)
- 2070 g
- Packaging content (Cables included)
- AC
- Design (Product colour)
- Black
- Power (AC input frequency)
- 50 Hz
- Power (AC input voltage)
- 200 - 240 V
- Packaging data (Manual)
- Yes
- Power (Input current)
- 5 A
- Design (Cooling type)
- Active
- Design (Number of fans)
- 1 fan(s)
- Design (Fan diameter)
- 120 mm
- Design (Illumination)
- No
- Certificates (Compliance certificates)
- CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA
- Power (Combined power (+12V))
- 540 W
- Power (Combined power (+3.3V))
- 100 W
- Power (Combined power (+5V))
- 100 W
- Power (Combined power (+5Vsb))
- 15 W
- Power (Max output current (+12V))
- 45 A
- Power (Max output current (+3.3V))
- 20 A
- Power (Max output current (+5V))
- 20 A
- Power (Max output current (+5Vsb))
- 3 A
- Power (Power protection features)
- Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage
- Power (Total power)
- 550 W
- Ports & interfaces (ATX Power connector (24-pin))
- Yes
- Ports & interfaces (Cabling type)
- Non-Modular
- Ports & interfaces (Motherboard power cable length)
- 570 mm
- Ports & interfaces (Motherboard power connector)
- 24-pin ATX
- Ports & interfaces (Number of SATA power connectors)
- 5
- Ports & interfaces (Peripheral (Molex) power cable length)
- 800 mm
- Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
- 1
- Ports & interfaces (SATA power cable length)
- 500/800 mm
- Performance (80 PLUS certification)
- 80 PLUS Bronze
- Performance (Mean time between failures (MTBF))
- 80000 h
- Performance (Power supply unit (PSU) form factor)
- ATX
- Performance (Purpose)
- PC
- Design (On/off switch)
- Yes
- Logistics data (Warranty period)
- 5 year(s)
- Ports & interfaces (PCI Express power connectors (6+2 pin))
- 2
- Performance (Bearing technology)
- FDB
- Power (Power Factor Correction (PFC) type)
- Active
- Performance (ATX version)
- 3.1
- Ports & interfaces (EPS power connector (4+4 pin))
- Yes
- Certificates (Waste Electrical and Electronic Equipment (WEEE) compliance)
- Yes
- Technical details (Doesn't contain)
- Cadmium/Lead/Mercury
