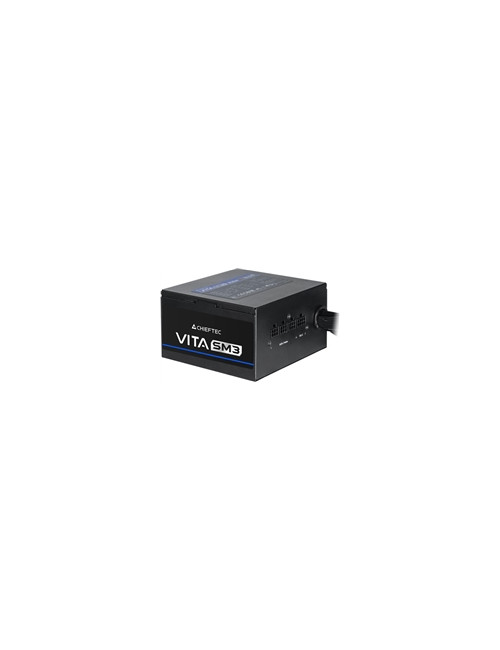

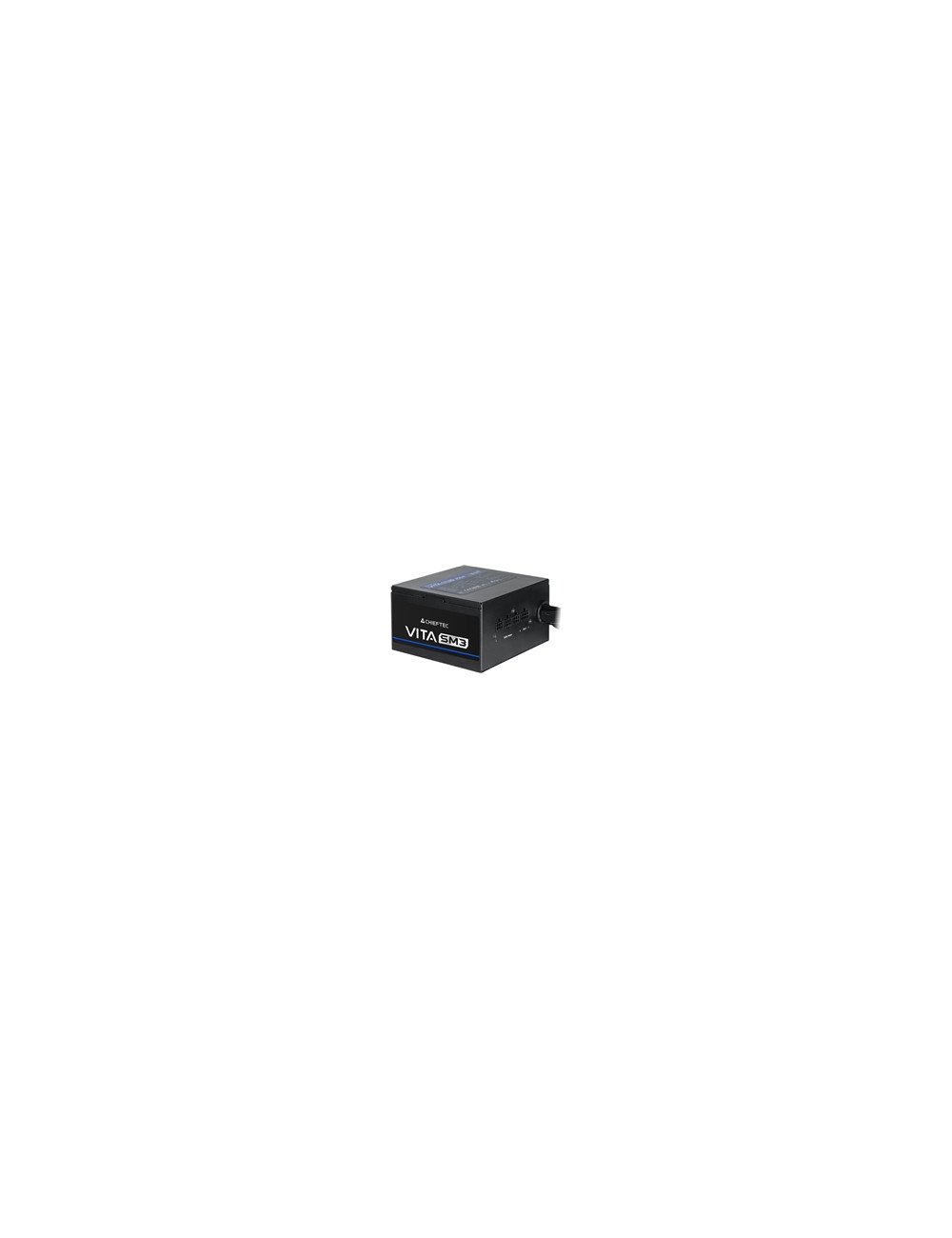

CHIEFTEC 750W ATX 100-240V 80+Bronze PSU
    CHIEFTEC

    CHIEFTEC 750W ATX 100-240V 80+Bronze PSU

    €69.20
    Tax included
    The Chieftec VITA SM3 BPX-750-C is a power supply designed for performance and efficiency. With a total power output of 750 W, it meets a range of power needs while ensuring compliance with current standards such as ATX12V 3.1 and EPS12V. This power supply includes multiple connectors, including a 24-pin ATX, various modular cables for flexibility, and an efficient cooling system featuring a 120 mm fan, providing effective air circulation even during high-performance tasks.
    Safety is prioritized with several protective features, including overcurrent protection, overvoltage protection, and short-circuit protection. Moreover, the semi-modular cable management allows users to arrange their setup neatly, reducing clutter and enhancing airflow within the case. With its 80 PLUS Bronze certi
    Quantity

    Add to favorites Add to compare
    • 750 W total power output for versatile performance
    • Multiple protection features enhance safety and reliability
    • Semi-modular design for efficient cable management
    • 120 mm fan for effective cooling during operation
    • 80 PLUS Bronze certification promotes energy efficiency

    Product Details

    BPX-750-C
    12 Items

    Data sheet

    Dimensions (WxDxH)
    15 cm x 14 cm x 8.6 cm
    Weight
    1.9 kg
    Device type
    Power supply - active Power Factor Correction (PFC) - internal
    Input voltage
    AC 100-240 V
    Output voltage
    +3.3, +5, 12 V, +5Vsb V
    Output current
    +5V - 18 A +3.3V - 18 A +12V1 - 62.5 A -12V - 0.3 A +5VSB - 3 A
    PRODUCT DESCRIPTION
    Chieftec VITA SM3 BPX-750-C - power supply - 750 Watt
    Cooling System
    120 mm fan
    80 PLUS certification
    80 PLUS Bronze
    Manufacturer Warranty
    3-year warranty
    Specification Compliance
    ATX12V 3.1/ EPS12V
    Power Capacity
    750 Watt
    Output connectors
    1 x power 24 pin ATX 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 2 x 8 pin PCI Express power with detachable 2 pin section 6 x 15 pin Serial ATA power 3 x 4 PIN internal power 1 x 12VHPWR
    Modular Cable Management
    Yes
