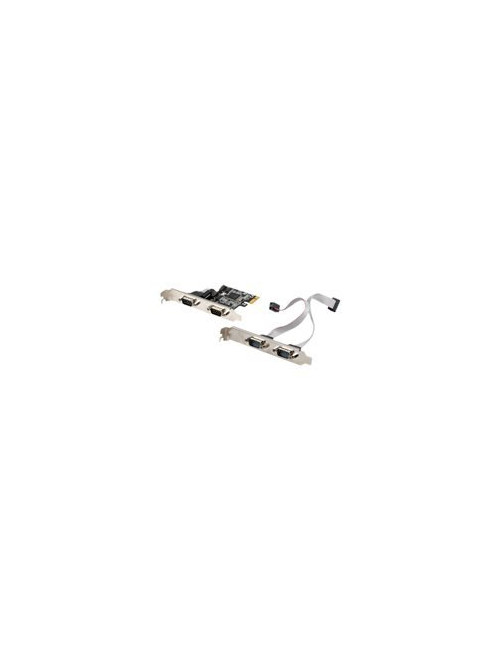

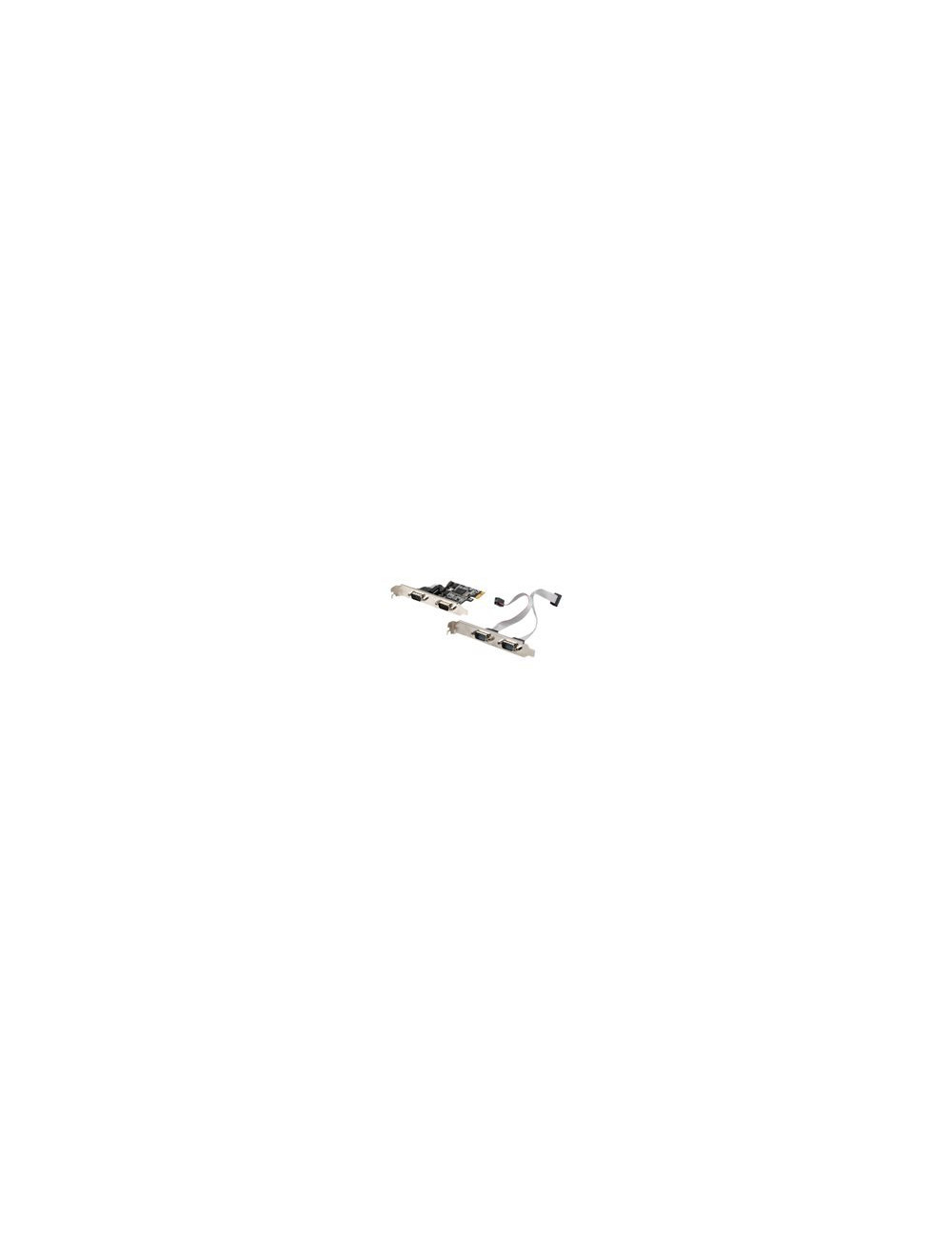

LANBERG PCE-DB9-004 PCI Express-COM card
LANBERG

LANBERG PCE-DB9-004 PCI Express-COM card

€20.89
Tax included
The Lanberg PCE-DB9-004 is designed for versatile connectivity with its 4 female 9-pin D-Sub (DB-9) ports that support RS-232, RS-422, and RS-485 protocols. This plug-in card utilizes a PCI Express x1 interface for installation and is suited for environments with an operating temperature range of 0°C to 50°C and humidity levels from 10% to 90% (non-condensing). This serial adapter facilitates reliable wired connections and features remote Wake Up functionality, ensuring a hassle-free user experience.
With a focus on durability and performance, the PCE-DB9-004 is equipped with a bidirectional data link and a 256-byte FIFO for efficient data transmission. Ideal for various applications, it serves well in situations when a low-profile design is essential. The compact form factor and robus
Quantity

Add to favorites Add to compare
  • Interface: PCI express 1x
  • Supports RS232, RS485 & RS422 modes
  • Bi-directional speeds from 50 bps to 16 Mbps/Port
  • Full serial modem control
  • 5, 6, 7, 8 and 9-bit serial format support
  • Even, odd, none, space & mark parity supported
  • Custom BAUD Rates supported with external clock or by programming internal PLL
  • On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
  • Supports remote wake up and power management features
  • Serial port transceiver shutdown support
  • Supports Slow IrDA on all Serial Ports IEEE1284

Product Details

LANBERG
PCE-DB9-004
9 Items

Data sheet

Dimensions (WxDxH)
6.53 cm x 5.82 cm x 1.6 cm
Device type
Serial adapter
Form factor
Plug-in card - low profile
PRODUCT DESCRIPTION
Lanberg PCE-DB9-004 - serial adapter - PCIe - RS-232/422/485 x 4
PROCESSOR
1 x ASIX MCS9990
Data Link Protocol
RS-232, RS-422, RS-485
Interface (Bus) Type
PCI Express x1
Ports
RS-232/422/485 x 4
System Requirements
Linux 2.4 or later, Apple MacOS X 10.9 or later, Microsoft Windows XP / Vista / 7 / 8.1 / 10 (32/64 bits)
