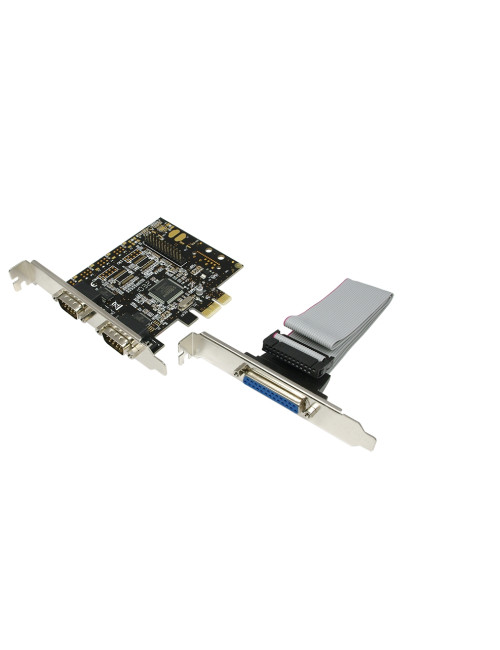

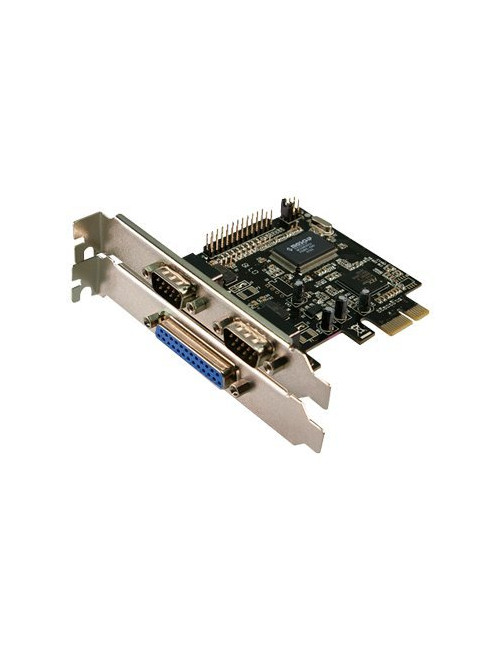

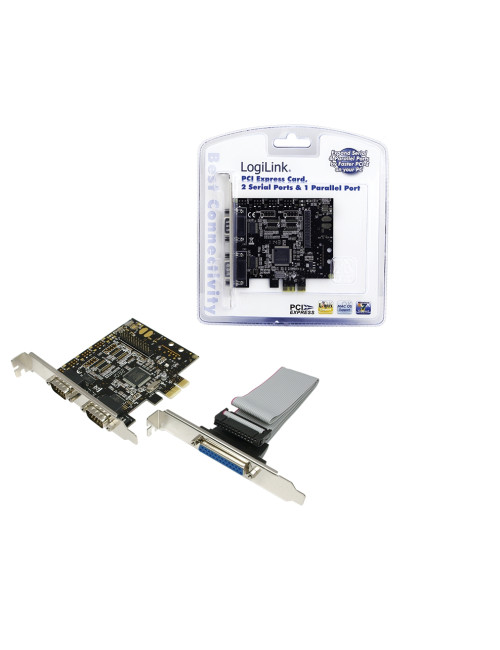

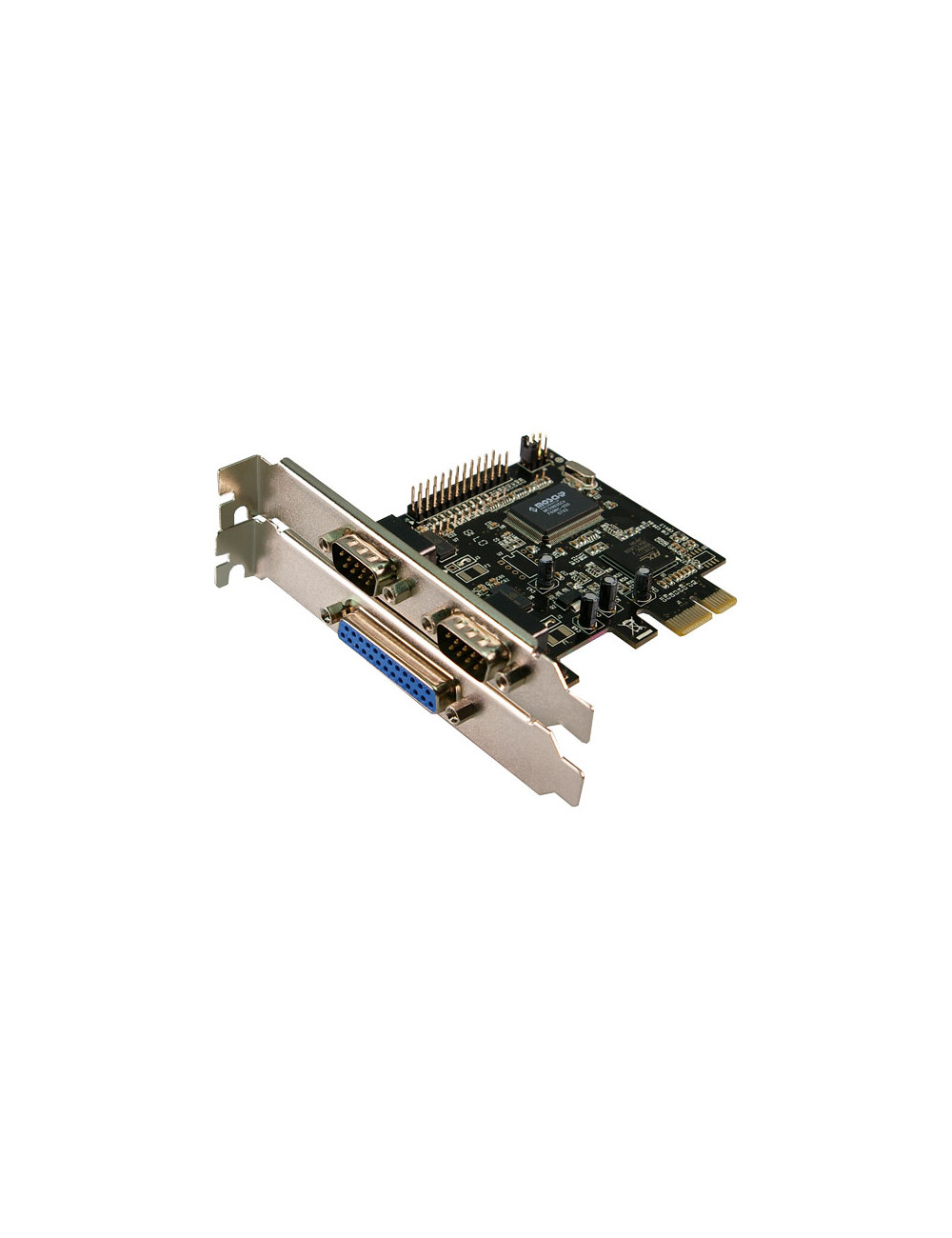

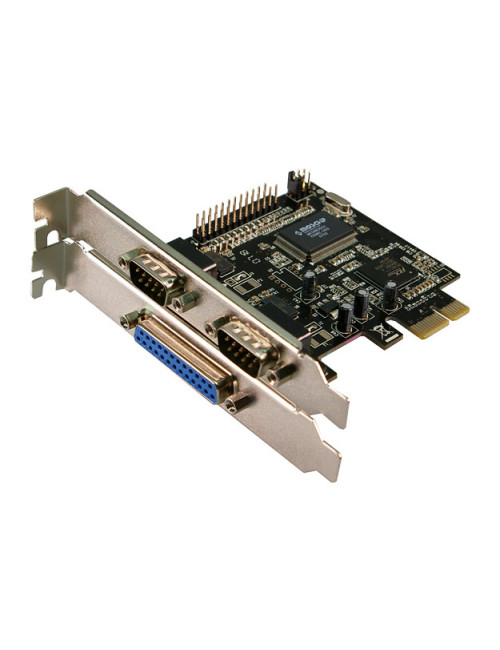

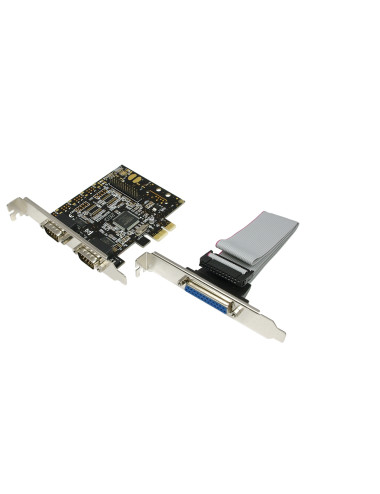

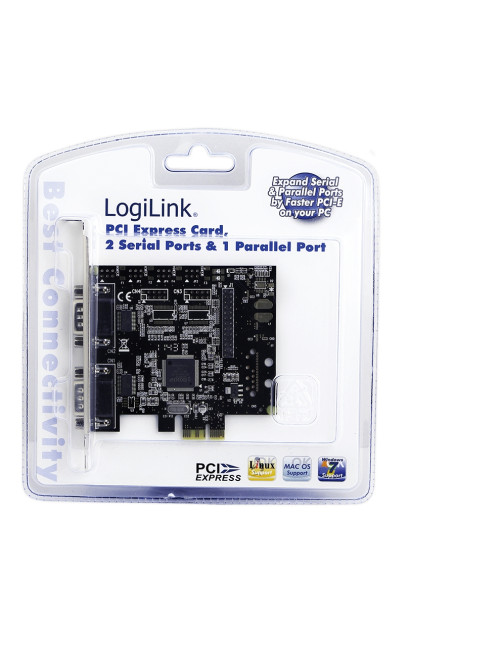

Logilink | 2 x serial (COM), 1 x parallel (LPT) | PCIe

Product Details

Reference PC0033

In stock 3 Items

Data sheet

Plug and Play

Yes

Mac operating systems supported

Mac OS 9.1

Type

parallel/serial

Warranty

24 month(s)

Producer product name

2 x serial (COM), 1 x parallel (LPT)

Net weight

0.095 kg

Gross weight

0.16 kg

WEEE tax

No

Packing quantity

1.00 pc(s)

Volume (m3)

0.0006075 m

Tare weight (kg)

0.065 kg

Gross depth (mm)

150 mm

Gross width (mm)

30 mm

Gross height (mm)

135 mm

Paper/Pasteboard

59 g

Embeeded battery

No

Linux operating systems supported

Yes

Windows operating systems supported

Windows 2000 Profess

Purpose

PC

Other features

Specification 2 x Pin header, with rear bracket with two DB9 RS-232 ports 1 x parallel DB25 Port Data transfer rate: serial up to 230.4 Kbps parallel up to 1.5 Mbps SPP, PS2, EPP, ECP compatible to IEEE 1284 compatible with 16C550 UART FIFO: 16 byte PCI E

Internal

Yes

Plastic (No PET)

6 g

Package depth

18.2 cm

Package height

3.7 cm

Package width

17.2 cm

Package weight

170 g

Mac compatibility

Yes

RoHS compliance

Yes

Data transfer rate

2.5 Gbit/s

Palette Qty

2844 pc(s)

Chipset

NetMOS

Output interface

Parallel, Serial

Host interface

PCIe

Ports quantity

3

Serial interface type

RS-232

Flow control support

Yes

Transfer rate

1.5 MB/s

Serial ports quantity

2

Supports EPP and ECP

Yes

Parallel ports quantity

1

Producer

Logilink
