Arctic GmbH

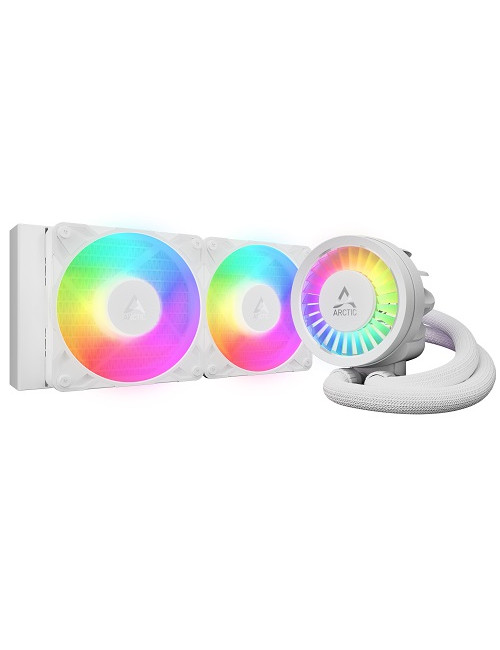

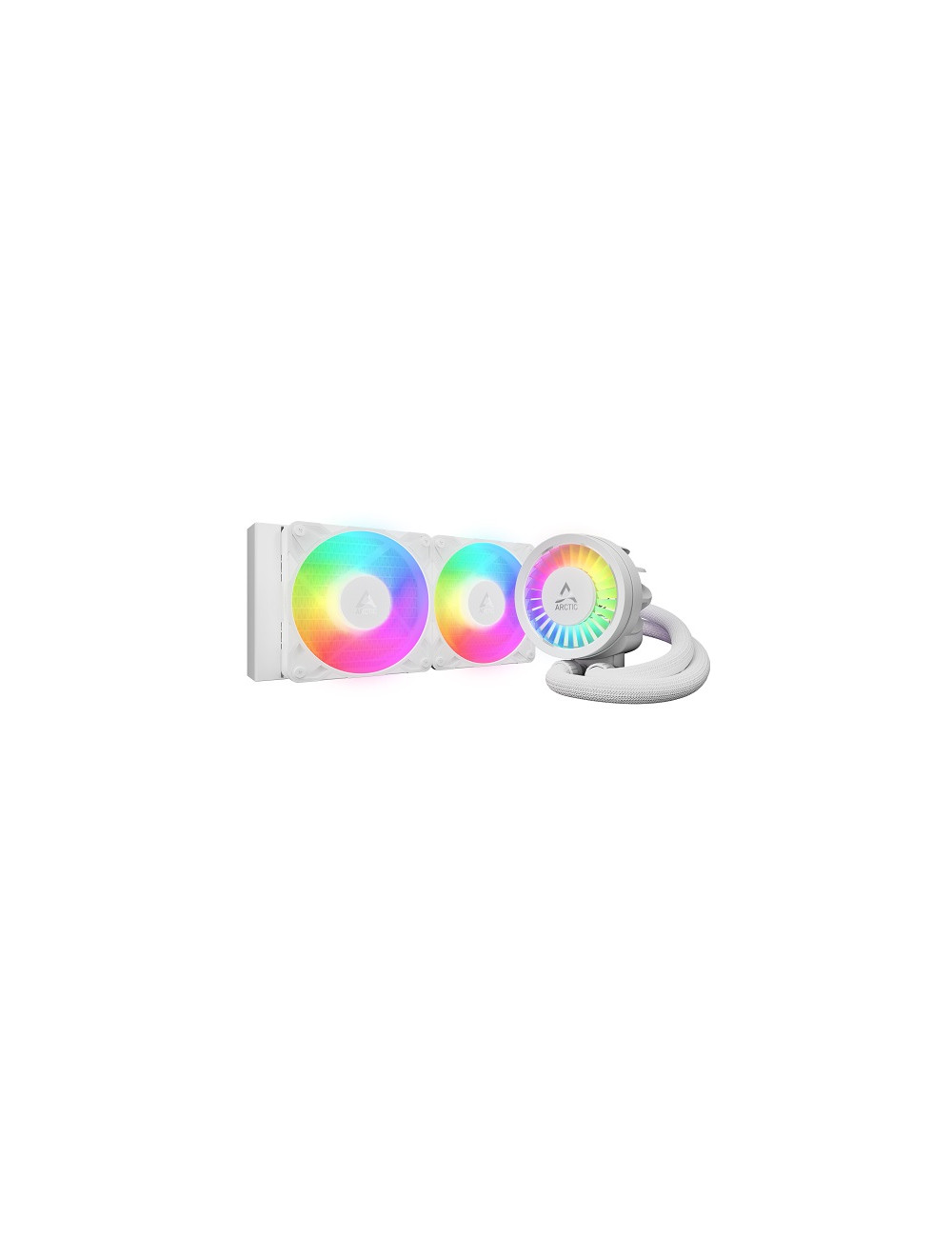

ARCTIC Liquid Freezer III PRO 240 A-RGB CPU Cooler, White

Name: ARCTIC Liquid Freezer III PRO 240 A-RGB CPU Cooler, White
Brand: Arctic GmbH
SKU: ACFRE00186A
Price: 111.69 EUR
Availability: InStock

€111.69

Tax included

Arctic Liquid Freezer III Pro 240 with A-RGB is a wide compatibility CPU cooler. Compatible with Intel Alder Lake and Raptor Lake LGA1700 processors and the new socket LGA1851 of Arrow Lake, as well as AMD AM5 and AM4.

Features:
The Pro version uses the new P12 Pro fans with a 7-blade design, which provide higher airflow and static pressure for improved cooling efficiency, especially at high loads.

The cooling surface of the 38 mm thick radiator has been extended by 23 % by increasing the fin stack. This not only enables improved heat dissipation, but also a larger liquid volume. Consequently, the heat build-up in the water cooling system is slowed down and power and temperature peaks can be effectively managed over a longer period of time.

The Liquid Freezer III Pro is equipped with a specially developed PWM-controlled water pump, which has been further optimised in terms of both performance and noise. Thanks to the improved coldplate with an extended fin surface and optimised water pipes, the Liquid Freezer III increases its performance while maintaining quiet operation.

Two connection cables provide two control options: this allows the entire unit to be controlled via a single connection, whereby the speed of the radiator fans is output. The pump, VRM and radiator fans can therefore be easily controlled via a single PWM setting. Separate regulation: By using the splitter cable with three separate connections, the pump, VRM fan and radiator fan can be controlled independently of each other. This allows, for example, the speed of the VRM fan to be controlled independently of the CPU and to be adjusted analogue to the temperature of the voltage converters via PWM.

ARCTIC's new A-RGB fans allow for perfectly matched, multi-color lighting effects. With the help of the advanced A-RGB technology and customizable LEDs, you can design your system with your very own look.

Note: Some motherboards are incompatible with the Liquid Freezer III Pro due to oversized SSD coolers in the M.2_1 slot. You can check compatibility here: https://support.arctic.de/lf3-compatibility.

Arctic relies on the P12 Pro fans for better results:
Higher static pressure increases cooling efficiency.
Extended RPM range.
More performance at any speed.
Longer service life.
PWM for synchronous fan control.
High quality bearing.
A-RGB lighting effects.

Specifications:
Pump speed: 800 - 2800 RPM.
Pump voltage/ current: 12V DC/ 0.35A.
Plate material: copper.
Tube length: 450mm.
Tube diameter: outer 12.4 mm, inner 6.0 mm.
VRM fan speed: 400-2500 RPM.
VRM voltage/ current: 12V DC/ 0.05A.
Thermal paste: MX-6 (0.8g).
Fan: 2x P12 Pro.
Fan speed: 600-3000 RPM.
Air flow: 77 CFM / 131 m³/h.
Static pressure: 6.9 mm H2O.
Connector: 4-Pin PWM.
Bearing: Fluid dynamic bearing.
Fan voltage/ current: 12V DC/ 0.33A.
Dimensions: 277x120x38mm.
Weight: 1675g.
LED: 12x A-RGB Gen2 Leds.
RGB voltage/ current: 5V DC/ 0.40A.
Color: white body, optional lighting.

Compatibility:
AMD AM4.
AMD AM5.
Intel LGA1851.
Intel LGA1700.
Intel 1700.

Warranty: 6 years.
