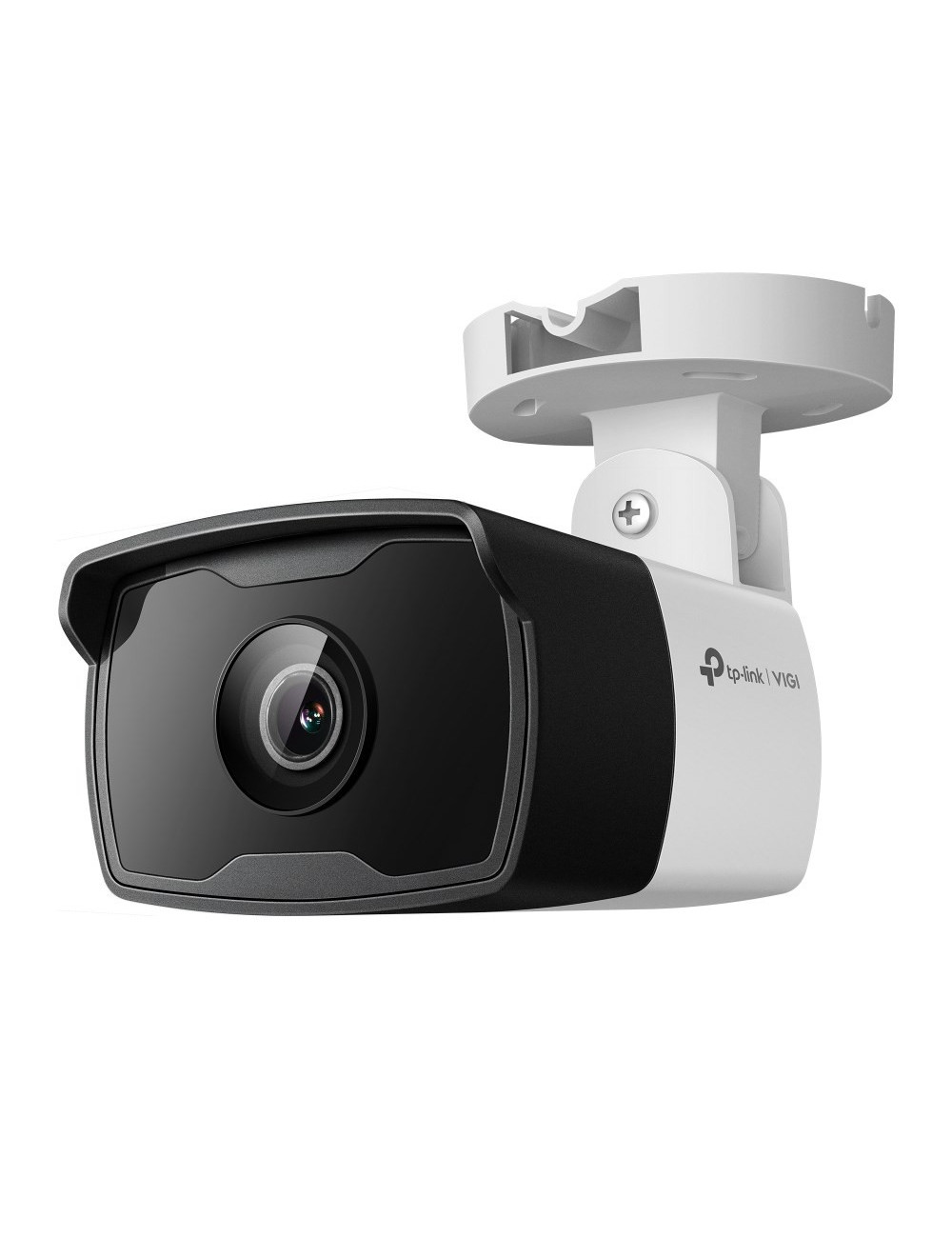

TP-Link VIGI C340I 2.8MM security camera Bullet IP security camera Outdoor 2560 x 1440 pixels Ceiling/Wall/Pole

Product Details

Reference WLONONWCRCW56

In stock 71 Items

Data sheet

Type

IP security camera

Package type

Box

Width

73 mm

Height

71 mm

Connectivity technology

Wired

Weight

200 g

Package depth

218 mm

Package height

103 mm

Package width

128 mm

Package weight

360 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Manual

Yes

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling/Wall/Pole

Form factor

Bullet

Bluetooth

No

Bit rate

256 Kbps - 4 Mbps

Length

174 mm

Sensor type

CMOS

Wi-Fi

No

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

5 W

Power consumption (typical)

1.32 W

Maximum resolution

2560 x 1440 pixels

Placement supported

Outdoor

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Housing material

Plastic

Networking standards

IEEE 802.3af

Ethernet LAN

Yes

Supported graphics resolutions

320 x 240

International Protection (IP) code

IP67

Supported video modes

240p

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Password protection

Yes

Frame Rate

30 fps

Mounting kit

Yes

Product colour

Black

Tilt angle range

-90 - 90°

Sustainability compliance

Yes

Fixed focal length

2.8 mm

Web browser

Yes

LED type

IR

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 3 mm (1 / 3")

Minimum illumination

0.01 lx

Pan range

-90 - 90°

Lens viewing angle, diagonal

106.5°

Video compression formats

H.264

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Lens viewing angle, vertical

48.9°

Smart IR

Yes

Digital Wide Dynamic Range (DWDR)

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

2.2

Lens viewing angle, horizontal

88.8°

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Crossing line

Camera shutter speed

1/3 - 1/10000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

2

HTTPS encryption

Yes

Behavior analysis

Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection

Image quality adjustment

Brightness

Digest authentication

Yes

Password reset via email

Yes

Number of simultaneous live view channels

3 channels

Detect distance

60 m

Observe distance

25 m

Recognize distance

12 m

Identify distance

6 m

Human and vehicle targets classification

Yes

Compliance certificates

Federal Communications Commission (FCC)

Number of Privacy masking areas

4

Network access storage (NAS)

Yes

3D positioning

Yes

Warnings

The product contains electronic components; do not dispose of with the normal household waste.
