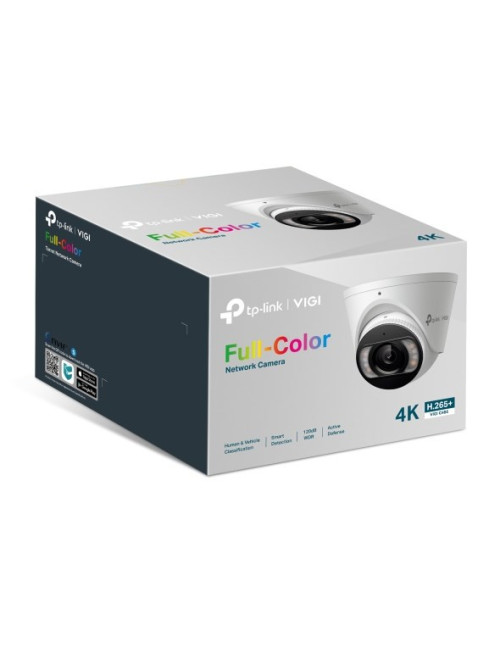

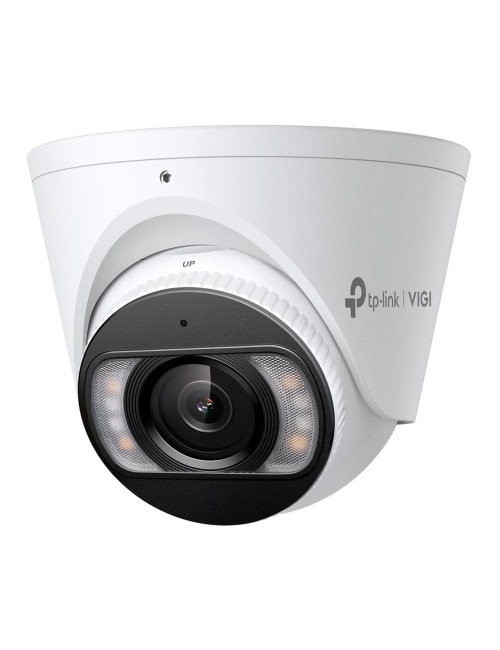

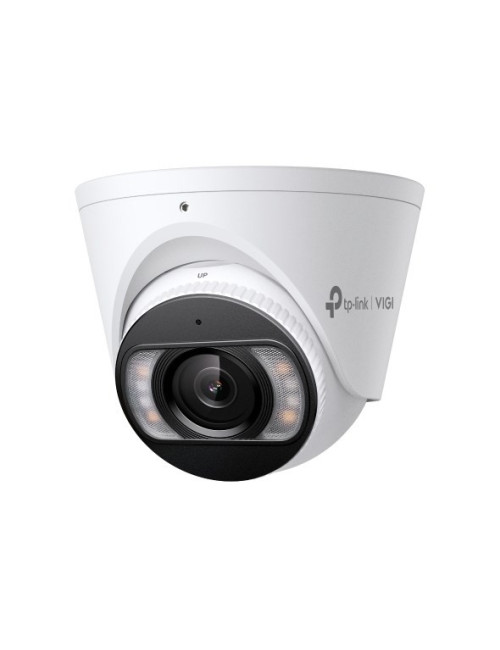

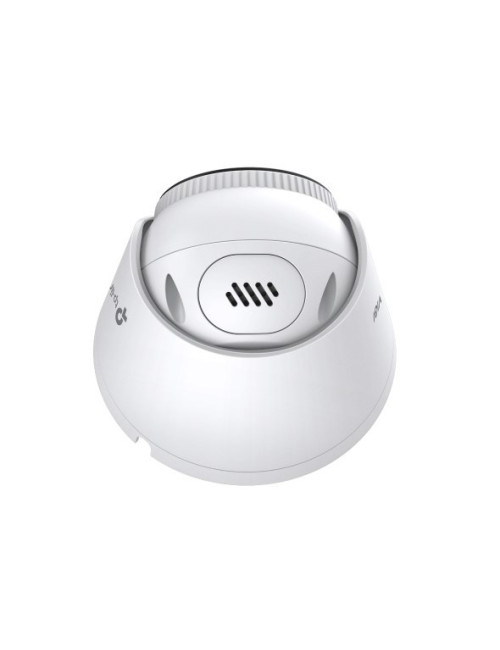

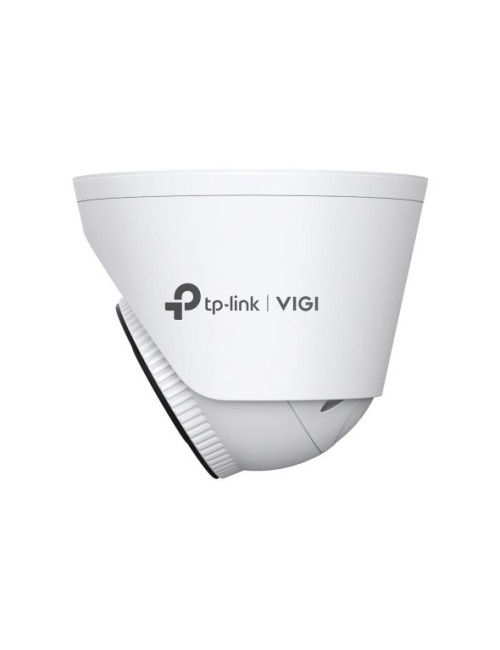

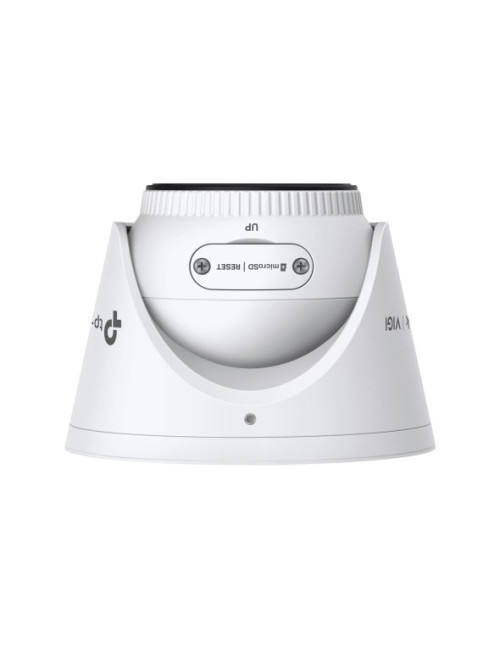

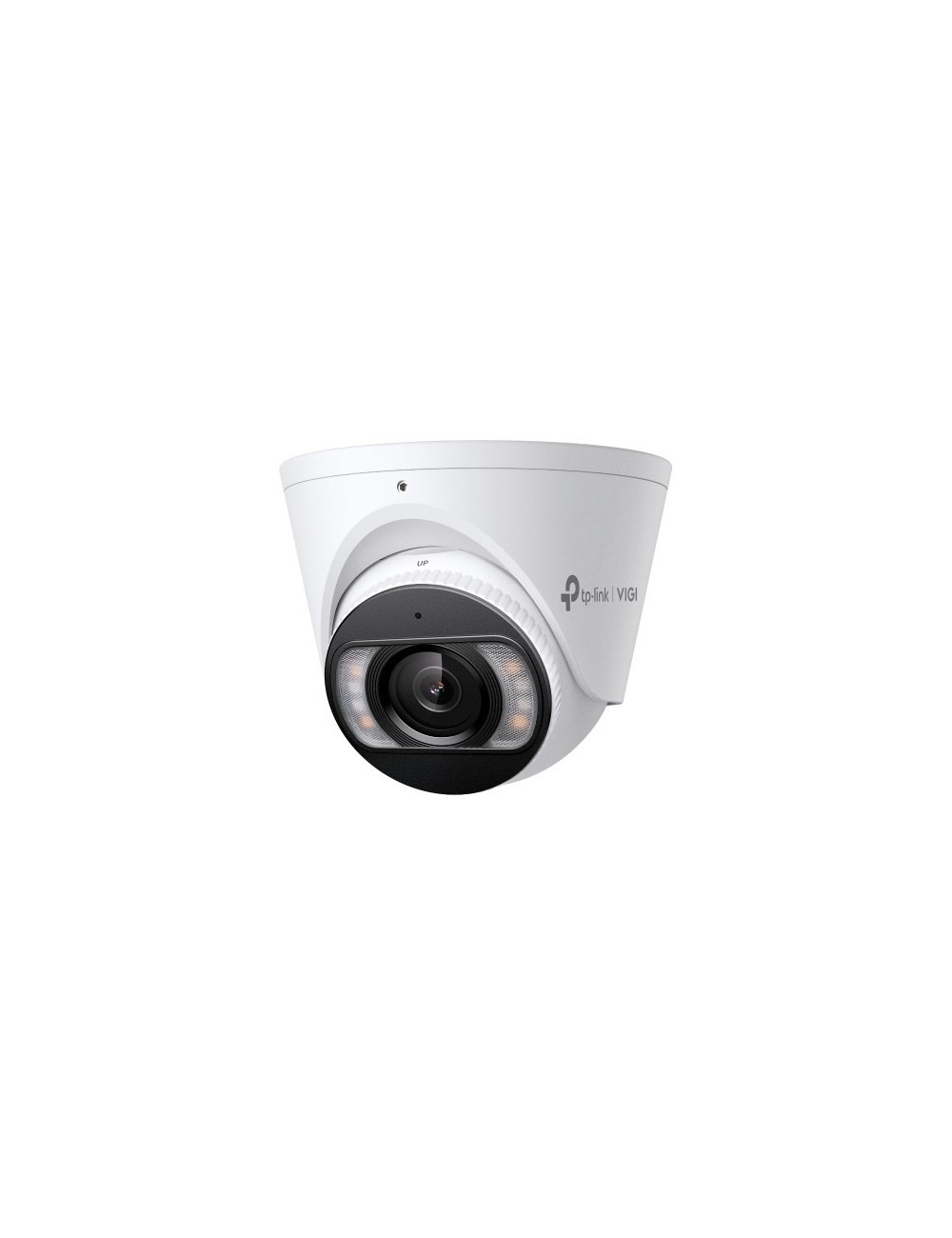

TP-Link VIGI C485 Turret IP security camera Outdoor 3840 x 2160 pixels Ceiling

Product Details

Reference WLONONWCRDEGL

In stock 9 Items

Data sheet

Type

IP security camera

Width

111 mm

Height

83.7 mm

Depth

111 mm

Connectivity technology

Wired

Weight

480 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling

Form factor

Turret

Built-in microphone

Yes

Bluetooth

No

Sample rate

8 kHz

Noise reduction

Yes

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

512 GB

Audio system

2-way

Audio formats supported

G.711

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

11.5 W

Maximum resolution

3840 x 2160 pixels

Built-in speaker(s)

Yes

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Housing material

Metal

Ethernet LAN

Yes

Supported graphics resolutions

1920 x 1080 (HD 1080)

International Protection (IP) code

IP67

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Reset button

Yes

Password protection

Yes

Frame Rate

25 fps

Mounting kit

Yes

Product colour

White

Tilt angle range

0 - 85°

Fixed focal length

4 mm

LED type

IR/White

Night vision

Yes

Total megapixels

8 MP

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Minimum illumination

0.005 lx

Pan range

0 - 360°

Dynamic range

120 dB

Lens viewing angle, diagonal

109.6°

Video compression formats

H.264+

Angle of rotation

360°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

46.1°

Noise reduction technology

3D noise reduction

Smart IR

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Lens viewing angle, horizontal

91.5°

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

IP address filtering

Yes

Camera shutter speed

1/3 to 1/10000

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

4

Live view

Yes

Power consumption (Power over Ethernet (PoE))

12.5 W

HTTPS encryption

Yes

Image quality adjustment

Contrast

Waterproof connector

Yes

Built-in light

Yes

Detect distance

107 m

Observe distance

44 m

Recognize distance

21 m

Identify distance

11 m

Human and vehicle targets classification

Yes

Number of Privacy masking areas

4
