Hikvision

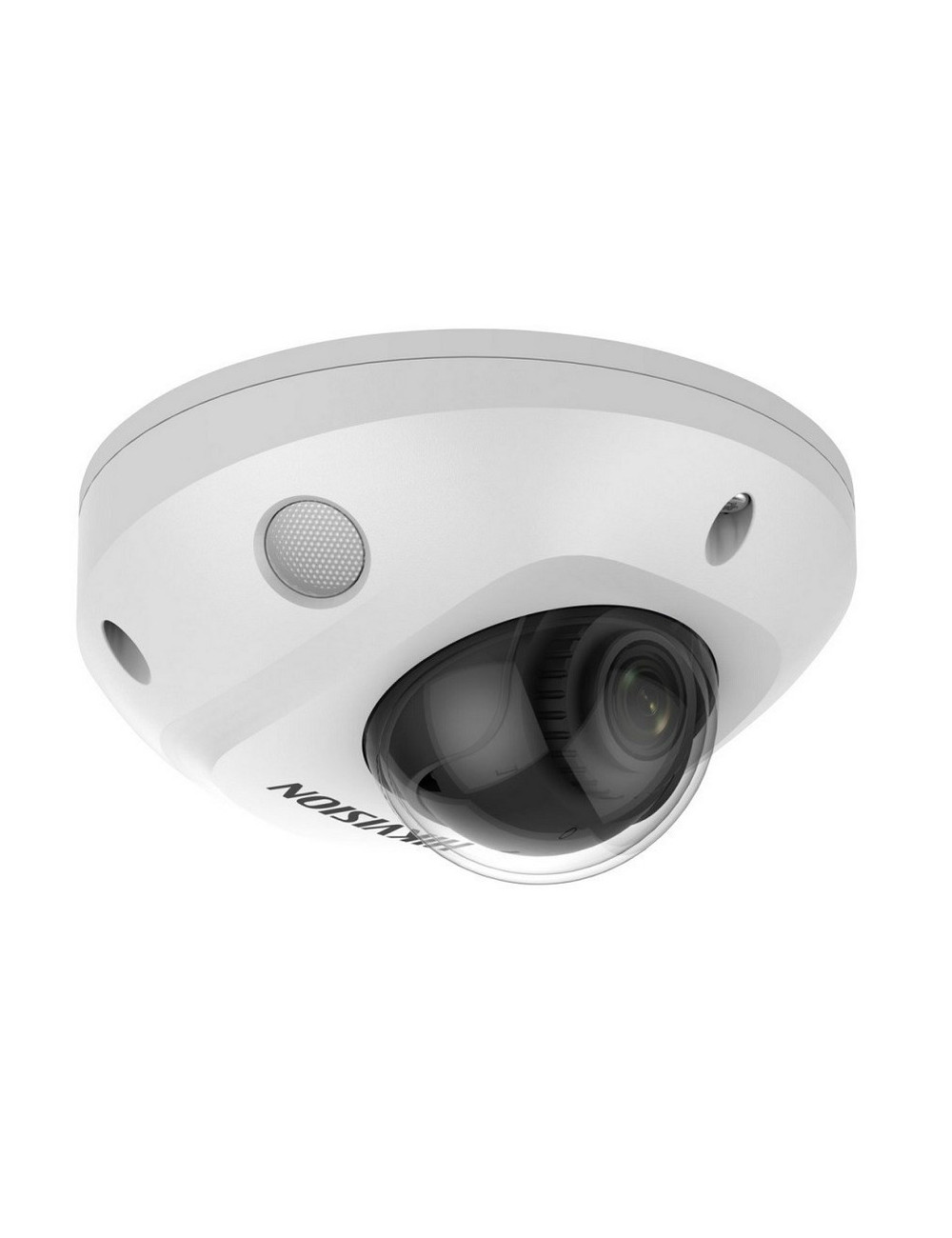

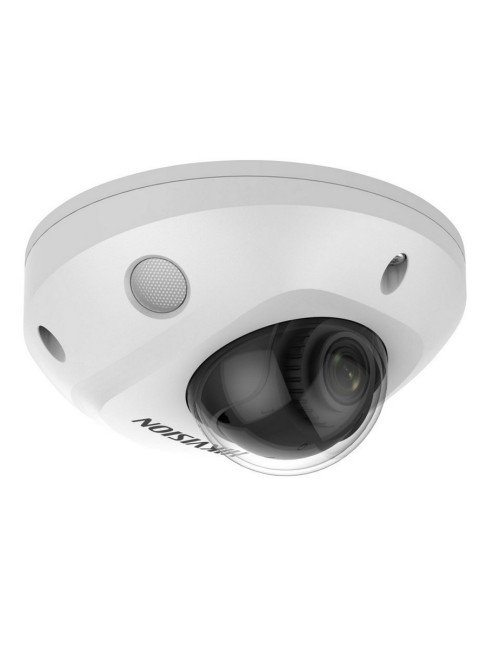

IP camera Hikvision DS-2CD2546G2-IS(2.8mm)(C)

€177.25

Tax included

Product Details
Quick Compare

Product Details

Reference WLONONWCRAI13

In stock 4 Items

Data sheet

Type: IP security camera
Height: 57.4 mm
Connectivity technology: Wired
Weight: 380 g
Package depth: 134 mm
Package height: 108 mm
Package width: 134 mm
Package weight: 620 g
Power source type: DC, PoE
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -30 - 60 °C
Mounting type: Ceiling/wall
Form factor: Dome
Built-in microphone: Yes
Bluetooth: No
Sample rate: 48 kHz
Bit rate: 32 Kbps - 8 Mbps
Noise reduction: Yes
Sensor type: CMOS
Wi-Fi: No
Compatible memory cards: microSDHC
Maximum memory card size: 256 GB
Audio formats supported: MP3
Power consumption (max): 6 W
Maximum resolution: 2688 x 1520 pixels
Placement supported: Outdoor
Card reader integrated: Yes
Ethernet LAN (RJ-45) ports: 1
Number of languages: 33
Housing material: Aluminium
Networking standards: IEEE 802.1x
Ethernet LAN: Yes
Diameter: 11 cm
International Protection (IP) code: IP67
Ethernet interface type: Fast Ethernet
Number of Users: 32 user(s)
Web-based management: Yes
Quality of Service (QoS) support: Yes
Reset button: Yes
Password protection: Yes
Frame Rate: 30 fps
Product colour: White
Tilt angle range: 0 - 75°
Fixed focal length: 2.8 mm
Voice codecs: PCM
LED type: IR
Night vision: Yes
Total megapixels: 4 MP
Optical sensor size: 25.4 / 3 mm (1 / 3")
Pan range: -30 - 30°
Video compression formats: H.264+
Angle of rotation: 360°
DC output voltage: 12
Video motion detection: Yes
Number of cameras: 1
Camera pan control: Yes
Camera tilt control: Yes
Night vision distance: 30 m
Number of lenses: 1
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Built-in HDD: No
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Maximum aperture number: 1.4
Number of sensors: 1
Infra-red wavelength: 850 nm
Wide Dynamic Range (WDR): Yes
Progressive scan: Yes
Mirror: Yes
Heartbeat: Yes
Anti-flicker: Yes
Back Light Compensation (BLC): Yes
Video streaming: Yes
Alarm input/output: Yes
IP address filtering: Yes
Intelligent Video Surveillance (IVS) system features: Scene change
Camera shutter speed: 1/3 - 1/100000 s
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Privacy masking: Yes
Highlight Compensation (HLC): Yes
Power consumption (Power over Ethernet (PoE)): 7 W
HTTPS encryption: Yes
Behavior analysis: Intrusion detection, Line crossing detection
Image quality adjustment: Saturation
IK code: IK08
