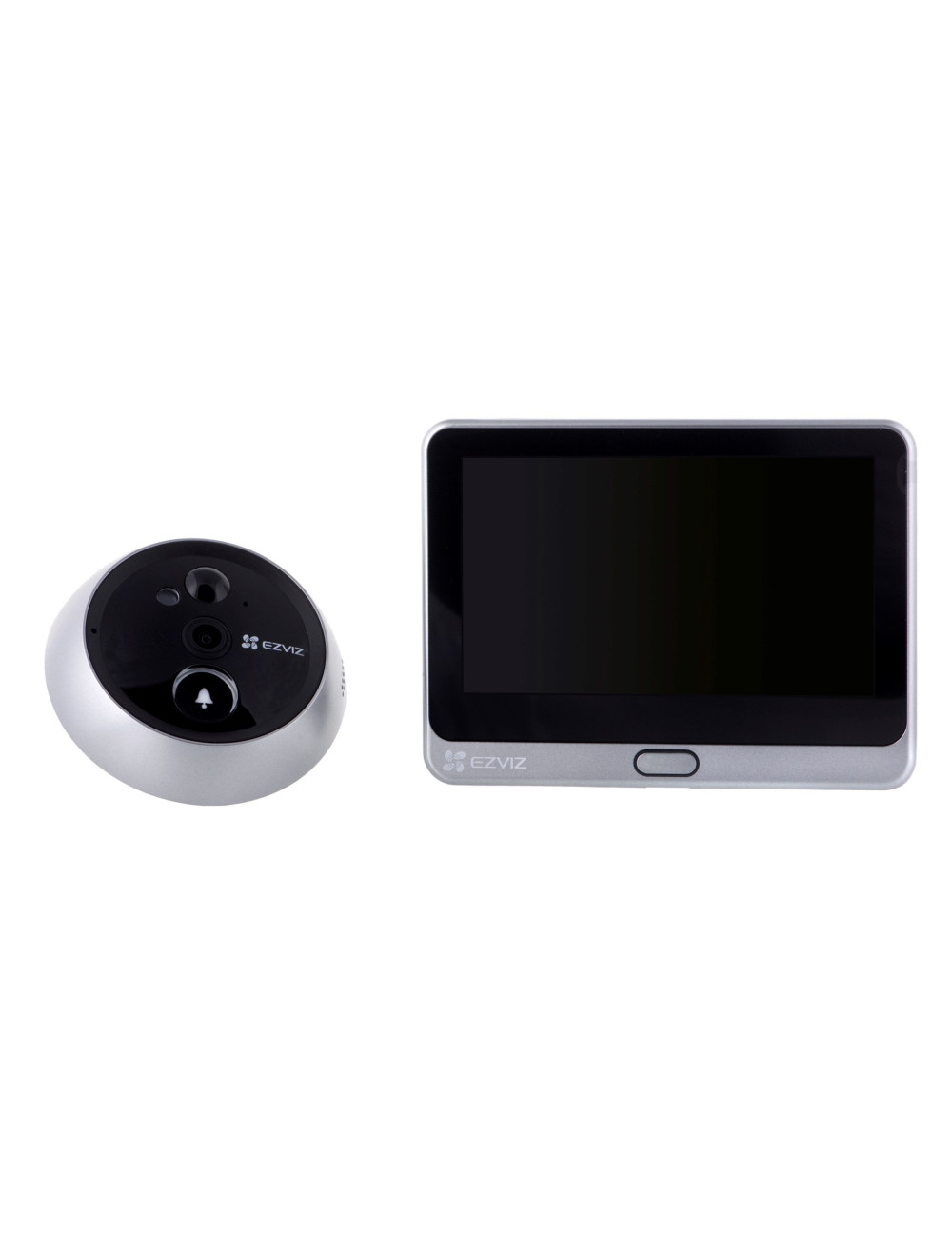

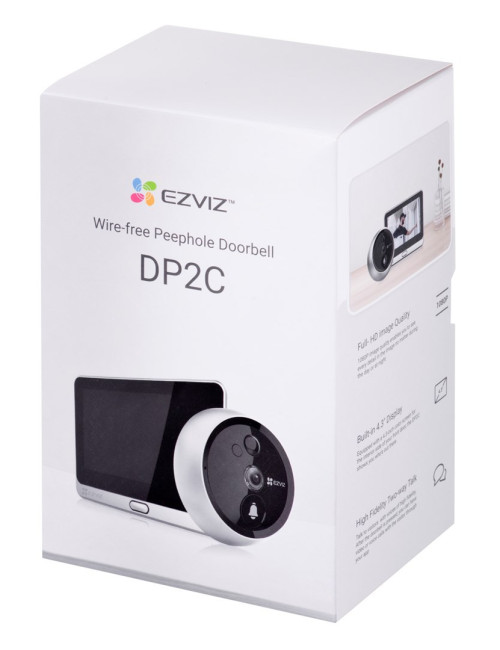

WIRELESS WIFI DOORBELL WITH VIEWFINDER EZVIZ DP2C CS-DP2C

Product Details

Data sheet

Colour

Yes

Width

71 mm

Height

71 mm

Depth

48.3 mm

Connectivity technology

Wireless

Weight

320 g

Operating temperature (T-T)

-10 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Built-in microphone

Yes

Battery capacity

4.6 Ah

Sensor type

CMOS

Wi-Fi

Yes

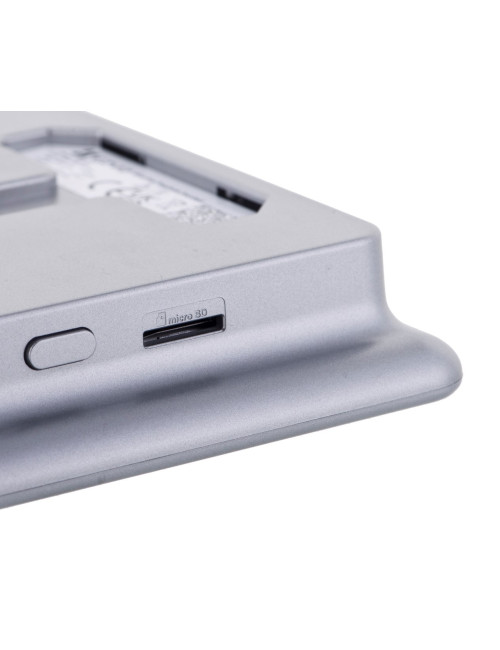

Compatible memory cards

MicroSD (TransFlash)

Wi-Fi standards

IEEE 802.11b

Maximum memory card size

256 GB

Input voltage

5 V

Power consumption (max)

2.2 W

Touchscreen

Yes

Viewable screen width (W)

11.6 cm

Viewable screen height (H)

8.6 cm

Alarm clock

Yes

International Protection (IP) code

IP65

Supported video modes

1080p

Maximum video resolution

1920 x 1080 pixels

Maximum frame rate

15 fps

Web-based management

Yes

Product colour

White

Proper use

Outdoor

Fixed focal length

2 mm

Wi-Fi frequency

2.4 GHz

LED type

IR

Night vision

Yes

Optical sensor size

25.4 / 1.3 mm (1 / 1.3")

Lens viewing angle, diagonal

155°

Night vision distance

5 m

Detection distance

6 m

Maximum aperture number

2.2

Wide Dynamic Range (WDR)

DWDR

Weatherproof

Yes

People detection

No

Two-way talk

Yes

People detection

No

Built-in loudspeaker

Yes

Wireless transmission security

WPA2-PSK

Card reader slot

1

Video codecs

H.264 / H.265

Door thickness

35 - 105 mm

Smartphone support

Yes

Outdoor unit power type

DC

Motion detection function

Yes

Depth (with base)

2.7 cm

PIR sensor sensitivity

Adjustable

Integrated PIR sensor

Yes

Viewfinder screen size

4.3"

Supported peephole diameter

16.5 - 50 mm

Warnings

Avoid direct contact with water to prevent electrical damage.

Motion sensor detection angle

110°
