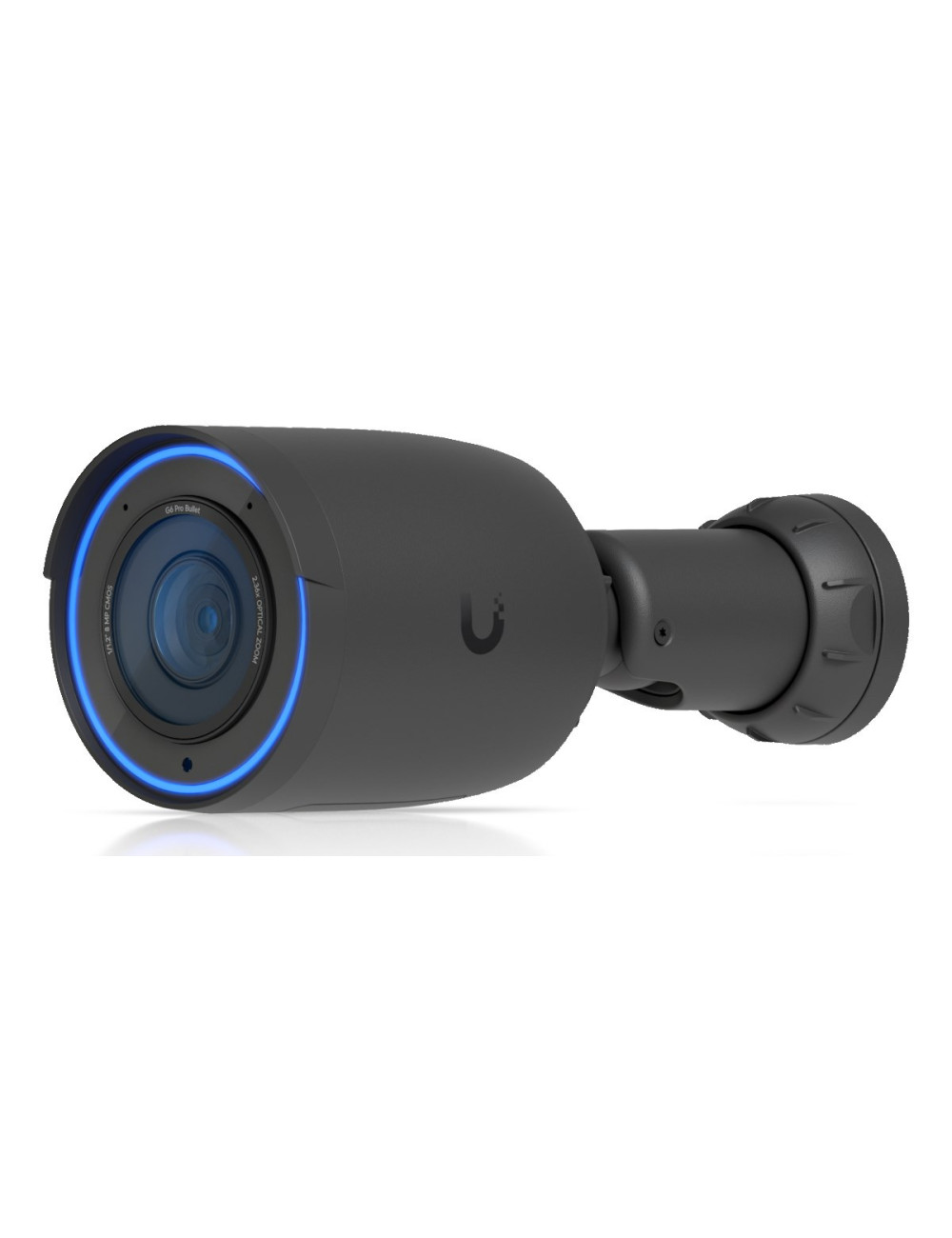

Product Details
Data sheet
- Type
- IP security camera
- Connectivity technology
- Wired
- Weight
- 755 g
- Power source type
- PoE
- Manual
- Yes
- Operating temperature (T-T)
- -20 - 50 °C
- Operating relative humidity (H-H)
- 0 - 90%

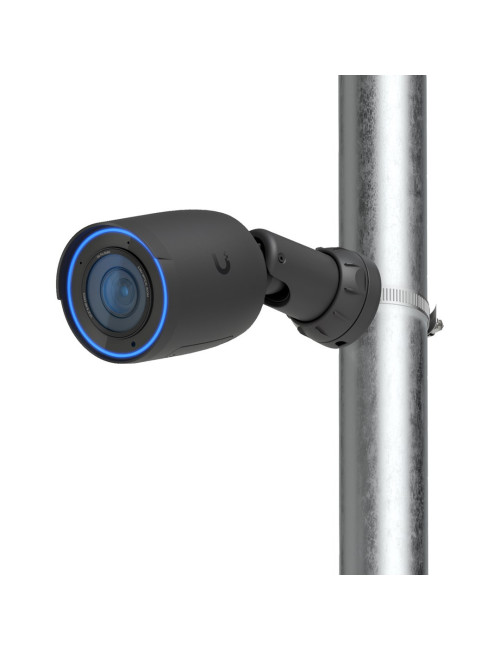

- Mounting type
- Ceiling/Wall/Pole
- Form factor
- Bullet
- Built-in microphone
- Yes
- Bluetooth
- No
- Noise reduction
- Yes
- Length
- 210 mm
- Processor model
- ARM Cortex-A53
- Sensor type
- CMOS
- Wi-Fi
- No
- Compatible memory cards
- MicroSD (TransFlash)
- Audio system
- 2-way
- Power consumption (max)
- 15 W
- Maximum resolution
- 3840 x 2160 pixels
- Built-in speaker(s)
- Yes
- Placement supported
- Indoor & outdoor
- Card reader integrated
- Yes

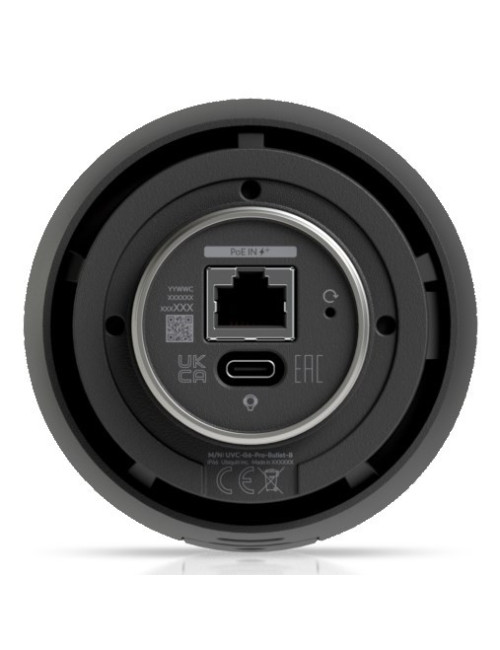

- Ethernet LAN (RJ-45) ports
- 1
- Housing material
- Polycarbonate (PC)
- Ethernet LAN
- Yes
- Zoom capability
- Yes
- Diameter
- 8.58 cm
- International Protection (IP) code
- IP66
- Ethernet interface type
- Gigabit Ethernet
- Optical Zoom
- 2.36x
- Built-in processor
- Yes
- Reset button
- Yes
- Frame Rate
- 30 fps

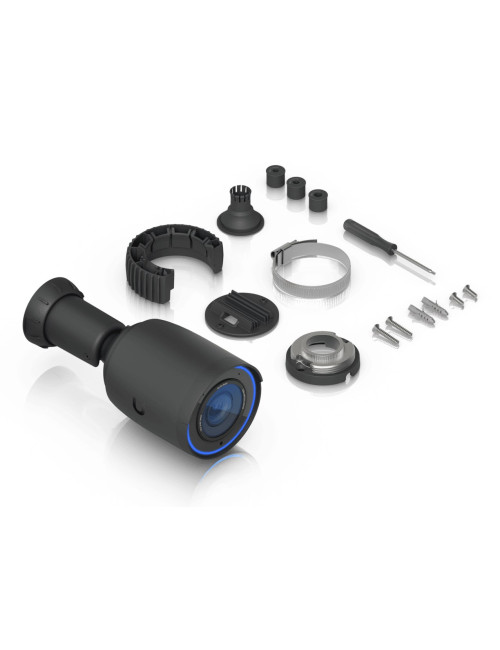

- Mounting kit
- Yes
- Product colour
- Black
- Focal length range
- 5.9 - 13.8 mm
- Number of microphones
- 2
- Night mode
- Yes
- Light sensor
- Yes
- Screws included
- Yes
- LED type
- IR
- Night vision
- Yes
- Total megapixels
- 8 MP
- Optical sensor size
- 25.4 / 1.2 mm (1 / 1.2")
- Lens viewing angle, diagonal
- 52, 134°
- DC output voltage
- 37, 42.5, 48, 54, 57
- Number of cameras
- 1
- Night vision distance
- 40 m
- Day/night mode
- Yes
- Infrared (IR) cut-off filter
- Yes
- Built-in HDD
- No
- Lens viewing angle, vertical
- 25.8 , 61.9°
- Noise reduction technology
- 2D noise reduction, 3D noise reduction
- Maximum aperture number
- 2.9
- Lens viewing angle, horizontal
- 45.5, 113.8°
- Weatherproof
- Yes
- Privacy masking
- Yes
- Image quality adjustment
- Colour depth
- IK code
- IK04
- Human and vehicle targets classification
- Yes
- Minimum aperture number
- 1.5
- Text caption overlay
- Yes
- Compliance certificates
- National Defense Authorization Act (NDAA)
- License plate recognition
- Yes
Quick Compare
Product |
IP Camera Hikvision DS-2CD2687G3-LIZS2UY
|
|
LevelOne outdoor camera 8MP
|
|
Availability |
|
|
|
|
Price |
€527.81
|
€528.52
|
€530.33
|
€530.49
|
Description |
||||
Type |
IP security camera | IP security camera | IP security camera | IP security camera |
Package type |
Box | |||
Width |
100 mm | |||
Height |
80 mm | 65.5 mm | ||
Depth |
333.8 mm | 300 mm | ||
Connectivity technology |
Wired | Wired | Wired | Wired |
Weight |
1.55 kg | 491 g | 1.89 kg | 610 g |
Package depth |
190 mm | 180 mm | ||
Package height |
180 mm | 385 mm | ||
Package width |
386 mm | 190 mm | ||
Package weight |
2.37 kg | 2.01 kg | ||
Power source type |
DC, PoE | PoE | DC, PoE | PoE+ |
Storage relative humidity (H-H) |
0 - 95% | 5 - 95% | ||
Manual |
Yes | Yes | ||
Operating temperature (T-T) |
-30 - 60 °C | -30 - 50 °C | -30 - 50 °C | |
Operating relative humidity (H-H) |
0 - 95% | 10 - 100% | 0 - 90% | |
Storage temperature (T-T) |
-30 - 60 °C | -40 - 65 °C | ||
Mounting type |
Wall/Pole | Ceiling/wall | Floor/wall | Ceiling/wall |
Form factor |
Bullet | Bullet | Bullet | Dome |
Built-in microphone |
Yes | Yes | ||
Bluetooth |
No | No | No | No |
Bit rate |
32 Kbps - 16 Mbps | |||
Noise reduction |
Yes | Yes | ||
Protection features |
Dust resistant | Vandal proof | Vandal proof | |
Length |
170 mm | |||
Country of origin |
China | |||
Processor model |
ARM Cortex-A53 | |||
Sensor type |
CMOS | CMOS | CMOS | |
Wi-Fi |
No | No | No | No |
Internal memory |
1024 MB | |||
Compatible memory cards |
microSDHC | MicroSD (TransFlash) | MicroSD (TransFlash) | |
Audio system |
2-way | 2-way | 2-way | |
Audio formats supported |
G.711 | |||
Power consumption (max) |
14.5 W | 12.95 W | 7.14 W | |
Power consumption (typical) |
5 W | |||
Maximum resolution |
3840 x 2160 pixels | 2304 x 1728 pixels | 3840 x 2160 pixels | 3504 x 3504 pixels |
Built-in speaker(s) |
Yes | Yes | ||
Placement supported |
Indoor & outdoor | Indoor & outdoor | Indoor & outdoor | Indoor & outdoor |
Card reader integrated |
Yes | Yes | Yes | |
Ethernet LAN (RJ-45) ports |
1 | 1 | 1 | 1 |
Number of languages |
33 | 12 | ||
Housing material |
Metal | Aluminium | Aluminium | |
Networking standards |
IEEE 802.3at | IEEE 802.3at | IEEE 802.3at | |
Security algorithms |
EAP-LEAP | SSH | ||
Ethernet LAN |
Yes | Yes | Yes | Yes |
Supported graphics resolutions |
3200 x 1800 | 2304 x 1728 | ||
Zoom capability |
Yes | Yes | ||
Diameter |
14 cm | 10.1 cm | 14.7 cm | |
International Protection (IP) code |
IP67 | IP66, IP67 | IP67 | IP66 |
Flash memory |
512 MB | |||
Ethernet interface type |
Fast Ethernet | Fast Ethernet | ||
Supported video modes |
1440p | |||
Optical Zoom |
4.3x | |||
Number of Users |
32 user(s) | |||
Built-in processor |
Yes | |||
Quality of Service (QoS) support |
Yes | |||
Reset button |
Yes | Yes | ||
Password protection |
Yes | Yes | ||
Languages support |
Multi | Italian | ||
Frame Rate |
30 fps | 30 fps | 24 fps | |
Mounting kit |
Yes | |||
Product colour |
Black | Black | White | Black |
Tilt angle range |
0 - 90° | |||
Harmonized System (HS) code |
8525890000 | |||
Doesn't contain |
PVC | |||
Pallet gross length |
80 cm | |||
Pallet gross width |
120 cm | |||
Focal length range |
2.8 - 12 mm | |||
Fixed focal length |
2.4 mm | |||
Number of microphones |
2 | 2 | ||
Video recording |
Yes | Yes | ||
Products per master (outer) case |
9 pc(s) | |||
Master (outer) case gross weight |
19 kg | |||
Master (outer) case height |
590 mm | |||
Master (outer) case length |
405 mm | |||
Master (outer) case width |
560 mm | |||
Night mode |
Yes | |||
Image stabilizer |
Yes | Yes | ||
Screws included |
Yes | Yes | ||
LED type |
IR/White | IR | IR | IR |
Night vision |
Yes | Yes | Yes | Yes |
Total megapixels |
8 MP | 4 MP | 8 MP | 12 MP |
Motion sensor |
Yes | |||
Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") | 25.4 / 2.7 mm (1 / 2.7") | 25.4 / 1.6 mm (1 / 1.6") | |
White balance |
Auto | |||
Minimum illumination |
0 lx | 0 lx | ||
Pan range |
0 - 360° | |||
Dynamic range |
130 dB | |||
Lens viewing angle, diagonal |
47.3 - 137.4° | 180° | ||
Video compression formats |
H.264 | M-JPEG | H.265 | |
Angle of rotation |
360° | |||
DC output current |
1.21 A | |||
DC output voltage |
12 | 12 | 37, 42.5, 48, 54, 57 | |
Video motion detection |
Yes | Yes | ||
Number of cameras |
1 | 1 | 1 | 1 |
Camera pan control |
Yes | |||
Camera tilt control |
Yes | |||
Night vision distance |
60 m | 20 m | 60 m | 15 m |
Number of lenses |
1 | 1 | 1 | |
Day/night mode |
Yes | Yes | Yes | |
Infrared (IR) cut-off filter |
Yes | Yes | Yes | |
Built-in HDD |
No | No | No | No |
Lens viewing angle, vertical |
23.1 - 58.1° | 81° | 180° | |
Noise reduction technology |
3D noise reduction | 2D noise reduction, 3D noise reduction | ||
Region of Interest (ROI) encoding |
Yes | |||
Maximum aperture number |
1.2 | 2.1 | ||
Lens viewing angle, horizontal |
41.2 - 112.3° | 130° | 180° | |
Number of sensors |
1 | |||
Infra-red wavelength |
850 nm | 855 nm | ||
Alert notification type |
||||
Wide Dynamic Range (WDR) |
Yes | Yes | ||
Progressive scan |
Yes | Yes | ||
Mirror |
Yes | |||
Heartbeat |
Yes | |||
Digital watermark |
Yes | |||
Back Light Compensation (BLC) |
Yes | |||
Video streaming |
Yes | |||
Weatherproof |
Yes | Yes | ||
Active tampering alarm |
Yes | Yes | ||
IP address filtering |
Yes | Yes | ||
Intelligent Video Surveillance (IVS) system features |
Vehicle detection | Human detection | ||
Camera shutter speed |
1 - 1/100000 s | 1/38500 - 1/5 s | ||
Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) | Variable Bit Rate (VBR) | ||
Privacy masking |
Yes | Yes | ||
Highlight Compensation (HLC) |
Yes | |||
Live view |
Yes | |||
Power consumption (Power over Ethernet (PoE)) |
18 W | |||
HTTPS encryption |
Yes | Yes | ||
Image quality adjustment |
Saturation | Colour depth | ||
IK code |
IK10 | IK08 | IK10 | IK10 |
Digest authentication |
Yes | |||
Password reset via email |
Yes | |||
Number of simultaneous live view channels |
6 channels | |||
User access level |
Administrator, Operator, User | |||
Identify distance (wide) |
8.9 m | |||
Recognize distance (wide) |
17.8 m | |||
Built-in light |
Yes | |||
Observe distance (wide) |
35.4 m | |||
Closest focusing distance |
0.5 m | |||
Detect distance (wide) |
89.2 m | |||
Identify distance (tele) |
22 m | |||
Pixel counter |
Yes | |||
Human and vehicle targets classification |
Yes | |||
Recognize distance (tele) |
44 m | |||
Detect distance (tele) |
220 m | |||
Observe distance (tele) |
87.3 m | |||
Bit rate range |
8 - 320 Kbit/s | |||
PTZ modes |
Digital PTZ | |||
Text caption overlay |
Yes | Yes | ||
Alarm output channels |
2 | |||
Alarm input channels |
2 | |||
Video intelligence analytic |
Yes | |||
Compliance certificates |
UL | CE | ||
Number of Privacy masking areas |
4 | |||
Sample rates |
8 - 48 kHz | |||
Automatic Network Replenishment (ANR) |
Yes | |||
Network access storage (NAS) |
Yes | |||
Audit log |
Yes | |||
Flash log |
Yes | |||
Pallet height (air) |
168.8 cm | |||
Master (outer) cases per pallet (air) |
12 pc(s) | |||
