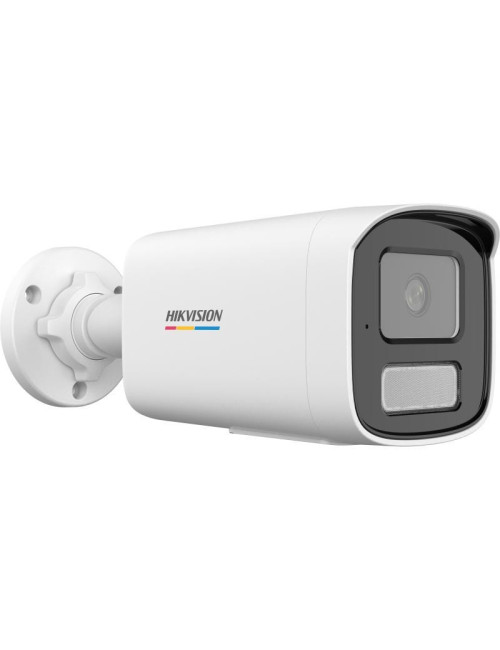

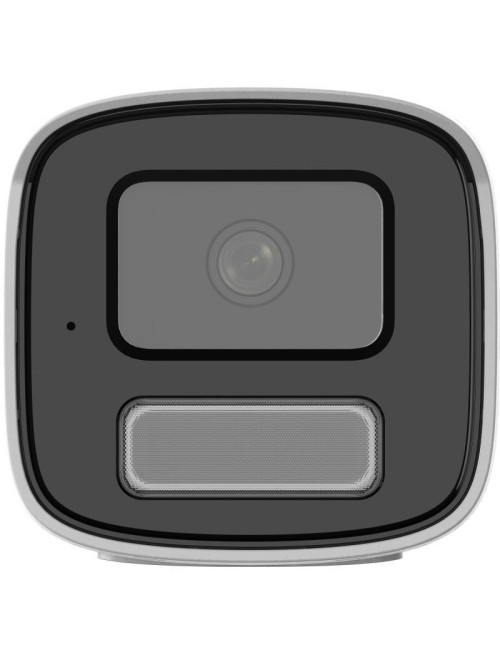

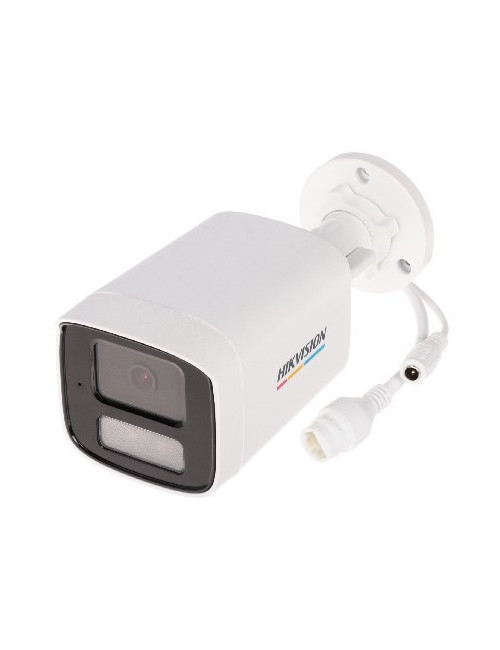

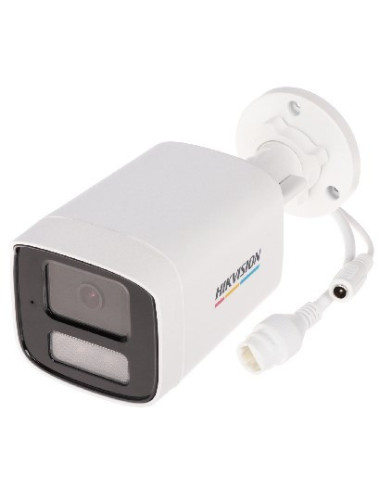

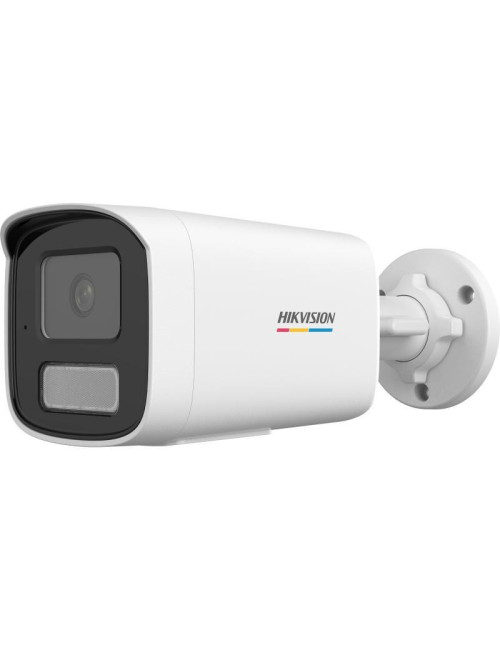

DS-2CD1T47G2H-LIU(2.8mm) Kamera IP tubowa 4Mpx Hikvision

Product Details

Reference WLONONWCRPBNM

In stock 8 Items

Data sheet

Type

IP security camera

Width

81 mm

Height

83.7 mm

Depth

202 mm

Connectivity technology

Wired

Weight

550 g

Package depth

150 mm

Package height

141 mm

Package width

150 mm

Package weight

800 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Manual

Yes

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Wall

Form factor

Bullet

Built-in microphone

Yes

Noise reduction

Yes

Sensor type

CMOS

Audio formats supported

G.711

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

6.8 W

Maximum resolution

2560 x 1440 pixels

Placement supported

Indoor & outdoor

Ethernet LAN (RJ-45) ports

1

Number of languages

2

DC-in jack

Yes

Housing material

Plastic

Networking standards

IEEE 802.3af

Ethernet LAN

Yes

Supported graphics resolutions

2560 x 1440

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Supported video modes

720p

Video formats supported

H.264

Number of Users

32 user(s)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Supported network protocols

IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP

Password protection

Yes

Languages support

Ukrainian

Frame Rate

25 fps

Product colour

White

Tilt angle range

0 - 180°

Fixed focal length

2.8 mm

Video recording

Yes

LED type

IR/White

Night vision

Yes

Total megapixels

4 MP

Fixed focus

Yes

Optical sensor size

25.4 / 3 mm (1 / 3")

Minimum illumination

0 lx

Pan range

0 - 355°

Lens viewing angle, diagonal

143°

Video compression formats

H.264

Angle of rotation

355°

DC output current

0.57 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

50 m

Number of lenses

1

Privacy protection

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

60°

Noise reduction technology

3D noise reduction

Smart IR

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1

Lens viewing angle, horizontal

115°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Digital watermark

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Live view

Yes

Power consumption (Power over Ethernet (PoE))

8.3 W

Image quality adjustment

Brightness

Password reset via email

Yes

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Built-in light

Yes

Detect distance

64 m

Observe distance

25 m

Recognize distance

12 m

Identify distance

6 m

Human and vehicle targets classification

Yes

Bit rate range

16 - 160 Kbit/s

Number of Privacy masking areas

4

Sample rates

8 - 16 kHz

Audit log

Yes
