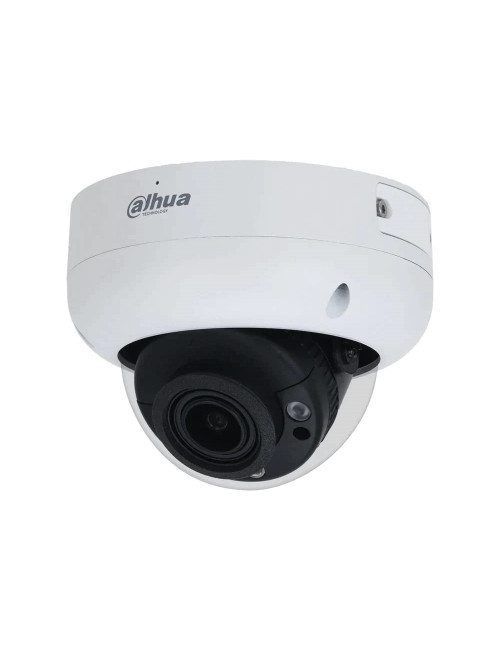

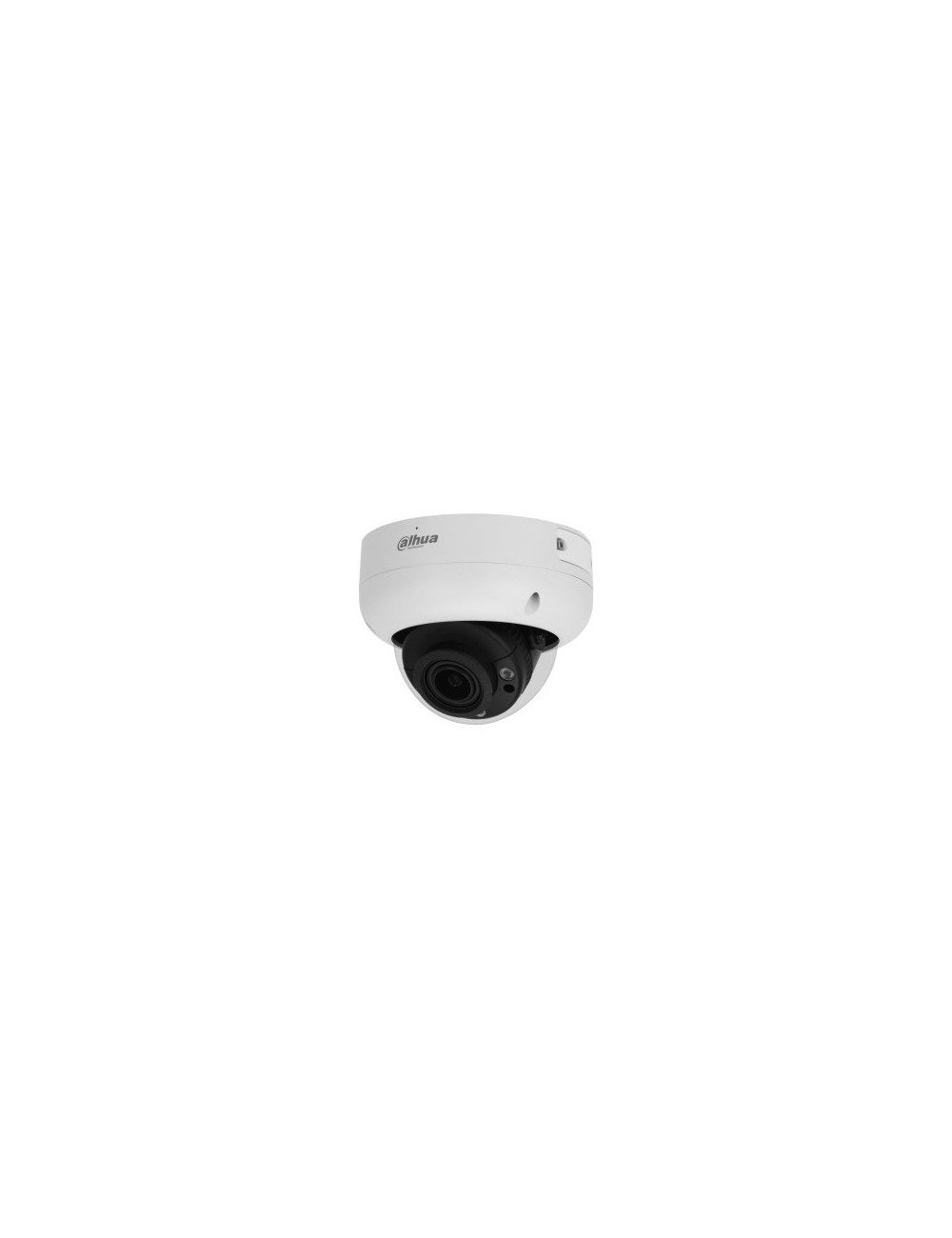

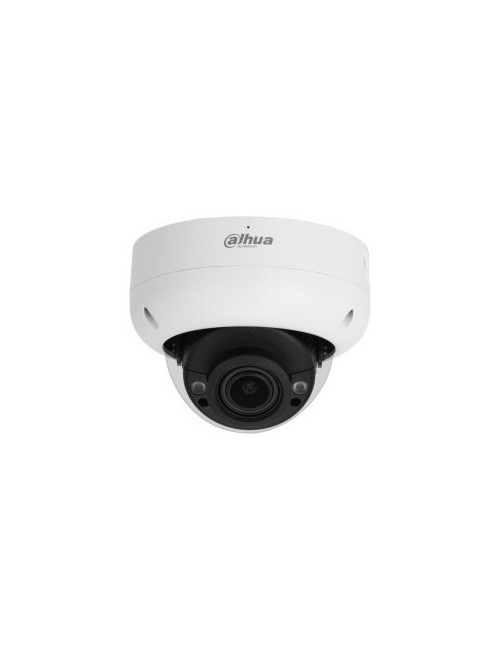

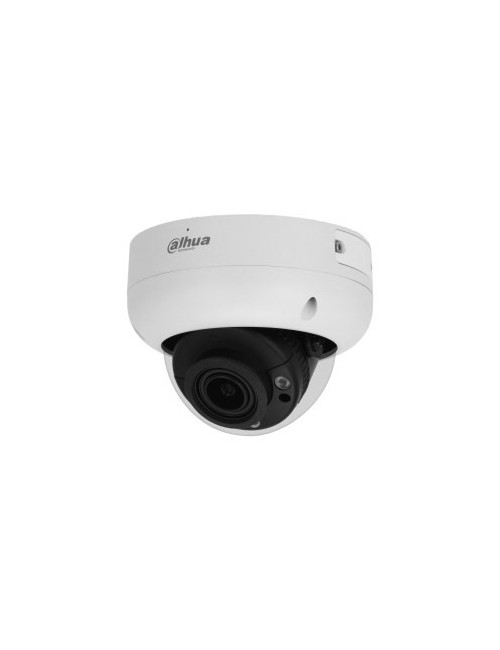

DAHUA DH-IPC-HDBW3441R-ZAS-S2 4MP IR Vari-focal Dome WizSense Network Camera

Product Details

Reference WLONONWCROY43

In stock 3 Items

Data sheet

Type

IP security camera

Height

94 mm

Connectivity technology

Wired

Weight

713 g

Package weight

986 g

Power source type

DC, PoE

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling

Form factor

Dome

Built-in microphone

Yes

Bluetooth

No

Bit rate

3 kbps – 8192 kbps

Noise reduction

Yes

Mobile operating systems supported

Android

Sensor type

CMOS

Wi-Fi

No

Internal memory

512 MB

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Signal-to-Noise Ratio (SNR)

56 dB

Power consumption (max)

7.9 W

Power consumption (typical)

2.8 W

Maximum resolution

2688 x 1520 pixels

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Audio output channels

1.0 channels

Housing material

Metal

Ethernet LAN

Yes

Supported graphics resolutions

640 x 480 (VGA)

Diameter

12.2 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

20 user(s)

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 80°

Focal length range

2.7 - 13.5 mm

Web browser

Yes

Video recording

Yes

Voice codecs

G.711a

Image stabilizer

Yes

LED type

IR

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

White balance

Natural

Minimum illumination

0 lx

Pan range

0 - 355°

Dynamic range

120 dB

Lens viewing angle, diagonal

125 - 33°

Video compression formats

M-JPEG

Angle of rotation

355°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

40 m

Day/night mode

Yes

Built-in HDD

No

Camera shutter type

Electronic

Lens viewing angle, vertical

54 - 16°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Lens viewing angle, horizontal

104 - 29°

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Alarm input/output

Yes

Intelligent Video Surveillance (IVS) system features

Intrusion

ROM capacity

128 MB

Camera shutter speed

1/3 - 1/100000 s

Adjustment shutter speed

Auto/Manual

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

3

Power consumption (Power over Ethernet (PoE))

3.6 W

IK code

IK10

Identify distance (wide)

6.4 m

Recognize distance (wide)

12.8 m

Audio input channels

1.0 channels

Observe distance (wide)

25.6 m

Closest focusing distance

0.8 m

Detect distance (wide)

64 m

Identify distance (tele)

21 m

Minimum aperture number

1.5

Recognize distance (tele)

42 m

Detect distance (tele)

210 m

Observe distance (tele)

84 m

Alarm output channels

1

Alarm input channels

1

Number of Privacy masking areas

4
