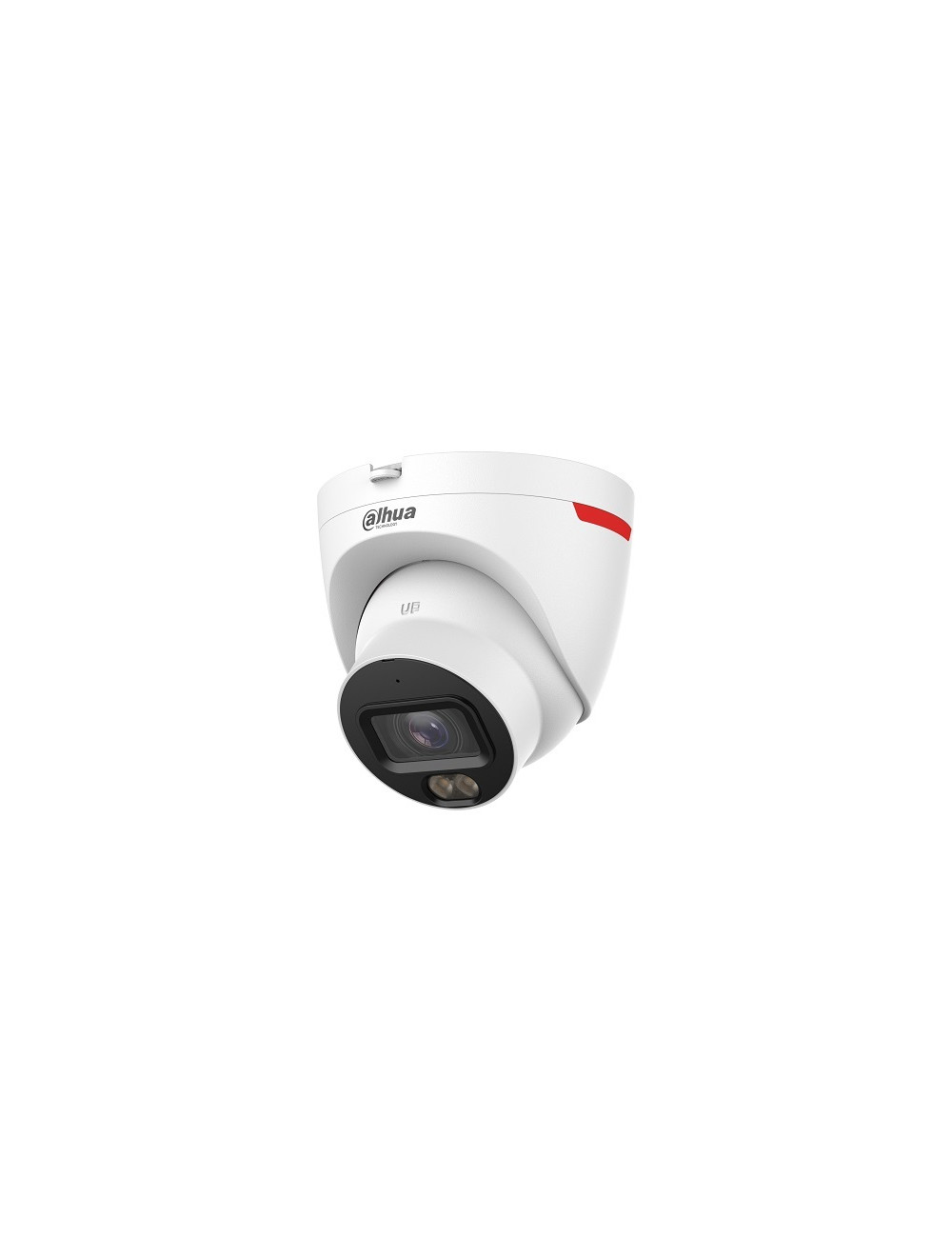

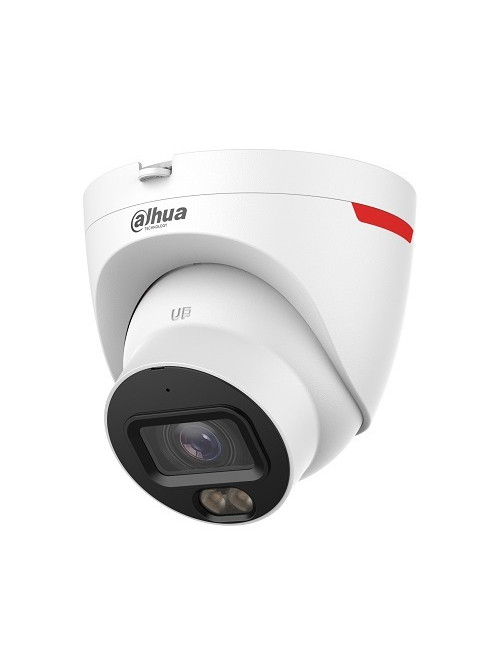

IP network camera 4MP HDW2449T-S-PRO 3.6mm

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) x 1520 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0005 lux@F1.0

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (Warm light)

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M16

Focal Length

3.6 mm

Max. Aperture

F1.0

Field of View

3.6 mm: H: 94°; V: 50°; D: 113°

Iris Control

Fixed

Close Focus Distance

3.6 mm: 2.6 m (8.53 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6 mm

70.3 m

( 230.64 ft)

28.1 m

( 92.19 ft)

14.1 m

( 46.26 ft)

7.0 m

( 22.97 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human);

SMD

SMD Plus

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2688 x 1520@(1–20 fps)/2560 x 1440@(1–25/30 fps)

sub stream: 704 x 576@(1–25 fps)/704 x 480@(1–30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

4M (2688 x 1520/2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

Bit Rate Control

VBR;CBR

Video Bit Rate

H.264: 32 kbps–6144 kbps;

H.265: 12 kbps–6144 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 x 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

LDC

Yes

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE; Chrome; Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

Power

Power Supply

12 VDC; PoE

Power Consumption

Basic: 2.0 W (12 VDC); 2.5 W (PoE);

Max.: 5.3 W (12 VDC); 6.4 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

?95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

?95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Inner core: Metal;

Cover: Plastic

Product Dimensions

109.5 mm x ?109.9 mm (4.31" x ?4.33")

Net Weight

0.42 kg (0.93 lb)

Gross Weight

0.59 kg (1.30 lb)
