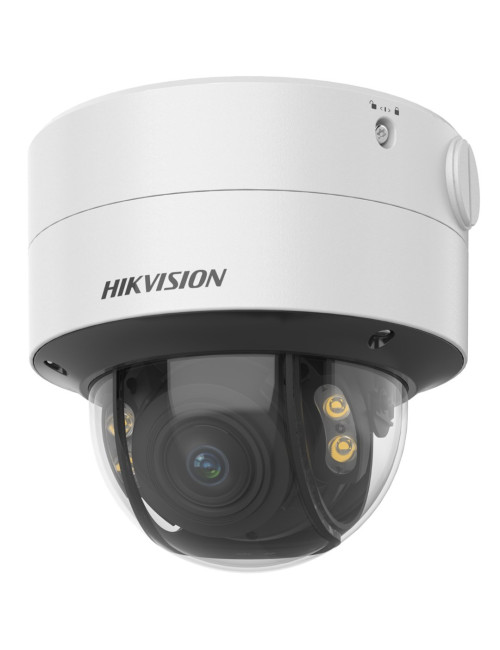

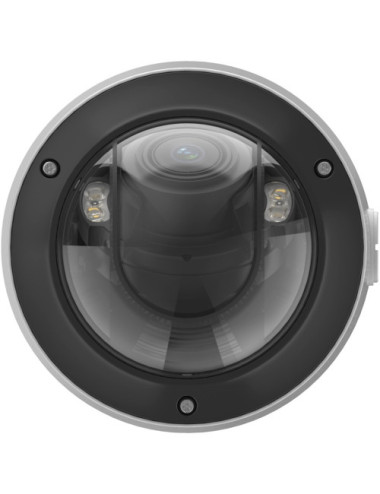

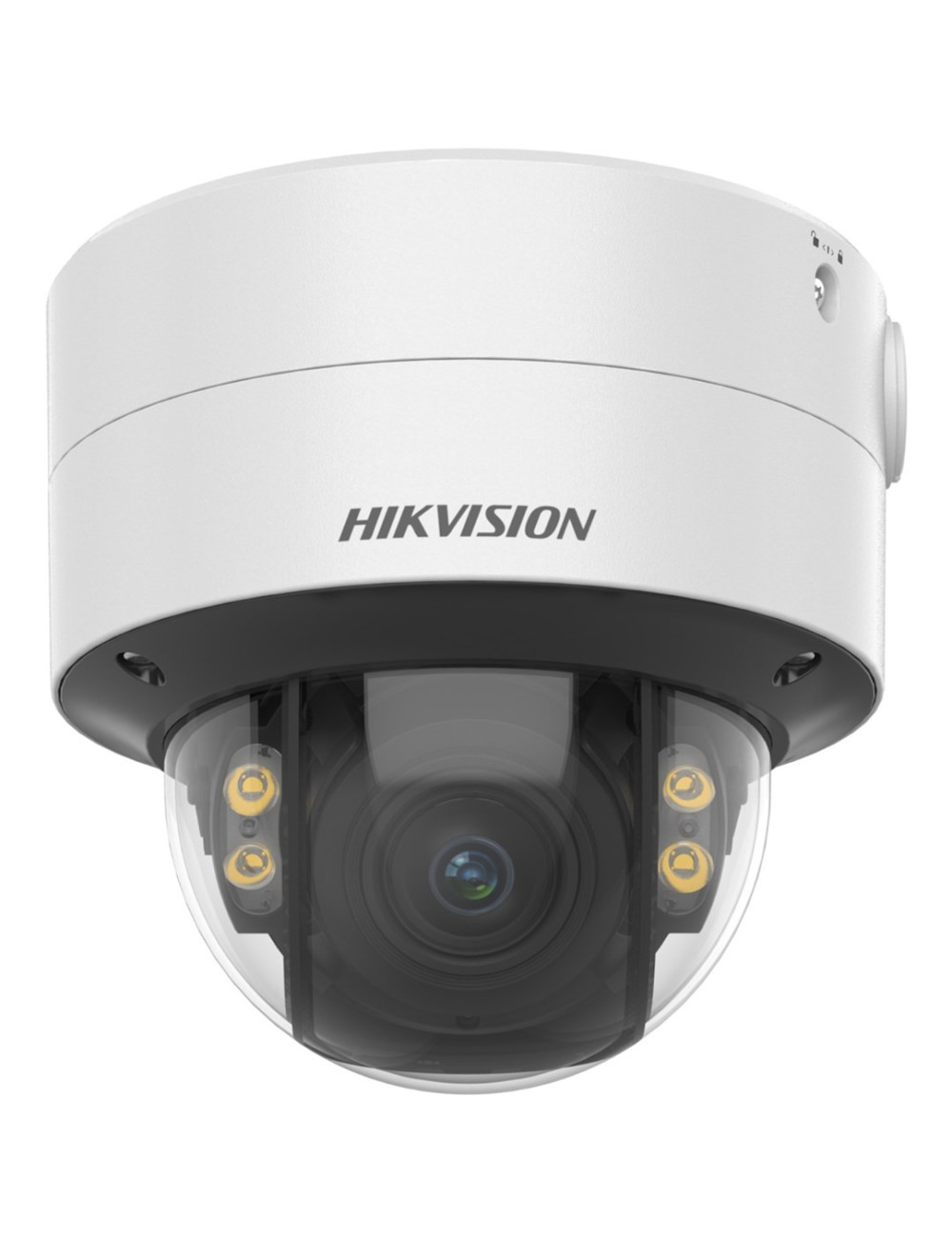

Hikvision IP Dome IR DS-2CD2747G2-LZS(3.6-9mm) (C) 4MP

Product Details

Reference WLONONWCR6873

In stock 7 Items

Data sheet

Type

IP security camera

Connectivity technology

Wired

Weight

1.52 kg

Package depth

198 mm

Package height

220 mm

Package width

227 mm

Package weight

2.11 kg

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Dome

Bluetooth

No

Bit rate

32 Kbps - 8 Mbps

Noise reduction

Yes

Protection features

Water resistant

Length

152 mm

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSDXC

Maximum memory card size

256 GB

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

10.8 W

Maximum resolution

2688 x 1520 pixels

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Audio output channels

1.0 channels

Networking standards

IEEE 802.3af

Security algorithms

TLS

Ethernet LAN

Yes

Supported graphics resolutions

2688 x 1520

Diameter

15.5 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Quality of Service (QoS) support

Yes

Reset button

Yes

Password protection

Yes

Languages support

Multi

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 75°

Focal length range

3.6 - 9 mm

Web browser

Yes

Voice codecs

G.726

LED type

IR

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Minimum illumination

0 lx

Pan range

0 - 355°

Lens viewing angle, diagonal

112.2°

Video compression formats

H.264+

Angle of rotation

355°

DC output current

0.9 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

40 m

Number of lenses

1

Built-in HDD

No

Lens viewing angle, vertical

48.4°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1

Lens viewing angle, horizontal

92.3°

Number of sensors

1

Alert notification type

E-mail

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Anti-flicker

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Active tampering alarm

Yes

Alarm input/output

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Face detection

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Power consumption (Power over Ethernet (PoE))

12.9 W

HTTPS encryption

Yes

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Image quality adjustment

Sharpness

IK code

IK10

Password reset via email

Yes

Identify distance (wide)

12.4 m

Recognize distance (wide)

24.8 m

Audio input channels

1.0 channels

Observe distance (wide)

49.3 m

Detect distance (wide)

124 m

Pixel counter

Yes

Compliance certificates

RoHS

Warnings

The product contains electronic components; do not dispose of with the normal household waste.

Audit log

Yes

Flash log

Yes

Software reset

Yes
