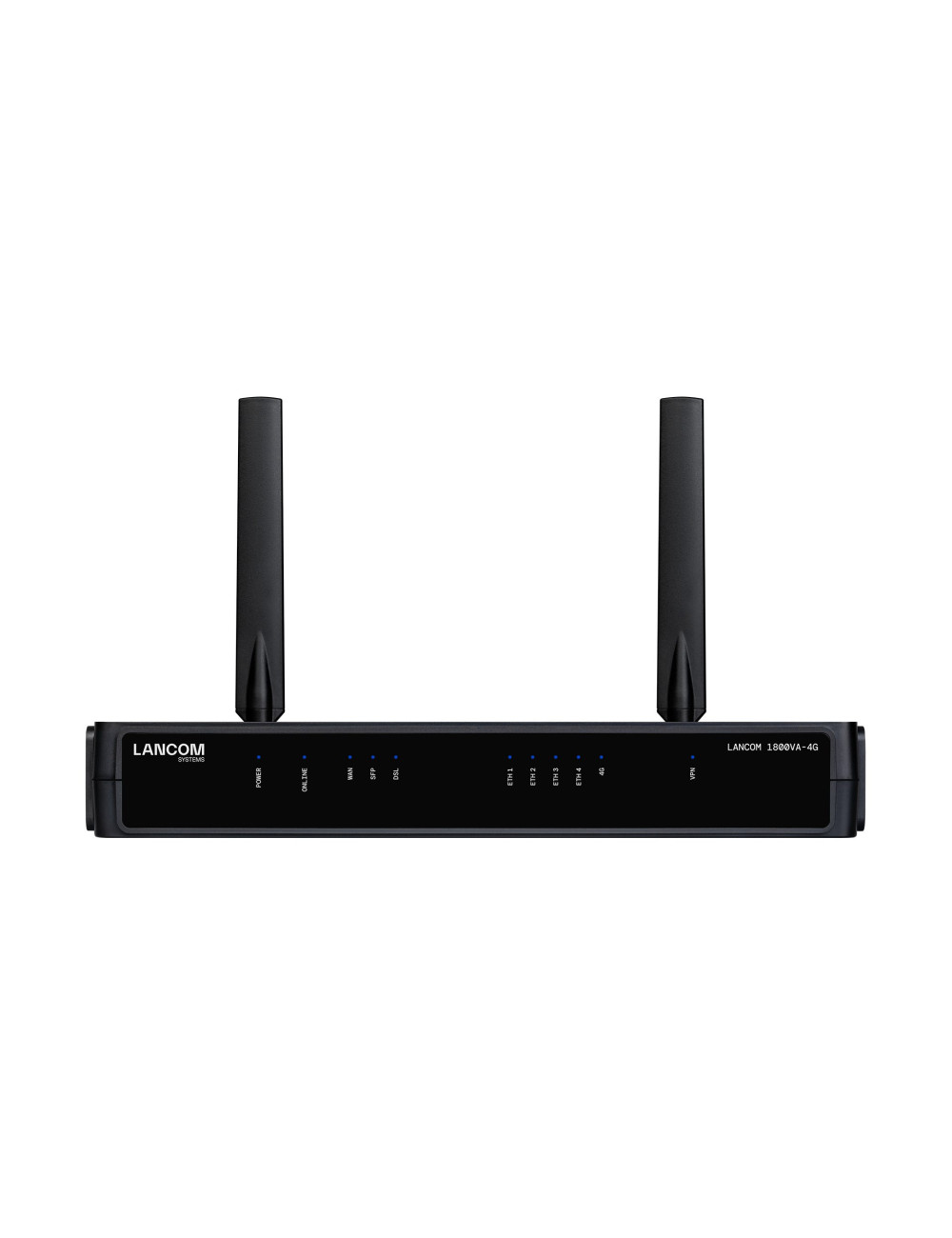

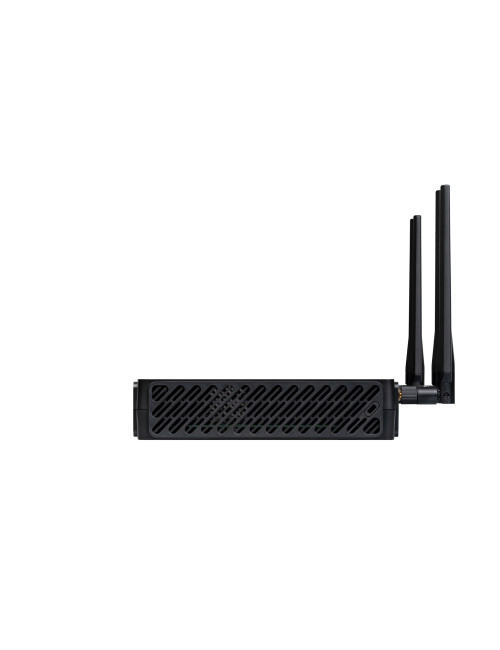

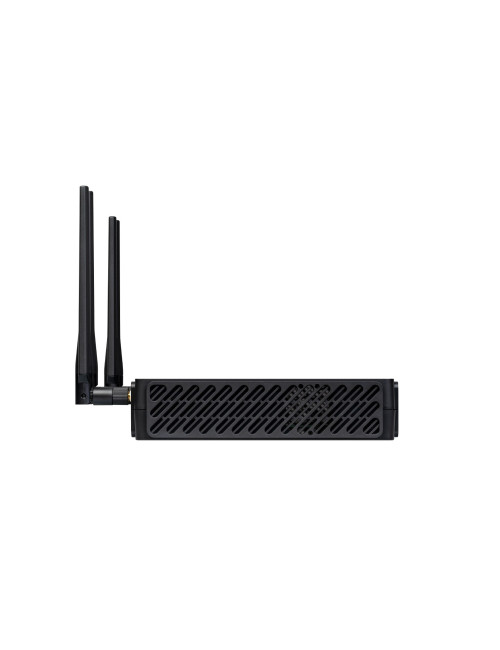

Lancom Router 1800VA-4G (EU) SD-WAN Gateway with VDSL2/ADSL2+ Modem (Annex A/B/J

Product Details

Data sheet

Width

293 mm

Height

44 mm

Depth

190 mm

Weight

740 g

Package depth

320 mm

Package height

110 mm

Package width

210 mm

Package weight

2.03 kg

Cables included

LAN (RJ-45)

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

LED indicators

Yes

AC adapter included

Yes

Quick start guide

Yes

Country of origin

Germany

Wi-Fi

No

USB 2.0 ports quantity

1

Power consumption (max)

27 W

Power consumption (typical)

13 W

Ethernet LAN (RJ-45) ports

5

DC-in jack

Yes

Networking standards

IEEE 802.3q

Security algorithms

EAP-TTLS

Modulation

1024-QAM

Antenna connector type

SMA

Ethernet LAN data rates

10

Antenna type

External

Antennas quantity

2

MAC address filtering

Yes

WAN connection

Ethernet (RJ-45)

Management protocols

SNMPv1,v2c,v3

Authentication method

PAP, CHAP, MS-CHAP, MS-CHAPv2

VLAN support

Yes

Quality of Service (QoS) support

Yes

DHCP client

Yes

Firewall security

Yes

Reset button

Yes

DHCP server

Yes

Number of fans

1 fan(s)

Password protection

Yes

Data network

4G

Product colour

Black

Sustainability compliance

Yes

Heat dissipation

104 BTU/h

Mobile network generation

4G

Customs product code (TARIC)

85176200

Multicast support

Yes

Syslog

Yes

Access Control List (ACL)

Yes

Network address translation (NAT)

Yes

DMZ support

Yes

Dynamic DNS (DDNS)

Yes

IGMP snooping

Yes

Multicast Listener Discovery (MLD) snooping

Y

Traffic shaping

Yes

DHCPv6 snooping

Yes

Load balancing

Yes

Control display unit

No

Routing protocols

BGP4

VoIP protocols

SIP ALG

PPTP/L2TP VPN tunnels (max)

25
