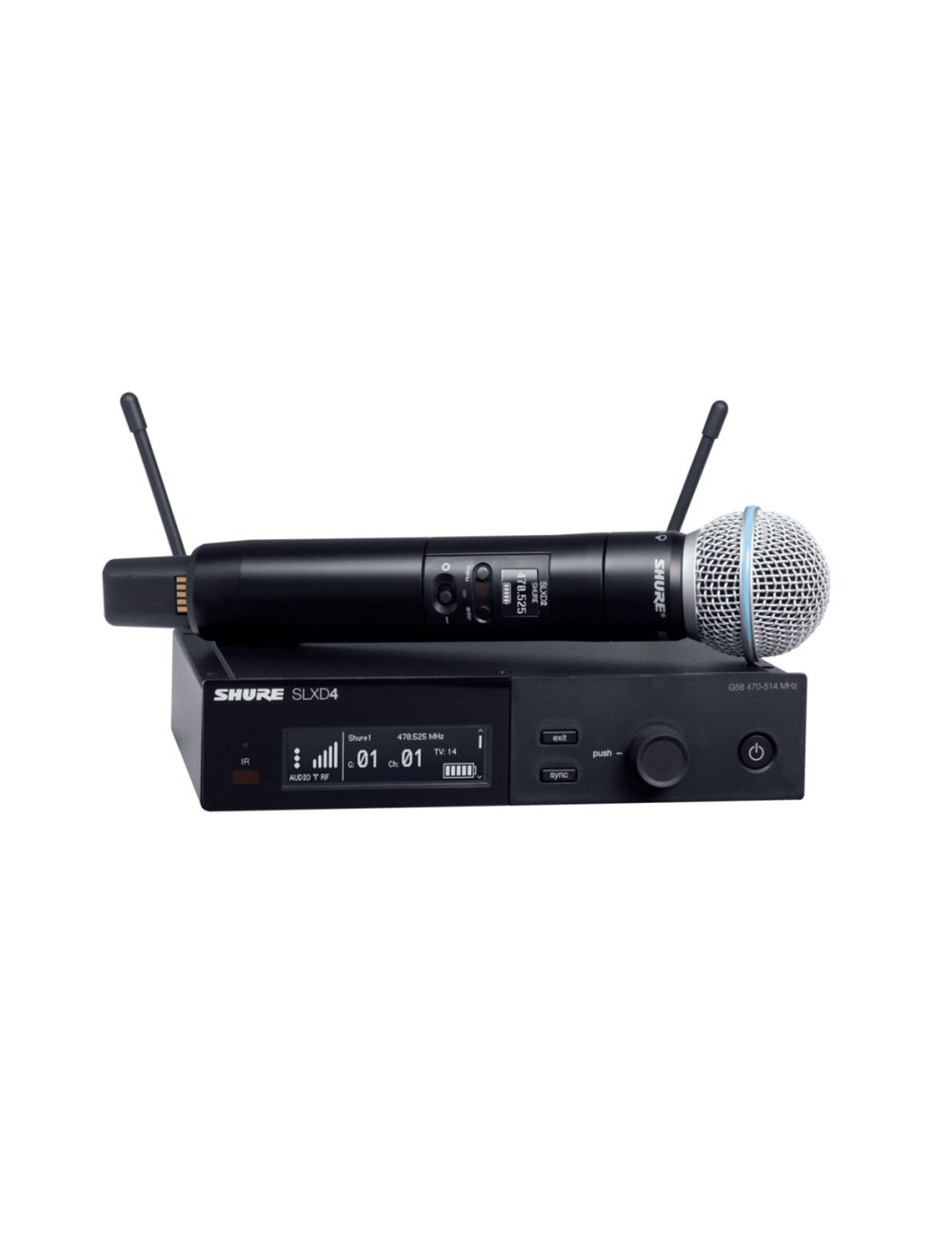

Shure SLXD24E/B58-J53 wireless microphone system

Product Details

Data sheet

Battery type

AA

Total Harmonic Distortion (THD)

0.02%

Receiver type

Stationary receiver

Operating temperature (T-T)

-18 - 50 °C

Storage temperature (T-T)

-29 - 74 °C

Battery technology

Lithium-Ion (Li-Ion)

Receiver dimensions (WxDxH)

197 x 152 x 42 mm

Receiver weight

816 g

Microphone connectivity

RF Wireless

Transmitter weight

147 g

RJ-45 ports quantity

1

Battery voltage

1.5 V

Channels quantity

32 channels

Antenna connector type

BNC

Antennas quantity

2

Microphone frequency response

50 - 16000 Hz

Microphone type

Handheld microphone

Transmitter type

Handheld transmitter

Dynamic range

118 dB

XLR out

1

Number of transmitters included

1

Number of receivers included

1

6.35 mm (1⁄4-inch) output

1

Number of microphones included

1

Microphone transducer principle

Dynamic microphone

Transmitter dimensions (WxDxH)

37.1 x 37.1 x 176 mm

Warnings

Do not open the unit housing.

Operating frequency type

Ultra High Frequency (UHF)

Radio Frequency (RF) range

562 - 606 MHz

Pick-up pattern

Super-Cardioid

Power consumption (receiver) (max)

600 mA

Operating voltage (receiver)

15 V

Microphone power source type

Battery

Transmitter housing material

Metal

Transmitter display

Yes

Receiver housing material

Steel

Receiver display

Yes

Receivers AF frequency response

20 - 20000 Hz
