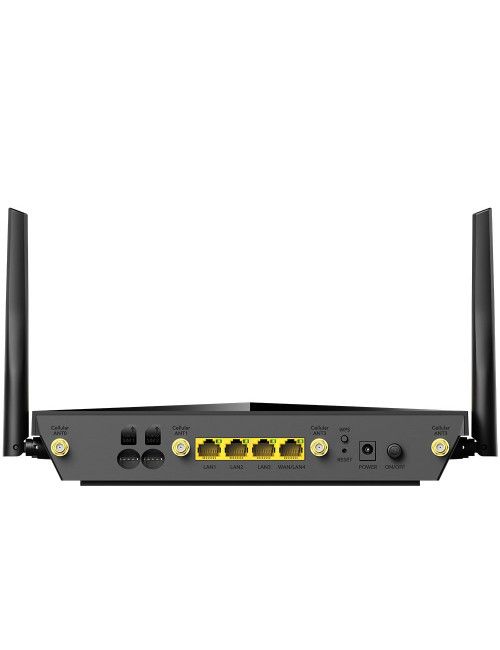

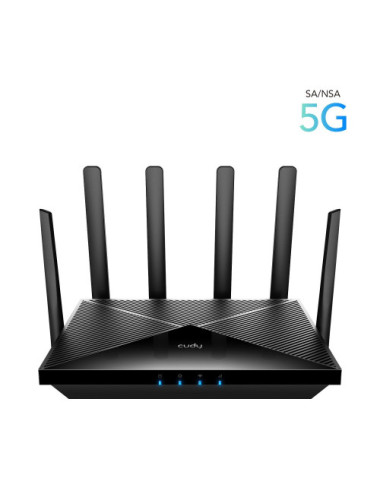

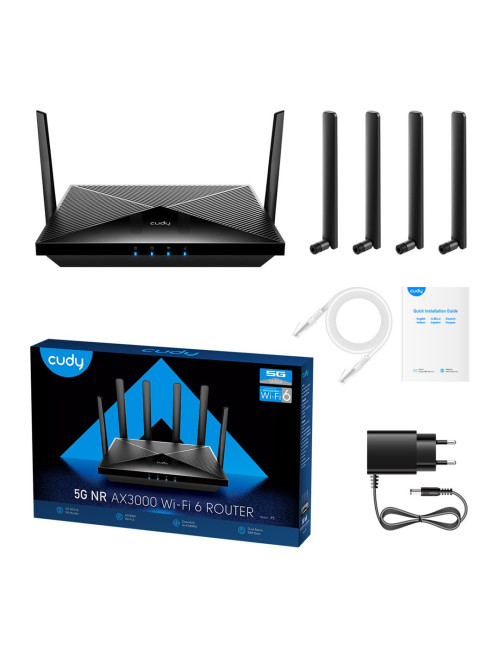

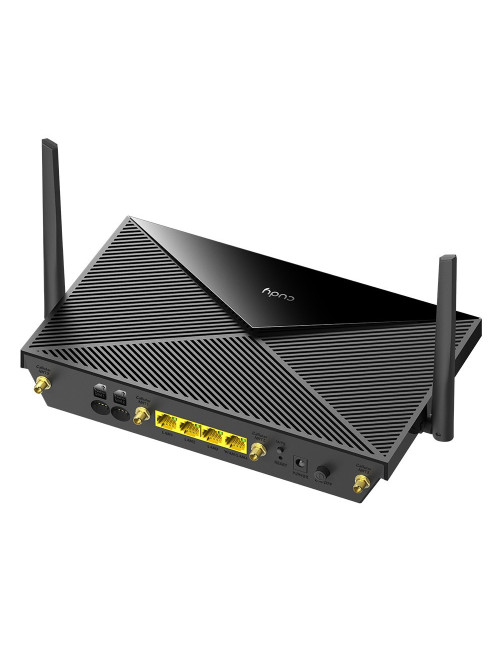

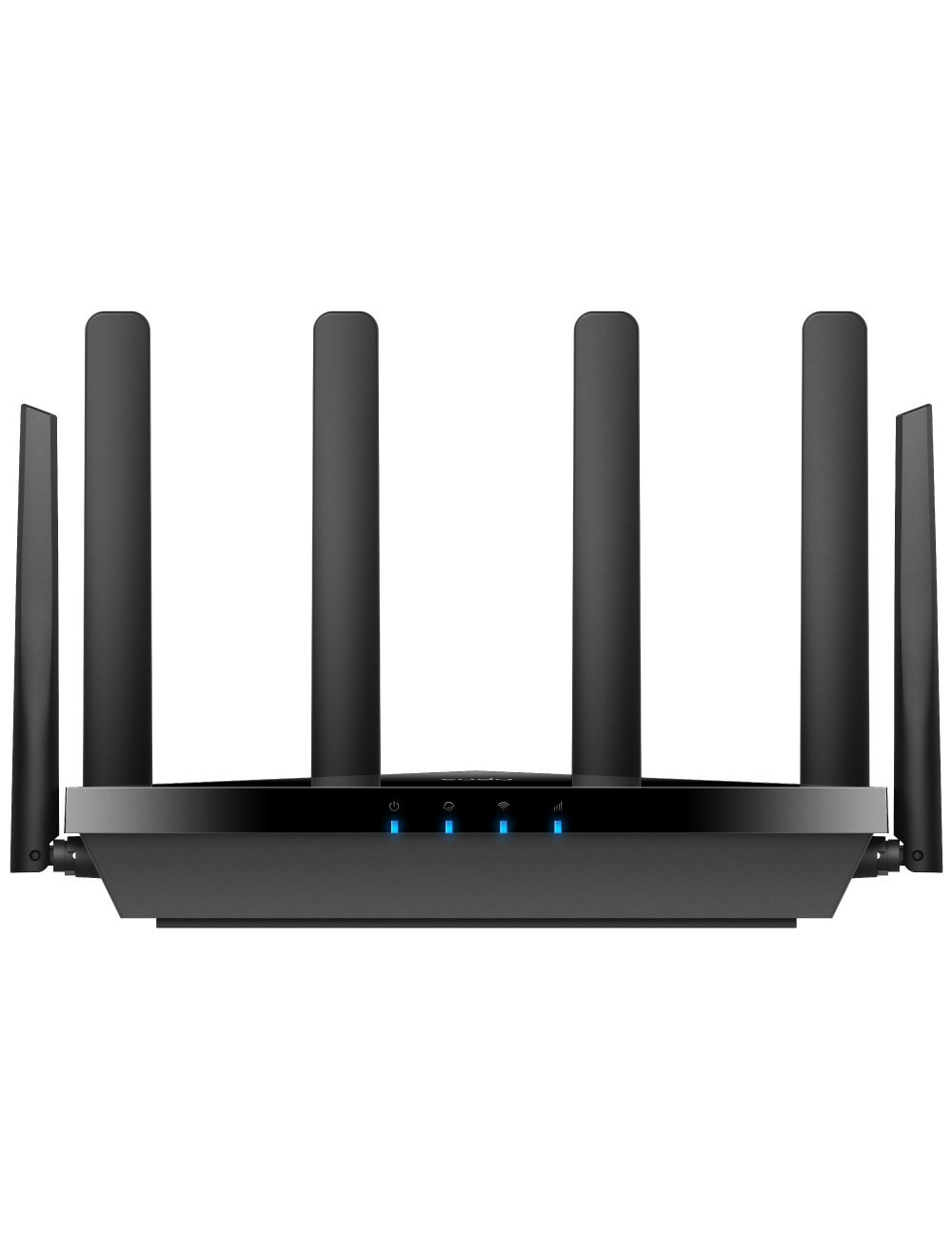

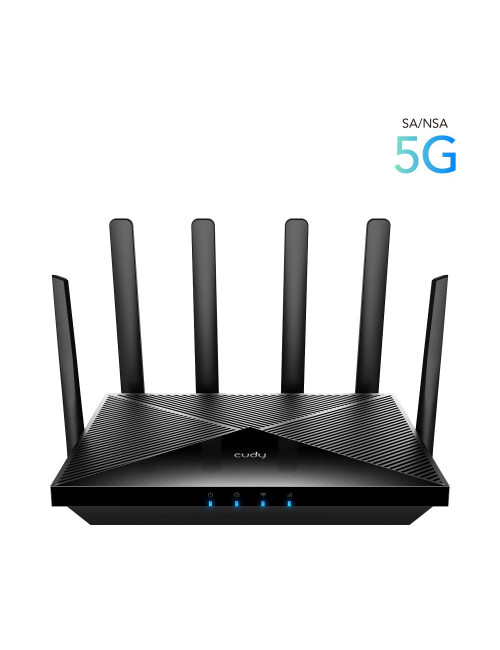

Cudy P5 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 5G Black

Product Details

Data sheet

Mac operating systems supported

MacOS

Linux operating systems supported

Yes

Windows operating systems supported

Windows 10

Package type

Box

Width

152.5 mm

Height

48.2 mm

Depth

253 mm

Product type

Tabletop router

Package depth

415 mm

Package height

90 mm

Package width

265 mm

Power source type

AC

Cables included

LAN (RJ-45)

Operating temperature (T-T)

0 - 45 °C

Operating relative humidity (H-H)

5 - 95%

Storage temperature (T-T)

-40 - 70 °C

USB port

No

Mac compatibility

Yes

AC adapter included

Yes

Internal memory type

DDR3

Processor frequency

1000 MHz

Processor cores

2

Internal memory

256 MB

Wi-Fi standards

802.11a

SIM card type

NanoSIM

Output voltage

12 V

Output current

2.5 A

Ethernet LAN (RJ-45) ports

4

Cabling technology

10/100/1000Base-T(X)

DC-in jack

Yes

Security algorithms

TTLS

Detachable antenna(s)

Yes

Ethernet LAN data rates

1000 Mbit/s

Ethernet LAN

Yes

AC input voltage

90 - 260 V

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Flash memory

128 MB

Antennas quantity

6

Short Message Service (SMS)

Yes

Quick installation guide

Yes

MAC address filtering

Yes

Built-in processor

Yes

Quality of Service (QoS) support

Yes

DHCP client

Yes

Indication light

Yes

Firewall

Yes

Reset button

Yes

DHCP server

Yes

Browser supported

Firefox 12.0, Chrome 20.0, Safari 4.0

Product colour

Black

External power adapter

Yes

Processor manufacturer

Qualcomm

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

MIMO

Yes

Mobile network generation

5G

4G standard

LTE-FDD

3G standards

WCDMA

5G bands supported

6000 MHz

5G standard

Sub6 SA/NSA

Dual SIM support

Yes

SIM card slot

Yes

IP address filtering

Yes

Ethernet LAN interface type

Gigabit Ethernet

WPS push button

Yes

Filtering

Yes

WLAN data transfer rate (first band)

574 Mbit/s

WLAN data transfer rate (second band)

2402 Mbit/s

Ethernet WAN

Yes

Warnings

Do not expose the device to water or moisture.

Network address translation (NAT)

Yes

DMZ support

Yes

Port forwarding

Yes

Dynamic DNS (DDNS)

Yes

Port triggering

Yes

VPN server

PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier

WLAN data transfer rate (max)

2402 Mbit/s

Universal Plug and Play (UPnP)

Yes

Antenna design

External

3G/4G USB modem compatibility

Yes

DSL WAN

No

WAN connection type

RJ-45

Antenna included

Yes
