EATON

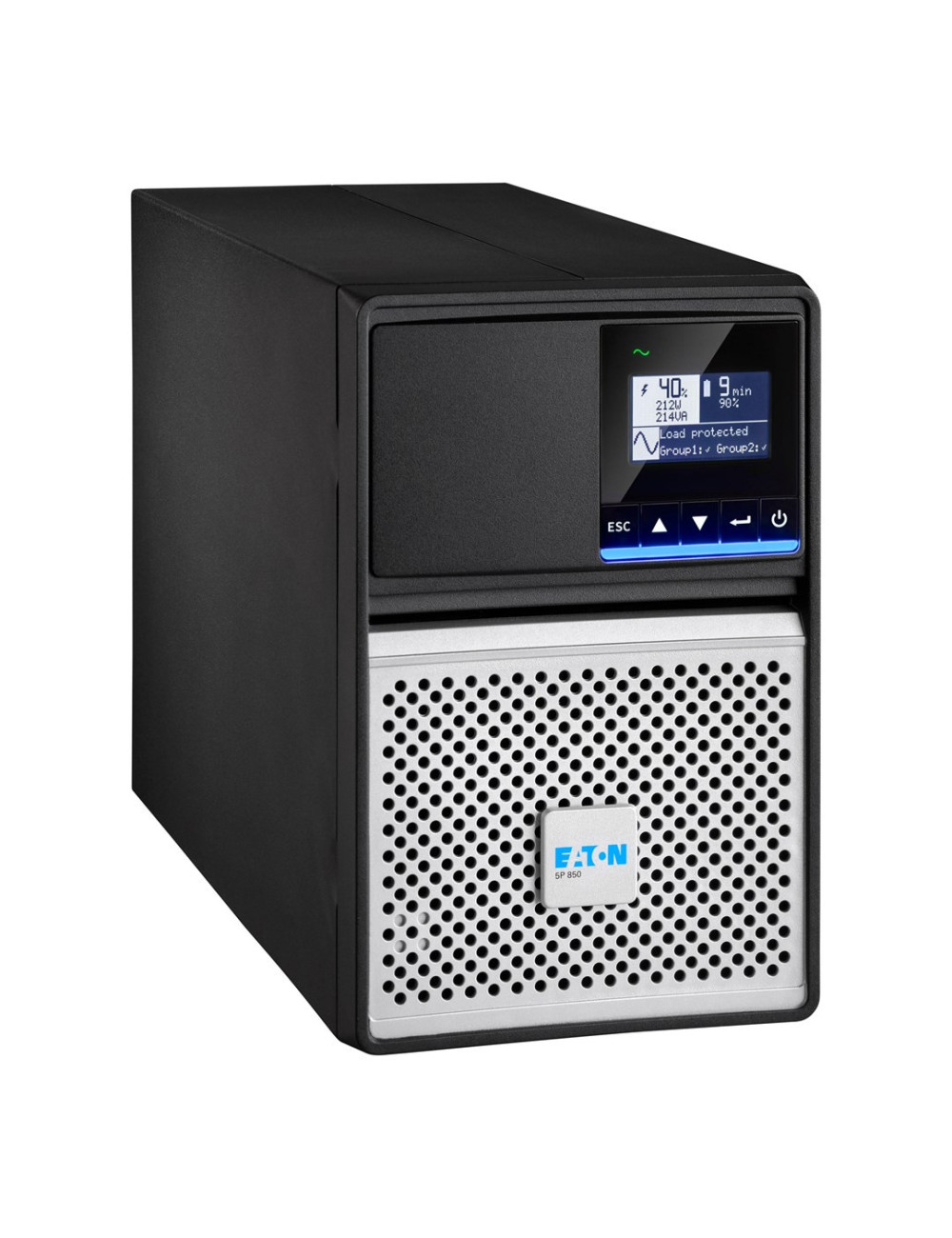

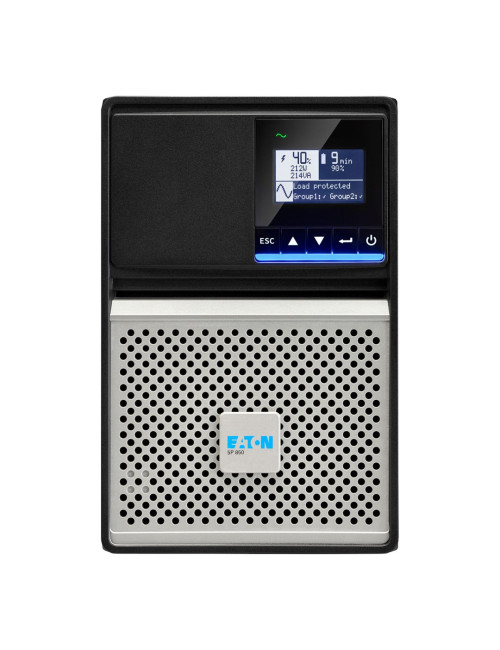

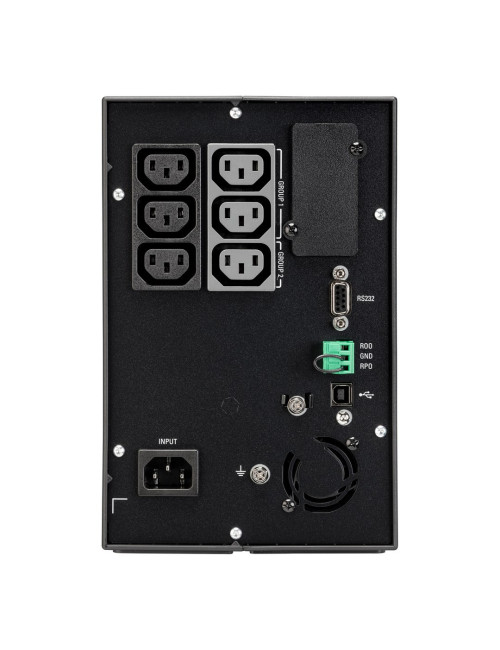

Uninterruptible Power Supply (UPS) EATON 5P 850i G2

503,75 €

Su mokesčiais

Prekė detaliau
Greitas palyginimas

Prekė detaliau

Kodas ZSIEATUPS0091

Yra sandėlyje 10 Prekės

Charakteristikos

Width: 150 mm
Height: 233 mm
Depth: 345 mm
Weight: 10.2 kg
Operating temperature (T-T): 0 - 40 °C
Form factor: Tower
USB port: Yes
Mac compatibility: No
Battery technology: Sealed Lead Acid (VRLA)
Output power: 680 W
Input frequency: 40/70 Hz
USB 2.0 ports quantity: 1
Display type: LCD
Efficiency: 98%
Input operation voltage (min): 160 V
AC outlets quantity: 6 AC outlet(s)
Output power capacity: 0.85 kVA
Output operation voltage (max): 200 V
Waveform: Pure sine
AC outlet types: C13 coupler
Input operation voltage (max): 294 V
Output operation voltage (min): 240 V
UPS topology: Line-Interactive
Typical backup time at full load: 4.5 min
Automatic battery test: Yes
Typical backup time at half load: 13 min
Nominal input voltage: 230 V
Nominal output voltage: 230 V
RS-232 ports: 1
Output frequency: 50/60 Hz
Noise Level: 35 dB
Power plug: C14 coupler
Product colour: Black
Safety: IEC/EN 62040-1, UL 1778
ECO mode: No
Hot-swap battery: Yes
Number of input phases: 1
Number of output phases: 1
Input connection type: IEC C14
Management card included: No

Greitas palyginimas

Prekė	POWER WALKER UPS ON-LINE VFI 3000 AT FR	APC Smart-UPS SMT750IC - 6x C13, USB, SmartConnect, 750VA	APC Smart-UPS SMT750IC - 6x C13, USB, SmartConnect, 750VA	APC BACK-UPS PRO 1500
Prieinamumas
Kaina	497,93 €	502,96 €	502,96 €	505,21 €
Aprašymas
Cable length		1.83 m	1.83 m	1.83 m
Width	196 mm	138 mm	138 mm	112 mm
Height	342 mm	157 mm	157 mm	301 mm
Depth	416 mm	358 mm	358 mm	382 mm
Weight	25.4 kg	13.2 kg	13.2 kg	13 kg
Package depth	512 mm		499 mm
Package height	458 mm	301 mm	301 mm	390 mm
Package width	294 mm	278 mm	278 mm	235 mm
Package weight	27.1 kg		14.2 kg
Number of batteries supported	6
Battery type				APCRBC124
Cables included	RS-232, USB cable	USB cable	USB cable	Phone (RJ-11), USB cable
Storage relative humidity (H-H)		0 - 95%	0 - 95%	0 - 95%
Manual		Yes	Yes	Yes
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C	0 - 40 °C	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%	5 - 95%	5 - 95%	0 - 95%
Storage temperature (T-T)		-15 - 45 °C	-15 - 45 °C	-15 - 45 °C
Form factor	Tower	Tower	Tower	Tower
USB port	Yes	Yes	Yes	Yes
LED indicators		Status	Status
Battery technology		Sealed Lead Acid (VRLA)	Sealed Lead Acid (VRLA)
Battery life (max)		5 year(s)	5 year(s)	5 year(s)
Battery capacity	9 Ah			187 VAh
Battery recharge time	4 h	3 h	3 h	8 h
Output power	2700 W	500 W	500 W	865 W
Input frequency	40 - 70 Hz	50/60 Hz	50/60 Hz	50/60 Hz
USB 2.0 ports quantity	1
Response time	0 ms
Display type	LCD	LCD	LCD	LCD
Ethernet LAN (RJ-45) ports		1	1
Efficiency	91%	98%	98%	98.9%
Input operation voltage (min)	80 V	151 V	151 V	156 V
Cold start		Yes	Yes	Yes
AC outlets quantity	4 AC outlet(s)	6 AC outlet(s)	6 AC outlet(s)	6 AC outlet(s)
Output power capacity	3 kVA	0.75 kVA	0.75 kVA	1.5 kVA
Output operation voltage (max)	240 V	240 V	240 V
Waveform	Pure sine	Sine	Sine	Sine
Auto-restart		Yes	Yes
AC outlet types	Type E	C13 coupler	C13 coupler	Type F
Input operation voltage (max)	300 V	302 V	302 V	300 V
Audible alarm(s)		Yes	Yes	Yes
Battery voltage	12 V
Output operation voltage (min)	208 V	220 V	220 V
UPS topology	Double-conversion (Online)	Line-Interactive	Line-Interactive	Line-Interactive
Typical backup time at full load	3.5 min	4.6 min	4.6 min	3.7 min
Warranty card				Yes
Automatic Voltage Regulation (AVR)		Yes	Yes
Automatic battery test		Yes	Yes	Yes
Typical backup time at half load	11 min	15.8 min	15.8 min	12.3 min
Surge protection				Yes
Nominal input voltage				230 V
Nominal output voltage				230 V
Output frequency regulation	±0.5 Hz			50/60 Hz
Output voltage regulation	±1%
RS-232 ports	1
Operating altitude		0 - 3000 m	0 - 3000 m	0 - 3000 m
Quick installation guide		Yes	Yes
Noise Level		40 dB	40 dB	45 dB
Surge energy rating		540 J	540 J	441 J
Power plug	C20 coupler	C14 coupler	C14 coupler	Type F
Non-operating altitude		0 - 15000 m	0 - 15000 m	0 - 15000 m
Product colour	Black	Black	Black	Black
Harmonized System (HS) code	85078000	85078000	85078000	85078000
Sustainability certificates		Green Premium	Green Premium	Green Premium
Products per pallet			24 pc(s)
USB port type	USB Type-B
Output voltage Total Harmonic Distortion (THD)	5%
Hot-swap battery		Yes	Yes	Yes
Compliance certificates		RoHS	RoHS	RoHS
Total carbon footprint (kg of CO2e)		639.93	639.93
Hold time (max)				12 ms
Hold time (min)				10 ms
Surge protection features				Network
Number of output IEC jumpers		2	2
SmartSlot		Yes	Yes
Crest factor	3:1
Number of type F outputs				6
Output power factor	0.9
Input power factor	0.99
Built-in fan	Yes
Warnings	Do not disassemble the unit housing, there may be a risk of electric shock.	Do not disassemble the unit housing, there may be a risk of electric shock.
