TECNOWARE

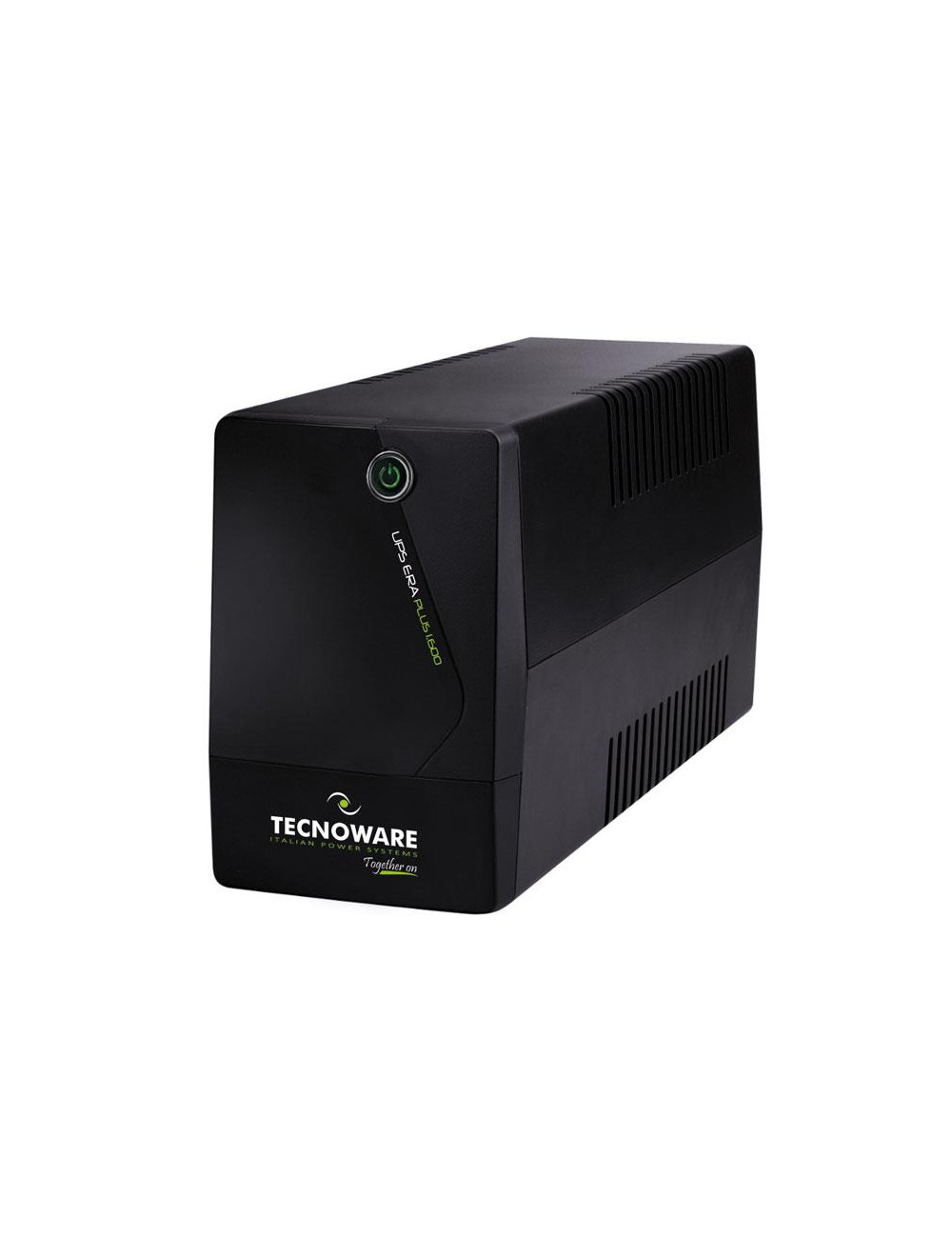

UPS|TECNOWARE|1200 Watts|1600 VA|Wave form type Sinewave|LineInteractive|Phase 1 phase|Desktop/pedestal|FGCERAPL1602SCH

85,20 €

Su mokesčiais

UPS ERA PLUS 1600VA, 12V 11Ah battery, It has 1 fixed SCHUKO input cable and 2 SCHUKO outputs protected against blackout, overvoltages and undervoltages. Line Interactive Plus technology. Dimensions 10x14x28 cm, weight 5.5 kg. Equipped with On-Off button with integrated multifunction LED with audible alarm for signaling the operating status and USB interface for controlling UPS continuity and programming on / off via the free tecnomanager win / mac software. Designed to protect PC Office, DVR for video surveillance, ADSL-Fiber Modem / router, Cash Register. Totally silent.

Complete protection against blackout and power surges (overvoltages and undervoltages)
Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registers
Not suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motors
AVR Automatic Voltage Regulator electronic circuit
n 2 Italy / Schuko output sockets and n 1 schuko input cable
outputs socket protected against blackout
outputs socket protected against overvoltages
multifunction LED and on-off button
USB port for UPS control / monitoring and ignition programming / shutdown via Tecnomanager software
UPS management software TecnoManager compatible with Windows, Mac OS X, Linux etc

Prekė detaliau

Prekės ženklas TECNOWARE

Kodas FGCERAPL1602SCH

Yra sandėlyje 16 Prekės

Charakteristikos

Garantija: 24/12L
Category Code: UPW
Unit Box Height: 0.22
Unit Box Length: 0.34
Unit Box Width: 0.18
Vendor Homepage: https://www.tecnoware.com/en-US/Dettaglio/Articolo/56
Units per Shipping Box: 1
Unit Calculated Weight: 5.35 kg
Unit Calculated Volume: 0.01346 cubm
Summary: Tecnoware Era Plus 1600. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1120 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Typical ba
Weight & dimensions (Weight): 5000 g
Battery (Battery technology): Sealed Lead Acid (VRLA)
Weight & dimensions (Width): 101 mm
Weight & dimensions (Depth): 279 mm
Weight & dimensions (Height): 142 mm
Packaging data (Package width): 180 mm
Packaging data (Package depth): 340 mm
Packaging data (Package height): 220 mm
Ports & interfaces (USB 2.0 ports quantity): 1
Design (Product colour): Black
Certificates (Certification): CE
Operational conditions (Operating relative humidity (H-H)): 0 - 95 %
Operational conditions (Operating temperature (T-T)): 0 - 55 C
Design (Form factor): Compact
Operational conditions (Operating altitude): 0 - 300 m
Design (LED indicators): Yes
Ports & interfaces (USB port): Yes
Design (International Protection (IP) code): IP20
Features (Input frequency): 50/60 Hz
Features (Input operation voltage (max)): 276 V
Features (Input operation voltage (min)): 172.5 V
Features (Noise level): 40 dB
Features (Output operation voltage (max)): 230 V
Features (Output operation voltage (min)): 230 V
Features (Output power): 1120 W
Features (Output power capacity): 1.6 kVA
Features (UPS topology): Line-Interactive
Ports & interfaces (AC outlet types): Type F
Ports & interfaces (AC outlets quantity): 2 AC outlet(s)
Features (Automatic Voltage Regulation (AVR)): Yes
Features (Number of input phases): 1
Features (Number of output phases): 1
Features (Output frequency): 50/60 Hz
Features (Waveform): Sine
Ports & interfaces (USB port type): USB Type-B
Features (Output voltage regulation): 5 %
Features (Power factor): 0.7
Features (Response time): 2 ms
Battery (Typical backup time at full load): 10 min
