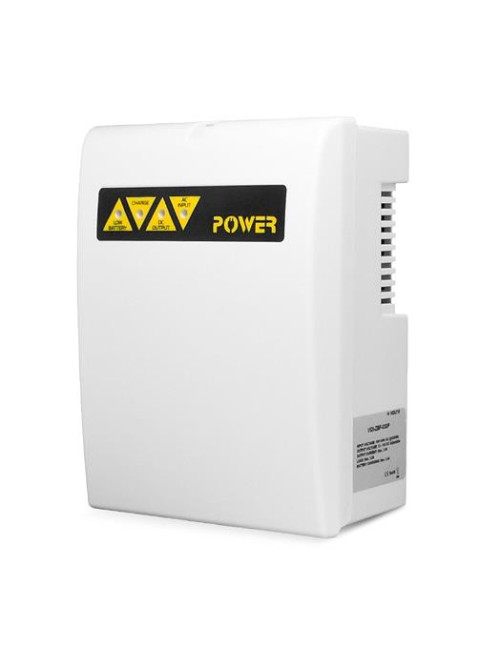

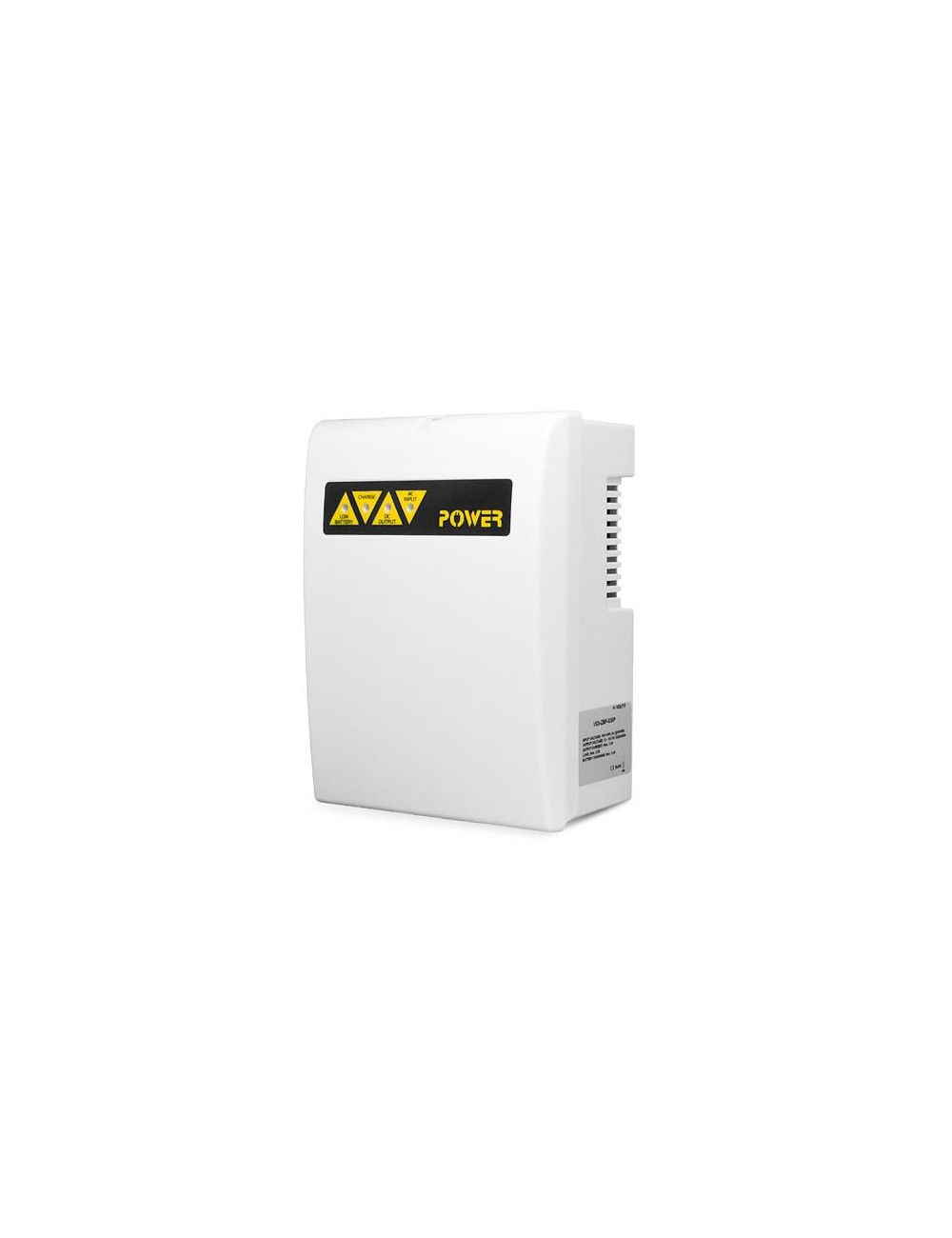

POWER SUPPLY 12VDC 3A/VIDI-ZBF-030P GENWAY
Genway

POWER SUPPLY 12VDC 3A/VIDI-ZBF-030P GENWAY

47,70 €
25,41 € Sutaupote 22,29 €
Su mokesčiais
Kiekis

Išsaugoti prekę Pridėti į palyginimą

VIDI-ZBF-030P 3A buffer power supply (can be considered as UPS - Uninterruptible Power Supply with a 12V output). The device is characterized by very compact dimensions, but despite this we can fit a 7Ah or 7.2Ah battery inside.
Smooth voltage regulation in the range of 12...14V. The power supply has lights informing about its operating status. The housing is made of plastic and equipped with ventilation holes and brackets for wall mounting.
Input voltage: 190-240V AC 50/60Hz; Output voltage when powered from the mains 12...14V DC; Output voltage when powered from a battery 10.0-12.5V DC; Total power: 53W; Output current: 3A;
Battery charging current 0.8A; Indicator lamps AC input, DC output, Charging, Low battery; Overcurrent protection, Short circuit protection, Battery overcharge protection, Battery overdischarge protection, battery - not included


Prekė detaliau

Genway
VIDI-ZBF-030P
3 Prekės

Charakteristikos

Garantija
24
Category Code
SPS
Unit Box Height
0.105
Unit Box Length
0.23
Unit Box Width
0.185
Vendor Homepage
www.genway.pl/vidi-zbf-030p-zasilacz-buforowy-13-8v-3-0a-7ah.html
Units per Shipping Box
1
Product Net Weight
0.3 kg
Unit Calculated Weight
0.69 kg
Unit Calculated Volume
0.004468 cubm
