Prekė detaliau
Charakteristikos
- Cable length
- 1.83 m
- Width
- 250 mm
- Height
- 100 mm
- Depth
- 382 mm
- Weight
- 10.9 kg
- Package depth
- 225 mm
- Package height
- 330 mm
- Package width
- 485 mm
- Package weight
- 11.7 kg
- Cables included
- USB cable
- Storage relative humidity (H-H)
- 0 - 95%
- Manual
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -15 - 45 °C
- Form factor
- Tower
- USB port
- Yes
- LED indicators
- Yes
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 16 h
- Cooling type
- Passive
- Output power
- 960 W
- Input frequency
- 50/60 Hz
- USB 2.0 ports quantity
- 1
- Display type
- LCD
- Ethernet LAN (RJ-45) ports
- 2
- Input operation voltage (min)
- 176 V
- Cold start
- Yes

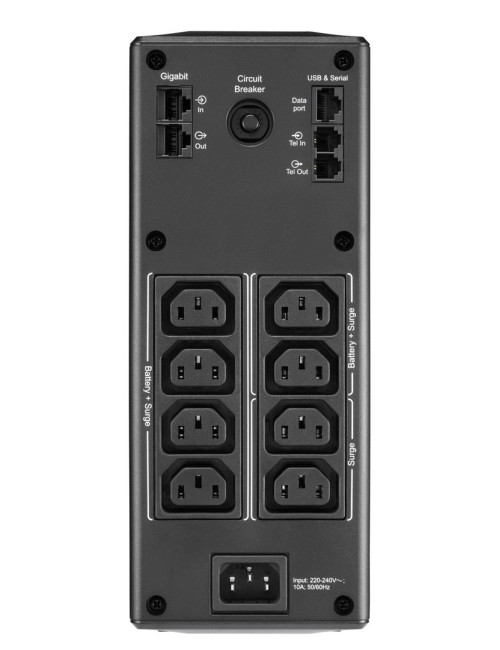

- AC outlets quantity
- 8 AC outlet(s)
- Output power capacity
- 1.6 kVA
- Waveform
- Sine
- AC outlet types
- C13 coupler
- Input operation voltage (max)
- 294 V
- Audible alarm(s)
- Yes
- UPS topology
- Line-Interactive
- Cabling technology
- 10/100/1000Base-T(X)

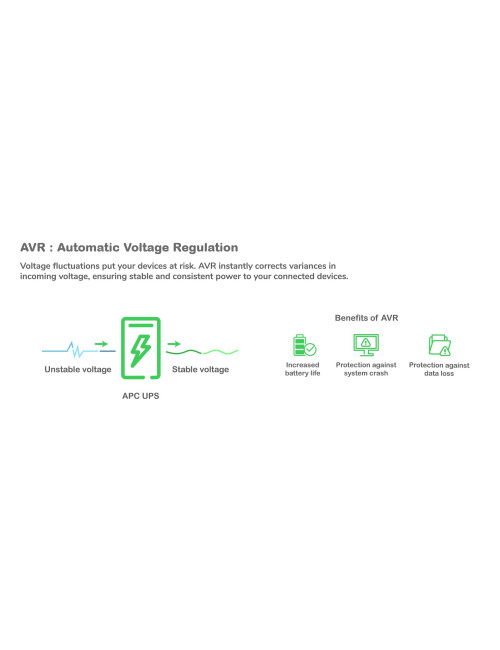

- Automatic Voltage Regulation (AVR)
- Yes
- Automatic battery test
- Yes
- Surge protection
- Yes
- Nominal input voltage
- 230 V
- Nominal output voltage
- 230 V
- Operating altitude
- 0 - 3000 m
- Output frequency
- 50/60 Hz
- Noise Level
- 45 dB
- Maximum current
- 10 A
- Surge energy rating
- 509 J
- Power plug
- C14 coupler
- Non-operating altitude
- 0 - 15000 m
- Product colour
- Black
- Harmonized System (HS) code
- 85078000
- ECO mode
- Yes
- Hot-swap battery
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm, Overload alarm
- Surge protection features
- Network
