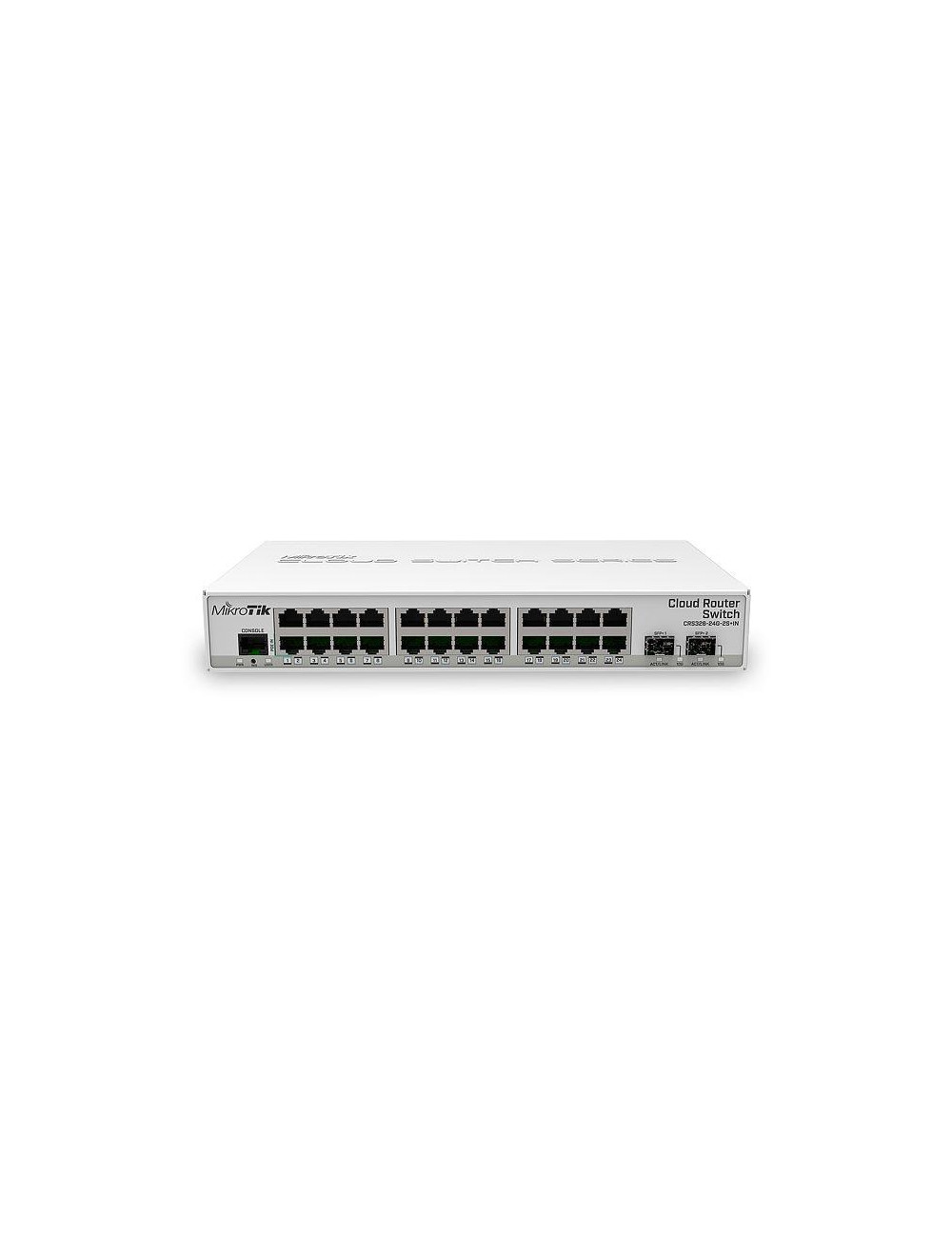

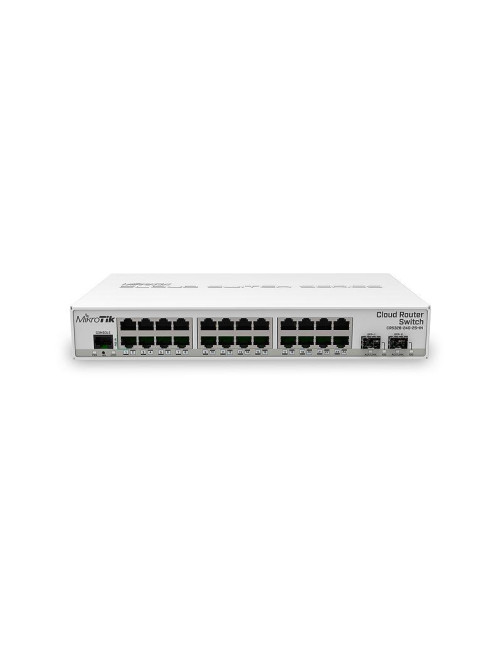

MIKROTIK CRS326-24G-2S+IN
24 Gigabit ports, 2 SFP+ cages and a desktop case – server room power for your home!
A home network setup doesn’t have to be a compromise. This compact and quiet switch is packing some serious server room grade features: a pair of 10G SFP+ cages, 512 MB of RAM, 24 Gigabit Ethernet ports and a sufficient built-in CPU that can handle basic home user needs such as firewall, NAT and even some VPN. And it is extremely affordable – we are keeping the price on par with the previous generation desktop switches!
Like many other MikroTik switches, CRS326-24G-2S+IN offers the dual boot option that allows you to use either the lightweight SwOS or the advanced RouterOS. The compact and quiet fanless desktop case makes this switch the perfect addition to the best home setups. And it is very easy to transport! But make no mistake – this small switch has all the power and features of its bigger rackmount analogue – the CRS326-24G-2S+RM, nothing has been removed!
CRS326-24G-2S+IN provides all the basic functionality for a managed switch, and even more: port-to- port forwarding, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cage supports both 1.25G SFP and 10G SFP+ modules.
Prekė detaliau
Charakteristikos
- Garantija
- 12
- Category Code
- SWI
- Unit Box Height
- 0.195
- Unit Box Length
- 0.395
- Unit Box Width
- 0.07
- Vendor Homepage
- mikrotik.com/product/crs326_24g_2s_in
- Dimensions
- 285 x 144 x 44 mm
- Model name
- CRS326-24G-2S+IN
- Ports (10Base-T / 100Base-TX / 1000Base-T)
- 24
- Ports (SFP+)
- 2
- Primary port count
- 24
- Power supply
- External
- Units per Shipping Box
- 1
- Product Net Weight
- 1 kg
- Unit Calculated Weight
- 1 kg
- Unit Calculated Volume
- 0 cubm
Greitas palyginimas
Prekė |

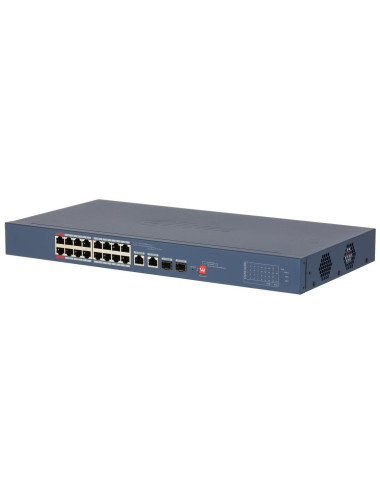

Switch|DAHUA|DH-CS4218-16ET-190|Type L2|PoE ports 16|190 Watts|CS4218-16ET-190
|
