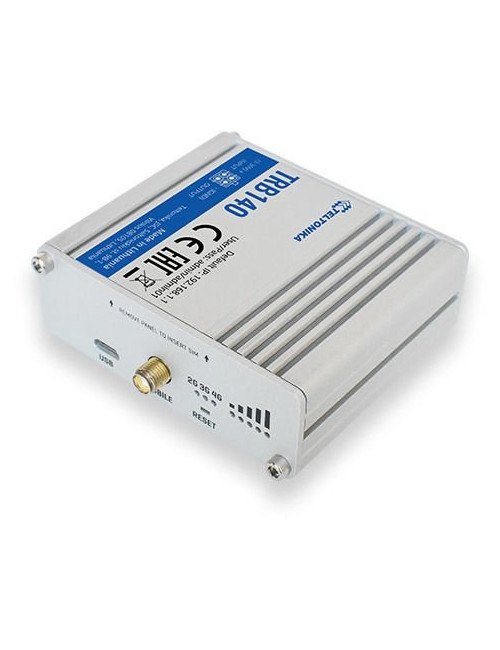

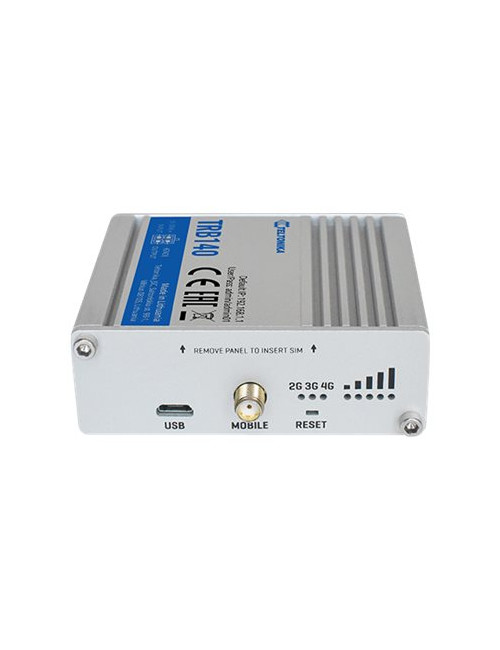

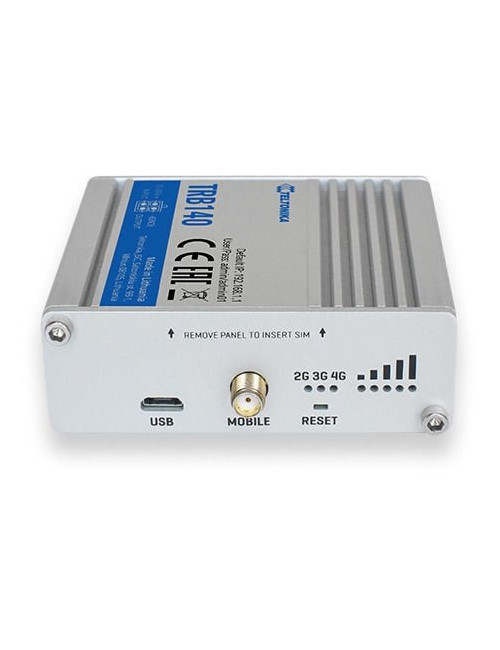

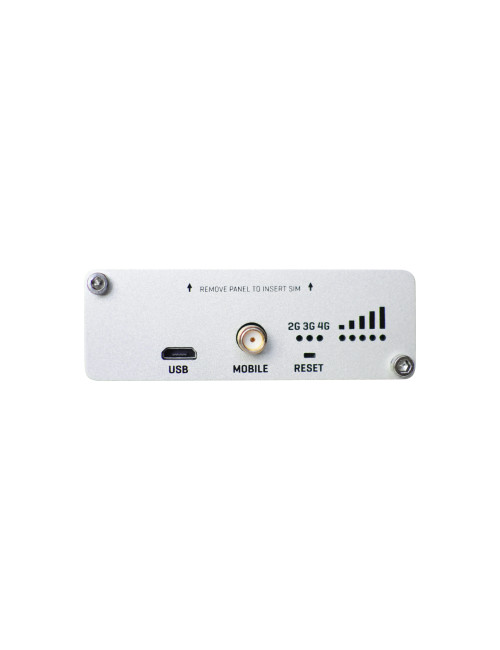

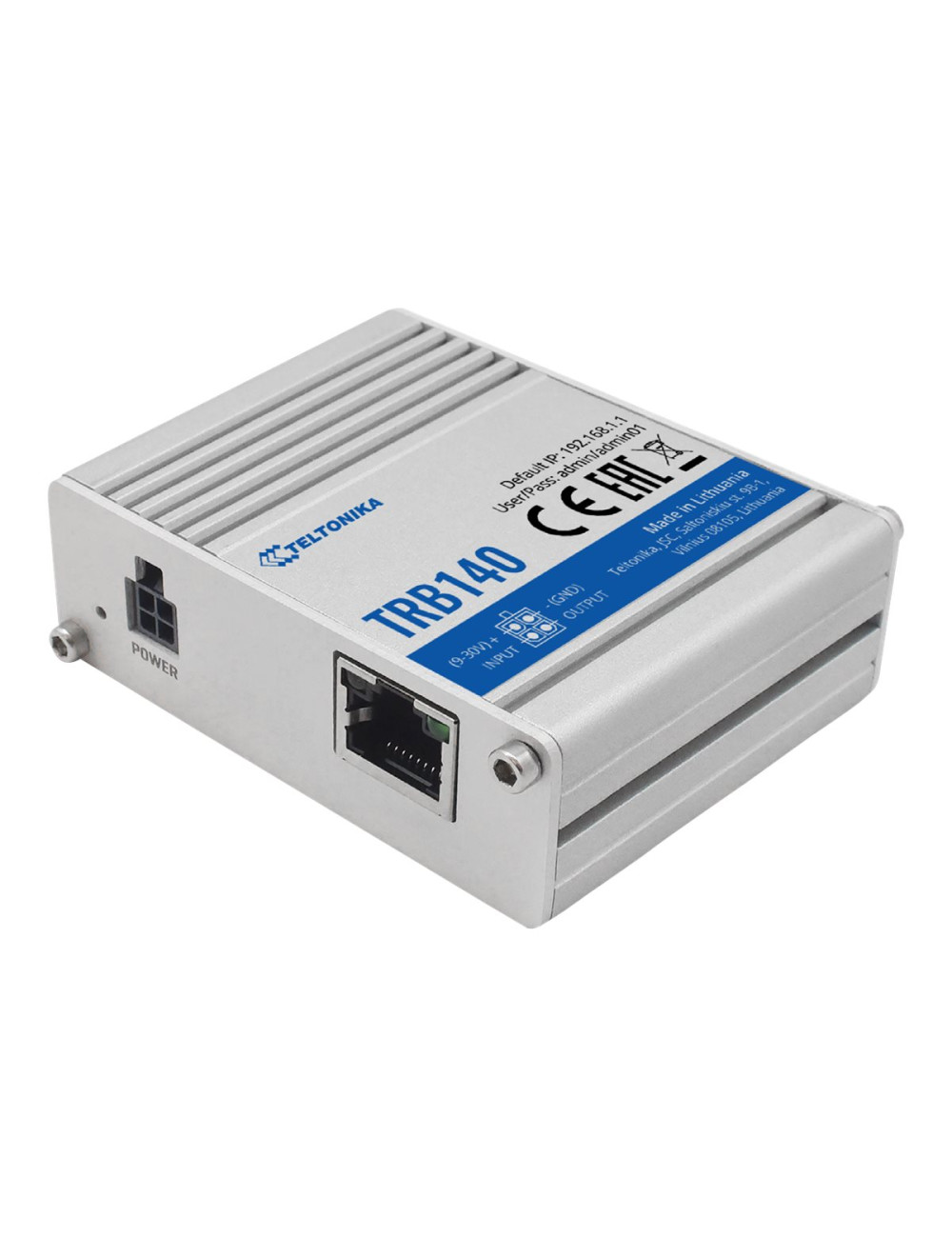

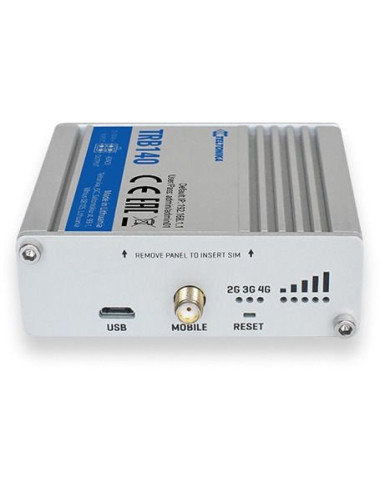

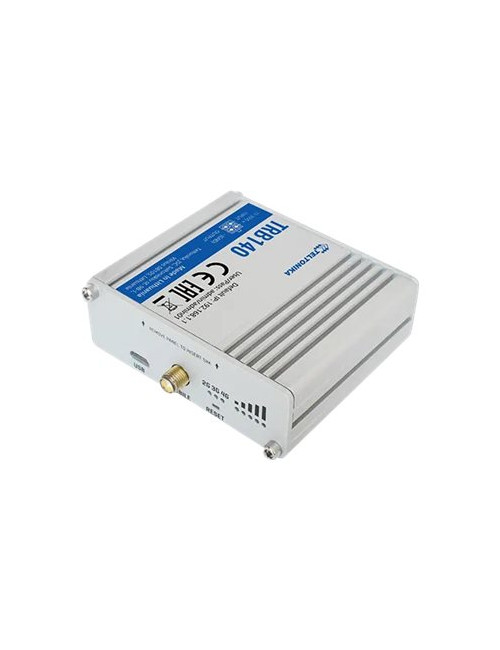

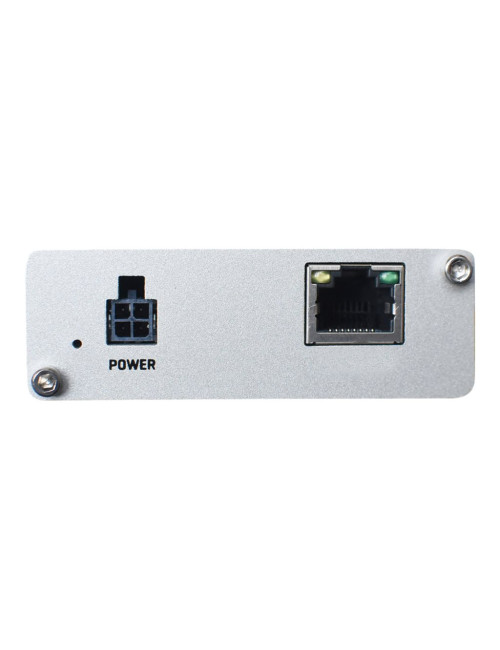

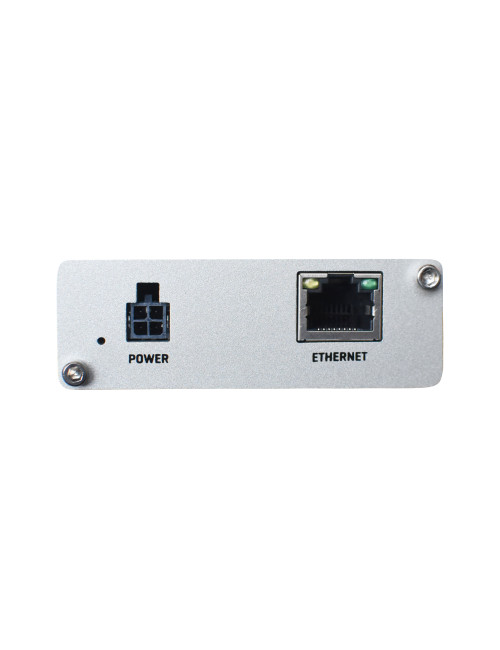

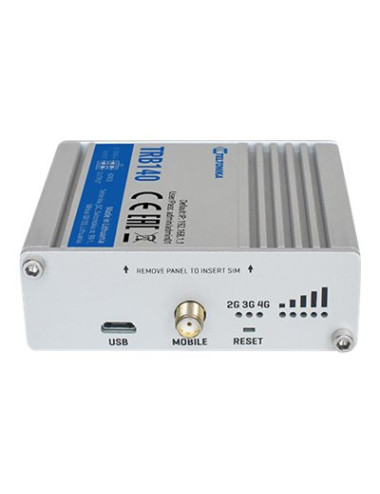

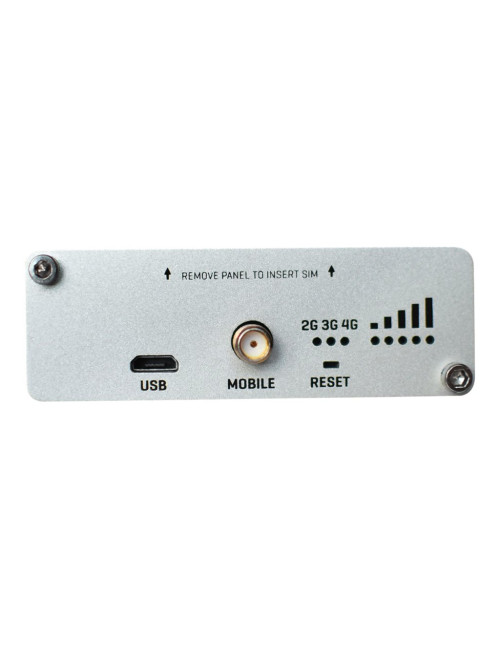

LTE Router | TRB140 | No Wi-Fi | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 1 | Mesh Support No | MU-MiMO No | 2G/3G/4G | A

Prekė detaliau

Charakteristikos

Warranty

24 month(s)

Producer product name

TRB140

Net weight

0.307 kg

Gross weight

0.43 kg

WEEE tax

Yes

Packing quantity

10 pc(s)

Gross depth master carton

375 mm

Gross width master carton

370 mm

Gross height master carton

170 mm

Net weight master carton

4.3 kg

Tare weight master carton

0.401 kg

Volume (m3)

0.0018375 m

Tare weight (kg)

0.123 kg

Gross depth (mm)

175 mm

Gross width (mm)

70.00 mm

Gross height (mm)

150 mm

WEE classification

CL109:6:2017-04-01

Paper/Pasteboard

123 g

Embeeded battery

No

Dimensions (WxDxH)

74,5x64,4xx25 mm

Producer product family

LTE Router

Operating temperature (T-T)

-40 C to 75 C C

Operating relative humidity (H-H)

10 % to 90 % non-condensing %

Software type

RutOS (OpenWrt based Linux OS)

Palette Qty

730 pc(s)

Processor model

ARM Cortex-A7 1.2 GHz CPU

Internal memory

128 MB (50 MB available for userspace) GB

Input voltage

9 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection 33 VDC 10us max V

USB ports quantity

1 x Virtual network interface via micro USB

Ethernet LAN (RJ-45) ports

1

Housing material

Aluminum

Ethernet LAN data rates

10/100/1000 Mbit/s

Supported protocols

HTTP(S), MQTT, Azure MQTT, Kinesis

Wi-Fi band

No Wi-Fi

Antenna type

1 x SMA for LTE

MU-MiMO

No

Mesh support

No

Mobile Broadband

2G/3G/4G

Supported network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)

PoE in

Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards

Firewall security

Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI NAT NAT-T

Producer

Teltonika
