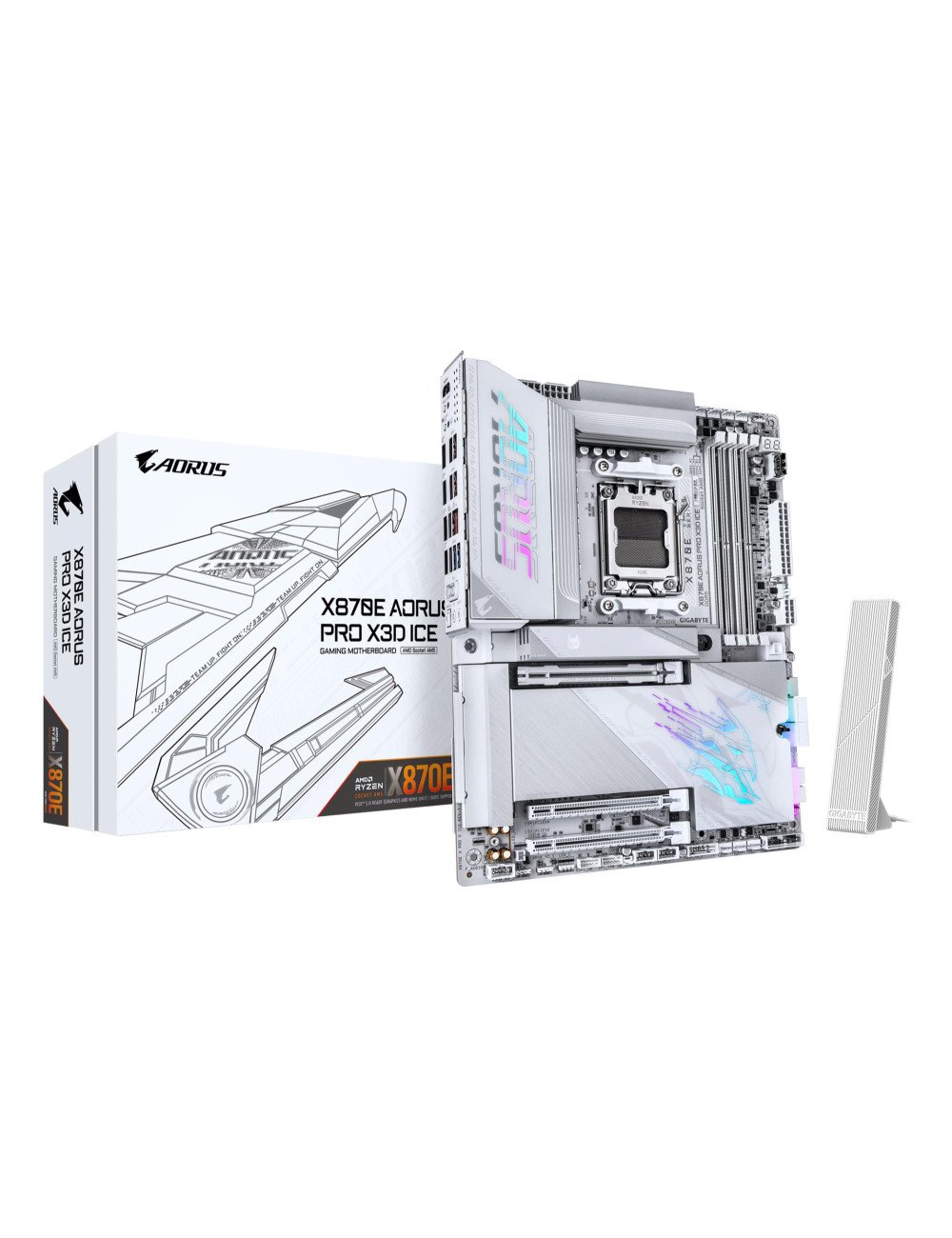

Mainboard|GIGABYTE|AMD X870E|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|4xNumber of M.2 (M) slots|X870E A PRO

Prekė detaliau

Kodas X870E A PRO X ICE

Yra sandėlyje 8 Prekės

Charakteristikos

Garantija

36

Category Code

MBA

Vendor Homepage

https://www.gigabyte.com/

MODEL

X870E A PRO X ICE

Units per Shipping Box

1

Unit Calculated Weight

2.65 kg

Unit Calculated Volume

0.01048 cubm

Summary

GIGABYTE X870E AORUS PRO X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible proces

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

305 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

340 mm

Packaging data (Package depth)

310 mm

Packaging data (Package height)

92 mm

Packaging data (Package weight)

4300 g

Network (Bluetooth)

Yes

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Bluetooth version)

5.4

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Battery (Battery type)

CR2032

Logistics data (Products per shipping (inner) case)

1 pc(s)

Other features (Weight)

3740 g

Packaging content (Batteries included)

Yes

Logistics data (Country of origin)

Taiwan

Network (Top Wi-Fi standard)

Wi-Fi 7 (802.11be)

Processor (Processor manufacturer)

AMD

Memory (Maximum internal memory)

256 GB

Memory (Memory channels)

Dual-channel

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speeds)

4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000 MHz

Memory (Supported memory types)

DDR5-SDRAM

Network (WLAN controller model)

Qualcomm QCNCM865

Features (Component for)

PC

Features (Cooling type)

Passive

Battery (Battery weight)

3 g

Network (LAN controller)

Realtek RTL8126

Features (Audio chip)

Realtek ALC1220-VB

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD X870E

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

ATX

Features (PC health monitoring)

CPU/Fan/Temperature/Voltage/Water cooling

Features (Power source type)

ATX

Features (Product colour)

White

Features (Windows operating systems supported)

Windows 11 x64

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor (Processor socket)

Socket AM5

Processor (Supported processor sockets)

Socket AM5

Memory (ECC сompatibility)

Non-ECC

Memory (Maximum internal memory per slot)

64 GB

Memory (Supported memory clock speed (max))

9000 MHz

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

8

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,PCI Express 4.0,PCI Express 5.0,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (DirectX version)

12.0

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2304 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

6

Internal I/O (Number of CPU fan connectors)

2

Internal I/O (Number of EPS power connectors (8-pin))

2

Internal I/O (Number of noise detection headers)

1

Internal I/O (Number of RGB LED pin headers)

4

Internal I/O (Number of SATA III connectors)

4

Internal I/O (Number of temperature sensor headers)

2

Internal I/O (Number of water pump connectors)

3

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Internal I/O (USB 3.2 Gen 2x2 connectors)

1

Rear panel I/O ports (Digital audio optical out)

1

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (S/PDIF out port)

Yes

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

5

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)

2

Rear panel I/O ports (USB4 Gen 2x2 ports quantity)

2

Rear panel I/O ports (WiFi-AP antenna jack)

2

Network (Ethernet interface type)

2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet

Expansion slots (1st M.2 highest PCI Express generation)

5.0

Expansion slots (1st M.2 largest key size)

25110

Expansion slots (2nd M.2 highest PCI Express generation)

5.0

Expansion slots (2nd M.2 largest key size)

22110

Expansion slots (3rd M.2 highest PCI Express generation)

4.0

Expansion slots (3rd M.2 largest key size)

22110

Expansion slots (4th M.2 highest PCI Express generation)

4.0

Expansion slots (4th M.2 largest key size)

22110

Expansion slots (Number of M.2 (M) slots)

4

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

512 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS button)

Yes

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Packaging content (Antenna included)

Yes

Packaging content (Screws included)

Yes

Technical details (Warranty period)

3 year(s)

Expansion slots (PCI Express x16 (Gen 3.x) slots)

1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

3
