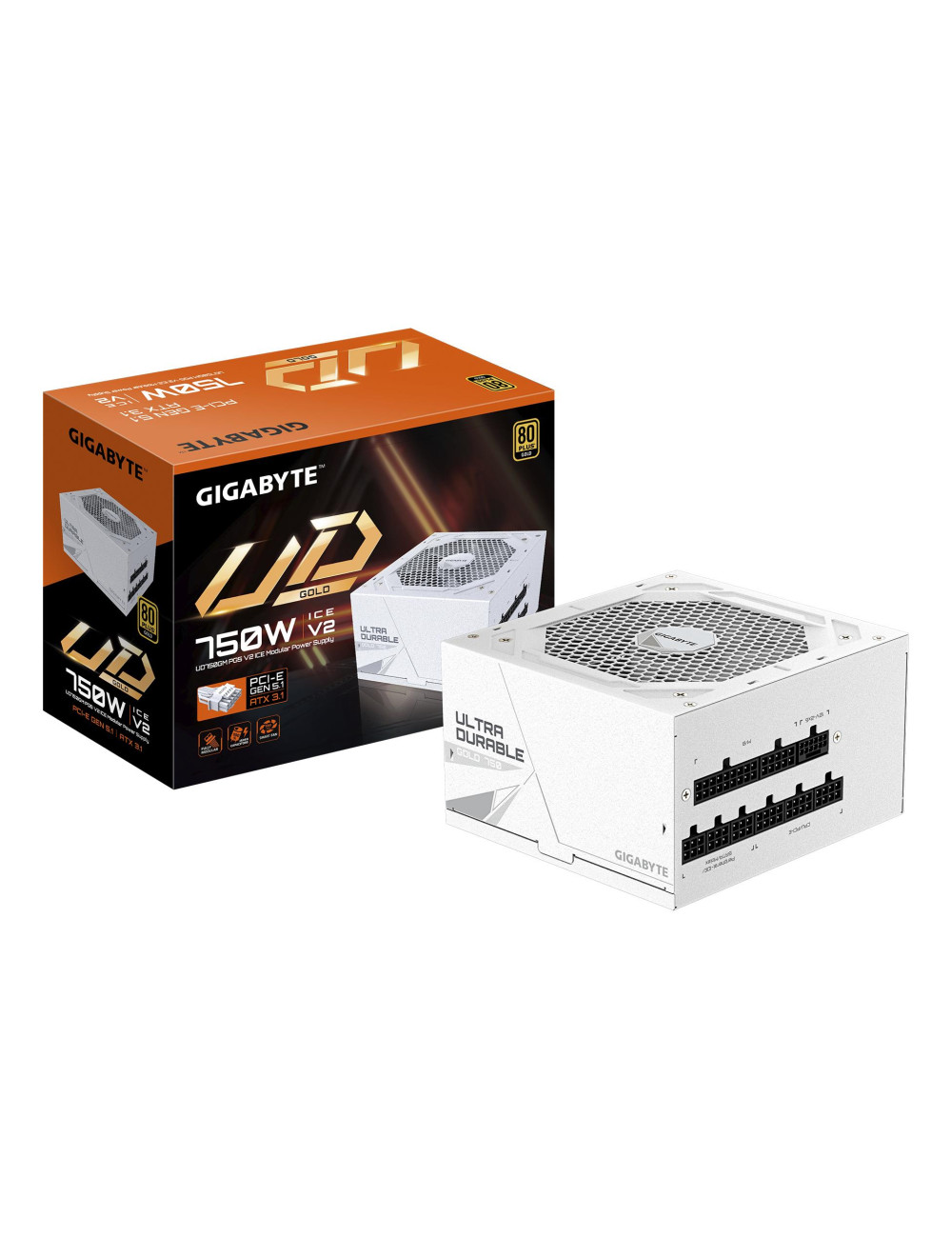

Power Supply|GIGABYTE|UD750GM PG5 ICE|ATX 3.1|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-UD750GMPG5ICE
    Gigabyte

    Power Supply|GIGABYTE|UD750GM PG5 ICE|ATX 3.1|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-UD750GMPG5ICE

    88,40 €
    Su mokesčiais
    750 W | 100 - 240 V | Efficiency 90 % | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Weight 2.34 kg | Package type Box | UD750GM PG5 ICE
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą

    Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

    • Intel ATX 3.1 and PCIe Gen 5.1 ready
    • 80 PLUS Gold certified
    • Fully modular design
    • Powerful single +12V rail
    • Compact size
    • 100% Japanese capacitors
    • 120mm smart hydraulic bearing (HYB) fan
    • Optimized thermal solution
    • OVP/OPP/SCP/UVP/OCP/OTP protection

    Prekė detaliau

    GP-UD750GM PG5 ICE
    100 Prekės

    Charakteristikos

    Garantija
    36
    Category Code
    PSU
    Unit Box Height
    0.21
    Unit Box Length
    0.12
    Unit Box Width
    0.255
    Vendor Homepage
    https://www.gigabyte.com/Power-Supply/GP-UD750GM-PG5-ICE kf
    Model name
    UD750GM PG5 ICE
    Units per Shipping Box
    5
    Unit Calculated Weight
    2.53 kg
    Unit Calculated Volume
    0.007986 cubm
    CnCode
    85044095
    Summary
    GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin
    Weight & dimensions (Weight)
    2340 g
    Weight & dimensions (Width)
    150 mm
    Weight & dimensions (Depth)
    140 mm
    Weight & dimensions (Height)
    86 mm
    Packaging data (Package width)
    618 mm
    Packaging data (Package depth)
    269 mm
    Packaging data (Package height)
    211 mm
    Packaging data (Package weight)
    2500 g
    Design (Product colour)
    White
    Packaging data (Package type)
    Box
    Power (AC input frequency)
    50/60 Hz
    Power (AC input voltage)
    100 - 240 V
    Power (Input current)
    12 - 6.5 A
    Design (Cooling type)
    Active
    Design (Number of fans)
    1 fan(s)
    Design (Fan diameter)
    120 mm
    Power (Combined power (+12V))
    750 W
    Power (Combined power (+3.3V))
    105 W
    Power (Combined power (+5V))
    105 W
    Power (Combined power (+5Vsb))
    15 W
    Power (Combined power (-12V))
    3.6 W
    Power (Max output current (+12V))
    62.5 A
    Power (Max output current (+3.3V))
    20 A
    Power (Max output current (+5V))
    20 A
    Power (Max output current (+5Vsb))
    3 A
    Power (Max output current (-12V))
    0.3 A
    Power (Power protection features)
    Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
    Power (Total power)
    750 W
    Ports & interfaces (Cabling type)
    Fully-Modular
    Ports & interfaces (Motherboard power cable length)
    610 mm
    Ports & interfaces (Motherboard power connector)
    20+4 pin ATX
    Ports & interfaces (Number of SATA power connectors)
    8
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    3
    Performance (80 PLUS certification)
    80 PLUS Gold
    Performance (Mean time between failures (MTBF))
    100000 h
    Performance (Power supply unit (PSU) form factor)
    ATX
    Performance (Purpose)
    PC
    Design (On/off switch)
    Yes
    Logistics data (Warranty period)
    5 year(s)
    Power (Efficiency)
    90 %
    Ports & interfaces (CPU power cable length)
    650 mm
    Ports & interfaces (CPU power connector (4+4 pin))
    Yes
    Ports & interfaces (PCI Express power cable length)
    600 mm
    Ports & interfaces (PCI Express power connectors (6+2 pin))
    4
    Performance (Bearing technology)
    HYB
    Power (Hold time)
    16 ms
    Power (Power factor)
    0.9
    Power (Power Factor Correction (PFC) type)
    Active
    Ports & interfaces (Floppy drive power connector)
    1
    Ports & interfaces (Number of EPS connectors)
    2
    Ports & interfaces (PCI Express connector)
    Yes
    Ports & interfaces (PCI Express power connectors (12+4 pin))
    1
    Ports & interfaces (PCI Express power connectors (12+4 pin) cable length)
    700 mm
    Performance (ATX version)
    3.1
