- 16 GB GDDR7 SDRAM for extensive memory capacity
- Supports high resolutions up to 7680 x 4320
- Equipped with NVIDIA DLSS 4 for enhanced performance
- Features advanced cooling technology for stability
- Dual ball bearing fans for improved longevity
Prekė detaliau
Charakteristikos
- Dimensions (WxDxH)
- 6.25 cm x 32.9 cm x 14 cm
- Device type
- Graphics card
- CUDA cores
- 8960
- PRODUCT DESCRIPTION

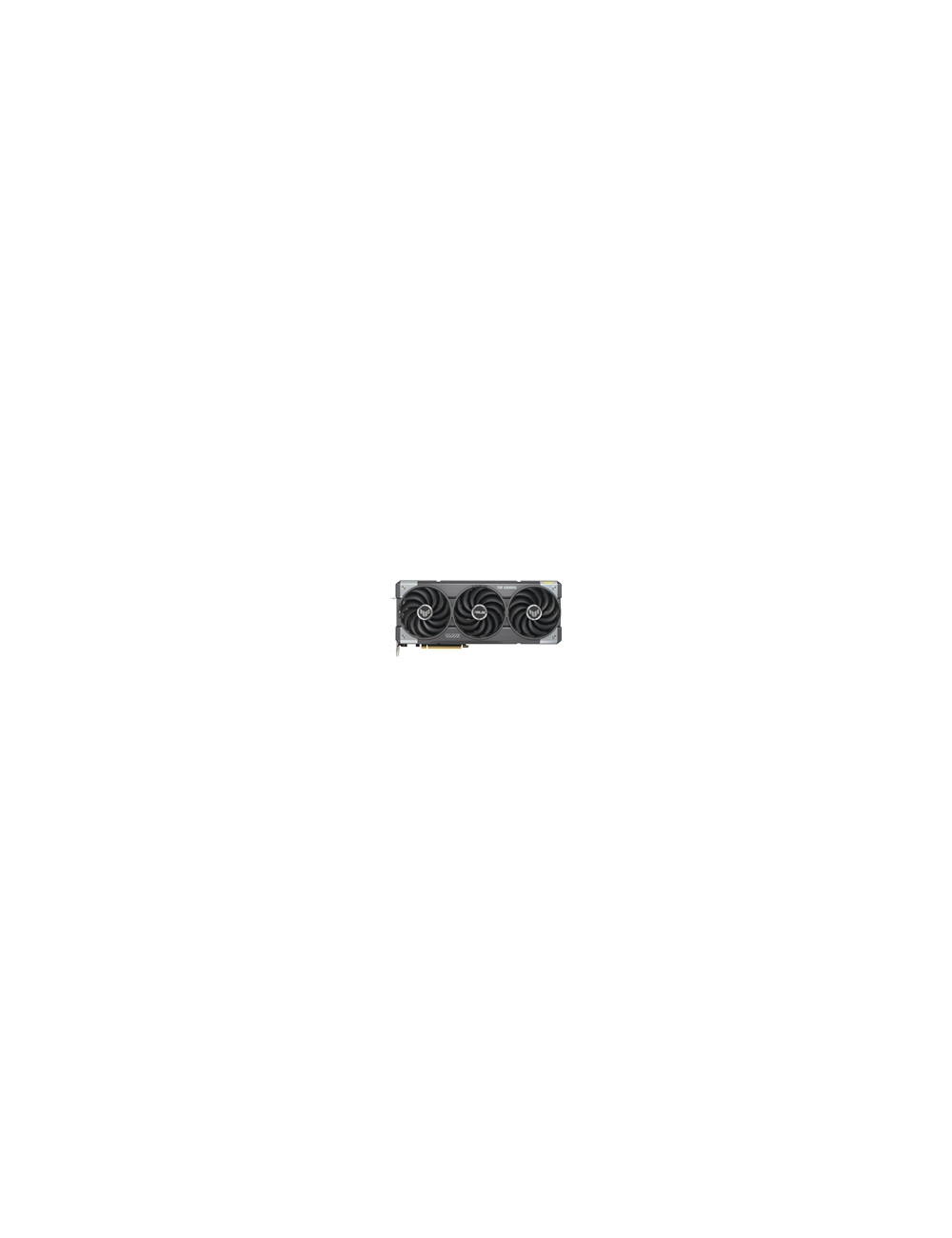

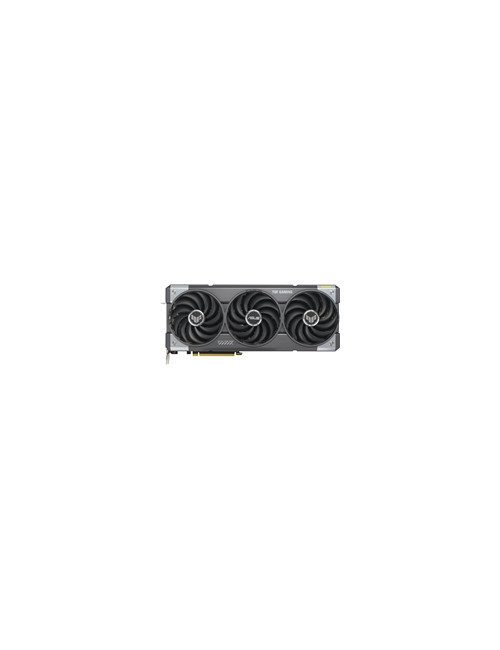

- ASUS TUF Gaming GeForce RTX 5070 Ti 16GB - OC Edition - graphics card - GeForce RTX 5070 Ti - 16 GB - grey
- MEMORY
- 16 GB GDDR7
- Max resolution
- 7680 x 4320
- Bus type
- PCI Express 5.0
- Graphics Engine
- NVIDIA GeForce RTX 5070 Ti - up to 1484 TOPS
- Memory Interface
- 256-bit
- Max Monitors Supported
- 4
- API Supported
- DirectX 12 Ultimate, OpenGL 4.6
- Boost Clock
- 2588 MHz
- Memory Speed
- 28 Gbps
- Enclosure Colour
- Grey
- Interfaces Details
- 3 x DisplayPort HDMI
- Boost Clock (OC)
- 2610 MHz
Greitas palyginimas
Prekė |
GIGABYTE GeForce RTX 5070 Ti EAGLE OC SFF 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2542 MHz Core Clock, 3 x DP 2.1a,
|
GIGABYTE GeForce RTX 5070 Ti EAGLE OC ICE SFF 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2542 MHz Core Clock, 3 x DP 2.
|
ASUS TUF Gaming TUF-RTX5070TI-O16G-GAMING NVIDIA GeForce RTX 5070 Ti 16 GB GDDR7
|
Graphics Card|ASUS|NVIDIA GeForce RTX 5070 Ti|16 GB|GDDR7|256 bit|PCIE 5.0 16x|Triple slot Fansink|2xHDMI|2xDisplayPort|TUF-RTX5
|
Prieinamumas |
|
|
|
|
Kaina |
1 046,97 €
|
1 047,84 €
|
1 056,96 €
|
1 066,18 €
|
Aprašymas |
NVIDIA GeForce RTX 5070 Ti | Graphics memory size 16 GB | GDDR7 | 256 bit | PCIE 5.0 16x | Memory CLK 28 Gbps | GPU boost clock 2588 MHz | 7680x4320 | Cooling Triple slot Fansink | 2xHDMI | 2xDisplayPort | Included Accessories 1 x Speedsetup Manual1 x TUF Graphics Card Holder1 x TUF Velcro Hook & Loop1 x TUF Magnet1 x TUF Gaming Certificate1 x Thank You Card1 x Adpater Cable (1 to 3)1 x Speedsetup Manual1 x TUF Graphics Card Holder1 x TUF Velcro Hook & Loop1 x TUF Magnet1 x TUF Gaming Certificate1 x Thank You Card1 x Adpater Cable (1 to 3) | |||
Package type |
Box | Box | Box | |
Height |
126 mm | 126 mm | 140 mm | |
Depth |
50 mm | 50 mm | 62.5 mm | |
Weight |
2 kg | 2 kg | 1.62 kg | |
Package depth |
398 mm | 398 mm | 226 mm | |
Package height |
85 mm | 85 mm | 87 mm | |
Package width |
230 mm | 230 mm | 420 mm | |
Package weight |
3 kg | 3 kg | 2.41 kg | |
Cables included |
Power | Power | ||
Form factor |
Full-Height/Full-Length (FH/FL) | Full-Height/Full-Length (FH/FL) | Full-Height/Full-Length (FH/FL) | |
Illumination |
Yes | Yes | Yes | |
Data transfer rate |
28 Gbit/s | |||
Length |
304 mm | 304 mm | 329 mm | |
Interface type |
PCI Express x16 5.0 | PCI Express x16 5.0 | PCI Express 5.0 | |
Memory clock speed |
30000 MHz | 30000 MHz | ||
Chipset |
NVIDIA GeForce RTX 5070 Ti | |||
Processor frequency |
2542 MHz | 2542 MHz | ||
Graphics processor family |
NVIDIA | NVIDIA | NVIDIA | |
Graphics processor |
GeForce RTX 5070 Ti | GeForce RTX 5070 Ti | GeForce RTX 5070 Ti | |
HDMI ports quantity |
1 | 1 | 2 | |
Memory bus |
256 bit | 256 bit | 256 bit | 256 bit |
Cooling type |
Active | Active | Active | |
DisplayPorts quantity |
3 | 3 | 3 | |
Supplementary power connectors |
1x 16-pin | 1x 16-pin | ||
Illumination colour |
Multi | |||
Maximum resolution |
7680 x 4320 pixels | 7680 x 4320 pixels | 7680 x 4320 pixels | |
CUDA |
Yes | Yes | Yes | |
CUDA cores |
8960 | 8960 | 8960 | 8960 |
DirectX version |
12.0 | 12.0 | 12 Ultimate | |
OpenGL version |
4.6 | 4.6 | 4.6 | |
Dual Link DVI |
No | No | No | |
HDCP |
Yes | |||
TV tuner integrated |
No | No | No | |
NVIDIA G-SYNC |
Yes | Yes | Yes | |
Maximum displays per videocard |
4 | 4 | 4 | |
Memory bandwidth (max) |
28 GB/s | 28 GB/s | ||
HDMI version |
2.1b | 2.1b | 2.1b | |
DisplayPort version |
2.1a | 2.1a | 2.1b | |
Number of slots |
2 | 2 | 3.125 | |
Minimum system power supply |
750 W | 750 W | 850 W | |
Thermal Design Power (TDP) |
300 W | 300 W | ||
Garantija |
36 | |||
Category Code |
VGP | |||
Unit Box Height |
0.095 | |||
Unit Box Length |
0.425 | |||
Unit Box Width |
0.225 | |||
Vendor Homepage |
www.asus.com/motherboards-components/graphics-cards/tuf-gaming/tuf-rtx5070ti-o16g-gaming/ | |||
Input/Output connectors (HDMI) |
2 | |||
Input/Output connectors (DisplayPort) |
2 | |||
Included Accessories |
1 x Speedsetup Manual 1 x TUF Graphics Card Holder 1 x TUF Velcro Hook & Loop 1 x TUF Magnet 1 x TUF Gaming Certificate 1 x Thank You Card 1 x Adpater Cable (1 to 3) 1 x Speedsetup Manual 1 x TUF Graphics Card Holder 1 x TUF Velcro Hook & Loop 1 x TUF Mag | |||
Cooling System |
Triple slot Fansink | |||
Dimensions |
329 x 140 x 62.5 mm | |||
Card's length |
280 mm | |||
GPU boost clock |
2588 MHz | |||
Graphic card features |
Gaming/HDCP/Overclock Edition | |||
Graphics connector |
PCIE 5.0 16x | |||
Graphics memory size |
16 GB | |||
Graphics memory type |
GDDR7 | |||
Max resolution |
7680x4320 | |||
Memory CLK |
28 Gbps | |||
Power connectors |
16 pin | |||
MODEL |
TUF-RTX5070TI-O16G-GAMING | |||
Number of fans |
3 fan(s) | 3 fan(s) | 3 fan(s) | |
Product colour |
Black | White | Grey | |
HDCP version |
2.3 | |||
Warranty period |
3 year(s) | 3 year(s) | ||
Parallel processing technology support |
Not supported | Not supported | Not supported | |
Discrete graphics card memory |
16 GB | 16 GB | 16 GB | |
Graphics card memory type |
GDDR7 | GDDR7 | GDDR7 | |
Virtual Reality (VR) ready |
Yes | |||
Products per shipping (inner) case |
1 pc(s) | 1 pc(s) | ||
NPU performance up to |
1406 TOPs | |||
Units per Shipping Box |
6 | |||
Product Net Weight |
1 kg | |||
Unit Calculated Weight |
3 kg | |||
Unit Calculated Volume |
0 cubm | |||
Cooling technology |
GIGABYTE WINDFORCE 3X | GIGABYTE WINDFORCE 3X | ASUS Axial-tech | |
Overclocked (OC) edition |
Yes | Yes | Yes | |
NVIDIA Ansel |
Yes | |||
CnCode |
84718000 | |||
