Gigabyte

Graphics Card|GIGABYTE|NVIDIA GeForce RTX 5060 Ti|16 GB|GDDR7|128 bit|PCIE 5.0 16x|GPU 2647 MHz|Triple slot Heatpipe|1xHDMI|3xDi

646,73 €

Su mokesčiais

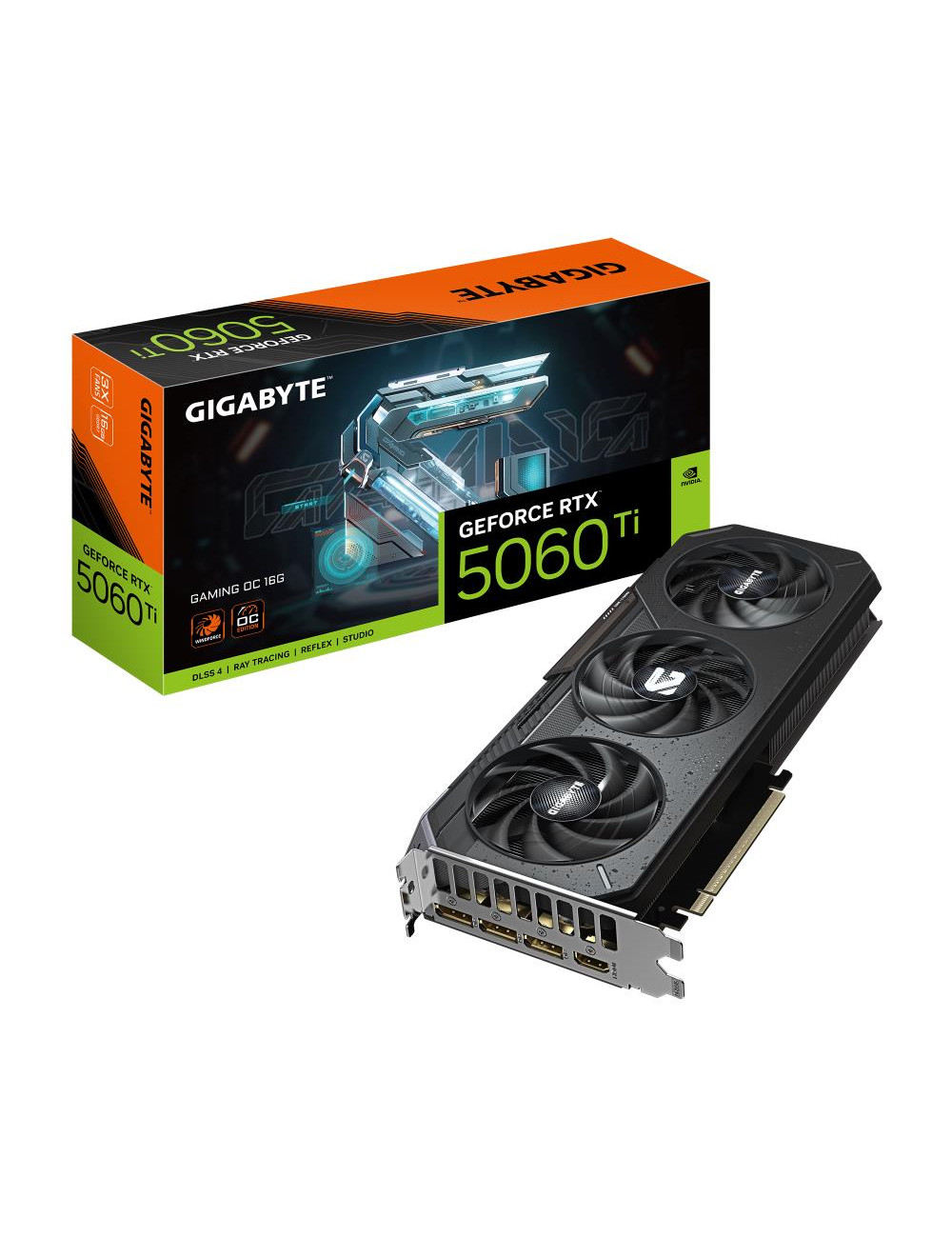

GeForce RTX™ 5060 Ti GAMING OC 16G - Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5060 Ti
- Integrated with 16GB GDDR7 128bit memory interface
- WINDFORCE cooling system - Hawk fan
- Server-grade Thermal conductive gel

- RGB lighting
- Dual BIOS (Performance / Silent)
- Reinforced structure
- CORE CLOCK 2647 MHz (Reference card :2572 MHz)

Prekė detaliau

Kodas GV-N506TGAMING OC-16GD 1.0

Yra sandėlyje 8 Prekės

Charakteristikos

Chipset: NVIDIA GeForce RTX 5060 Ti
Memory bus: 128 bit
Garantija: 36
Category Code: VGP
Unit Box Height: 0.081
Unit Box Length: 0.361
Unit Box Width: 0.188
Vendor Homepage: www.gigabyte.com/Graphics-Card/GV-N506TGAMING-OC-16GD kf
GPU clock: 2647 MHz
Input/Output connectors (HDMI): 1
Input/Output connectors (DisplayPort): 3
Included Accessories: Quick guide
Cooling System: Triple slot Heatpipe
Dimensions: L 281 W 119 H 40 mm
Card's length: 280 mm
Graphic card features: Gaming/Overclock Edition
Graphics connector: PCIE 5.0 16x
Graphics memory size: 16 GB
Graphics memory type: GDDR7
Max resolution: 7680x4320
Memory CLK: 28 Gbps
Power connectors: 8 pin
MODEL: GV-N506TGAMING OC-16GD
Units per Shipping Box: 10
Product Net Weight: 1.5 kg
Unit Calculated Weight: 1.29 kg
Unit Calculated Volume: 0.006842 cubm

Greitas palyginimas

Prekė	ASUS DUAL-RX9060XT-8G AMD Radeon RX 9060 XT 8 GB GDDR6	INNO3D GeForce RTX™ 5060 Ti 16GB TWIN X2	Zotac GAMING GeForce RTX 5060 Ti Twin Edge OC NVIDIA 16 GB GDDR7	Acer Nitro Radeon RX 9060 XT OC AMD 16 GB GDDR6
Prieinamumas
Kaina	639,66 €	641,32 €	644,63 €	645,38 €
Aprašymas
Linux operating systems supported		Yes
Windows operating systems supported		Windows 11	Windows 10 x64
Package type	Box	Box	Box	Box
Height	120 mm	116 mm	120.2 mm	110 mm
Depth	49 mm	41 mm	41.6 mm	44 mm
Weight	601 g			655 g
Package depth	219 mm		83 mm
Package height	66 mm		283 mm
Package width	364 mm		218 mm
Package weight	1.06 kg
Manual	Yes		Yes
Form factor	Full-Height/Half-Length (FH/HL)		Full-Height/Half-Length (FH/HL)
Data transfer rate	20 Gbit/s	28 Gbit/s	28 Gbit/s
Length	202 mm	250 mm	220.5 mm
Interface type	PCI Express 5.0	PCI Express 5.0	PCI Express x8 5.0	PCI Express 5.0
Processor frequency		2235 MHz		1900 MHz
Graphics processor family	AMD	NVIDIA	NVIDIA	AMD
Graphics processor	Radeon RX 9060 XT	GeForce RTX 5060 Ti	GeForce RTX 5060 Ti	Radeon RX 9060 XT
HDMI ports quantity	1	1	1	1
Memory bus	128 bit	128 bit	128 bit
Cooling type	Active	Active	Active	Active
DisplayPorts quantity	2	3	3	2
Supplementary power connectors	1x 8-pin	1x 8-pin	1x 8-pin
Power consumption (max)			180 W
Fan diameter		8.8 cm	9 cm
Maximum resolution	7680 x 4320 pixels	7680 x 4320 pixels	7680 x 4320 pixels	7680 x 4320 pixels
CUDA	No	Yes	Yes	No
CUDA cores		4608	4608
DirectX version		12 Ultimate	12 Ultimate	12 Ultimate
OpenGL version	4.6	4.6	4.6	4.6
Dual Link DVI	No	No	No	No
HDCP	Yes	Yes	Yes
TV tuner integrated	No	No	No	No
NVIDIA G-SYNC		Yes	Yes
Processor boost clock speed	3130 MHz	2572 MHz	2602 MHz
Maximum displays per videocard	3	4	4	3
Memory bandwidth (max)		448 GB/s
HDMI version	2.1b	2.1b	2.1b
DisplayPort version	2.1a	2.1b	2.1b
Number of slots	2.5		2
Minimum system power supply	550 W	650 W	600 W
Other operating systems supported		FreeBSD
Stream Processors	2048
Number of fans	2 fan(s)	2 fan(s)	2 fan(s)	2 fan(s)
Product colour	Black	Grey	White	Silver
HDCP version	2.3	2.3	2.3
Parallel processing technology support	Not supported	Not supported	Not supported	Not supported
Discrete graphics card memory	8 GB	16 GB	16 GB	16 GB
Graphics card memory type	GDDR6	GDDR7	GDDR7	GDDR6
Virtual Reality (VR) ready		Yes	Yes
Hazard pictogram(s)		GHS09: Environmental hazard
Warnings		Do not dispose of in ordinary garbage - the product requires special disposal.
Cooling technology	ASUS Axial-tech		Zotac IceStorm 2.0
SFF ready			Yes
Overclocked (OC) edition			Yes	Yes
NVIDIA Ansel		Yes
