Prekė detaliau
Charakteristikos
- Cable length
- 1.2 m
- Width
- 140 mm
- Height
- 190 mm
- Depth
- 390 mm
- Weight
- 12.2 kg
- Package height
- 297 mm
- Package width
- 495 mm
- Cables included
- Input power cable
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -15 - 40 °C
- LED indicators
- Yes
- Battery technology
- Lead-acid
- Battery life (max)
- 3 year(s)
- Battery capacity
- 9 Ah
- Battery recharge time
- 8 h
- Output power
- 1200 W
- Input frequency
- 50/60 Hz
- Response time
- 6 ms
- Input operation voltage (min)
- 140 V
- Cold start
- Yes
- AC outlets quantity
- 4 AC outlet(s)
- Output power capacity
- 2.2 kVA
- Waveform
- Sine

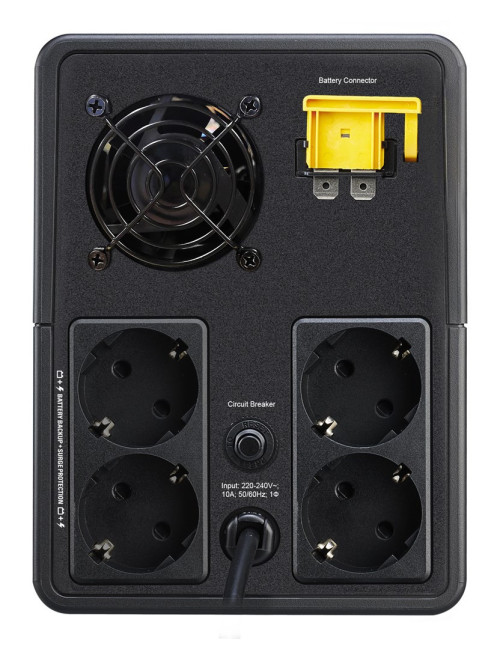

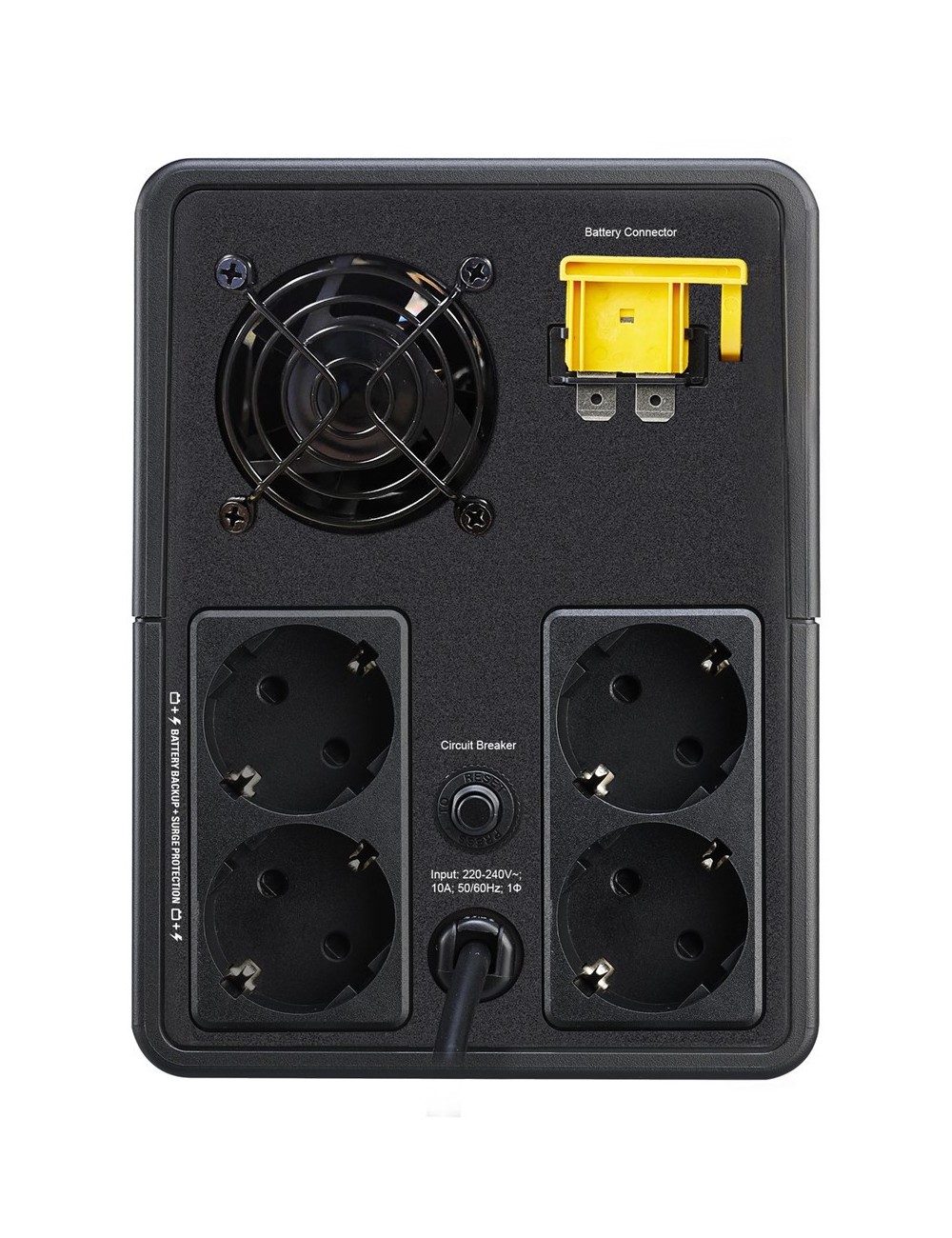

- AC outlet types
- Type F
- Input operation voltage (max)
- 300 V
- Audible alarm(s)
- Yes
- Battery voltage
- 24 V
- UPS topology
- Line-Interactive
- Automatic Voltage Regulation (AVR)
- Yes
- Operating altitude
- 0 - 3000 m
- International Protection (IP) code
- IP20
- Output frequency
- 50/60 Hz
- Surge energy rating
- 273 J
- Power plug
- Type F
- Non-operating altitude
- 0 - 3000 m
- Product colour
- Black
- Harmonized System (HS) code
- 85078000
- SmartSlot
- No
- Management card included
- No
- Warnings
- Keep away from sources of fire and water.
- SmartConnect port
- No
Greitas palyginimas
Prekė |
FSP CHAMP 1K RACK - IEC | 1000 VA | 900 W
|
|
Schneider Electric APC Back-UPS | BX2200MI | 2200 VA | 1200 W
|
UPS|EATON|1200 Watts|2200 VA|Wave form type Pure sinewave|LineInteractive|Phase 1phase|Desktop/pedestal|5E2200UI
|
Prieinamumas |
|
|
|
|
Kaina |
280,95 €
|
284,20 €
|
285,54 €
|
290,82 €
|
Aprašymas |
FSP CHAMP 1K RACK - IEC | 1000 VA | 900 W | APC Back-UPS Pro, 900VA/540W, Tower, 230V, 6x IEC C13 outlets, AVR, LCD, User Replaceable Battery, Black | Schneider Electric | Schneider Electric APC Back-UPS | BX2200MI | 2200 VA | 1200 W | 1200 Watts | 2200 VA | Wave form type Pure sinewave | Topology LineInteractive | Phase 1phase | Output power connector type IEC 320 C13 | Colour Black |
Warranty |
24 month(s) | 24 month(s) | 24 month(s) | |
Producer product name |
CHAMP 1K RACK - IEC | BX2200MI | ||
Net weight |
12.00 kg | 7.10 kg | 12.30 kg | |
Gross weight |
13.00 kg | 8.00 kg | 13.30 kg | |
WEEE tax |
Yes | Yes | Yes | |
Packing quantity |
1.00 pc(s) | 1.00 pc(s) | 1.00 pc(s) | |
Volume (m3) |
0.01 m | 0.02 m | 0.03 m | |
Tare weight (kg) |
1.00 kg | 0.90 kg | 1.00 kg | |
Gross depth (mm) |
440.00 mm | 440.00 mm | 297.00 mm | |
Gross width (mm) |
90.00 mm | 143.00 mm | 235.00 mm | |
Gross height (mm) |
315.00 mm | 255.00 mm | 495.00 mm | |
WEE classification |
CL109:5:2017-04-01 | CL109:5:2017-04-01 | CL109:5:2017-04-01 | |
Paper/Pasteboard |
800.00 g | 800.00 g | 800.00 g | |
Embeeded battery |
Yes | Yes | Yes | |
Colour |
Black | |||
TI weight (kg) |
0.05 kg | 3.00 kg | 5.32 kg | |
Dimensions (WxDxH) |
88 x 438 x 310 mm | |||
Plastic (No PET) |
200.00 g | 100.00 g | 200.00 g | |
Composition of battery |
CL127:KT:2016-12-09 | CL127:KT:2016-12-09 | CL127:KT:2016-12-09 | |
Classification of battery |
CL126:NE:2016-12-09 | CL126:NE:2016-12-09 | CL126:NE:2016-12-09 | |
Type of battery |
Accumulator | Accumulator | Accumulator | |
Special features |
Compact size allows installation in a variety of environments AVR corrects voltage fluctuations to ensure reliable power supply LED display allows easy reading of device status and power conditions | |||
Producer product family |
APC Back-UPS | |||
Capacity |
1000 VA | 2200 VA | ||
Palette Qty |
69 pc(s) | 54 pc(s) | 50 pc(s) | |
Garantija |
24 | |||
Category Code |
UPW | |||
Unit Box Height |
0.315 | |||
Unit Box Length |
0.46 | |||
Unit Box Width |
0.25 | |||
Vendor Homepage |
www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/backup-power-ups/eaton_5e_ups/eaton-5e-ups---emea/eaton-dpq-5egen2-ups-datasheet-en-gb.pdf | |||
Dimensions |
330 x 180 x 133mm | |||
UPS topology |
On line | Line-Interactive | ||
MODEL |
5E2200UI | |||
Mounting Type (Desktop/pedestal) |
Yes | |||
Producer |
FSP | Schneider Electric | Schneider Electric | |
Units per Shipping Box |
1 | |||
Product Net Weight |
9.8 kg | |||
Unit Calculated Weight |
11.8 kg | |||
Unit Calculated Volume |
0.036225 cubm | |||
Output power capacity, W |
1200 Watts | |||
Output power capacity, VA |
2200 VA | |||
Wave form type |
Pure sinewave | |||
Topology |
LineInteractive | |||
Phase |
1phase | |||
Output power connector type |
IEC 320 C13 | |||
Communication ports (USB) |
1 | |||
Buttons: (On/Off) |
YES | |||
