Orvaldi

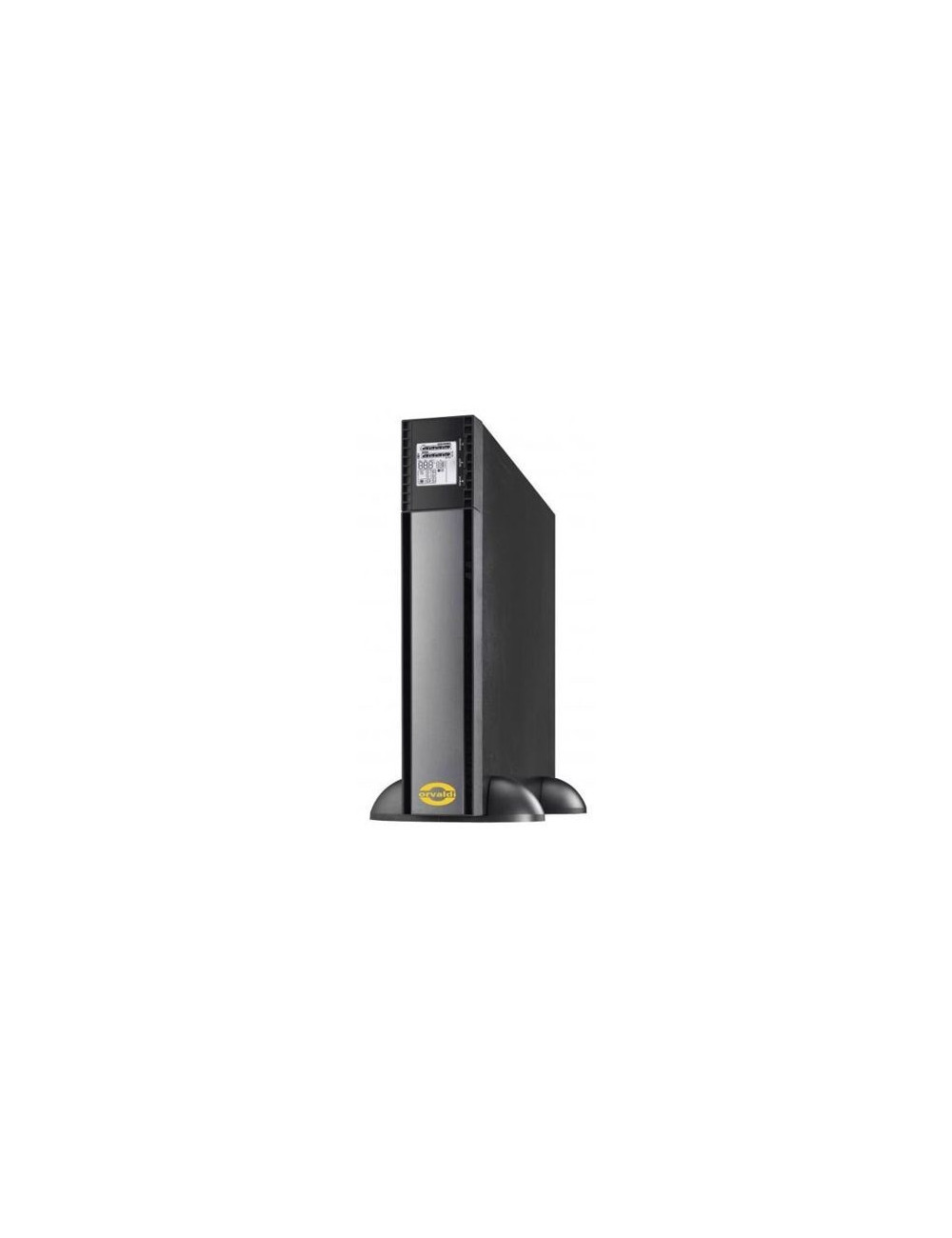

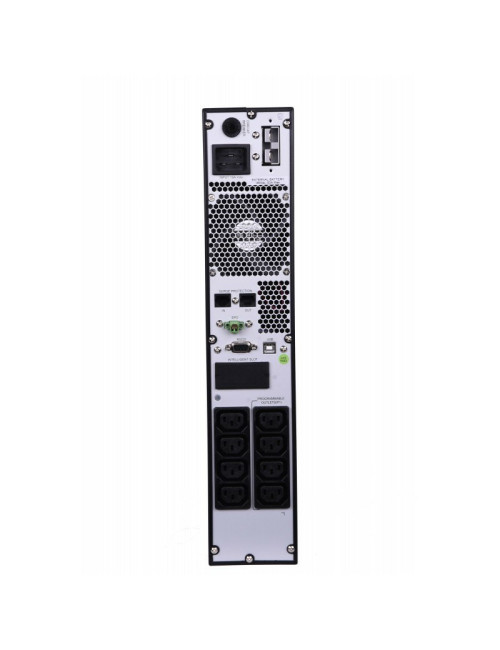

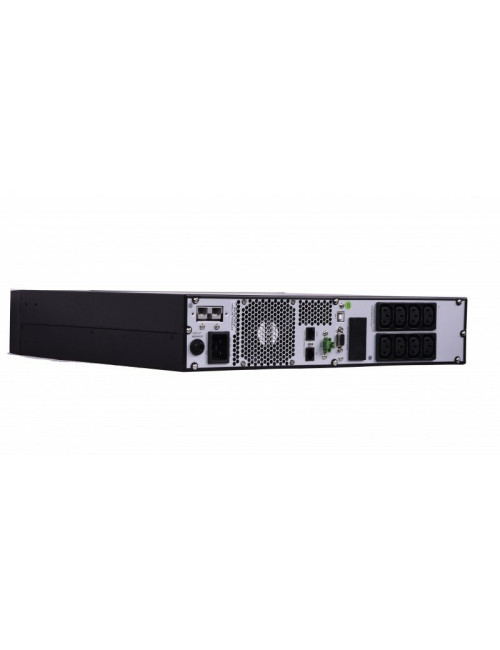

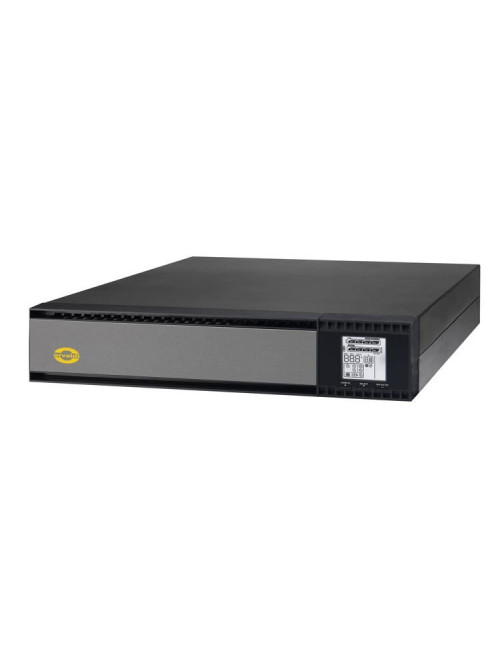

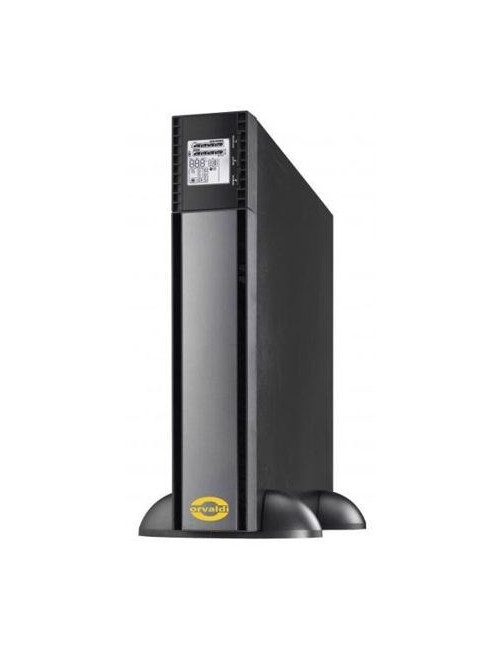

    Orvaldi V2000+ sinus 2U LCD uninterruptible power supply (UPS) Line-Interactive 2 kVA 1800 W 8 AC outlet(s)

    486,59 €
    Su mokesčiais
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą

    Prekė detaliau

    Orvaldi
    ZSIORVUPS0011
    20 Prekės

    Charakteristikos

    Width
    438 mm
    Height
    88 mm
    Depth
    510 mm
    Weight
    21.5 kg
    Number of batteries supported
    4
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    0 - 90%
    Form factor
    Rackmount/Tower
    USB port
    Yes
    LED indicators
    Yes
    Battery capacity
    9 Ah
    Output power
    1800 W
    Input frequency
    50/60 Hz
    Response time
    10 ms
    Display type
    LCD
    Efficiency
    91%
    Input operation voltage (min)
    162 V
    Power protection features
    Overload
    Cold start
    Yes
    AC outlets quantity
    8 AC outlet(s)
    Output power capacity
    2 kVA
    Output operation voltage (max)
    240 V
    Waveform
    Sine
    AC outlet types
    IEC 320
    Input operation voltage (max)
    290 V
    Audible alarm(s)
    Yes
    Battery voltage
    12 V
    Output operation voltage (min)
    220 V
    UPS topology
    Line-Interactive
    Automatic Voltage Regulation (AVR)
    Yes
    Output voltage regulation
    25%
    Serial interface type
    RS-232
    Output frequency
    50/60 Hz
    Noise Level
    55 dB
    Serial ports quantity
    1
    Product colour
    Black
    Serial interface
    Yes
    ECO mode
    Yes
    Audible alarm modes
    Alarm when on battery, Battery replacement, Fault, Overload alarm
    Power factor
    0.9
    Crest factor
    3:1
    Emergency Power Off (EPO)
    Yes
    Rack capacity
    2U
    Efficiency (ECO mode)
    97%
