EATON

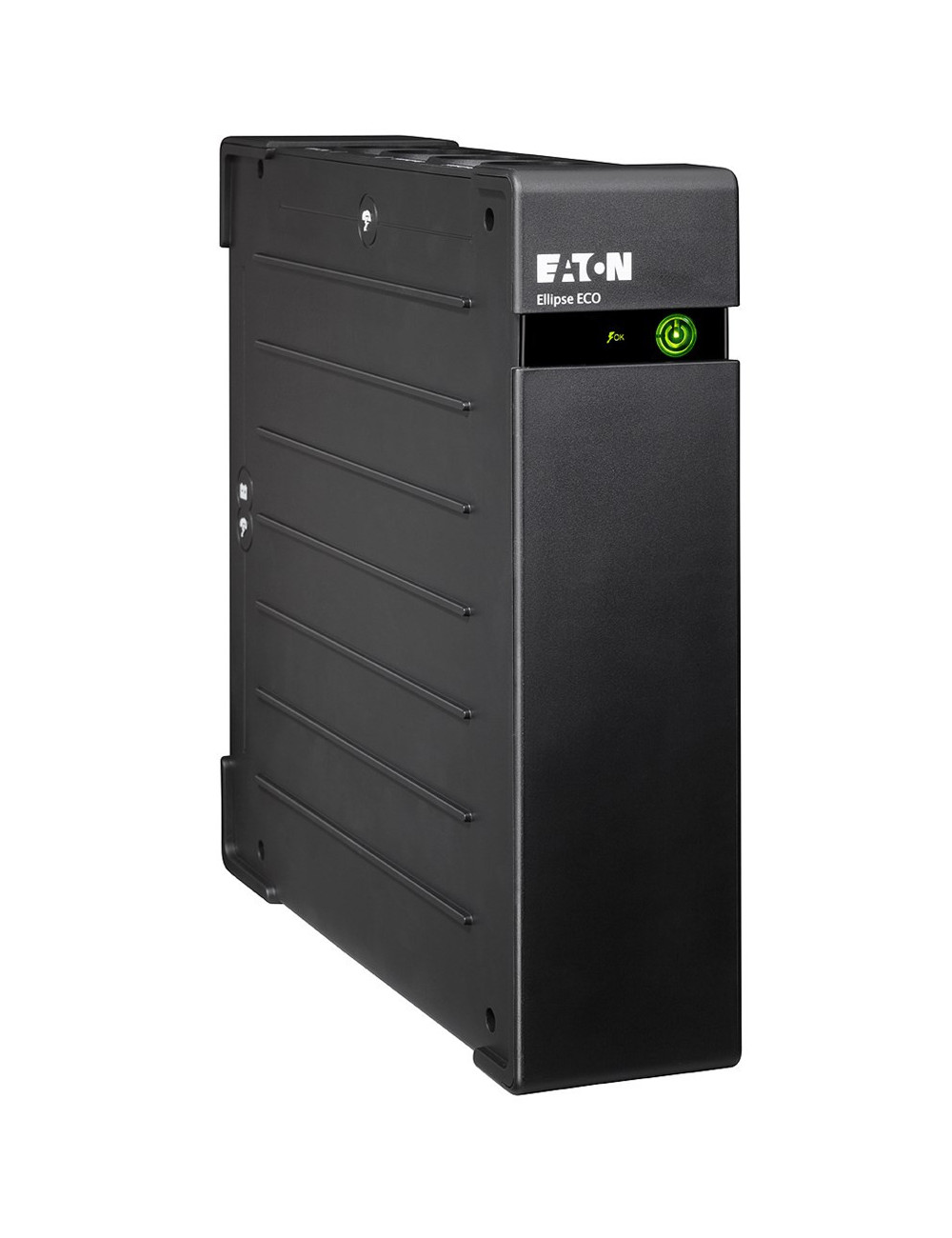

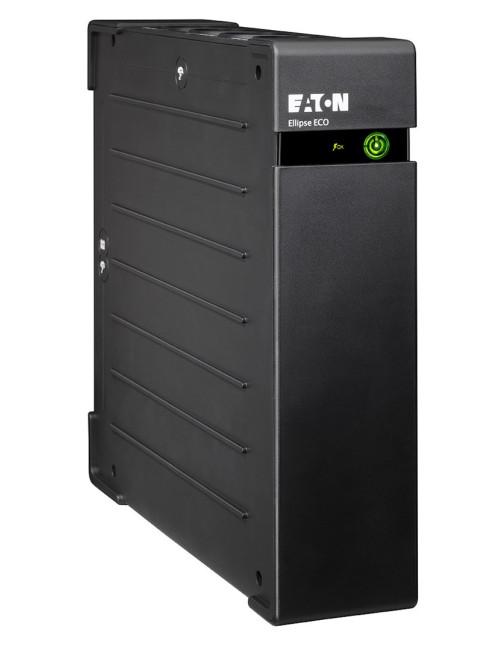

    Eaton Ellipse ECO 1600 USB IEC uninterruptible power supply (UPS) Standby (Offline) 1.6 kVA 1000 W 8 AC outlet(s)

    377,49 €
    Su mokesčiais
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą

    Prekė detaliau

    ZASEATUPS0178
    10 Prekės

    Charakteristikos

    Width
    81 mm
    Height
    305 mm
    Depth
    312 mm
    Weight
    7.8 kg
    Form factor
    Tower
    Mac compatibility
    Yes
    LED indicators
    Battery replacement
    Battery technology
    Sealed Lead Acid (VRLA)
    Output power
    1000 W
    Input frequency
    50/60 Hz
    USB 2.0 ports quantity
    1
    Ethernet LAN (RJ-45) ports
    1
    Input operation voltage (min)
    161 V
    Cold start
    Yes
    AC outlets quantity
    8 AC outlet(s)
    Output power capacity
    1.6 kVA
    Output operation voltage (max)
    240 V
    AC outlet types
    C13 coupler
    Input operation voltage (max)
    284 V
    Audible alarm(s)
    Yes
    Output operation voltage (min)
    220 V
    UPS topology
    Standby (Offline)
    Modem (RJ-11) ports
    1
    Automatic battery test
    Yes
    Typical backup time at half load
    11 min
    Surge protection
    Yes
    Nominal input voltage
    230 V
    Nominal output voltage
    220-240 V
    Power plug
    C14 coupler
    Product colour
    Black
    Harmonized System (HS) code
    85078000
    Safety
    IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
    Hot-swap battery
    No
    Audible alarm modes
    Battery replacement
    Overload protection
    Yes
    Surge protection features
    Fax
    Emergency Power Off (EPO)
    No
    Rack capacity
    2U
    Input connection type
    IEC

    Greitas palyginimas

    Prekė
    		 PowerWalker VI 1000 RLP Line-Interactive 1 kVA 900 W 8 AC outlet(s) PowerWalker VI 2000 CW FR Line-Interactive 2 kVA 1400 W Qoltec 52282 Uninterruptible Power Supply UPS | 3kVA | 3000W | Power factor 1.0 | LCD | EPO | USB | On-line CyberPower CPS1000E uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 700 W 2 AC outlet(s)
    Prieinamumas
    Kaina
    367,71 €
    367,71 €
    372,32 €
    373,25 €
    Aprašymas
    Package type
    		 Box
    Width
    		 438 mm 145 mm 190 mm 208 mm
    Height
    		 88 mm 220 mm 320 mm 241 mm
    Depth
    		 430 mm 455 mm 392 mm 153 mm
    Weight
    		 16 kg 18.1 kg 20.5 kg 8.5 kg
    Package height
    		 231 mm
    Package width
    		 556 mm
    Number of batteries supported
    		 2 1
    Power source type
    		 AC
    Manual
    		 Yes
    Operating temperature (T-T)
    		 0 - 40 °C 0 - 40 °C
    Operating relative humidity (H-H)
    		 5 - 90% 20 - 90%
    Form factor
    		 Rackmount/Tower Tower
    USB port
    		 Yes
    LED indicators
    		 Yes Power
    Battery technology
    		 AGM (Absorbed Glass Mat) Sealed Lead Acid (VRLA)
    Battery capacity
    		 9 Ah 7 Ah 200 Ah
    Battery recharge time
    		 4 h
    Output power
    		 900 W 1400 W 3000 W 700 W
    Input frequency
    		 45/65 Hz 50/60 Hz 45/65 Hz
    Response time
    		 6 ms 10 ms
    Display type
    		 LCD LCD LCD
    Number of battery cells
    		 6
    Input operation voltage (min)
    		 165 V 162 V 110 V 140 V
    Power protection features
    		 Overload Reverse polarity
    Cold start
    		 Yes
    AC outlets quantity
    		 8 AC outlet(s) 2 AC outlet(s)
    Output power capacity
    		 1 kVA 2 kVA 3 kVA 1 kVA
    Output operation voltage (max)
    		 220 V 230 V
    Waveform
    		 Pure sine Sine
    Auto-restart
    		 Yes
    AC outlet types
    		 C13 coupler IEC 320 C20 Type F
    Input operation voltage (max)
    		 290 V 290 V 300 V 300 V
    Audible alarm(s)
    		 Yes Yes
    Battery voltage
    		 12 V 12 V 12 V
    Output operation voltage (min)
    		 240 V 230 V
    UPS topology
    		 Line-Interactive Line-Interactive Double-conversion (Online)
    Typical backup time at full load
    		 2 min
    Off-mode charging
    		 Yes
    Automatic Voltage Regulation (AVR)
    		 Yes Yes
    Automatic battery test
    		 Yes
    Typical backup time at half load
    		 8 min 10 min
    Surge protection
    		 Yes
    Nominal output voltage
    		 230 V
    Output frequency regulation
    		 50/60 Hz
    Output voltage regulation
    		 10%
    RS-232 ports
    		 1 1
    International Protection (IP) code
    		 IP20
    Short circuit protection
    		 Yes
    Output frequency
    		 50/60 Hz
    Web-based management
    		 No
    Noise Level
    		 40 dB 45 dB
    Power plug
    		 C14 coupler
    Product colour
    		 Black Black Yellow
    USB port type
    		 USB Type-B
    Charging current
    		 6 A 15 A
    Output voltage Total Harmonic Distortion (THD)
    		 3%
    Hot-swap battery
    		 Yes
    Overvoltage protection
    		 Y
    Audible alarm modes
    		 Fault Alarm when on battery, Fault, Low battery alarm, Overload alarm, Battery replacement
    Overload protection
    		 Yes
    Over voltage protection
    		 Yes
    Power factor
    		 0.7 1
    SmartSlot
    		 Yes
    Emergency Power Off (EPO)
    		 Yes Yes
    Rack capacity
    		 2U
    Number of type F outputs
    		 2
    Output power factor
    		 0.9
    Emergency Power Off (EPO) connector
    		 Yes
    Built-in fan
    		 Yes Yes
    Number of input phases
    		 1
    Number of output phases
    		 1 1
    Efficiency (On-line mode)
    		 98.8%
    Efficiency (ECO mode)
    		 82.3%
    Type of input protection required
    		 3-pole circuit breaker
