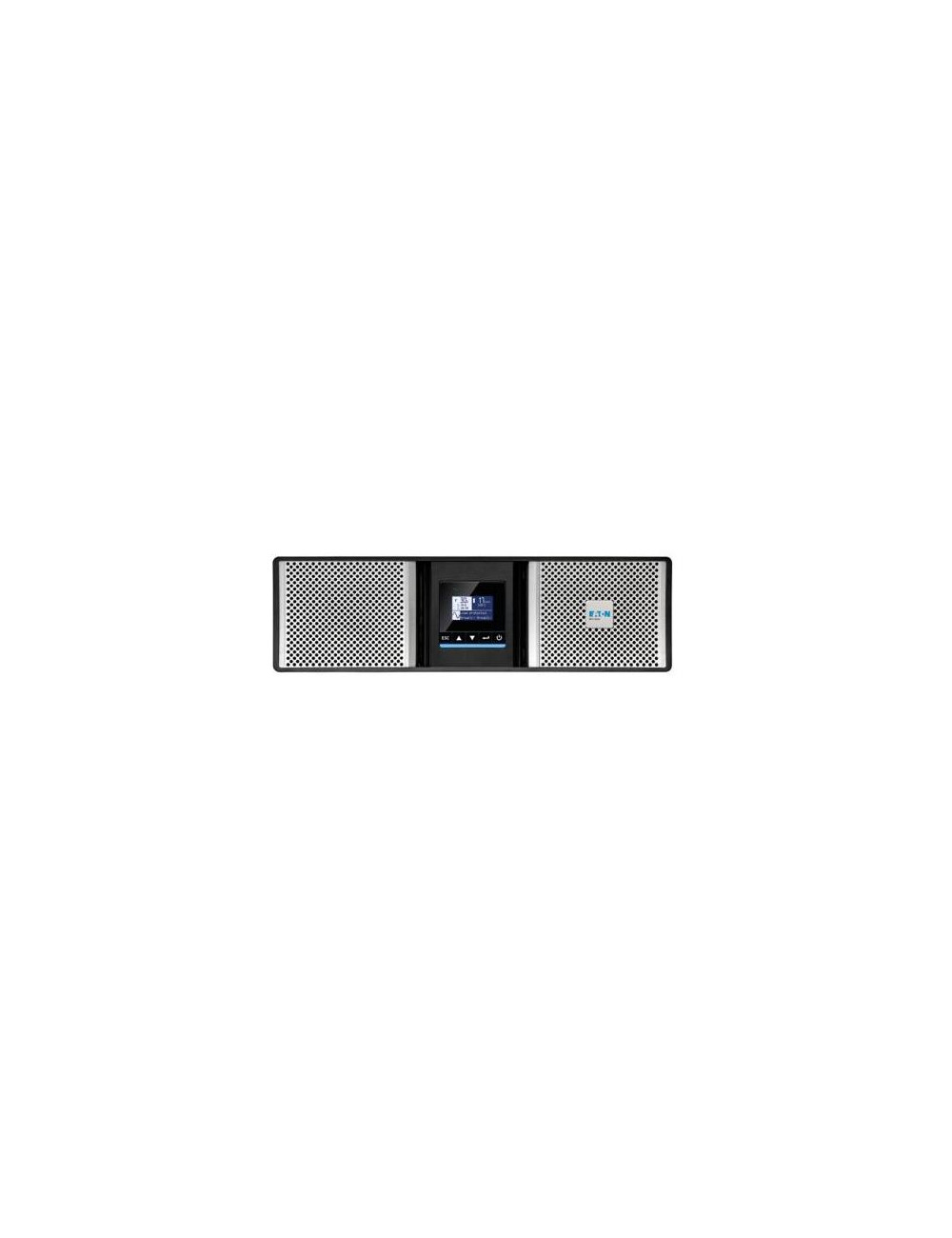

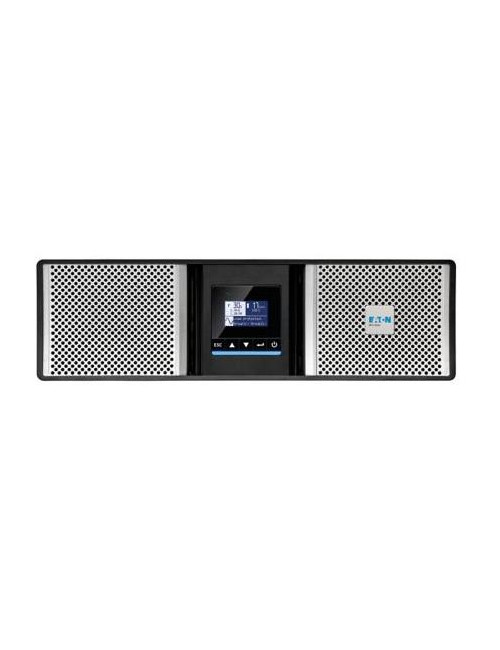

UPS|EATON|5000 Watts|5000 VA|Wave form type Sinewave|9PX5KIRTNG2
EATON

UPS|EATON|5000 Watts|5000 VA|Wave form type Sinewave|9PX5KIRTNG2

4 616,70 €
Su mokesčiais
UPS topology Double-conversion (Online) | Output power capacity 5 kVA | Output power 5000 W | Waveform Sine | Input operation voltage (min) 100 V | Input operation voltage (max) 276 V | Input frequency 40/70 Hz | Output frequency 50/60 Hz | Power consumption (average operating) 165 W | Heat dissipation 563 BTU/h | Number of input phases 1 | Number of output phases 1 | Efficiency 96.7 % | AC outlet types C13 coupler/Hardwire/C39 coupler | USB port Yes | Battery technology Sealed Lead Acid (VRLA) | Battery voltage 12 V | Form factor Rackmount/Tower | Cable length 1.8 m | Colour Black,Silver | Display type LCD | LED indicators Yes | Operating temperature (T-T) 0 - 40 °C | Operating altitude 0 - 3000 m | Weight 43.1 kg
Kiekis

Išsaugoti prekę Pridėti į palyginimą

Eaton 9PX Gen2 UPS Netpack, 5000 VA, 5000 W, Input: Hardwired, Outputs: (6) C13, (6) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included

Prekė detaliau

9PX5KIRTNG2
2 Prekės

Charakteristikos

Garantija
24
Category Code
UPW
Unit Box Height
0.31
Unit Box Length
0.59
Unit Box Width
0.96
Vendor Homepage
https://www.eaton.com/de/en-gb/skuPage.9PX5KIRTNG2.html
MODEL
9PX5KIRTNG2
Units per Shipping Box
1
Unit Calculated Weight
55 kg
Unit Calculated Volume
0.1756 cubm
Summary
Eaton 9PX 5000i RT3U Netpack G2. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 5000 W. AC outlet types: C13 coupler, Hardwire, C39 coupler. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 5 Ah, Batter
Weight & dimensions (Weight)
43100 g
Battery (Battery technology)
Sealed Lead Acid (VRLA)
Weight & dimensions (Width)
440 mm
Weight & dimensions (Depth)
684 mm
Weight & dimensions (Height)
130 mm
Packaging content (Cables included)
USB cable
Battery (Battery capacity)
5 Ah
Design (Product colour)
Black,Silver
Sustainability (Sustainability certificates)
ENERGY STAR
Certificates (Certification)
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3
Operational conditions (Operating relative humidity (H-H))
0 - 95 %
Operational conditions (Operating temperature (T-T))
0 - 40 C
Design (Form factor)
Rackmount/Tower
Certificates (Compliance certificates)
CB/CE/cULus/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)/RCM/REACH/RoHS/UKCA/WEEE
Operational conditions (Operating altitude)
0 - 3000 m
Battery (Battery voltage)
12 V
Packaging content (Quick installation guide)
Yes
Design (LED indicators)
Yes
Ports & interfaces (USB port)
Yes
Ports & interfaces (RS-232 ports)
1
Features (Input frequency)
40/70 Hz
Features (Input operation voltage (max))
276 V
Features (Input operation voltage (min))
100 V
Features (Noise level)
40 dB
Features (Output operation voltage (max))
240 V
Features (Output operation voltage (min))
200 V
Features (Output power)
5000 W
Features (Output power capacity)
5 kVA
Features (UPS topology)
Double-conversion (Online)
Ports & interfaces (AC outlet types)
C13 coupler/C39 coupler/Hardwire
Battery (Automatic battery test)
Yes
Design (Display type)
LCD
Features (Efficiency)
96.7 %
Features (Heat dissipation)
563 BTU/h
Features (Number of input phases)
1
Features (Number of output phases)
1
Features (Output frequency)
50/60 Hz
Features (Waveform)
Sine
Design (Rack capacity)
3U
Battery (Typical backup time at half load)
9.4 min
Design (Cable length)
1.8 m
Features (Efficiency (ECO mode))
99 %
Features (Input power factor)
0.99
Features (Power consumption (average operating))
165 W
Ports & interfaces (Network card slot)
Yes
