TECNOWARE

UPS|TECNOWARE|1000 VA|Phase 1 phase|FGCERAPLS1002SCH

Name: UPS|TECNOWARE|1000 VA|Phase 1 phase|FGCERAPLS1002SCH
Brand: TECNOWARE
SKU: FGCERAPLS1002SCH
Price: 91.34 EUR
Availability: InStock

91,34 €

Su mokesčiais

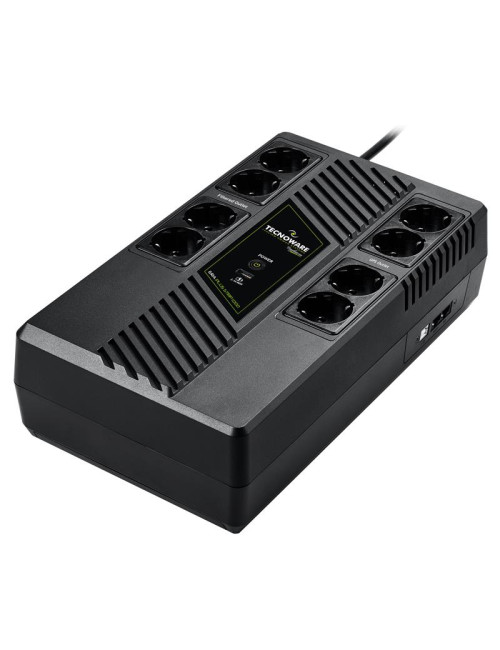

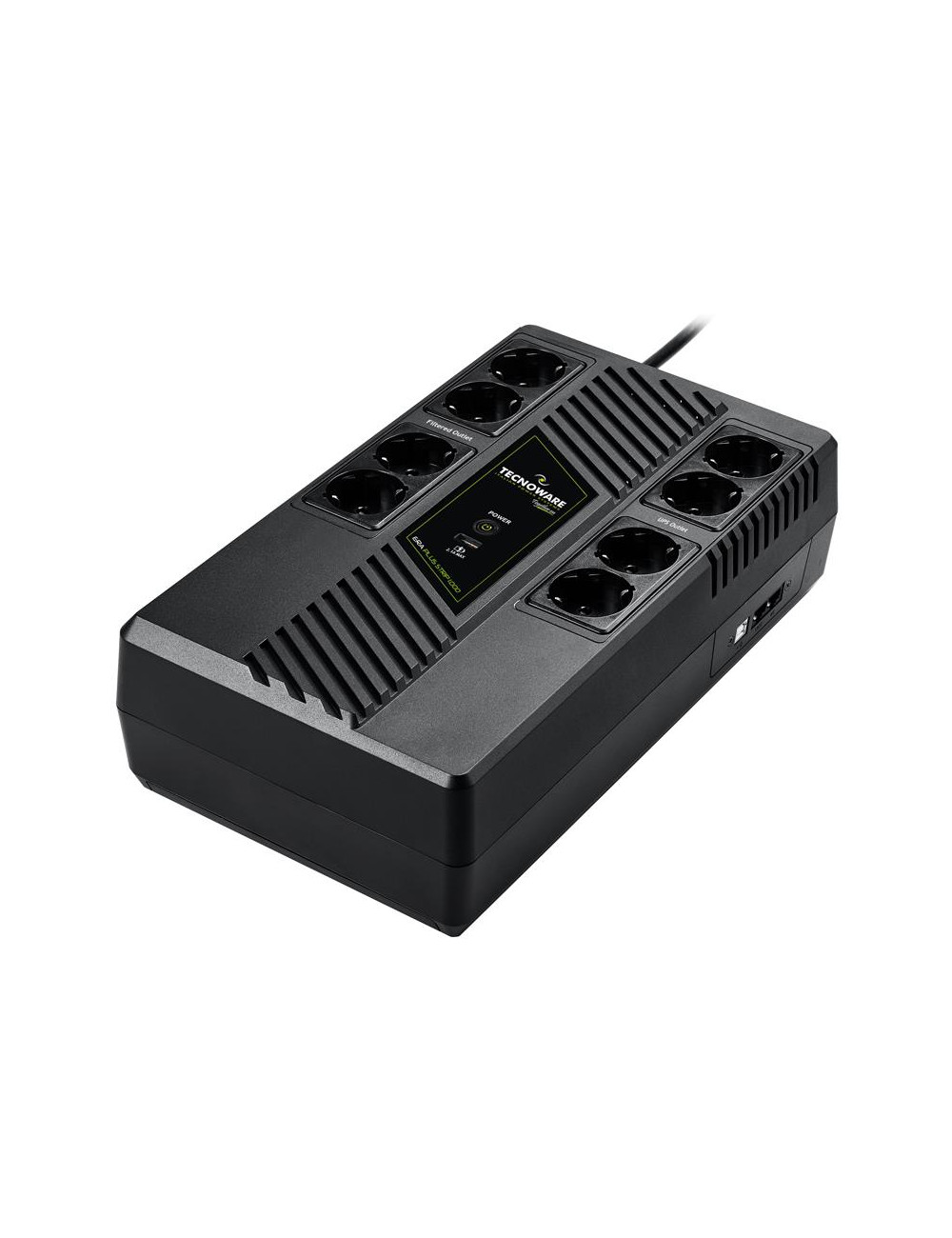

UPS ERA PLUS STRIP 1000VA TOGETHER ON. Line interactive plus technology. Dimensions 20x10x34,5 cm, weight 4,4 kg, Backup time up to 20 min. Designed for PCs, printers, telematic cash registers and pos. It has 4 schuko/italian 10A type outputs protected against blackout, overvoltages and undervoltages and 4 schuko /italian 10A type outputs protected against overvoltages and undervoltages. Equipped with LED for signaling the operating status and a USB interface for UPS control and on/off programming via the free Tecnomanager software.

Complete protection against blackout and power surges (overvoltages and undervoltages)
Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registers
Not suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motors
AVR Automatic Voltage Regulator electronic circuit
n°8 Italian/Schuko output sockets and n°1 schuko input cable
n°4 sockets outlets protected against blackout
n°4 sockets outlets protected against overvoltages
Multifunction LED and on-off button
USB port for UPS control and monitoring and on / off programming via Tecnomanager software
USB on the front for fast smartphone/tablet charging
UPS TecnoManager management software compatible with Windows, Mac OS X, Linux etc

Prekė detaliau

Prekės ženklas TECNOWARE

Kodas FGCERAPLS1002SCH

Yra sandėlyje 8 Prekės

Charakteristikos

Garantija: 24
Category Code: UPW
Unit Box Height: 0.27
Unit Box Length: 0.43
Unit Box Width: 0.15
Vendor Homepage: https://cmsstd.tecnoware.com/en-US/Dettaglio/Articolo/453
Units per Shipping Box: 1
Unit Calculated Weight: 5.35 kg
Unit Calculated Volume: 0.01741 cubm
Summary: Tecnoware Era Plus Strip 1000. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 700 W. AC outlet types: Type F, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load:
Weight & dimensions (Weight): 4400 g
Battery (Battery technology): Sealed Lead Acid (VRLA)
Weight & dimensions (Width): 200 mm
Weight & dimensions (Depth): 345 mm
Weight & dimensions (Height): 100 mm
Packaging data (Package width): 269 mm
Packaging data (Package depth): 425 mm
Packaging data (Package height): 146 mm
Design (Product colour): Black
Certificates (Certification): CE
Operational conditions (Operating relative humidity (H-H)): 0 - 95 %
Operational conditions (Operating temperature (T-T)): 0 - 40 C
Design (Cooling type): Passive
Design (Form factor): Compact
Operational conditions (Operating altitude): 0 - 3000 m
Features (Input frequency): 50/60 Hz
Features (Input operation voltage (max)): 230 V
Features (Noise level): 40 dB
Features (Output operation voltage (max)): 230 V
Features (Output power): 700 W
Features (Output power capacity): 1 kVA
Features (UPS topology): Line-Interactive
Ports & interfaces (AC outlet types): Type F
Ports & interfaces (AC outlets quantity): 8 AC outlet(s)
Features (Automatic Voltage Regulation (AVR)): Yes
Features (Number of output phases): 1
Features (Output frequency): 50/60 Hz
Features (Waveform): Pseudo sine
Features (Power factor): 0.7
Features (Response time): 2 ms
Battery (Typical backup time at full load): 10 min
