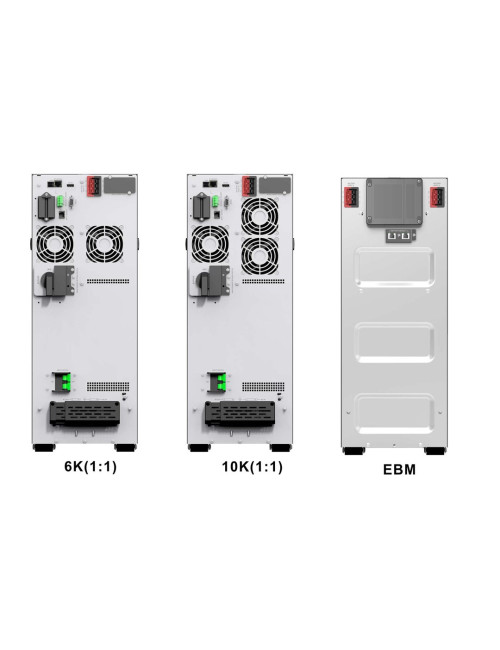

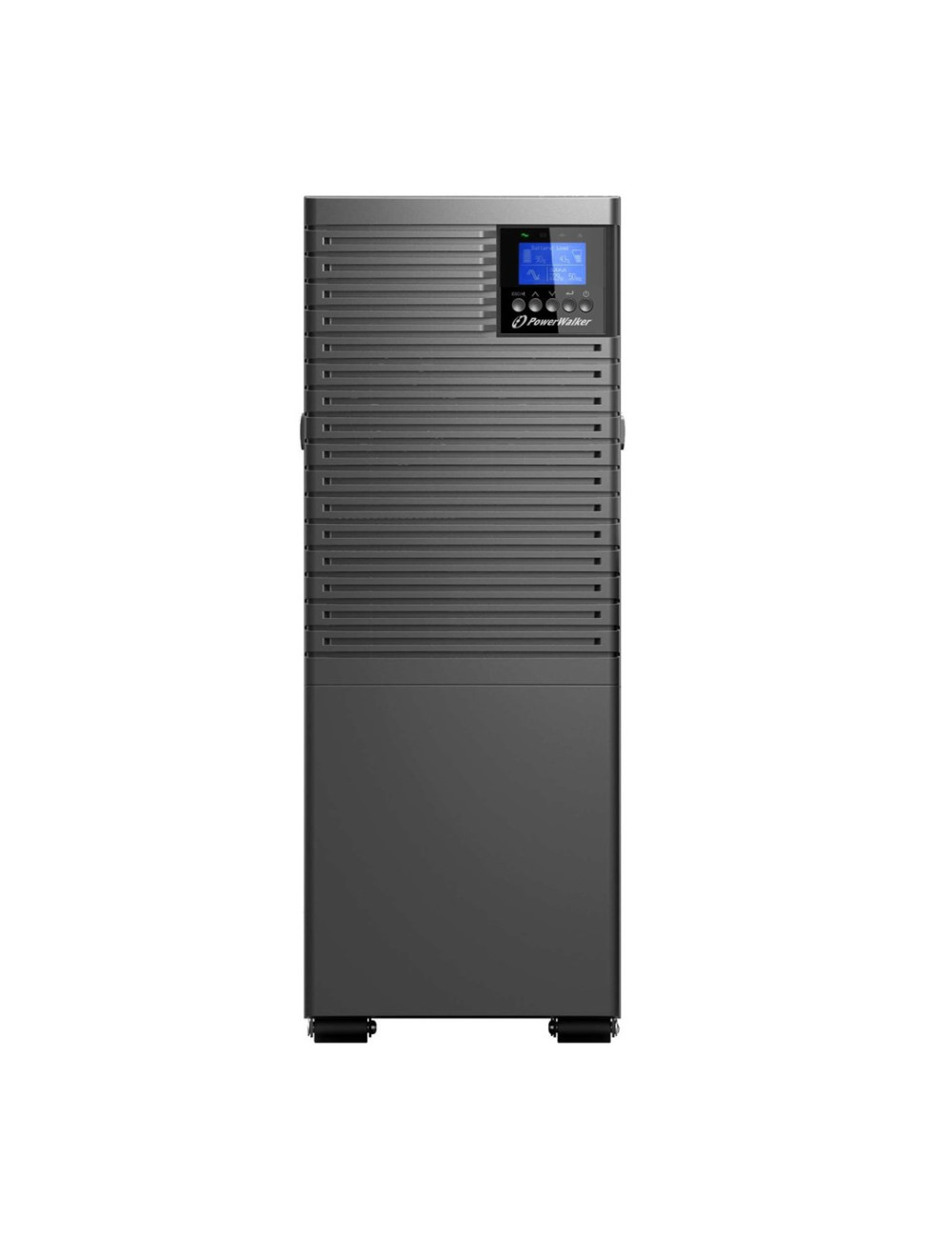

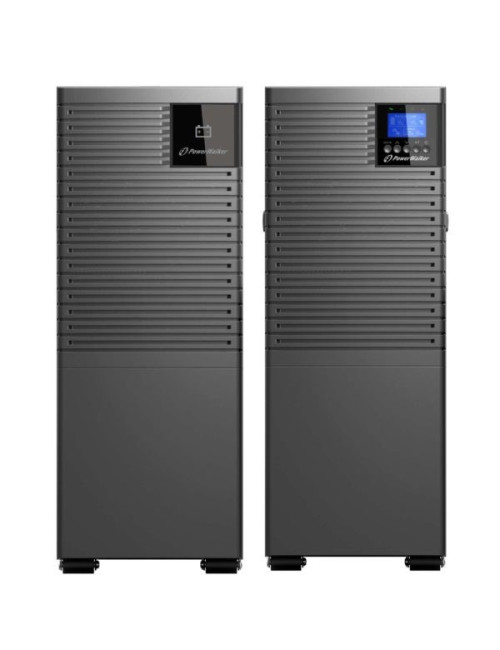

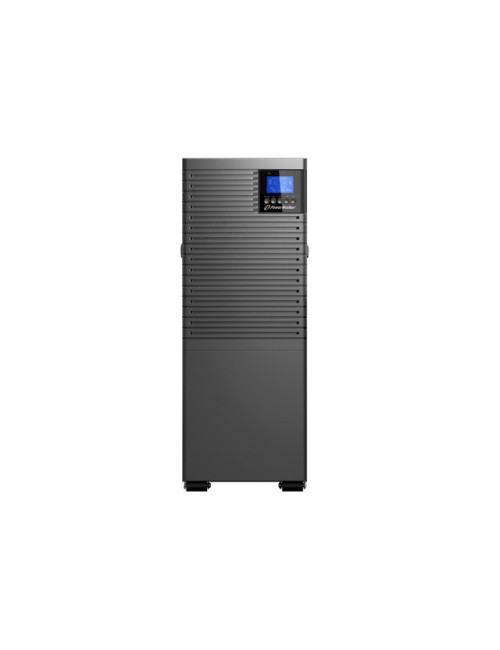

PowerWalker VFI 10000 ICT IoT 3/1 BI uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W

Prekė detaliau

Charakteristikos

Width

225 mm

Height

589 mm

Depth

416 mm

Weight

59.5 kg

Package depth

592 mm

Package height

696 mm

Package width

381 mm

Package weight

63 kg

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Form factor

Tower

USB port

Yes

Battery capacity

9 Ah

Battery recharge time

3 h

Output power

10000 W

Input frequency

40/70 Hz

Display type

LCD

Ethernet LAN (RJ-45) ports

1

Number of battery cells

20

Input operation voltage (min)

110 V

Output power capacity

10 kVA

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

Terminal

Input operation voltage (max)

478 V

Battery voltage

12 V

Output operation voltage (min)

220 V

UPS topology

Double-conversion (Online)

Typical backup time at full load

3.4 min

Automatic Voltage Regulation (AVR)

Yes

Typical backup time at half load

9.1 min

Output voltage regulation

1%

International Protection (IP) code

IP20

Serial interface type

RS-232

Noise Level

55 dB

Serial ports quantity

1

Power plug

Terminal

Product colour

Black

Harmonized System (HS) code

85078000

Serial interface

Yes

ECO mode

Yes

Power factor

1

Emergency Power Off (EPO)

Yes

Output power factor

1

Built-in fan

Yes
