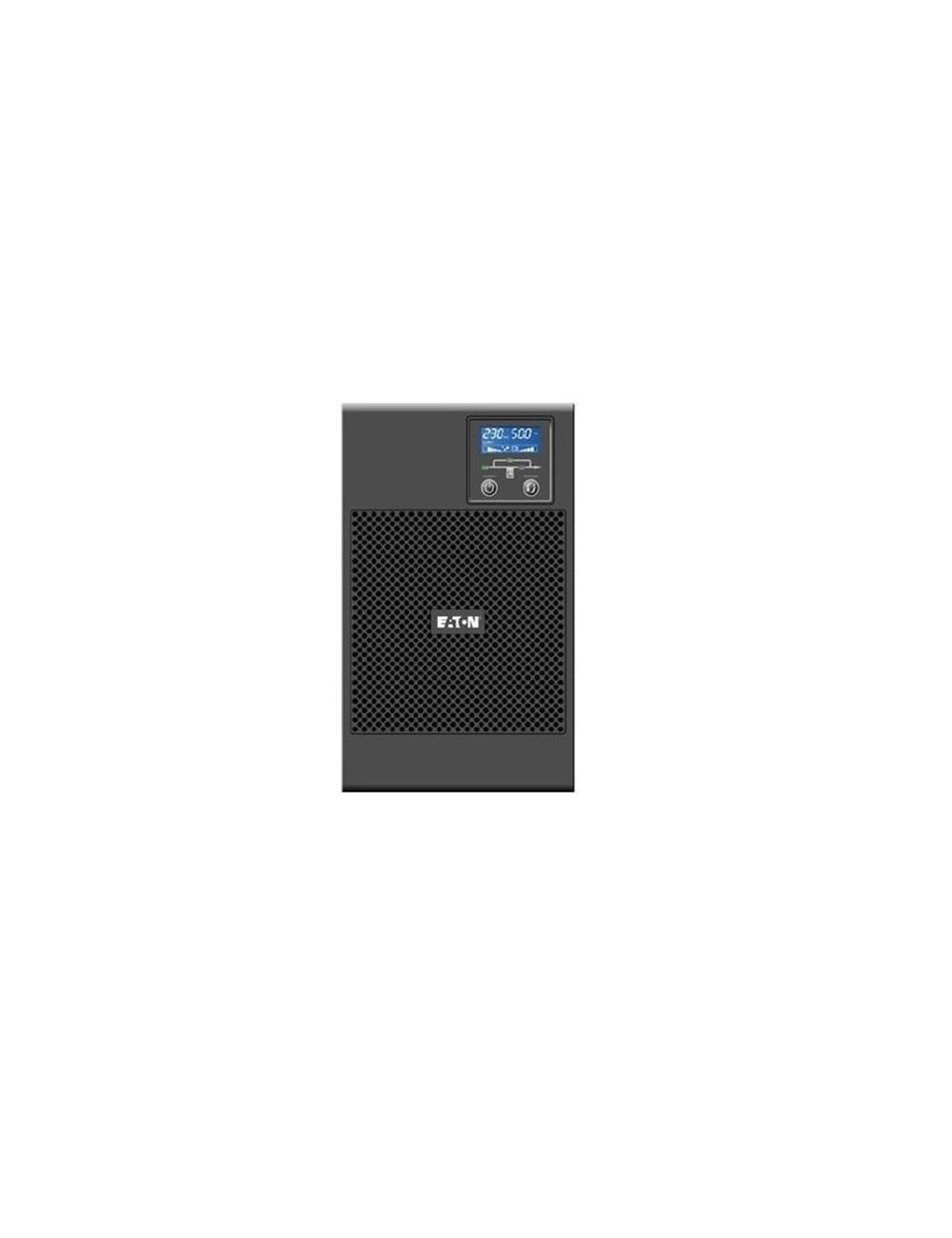

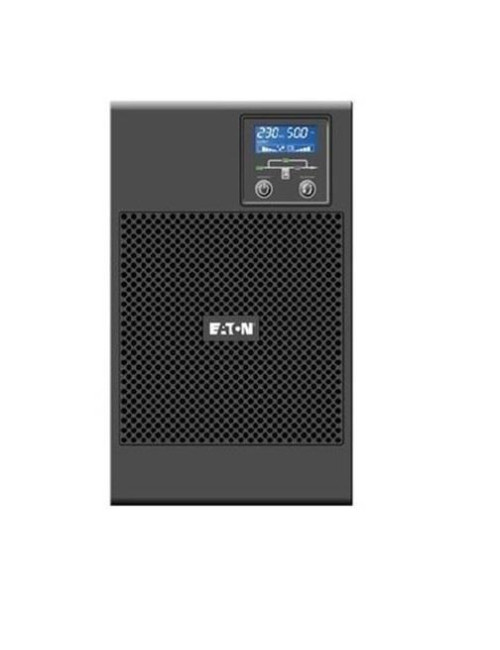

UPS|EATON|2400 Watts|3000 VA|OnLine DoubleConvertion|Desktop/pedestal|9E3000I
    EATON

    UPS|EATON|2400 Watts|3000 VA|OnLine DoubleConvertion|Desktop/pedestal|9E3000I

    1 014,78 €
    Su mokesčiais
    2400 Watts | 3000 VA | Topology OnLine DoubleConvertion | Input ports Single, IEC320 C20 | Output power connector type IEC 320 C13, IEC 320 C19
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą

    The Eaton 9E is an online double-conversion power protection at an affordable price with compact yet robust construction. This UPS an ideal choice for industrial, medical and information technology (IT) applications and telecommunications.

    Prekė detaliau

    9E3000I
    4 Prekės

    Charakteristikos

    Garantija
    24
    Category Code
    UPW
    Unit Box Height
    0.46
    Unit Box Length
    0.49
    Unit Box Width
    0.33
    Vendor Homepage
    powerquality.eaton.com/9E3000I.aspx?cx 61
    Dimensions
    399 x 330 x 190 mm
    Mounting Type (Desktop/pedestal)
    Yes
    Units per Shipping Box
    1
    Product Net Weight
    24.2 kg
    Unit Calculated Weight
    26 kg
    Unit Calculated Volume
    0.07438 cubm
    Output power capacity, W
    2400 Watts
    Output power capacity, VA
    3000 VA
    Topology
    OnLine DoubleConvertion
    Input ports
    Single, IEC320 C20
    Output power connector type
    IEC 320 C13, IEC 320 C19
    Communication ports (USB)
    1
    Communication ports (RS232)
    1

    Greitas palyginimas

    Prekė

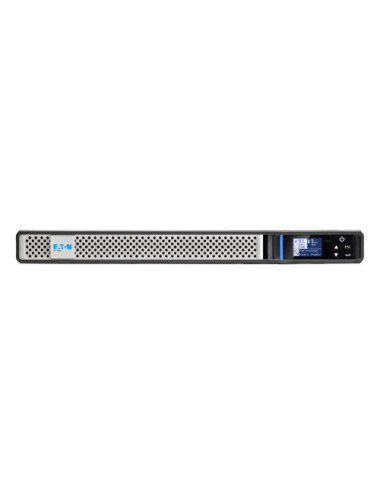

    		 Eaton 5P1150IRG2 uninterruptible power supply (UPS) Line-Interactive 920 W 6 AC outlet(s) Eaton 9E3000I uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2400 W 7 AC outlet(s) DIGITUS OnLine UPS, rack/tower, 3000VA, 3000W, LCD, 8 x C13, 1 x C19, RS-232, USB, SNMP card (optional), relay card (optional) Eaton | UPS | 9SX1000IR | 1000 VA | 900 W Eaton | UPS | 9SX1000IR | 1000 VA | 900 W
    Prieinamumas
    Kaina
    1 012,37 €
    1 014,08 €
    1 015,75 €
    1 025,00 €
    Aprašymas
    		 Eaton | UPS | 9SX1000IR | 1000 VA | 900 W
    Warranty
    		 24 month(s)
    Producer product name
    		 9SX1000IR
    Net weight
    		 15.70 kg
    Gross weight
    		 21.20 kg
    WEEE tax
    		 Yes
    Packing quantity
    		 1.00 pc(s)
    Volume (m3)
    		 0.07 m
    Tare weight (kg)
    		 5.50 kg
    Gross depth (mm)
    		 570.00 mm
    Gross width (mm)
    		 548.00 mm
    Gross height (mm)
    		 240.00 mm
    WEE classification
    		 CL109:4:2017-04-01
    Paper/Pasteboard
    		 4800.00 g
    Embeeded battery
    		 Yes
    TI weight (kg)
    		 0.50 kg
    Width
    		 438 mm 330 mm 440 mm
    Height
    		 43.2 mm 190 mm 86.5 mm
    Depth
    		 509 mm 399 mm 600 mm
    Plastic (No PET)
    		 700.00 g
    Composition of battery
    		 CL127:KT:2016-12-09
    Classification of battery
    		 CL126:NE:2016-12-09
    Type of battery
    		 Accumulator
    Weight
    		 14.2 kg 24.2 kg 26 kg
    Special features
    		 Form factor: Rack Rack size: 2U
    Producer product family
    		 UPS
    Package height
    		 200 mm
    Package width
    		 555 mm
    Number of batteries supported
    		 4 6
    Manual
    		 Yes
    Operating temperature (T-T)
    		 0 - 40 °C 0 - 40 °C 0 - 40 °C
    Operating relative humidity (H-H)
    		 0 - 90% 20 - 90%
    Storage temperature (T-T)
    		 -25 - 55 °C
    Form factor
    		 Tower Tower Rackmount
    USB port
    		 Yes Yes Yes
    Battery technology
    		 Sealed Lead Acid (VRLA)
    Functions
    		 Auto shutdown function
    Battery capacity
    		 9 Ah 9 Ah
    Capacity
    		 1000 VA
    Palette Qty
    		 12 pc(s)
    Battery recharge time
    		 4 h
    Output power
    		 920 W 2400 W 3000 W
    Input frequency
    		 50/60 Hz 40/70 Hz
    Display type
    		 LCD LCD
    Efficiency
    		 98.2%
    Input operation voltage (min)
    		 150 V 176 V 208 V
    AC outlets quantity
    		 6 AC outlet(s) 7 AC outlet(s) 9 AC outlet(s)
    Output power capacity
    		 3 kVA 3 kVA
    Output operation voltage (max)
    		 240 V 240 V
    Waveform
    		 Sine
    AC outlet types
    		 C13 coupler C13 coupler C13 coupler
    Input operation voltage (max)
    		 294 V 300 V 240 V
    Battery voltage
    		 6 V 12 V
    Output operation voltage (min)
    		 208 V
    UPS topology
    		 Line-Interactive Double-conversion (Online) Double-conversion (Online) On line
    Typical backup time at full load
    		 3 min
    Automatic Voltage Regulation (AVR)
    		 Yes Yes
    Typical backup time at half load
    		 9 min
    Operating altitude
    		 0 - 3000 m 0 - 1500 m
    Serial interface type
    		 RS-232 RS-232 RS-232
    Quick installation guide
    		 Yes
    Output frequency
    		 50/60 Hz 50/60 Hz
    Noise Level
    		 35 dB 37 dB
    Serial ports quantity
    		 1 1
    Maximum current
    		 16 A
    Power plug
    		 C14 coupler C20 coupler C20 coupler
    Product colour
    		 Black Black Black
    Heat dissipation
    		 465 BTU/h
    Safety
    		 IEC/EN 62040-1, IEC/EN 62040 -2 IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
    Serial interface
    		 Yes Yes Yes
    Package volume
    		 82064.5 cm³
    USB port type
    		 USB Type-B
    Output voltage Total Harmonic Distortion (THD)
    		 2%
    UK Trade Tariff code
    		 85044085
    Producer
    		 Eaton
    Size (imperial)
    		 48.3 cm (19")
    Power factor
    		 1
    Rack capacity
    		 1U
    Emergency Power Off (EPO) connector
    		 Yes
    Number of input phases
    		 1
    Number of output phases
    		 1
    Efficiency (On-line mode)
    		 91% 93%
    Efficiency (ECO mode)
    		 98%
    Overload capacity (1 minute)
    		 130%
    Overload capacity (10 seconds)
    		 150%
    Warnings
    		 Use the appliance in well-ventilated areas to avoid overheating. Do not disassemble the unit housing, there may be a risk of electric shock.
    Overload capacity (3 seconds)
    		 150%
