Prekė detaliau
Charakteristikos
- Cable length
- 1.83 m
- Width
- 91 mm
- Height
- 165 mm
- Depth
- 284 mm
- Weight
- 6.32 kg
- Package depth
- 368 mm
- Package height
- 178 mm
- Package width
- 241 mm
- Package weight
- 7.05 kg
- Cables included
- Phone (RJ-11), USB cable
- Storage relative humidity (H-H)
- 0 - 95%
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -15 - 45 °C
- Form factor
- Tower
- USB port
- Yes
- LED indicators
- Battery replacement
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery life (max)
- 6 year(s)
- Battery capacity
- 7 Ah
- Battery recharge time
- 6 h
- Output power
- 210 W
- Input frequency
- 50/60 Hz
- Efficiency
- 98.6%
- Input operation voltage (min)
- 180 V
- Power protection features
- Overload

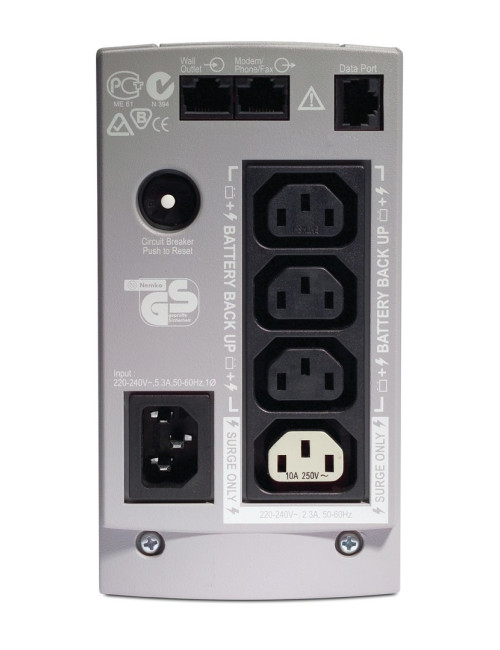

- AC outlets quantity
- 4 AC outlet(s)
- Output power capacity
- 0.35 kVA
- AC outlet types
- C13 coupler
- Input operation voltage (max)
- 266 V
- Audible alarm(s)
- Yes
- Battery voltage
- 12 V
- UPS topology
- Standby (Offline)

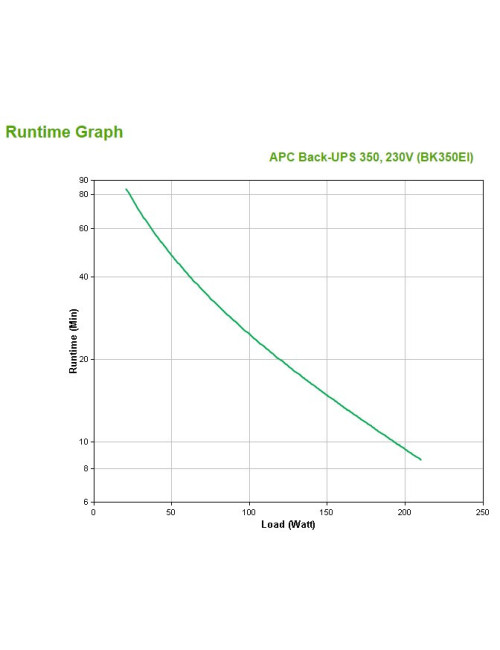

- Typical backup time at full load
- 8.6 min
- Warranty card
- Yes
- Automatic battery test
- Yes
- Typical backup time at half load
- 22.1 min
- Surge protection
- Yes
- Nominal input voltage
- 230 V
- Nominal output voltage
- 230 V
- Output frequency regulation
- 47 - 63 Hz
- Operating altitude
- 0 - 3000 m
- Quick installation guide
- Yes
- Maximum current
- 7 A
- Surge energy rating
- 310 J
- Power plug
- C14 coupler
- Non-operating altitude
- 0 - 15000 m
- Product colour
- Beige
- Harmonized System (HS) code
- 85078000
- Sustainability certificates
- Green Premium
- Products per pallet
- 48 pc(s)
- Software CD
- Yes
- Compliance certificates
- RoHS
- Audible alarm modes
- Low battery alarm, Overload alarm
- Hold time (max)
- 10 ms
- Hold time (min)
- 6 ms
- Surge protection features
- Digital Subscriber Line (DSL)
- Number of output IEC jumpers
- 2
- Filtering
- Yes
