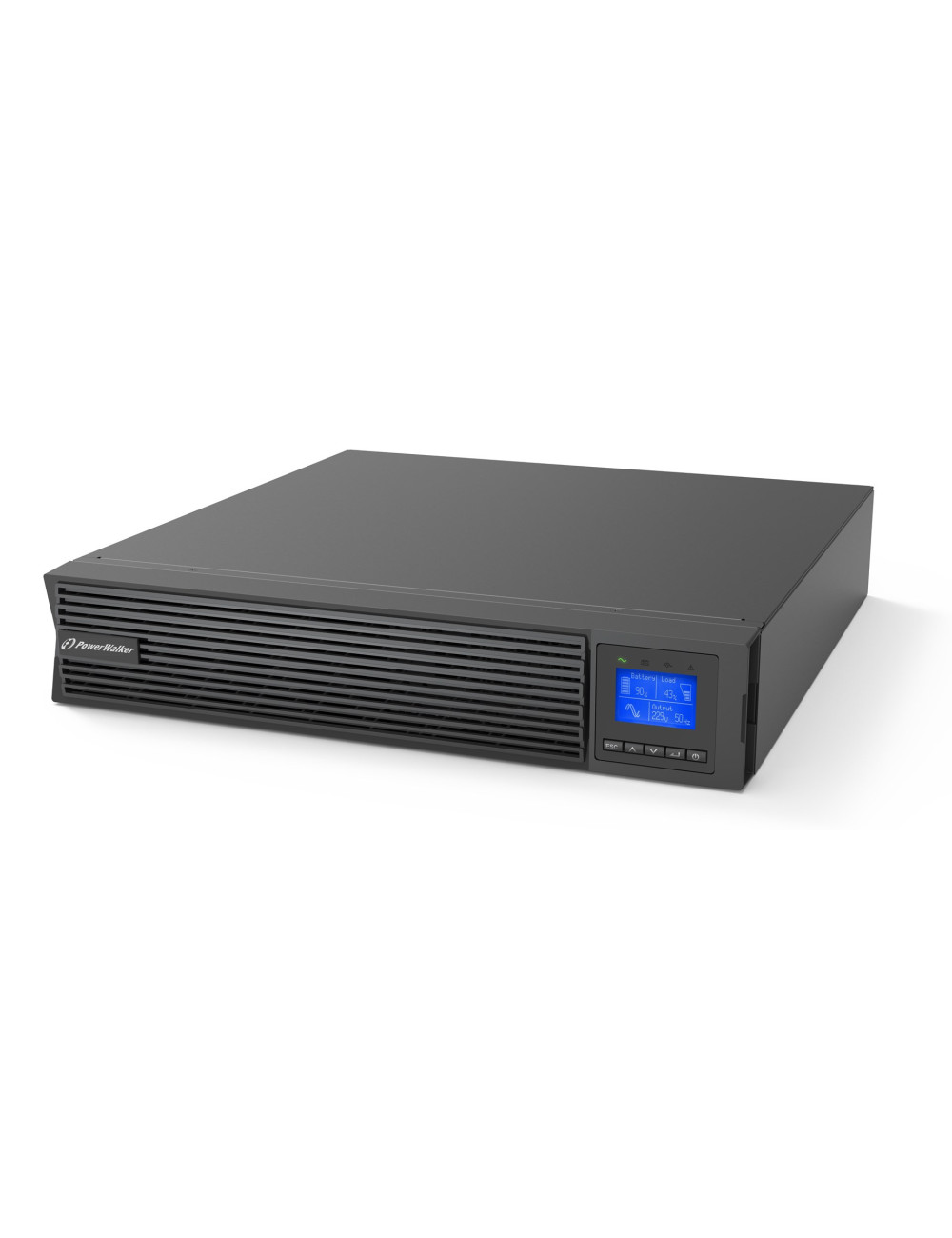

PowerWalker VFI 1000 ICR IoT Double-conversion (Online) 1 kVA 1000 W 8 AC outlet(s)

Prekė detaliau

Charakteristikos

Width

438 mm

Height

85.5 mm

Depth

445 mm

Weight

14.3 kg

Package height

240 mm

Package width

498 mm

Number of batteries supported

3

Cables included

Input power cable, Output power cable, USB cable

Manual

Yes

Operating temperature (T-T)

0 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Form factor

Rackmount/Tower

USB port

Yes

LED indicators

Yes

Battery capacity

7 Ah

Battery recharge time

3 h

Cooling type

Active

Output power

1000 W

Input frequency

40/70 Hz

Display type

LCD

Input operation voltage (min)

160 V

Power protection features

Overload

AC outlets quantity

8 AC outlet(s)

Output power capacity

1 kVA

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

C13 coupler

Input operation voltage (max)

300 V

Battery voltage

12 V

Output operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Output voltage regulation

1%

Serial interface type

RS-232

Noise Level

45 dB

Serial ports quantity

1

Power plug

C14 coupler

Product colour

Black

Serial interface

Yes

ECO mode

Yes

Charging current

1.5 A

Output voltage Total Harmonic Distortion (THD)

1%

Crest factor

3:1

Emergency Power Off (EPO)

Yes

Rack capacity

2U

Rack mount kit

Yes

Output power factor

1

Emergency Power Off (EPO) connector

Yes

Input power factor

0.99

Built-in fan

Yes

Efficiency (On-line mode)

89%

Input current Total Harmonic Distortion (THD)

5%

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
