TP-LINK

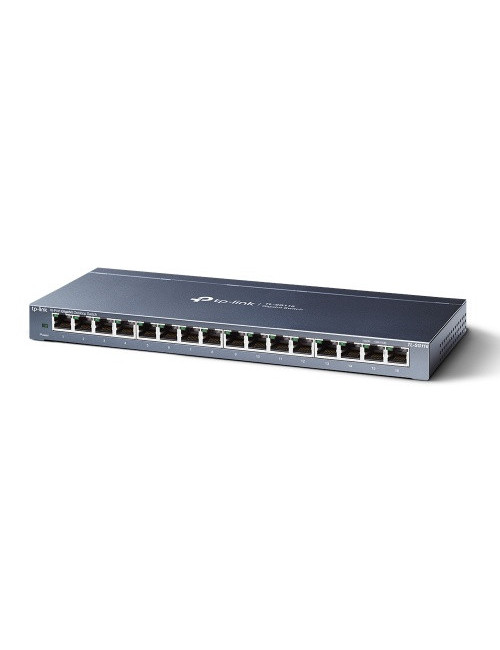

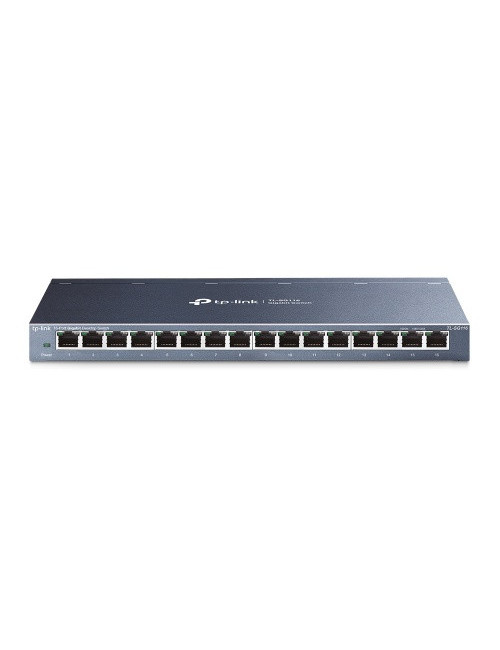

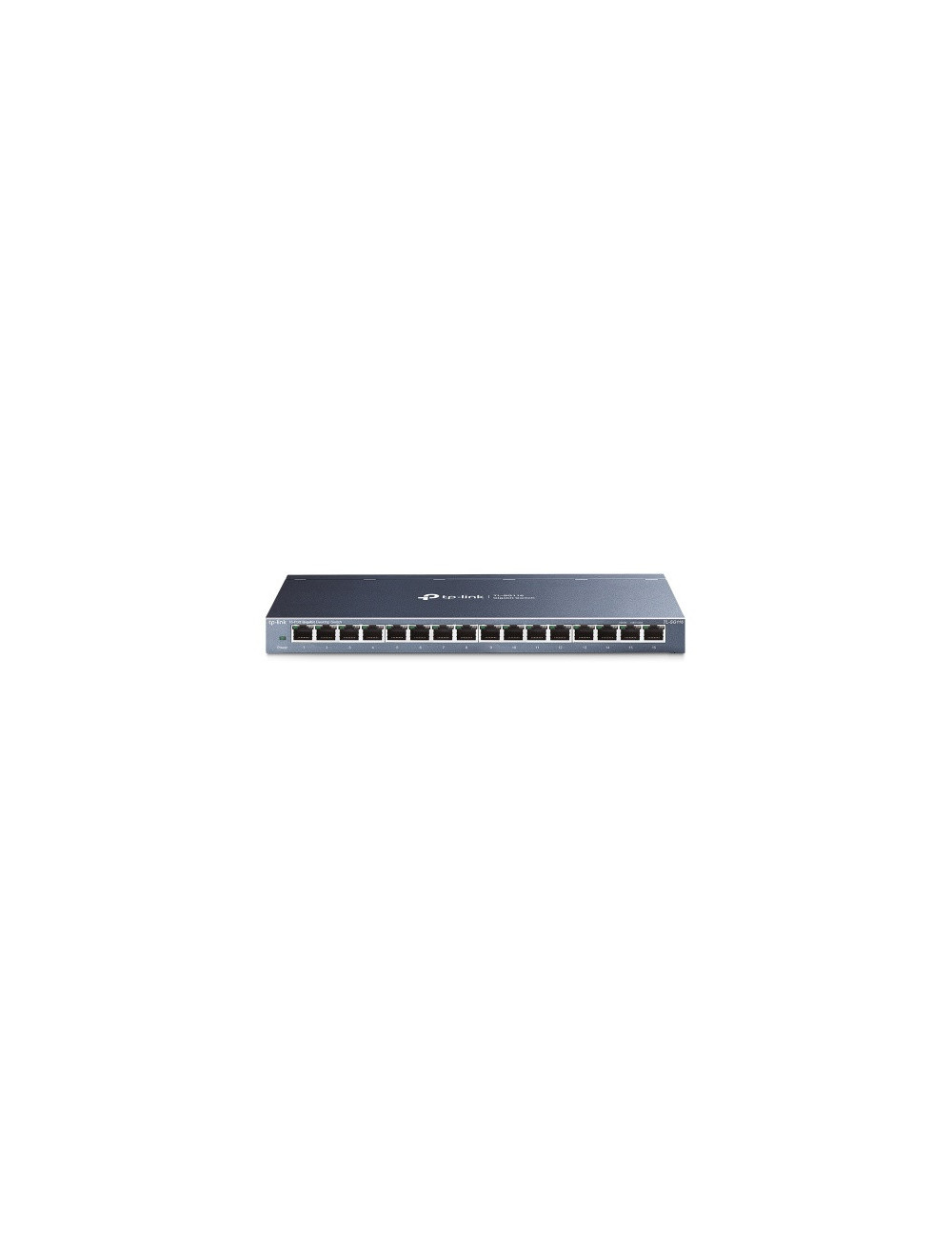

    TP-Link TL-SG116 16-Port Gigabit Desktop Šakotuvas

    64,90 €
    Su mokesčiais
    TP-LINK 16-Port Gigabit Switch TL-SG116 10/100/1000 Mbps (RJ-45), Unmanaged, Desktop, Ethernet LAN (RJ-45) ports 16
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą

    What This Product Does

    The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.

    Gigabit Switch

    Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

    Go Green With Your Ethernet

    You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

    Traffic Optimization

    802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

    Easy to use

    The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

    Prekė detaliau

    TL-SG116
    2 Prekės

    Charakteristikos

    Ilgis
    111,7 mm
    Perjungimo tipas
    Ne-valdomas
    Plotis
    286 mm
    Aukštis
    25,4 mm
    Tinklo standartai
    IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
    Korpuso medžiaga
    Metalas
    Įvesties srovė
    0.6 A
    Auto MDI/MDI-X
    Taip
    Darbo santykinės drėgmės diapazonas
    10 - 90%
    Darbo temperatūros diapazonas (TT)
    0 - 40 °C
    Darniosios sistemos (DS) kodas
    85176990
    Sandėliavimo temperatūros norma (T-T)
    -40 - 70 °C
    Sandėliavimo santykinis drėgmės diapazonas
    5 - 90%
    Produkto spalva
    Juoda
    Greitos pradžios vadovas
    Taip
    LED indikatoriai
    Taip
    Pridėti kabeliai
    AC
    Galios suvartojimas (maks.)
    9,3 W
    Pagrindinių perjungimo RJ-45 eterneto prievadų skaičius
    16
    Pagrindinių perjungimo RJ-45 eterneto prievadų tipas
    Gigabit Ethernet (10/100/1000)
    Gigabit Ethernet (varinis) portų kiekis
    16
    Srauto kontrolės palaikymas
    Taip
    Maitinimas per Eternetą (PoE)
    Ne
    Adreso lentelės dydis
    8000 įrašai
    Store-and-forward funkcija
    Taip
    Jumbo Frames palaikymas
    Taip
    Jumbo kadrai
    9000
    Stovo montavimas
    Ne
    Šilumos sklaida
    31,68 BTU/h
    Pilnai abipusis (duplex)
    Taip
    Automatinis suderinimas (Auto-negotiation)
    Taip
    Perjungimo pajėgumas
    32 Gbit/s
    AC įėjimo įtampa
    220 V
    AC įėjimo dažnis
    50 Hz
    Montuojamas ant sienos
    Taip
    10G parama
    Ne
    Varinių eterneto kabelių technologija
    10BASE-T, 100BASE-TX, 1000BASE-T
    Pridėtas maitinimo šaltinis
    Taip
    Paslaugos kokybės (QoS) palaikymas
    Taip
    VLAN palaikymas
    Taip
    Reitingo apribotojimas
    Taip
    Virtualaus vietinio tinklo ypatybės
    Protocol-based VLAN, Tagged VLAN
    DC įėjimo įtampa
    9 V
    IGMP tinklinio judėjimo sekimas
    Taip
    Persiuntimo dažnis
    23,81 Mpps
    Palaikomi laido tipai
    Cat3, Cat4, Cat5, Cat5e, Cat6
    Portų mirroring
    Taip
    Transliacijos audros valdymas
    Taip
    Apsauga nuo nesklandaus ryšio
    Taip
    Paketo buferio atmintis
    4,1 MB
    Nuorodų agregacija
    Taip
    VLANs skaičius
    32
    Eilių skaičius
    4
    Laido ilgio nustatymas
    Taip
