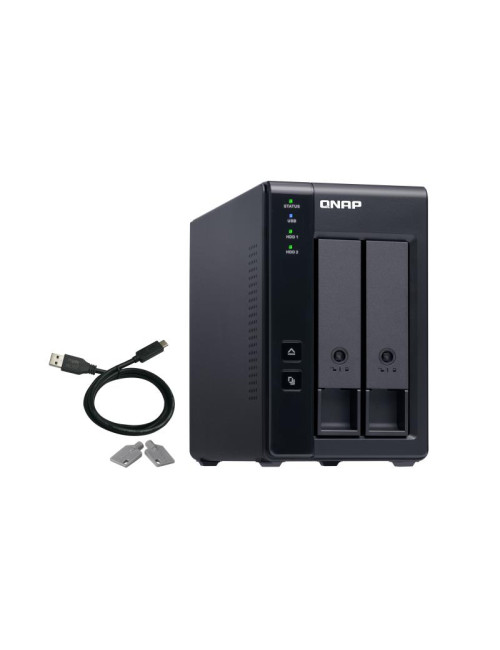

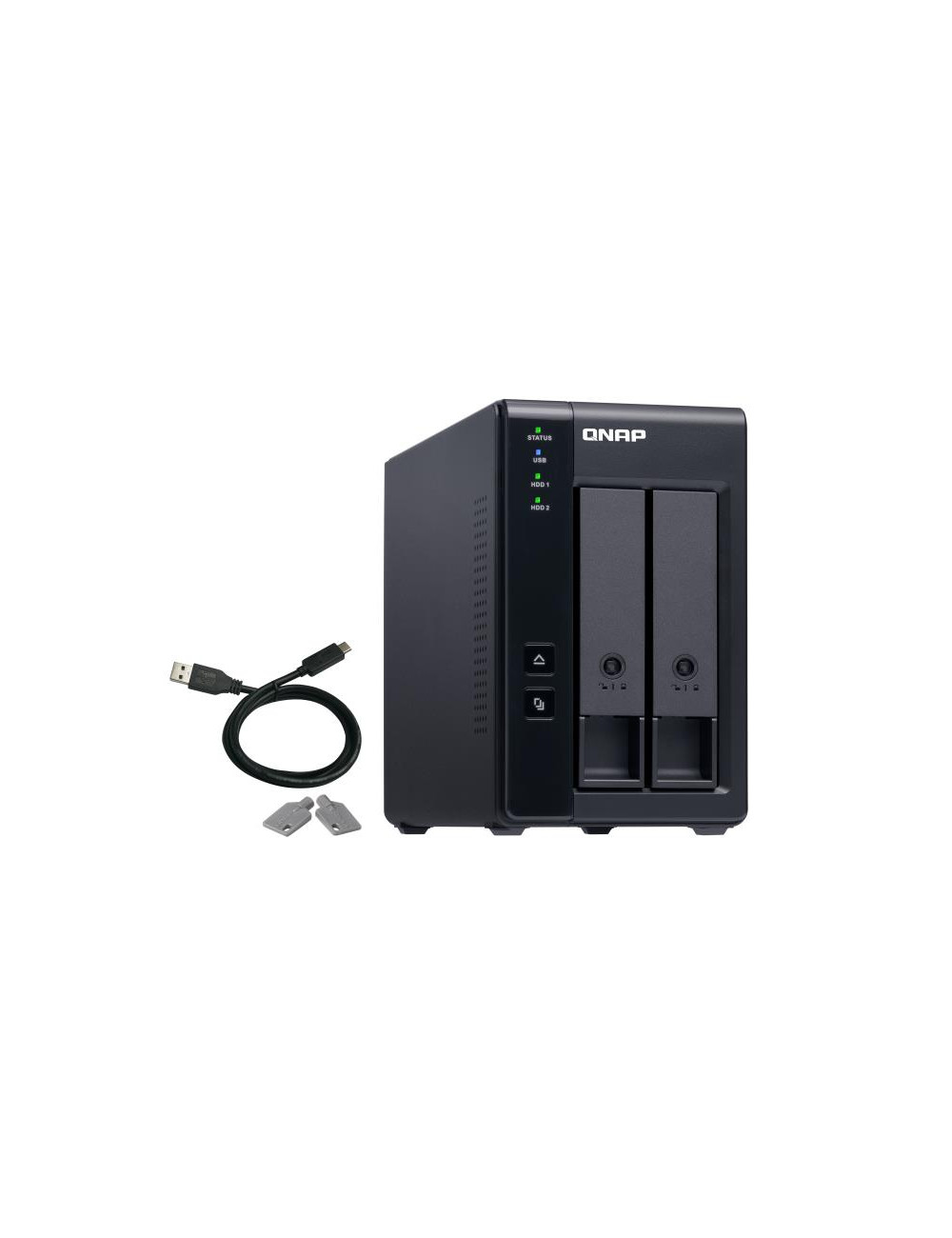

TR-002
2 Bay USB Type-C Direct Attached Storage with Hardware RAID
The TR-002 USB 3.1 Gen. 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.1 Gen. 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.
The TR-002 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install higher-capacity drives. Featuring two 3.5-inch SATA drive bays and supporting RAID configuration, the TR-002 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.
Prekė detaliau
Charakteristikos
- Power consumption
- 10 Watts
- Garantija
- 24
- Category Code
- STS
- Unit Box Height
- 0.24
- Unit Box Length
- 0.27
- Unit Box Width
- 0.205
- Vendor Homepage
- www.qnap.com/en/product/tr-002
- Dimensions
- 168.5 102 219 mm
- CPU
- Micro processor with hardware RAID
- Mounting Type (Desktop/pedestal)
- Yes
- Number of drives/bays
- 2
- Power supply requirements
- External Power Adapter, 36W, 100-240V
- Supported drives
- 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
- Input/Output connectors (USB-C)
- 1
- Drive Bays (2.5"/3.5" Internal)
- 2
- Units per Shipping Box
- 1
- Product Net Weight
- 1 kg
- Unit Calculated Weight
- 2 kg
- Unit Calculated Volume
- 0 cubm
Greitas palyginimas
Prekė |
QNAP TR-002 2 Bay USB Type-C Direct Attached Storage with Hardware RAID
|
NAS STORAGE TOWER 1BAY/NO HDD USB3 TS-133 QNAP
|
Synology Tower NAS DS223j up to 2 HDD/SSD, Realtek, RTD1619B, Processor frequency 1.7 GHz, 1 GB, DDR4, 1x1GbE, 2xUSB 3.2 Gen 1
|
SYNOLOGY DS223J 2-Bay NAS RTD1619 1GB
|
Prieinamumas |
|
|
|
|
Kaina |
190,22 €
|
200,68 €
|
208,75 €
|
211,73 €
|
Aprašymas |
QNAP TR-002 2 Bay USB Type-C Direct Attached Storage with Hardware RAID | NAS Ready-to-go | CPU ARM 4-core Cortex-A55 1.8GHz | Drives/bays 1 | Desktop/pedestal | 1xUSB 2.0 | 1xRJ45 | 1xUSB 3.2 | Memory 2 GB | DDR4 | Power supply requirements 36W Adapter | Synology Tower NAS DS223j up to 2 HDD/SSD, Realtek, RTD1619B, Processor frequency 1.7 GHz, 1 GB, DDR4, 1x1GbE, 2xUSB 3.2 Gen 1 | The DS223j is an efficient one-stop solution for all your data storage and sharing needs. With two bays of storage and Synology DiskStation Manager (DSM) on board, the DS223j allows you to create a private cloud to protect your files, share your data across several devices, store security footage with intelligent video surveillance tools, and more. |
Warranty |
24 month(s) | 24 month(s) | ||
Producer product name |
DS223j | |||
Net weight |
2.25 kg | 0.88 kg | ||
Gross weight |
3.00 kg | 1.18 kg | ||
WEEE tax |
Yes | Yes | ||
Packing quantity |
1.00 pc(s) | 1.00 pc(s) | ||
Gross depth master carton |
475 mm | |||
Gross width master carton |
345 mm | |||
Gross height master carton |
240 mm | |||
Net weight master carton |
6.51 kg | |||
Tare weight master carton |
0.669 kg | |||
Volume (m3) |
0.00 m | 0.01 m | ||
Tare weight (kg) |
0.75 kg | 0.30 kg | ||
Gross depth (mm) |
219.00 mm | 284.00 mm | ||
Gross width (mm) |
102.00 mm | 265.00 mm | ||
Gross height (mm) |
169.00 mm | 120.00 mm | ||
WEE classification |
CL109:6:2017-04-01 | CL109:5:2017-04-01 | ||
Paper/Pasteboard |
700.00 g | 260.00 g | ||
Embeeded battery |
No | No | ||
Dimensions (WxDxH) |
10 cm x 22.55 cm x 16.5 cm | |||
Other features |
Single Fan: 60 mm x 60 mm | |||
Plastic (No PET) |
50.00 g | 40.00 g | ||
Weight |
880 g () | |||
Producer product family |
Tower NAS | |||
Interface |
1x1GbE, 2xUSB 3.2 Gen 1 | |||
Device type |
NAS server | |||
Power |
AC 100-240 V (50/60 Hz) | |||
Palette Qty |
96 pc(s) | |||
Internal memory type |
DDR4 | |||
Processor family |
Realtek | |||
Processor model |
RTD1619B | |||
Processor frequency |
1.7 GHz | |||
Ethernet LAN (RJ-45) ports |
1 | |||
Chassis type |
Tower | |||
Garantija |
24 | |||
PRODUCT DESCRIPTION |
Synology Disk Station DS223J - NAS server | |||
PROCESSOR |
1 x Realtek Semiconductor RTD1619B 1.7 GHz (Quad-Core) | |||
Performance |
Maximum volume size: 108 TB Maximum number of volume: 64 Maximum concurrent connections: 200 Local user account: 1024 Local group account: 256 Maximum number of shared folder: 256 Maximum number of shared folders syncing tasks: 4 Hybrid share folder numbe | |||
Number of storage drives supported |
up to 2 HDD/SSD | |||
Internal RAM |
1 GB | |||
Drive bays |
2 | |||
Manufacturer Warranty |
2-year warranty | |||
RAM |
1 GB | |||
Networking |
10Mb LAN, 100Mb LAN, 1GbE | |||
Storage Controller |
RAID SATA 6Gb/s RAID 0, 1, JBOD | |||
IP Cameras Supported |
12 | |||
Host Connectivity |
Gigabit Ethernet | |||
Max Supported Capacity |
108 TB | |||
Number of 3.5" bays |
2 | |||
Producer |
QNAP | |||
