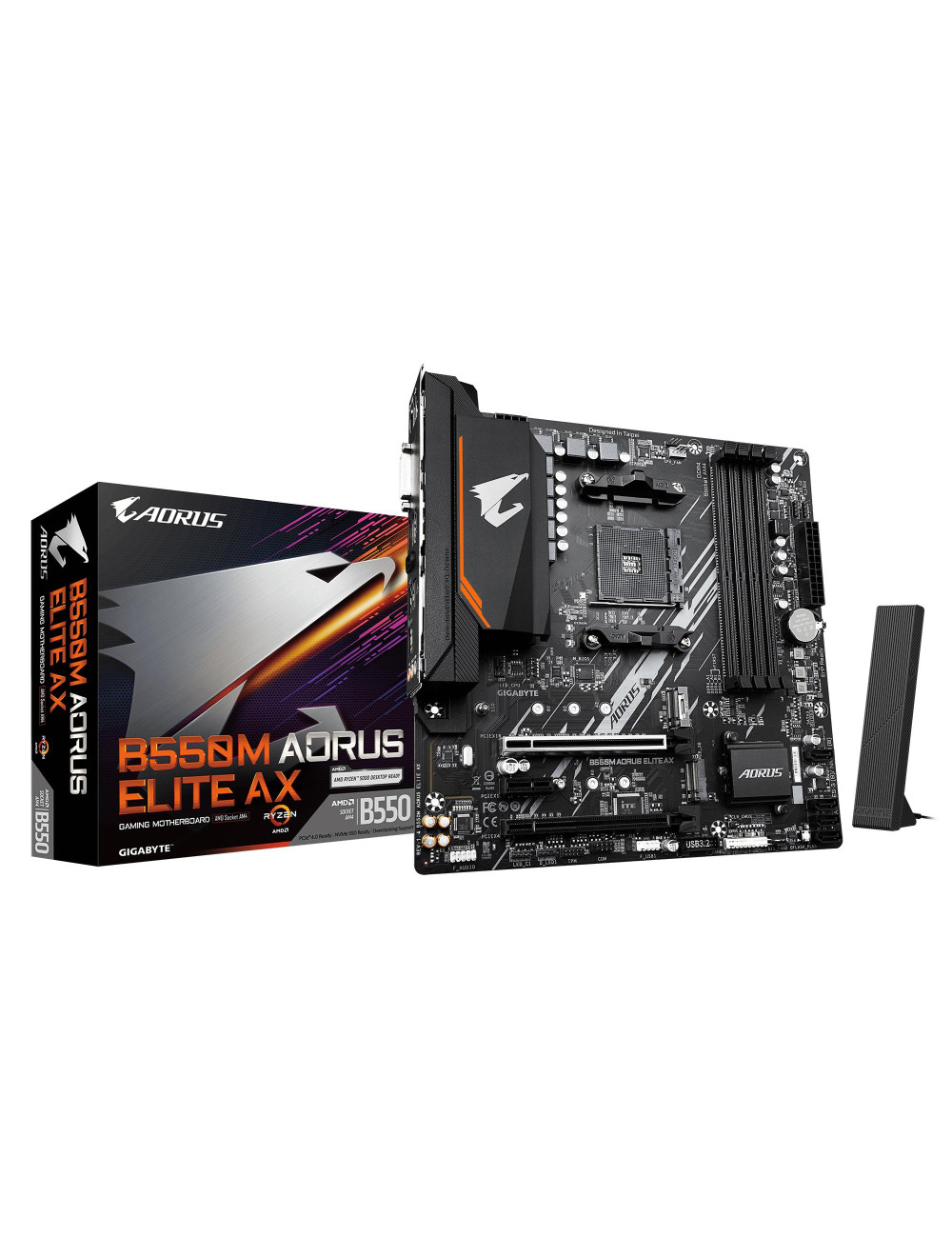

Mainboard|GIGABYTE|AMD B550|Socket AM4|micro ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|B550M

Prekė detaliau

Kodas B550M AORUS ELITE AX (REV. 1.4)

Yra sandėlyje 19 Prekės

Charakteristikos

Garantija

36

Category Code

MBA

Unit Box Height

0.07

Unit Box Length

0.27

Unit Box Width

0.265

Vendor Homepage

https://www.gigabyte.com/

MODEL

B550M AORUS ELITE AX (REV. 1.4)

Units per Shipping Box

10

Unit Calculated Weight

1.26 kg

Unit Calculated Volume

0.006165 cubm

CnCode

84733020

Summary

GIGABYTE B550M AORUS ELITE AX (REV. 1.4). Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal mem

Weight & dimensions (Width)

244 mm

Weight & dimensions (Depth)

244 mm

Packaging data (Package width)

265 mm

Packaging data (Package depth)

265 mm

Packaging data (Package height)

65 mm

Packaging data (Package weight)

1273 g

Network (Bluetooth)

Yes

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Bluetooth version)

5.3

Network (Wi-Fi standards)

Wi-Fi 6E (802.11ax)

Logistics data (Country of origin)

China

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Processor (Processor manufacturer)

AMD

Memory (Maximum internal memory)

128 GB

Memory (Memory channels)

Dual-channel

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speeds)

2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz

Memory (Supported memory types)

DDR4-SDRAM

Network (WLAN controller model)

Realtek RTL8852CE

Features (Component for)

PC

Features (Cooling type)

Passive

Network (LAN controller)

Realtek RTL8111H

Features (Audio chip)

Realtek ALC897

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD B550

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

micro ATX

Features (PC health monitoring)

Fan/Temperature/Voltage

Features (Power source type)

ATX

Features (Product colour)

Brown

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Processor (Compatible processor series)

AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series

Processor (Processor socket)

Socket AM4

Processor (Supported processor sockets)

Socket AM4

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Maximum internal memory per slot)

32 GB

Memory (Supported memory clock speed (max))

4733 MHz

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

6

Storage controllers (RAID levels)

0/1/10

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (DirectX version)

12.0

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

2

Internal I/O (Number of CPU fan connectors)

1

Internal I/O (Number of EPS power connectors (8-pin))

1

Internal I/O (Number of RGB LED pin headers)

5

Internal I/O (Number of SATA III connectors)

4

Internal I/O (Number of water pump connectors)

2

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

1

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (WiFi-AP antenna jack)

2

Network (Ethernet interface type)

Gigabit Ethernet

Expansion slots (1st M.2 highest PCI Express generation)

4.0

Expansion slots (1st M.2 largest key size)

22110

Expansion slots (2nd M.2 highest PCI Express generation)

3.0

Expansion slots (2nd M.2 largest key size)

2280

Expansion slots (Number of M.2 (M) slots)

2

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

128 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Packaging content (Antenna included)

Yes

Packaging content (Bundled software)

Norton Internet Security (OEM version)LAN bandwidth management software

Packaging content (Screws included)

Yes

Technical details (Warranty period)

3 year(s)

Internal I/O (12V power connector)

Yes

Internal I/O (Serial port headers)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Expansion slots (PCI Express x16 (Gen 3.x) slots)

1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

4

Expansion slots (PCI Express x1 (Gen 3.x) slots)

1

Processor (Maximum number of SMP processors)

1

Rear panel I/O ports (DVI-D ports quantity)

1
