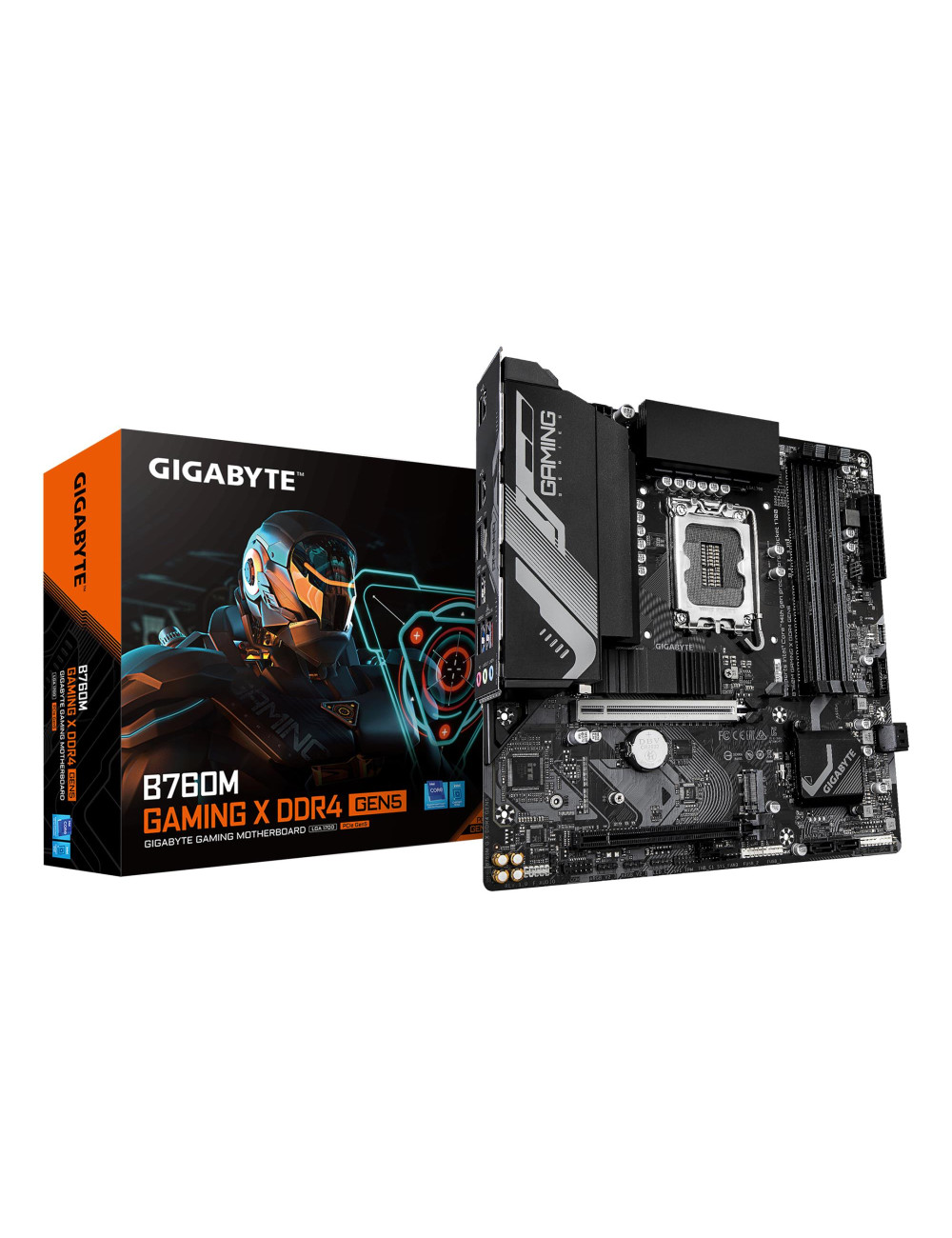

Mainboard|GIGABYTE|Intel B760|LGA 1700|micro ATX|RAM DDR4-SDRAM|4xSlots|2xNumber of M.2 (M) slots|B760MGXDDR4GEN5

Prekė detaliau

Kodas B760M G X DDR4 GEN5

Yra sandėlyje 28 Prekės

Charakteristikos

Garantija

36

Category Code

MBI

Unit Box Height

0.07

Unit Box Length

0.27

Unit Box Width

0.275

Vendor Homepage

https://www.gigabyte.com/

Units per Shipping Box

8

Unit Calculated Weight

1.61 kg

Unit Calculated Volume

0.00713 cubm

Summary

GIGABYTE B760M GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 3200MHz DDR4, 2xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: I

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

244 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

270 mm

Packaging data (Package depth)

268 mm

Packaging data (Package height)

68 mm

Packaging data (Package weight)

1600 g

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Battery (Battery type)

CR2032

Logistics data (Products per shipping (inner) case)

1 pc(s)

Other features (Weight)

1190 g

Packaging content (Batteries included)

Yes

Logistics data (Country of origin)

China

Processor (Processor manufacturer)

Intel

Memory (Maximum internal memory)

128 GB

Memory (Memory channels)

Dual-channel

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speeds)

2133/2400/2666/2933/3000/3200 MHz

Memory (Supported memory types)

DDR4-SDRAM

Features (Component for)

PC

Features (Cooling type)

Passive

Battery (Battery weight)

3 g

Network (LAN controller)

Realtek RTL8125

Features (Audio chip)

Realtek ALC897

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel B760

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

micro ATX

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

Features (Power source type)

ATX

Features (Product colour)

Dark brown

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Processor (Compatible processor series)

Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Celeron

Processor (Processor socket)

LGA 1700

Processor (Supported processor sockets)

LGA 1700

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Maximum internal memory per slot)

32 GB

Memory (Supported memory clock speed (max))

3200 MHz

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

6

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,PCI Express 4.0,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (DirectX version)

12.0

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2304 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

3

Internal I/O (Number of CPU fan connectors)

1

Internal I/O (Number of EPS power connectors (8-pin))

1

Internal I/O (Number of RGB LED pin headers)

4

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (DisplayPort version)

1.2

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Expansion slots (1st M.2 highest PCI Express generation)

4.0

Expansion slots (1st M.2 largest key size)

2280

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

22110

Expansion slots (Number of M.2 (M) slots)

2

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content (Screws included)

Yes

Technical details (Warranty period)

3 year(s)

Internal I/O (12V power connector)

Yes

Internal I/O (Serial port headers)

1

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

5

Expansion slots (PCI Express x16 (Gen 3.x) slots)

1

Internal I/O (Thunderbolt headers)

2

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

3

Internal I/O (S/PDIF out connector)

Yes
