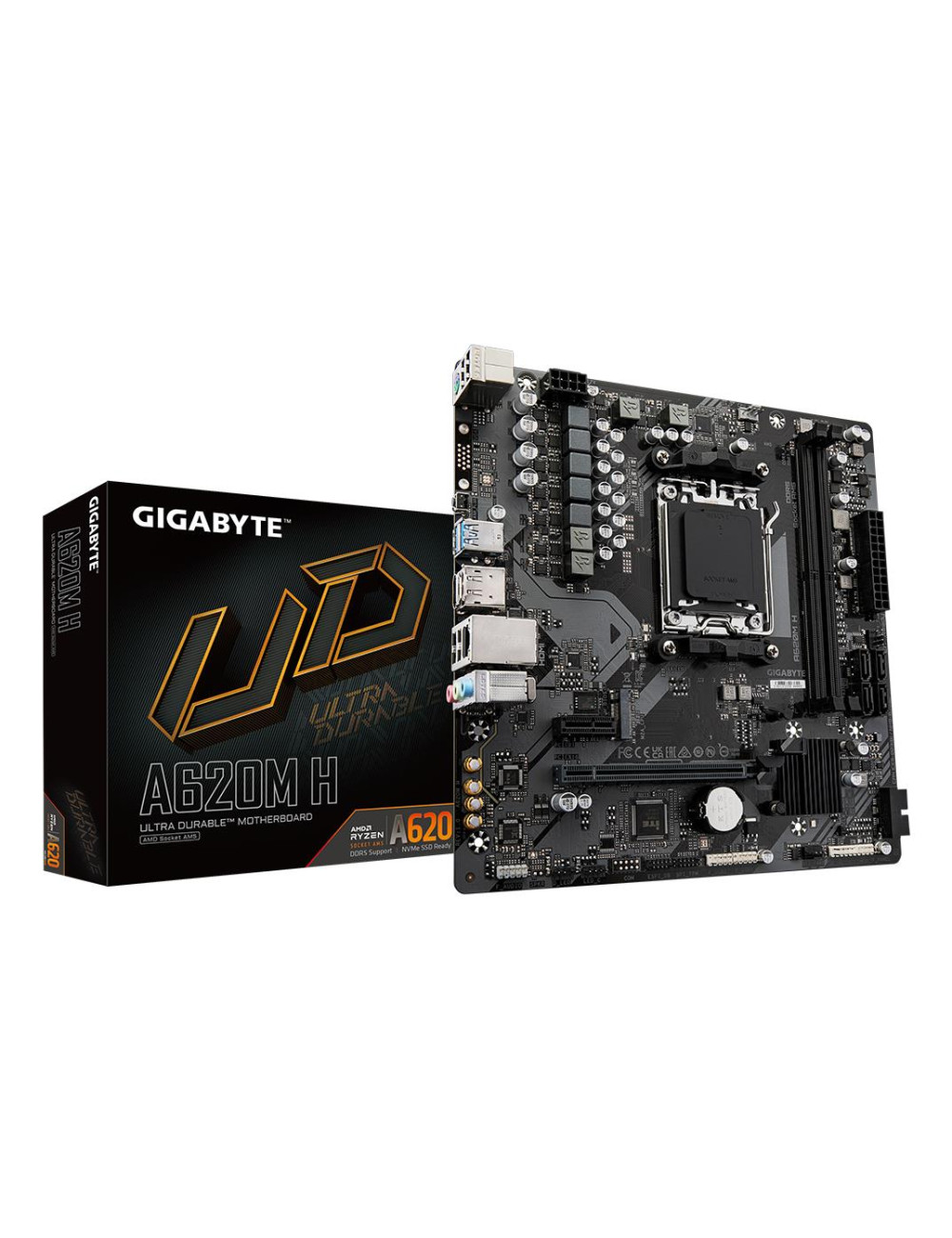

Mainboard|GIGABYTE|AMD A620|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|1xPCI Express x1 slots|1xPCI Express x16 slots|1xNumber

Prekė detaliau

Kodas A620M H 2.0

Yra sandėlyje 30 Prekės

Charakteristikos

Garantija

36

Category Code

MBA

Vendor Homepage

https://www.gigabyte.com

Units per Shipping Box

1

Unit Calculated Weight

0.897 kg

Unit Calculated Volume

0.00379 cubm

Summary

GIGABYTE A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

230 mm

Weight & dimensions (Depth)

225 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

265 mm

Packaging data (Package depth)

265 mm

Packaging data (Package height)

54 mm

Packaging data (Package weight)

897 g

Packaging content (Cables included)

SATA

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Battery (Battery type)

CR2032

Logistics data (Products per shipping (inner) case)

1 pc(s)

Packaging content (Batteries included)

Yes

Logistics data (Country of origin)

China

Processor (Processor manufacturer)

AMD

Memory (Maximum internal memory)

96 GB

Memory (Memory channels)

Dual-channel

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speeds)

4400/4800/5200/5600/6000/6200/6400/6800/7200 MHz

Memory (Supported memory types)

DDR5-SDRAM

Features (Component for)

PC

Battery (Battery weight)

3 g

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD A620

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

micro ATX

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

Features (Product colour)

Brown

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Processor (Compatible processor series)

AMD Ryzen 7000 Series

Processor (Processor socket)

Socket AM5

Processor (Supported processor sockets)

Socket AM5

Memory (ECC сompatibility)

Non-ECC

Memory (Supported memory clock speed (max))

7200 MHz

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

5

Storage controllers (RAID levels)

0/1/10

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (DirectX version)

12.0

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

3

Network (Ethernet interface type)

Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

1

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Packaging content (Bundled software)

Norton Internet Security LAN bandwidth management software

Technical details (Warranty period)

3 year(s)

Internal I/O (12V power connector)

Yes

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Processor (Maximum internal memory supported by processor)

96 GB

Memory (Supported memory module capacities)

12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB

Internal I/O (Total number of SATA connectors)

4

Rear panel I/O ports (USB connector type)

USB Type-A/USB Type-C

Expansion slots (PCI Express x1 slots)

1

Expansion slots (PCI Express x16 slots)

1
