Mainboard|GIGABYTE|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B850MEAGLEWF6E
    Gigabyte

    Mainboard|GIGABYTE|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B850MEAGLEWF6E

    170,92 €
    Su mokesčiais
    AMD B850 | SAM5 | Micro-ATX | DDR5 | 8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MHz | Memory slots 4 | Video Depending on CPU | Audio | LAN 2.5 Gigabit | RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10 | TPM Header
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą

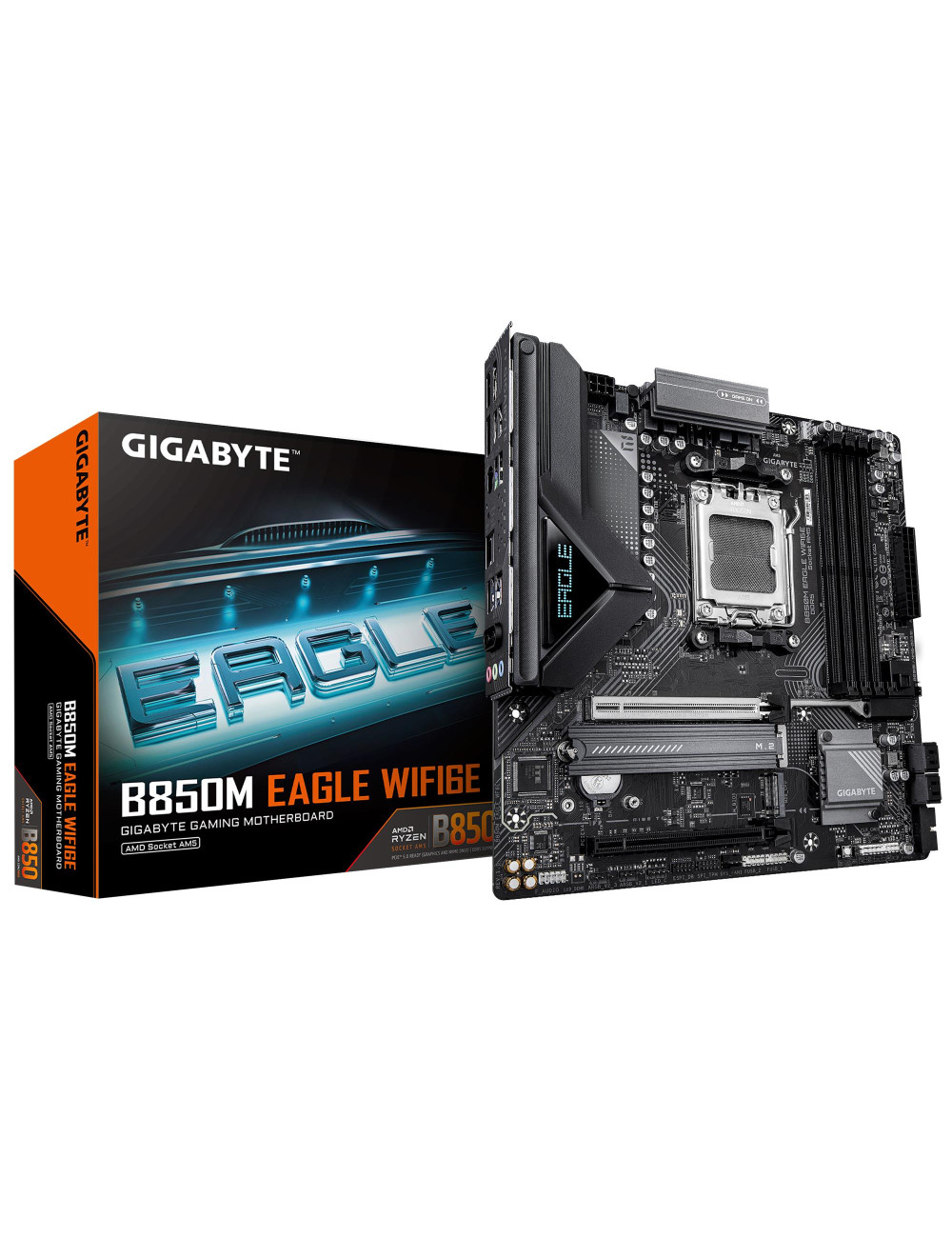

    GIGABYTE B850M EAGLE WIFI6E

    • X3D Turbo Mode : Unleash new era gaming performance
    • DDR5 OC up to 8200MT/s
    • AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
    • Digital twin 8+2+2 phases VRM solution
    • Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
    • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
    • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
    • EZ-Latch Click : M.2 heatsinks with screwless design
    • Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
    • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
    • Fast Networking : 2.5 GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
    • Extended Connectivity : HDMI, 2*Displayport
    • PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support

    Prekė detaliau

    B850M EAGLE WF6E
    30 Prekės

    Charakteristikos

    Form factor
    Micro-ATX
    Memory type
    DDR5
    Memory slots
    4
    Chipset
    AMD B850
    Garantija
    36
    RAID
    SATA 0, 1, 10 NVMe 0, 1, 5, 10
    SOCKET
    SAM5
    Category Code
    MBA
    Frequency speed
    4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
    Vendor Homepage
    www.gigabyte.com/Motherboard/B850M-EAGLE-WIFI6E
    Interface (SATA)
    Yes
    Input/Output connectors (Audio port)
    3
    Input/Output connectors (HDMI)
    1
    Integrated audio
    Yes
    Integrated LAN
    2.5 Gigabit
    Integrated video
    Depending on CPU
    Expansion slots (M.2)
    2
    Expansion slots (PCI-Express 16x)
    1
    Input/Output connectors (PS/2)
    1
    Input/Output connectors (RJ45)
    1
    TPM
    Header
    Input/Output connectors (USB 2.0)
    4
    Interface (USB 2.0)
    Yes
    Expansion slots (PCI-Express 3.0 16x)
    1
    Interface (Bluetooth)
    Yes
    Input/Output connectors (DisplayPort)
    2
    Input/Output connectors (USB 3.2)
    3
    Interface (WiFi)
    Yes
    Interface (USB 3.2)
    Yes
    MODEL
    B850M EAGLE WF6E
    Interface (USB-C)
    Yes
    Input/Output connectors (USB-C)
    1
    Units per Shipping Box
    1
    Product Net Weight
    0.8 kg
    Unit Calculated Weight
    1.46 kg
    Unit Calculated Volume
    0.007341 cubm

    Greitas palyginimas

    Prekė
    		 Mainboard|GIGABYTE|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 4|4xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|2 Mainboard|GIGABYTE|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 4|4xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|2 Mainboard|GIGABYTE|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 2|B860MGAMINGWIFI6 Mainboard|GIGABYTE|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 2|B860MGAMINGWIFI6 Mainboard|ASUS|AMD B650|SAM4|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|2xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|3xM Mainboard|ASUS|AMD B650|SAM4|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|2xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|3xM Mainboard|ASROCK|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xAudio-I Mainboard|ASROCK|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xAudio-I
    Prieinamumas
    Kaina
    159,28 €
    159,28 €
    159,38 €
    159,38 €
    Aprašymas
    		 Intel B860 Express|LGA1851|Micro-ATX|DDR5|9066/8800/8600/8400/8266/8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/5600 MHz|Memory slots 4|4xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|2xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|3xUSB 2.0|1xUSB-C|1xPS/2|1xRJ45|SATA|USB-C|USB 2.0|USB 3.0|Bluetooth|WiFi|Video|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header micro ATX | Audio 7.1 channels | CPU Intel | Socket LGA 1851 (Socket V1) | Series Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1) | Supported memory types DDR5-SDRAM | 2xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,SATA III | 4096 x 2160 pixels | 3xUSB 2.0 ports quantity | 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1xEthernet LAN (RJ-45) ports | 1xHDMI ports quantity | Wi-Fi Yes | Bluetooth Yes | Antenna included Yes | Weight 1.23 kg AMD B650 | SAM4 | ATX | DDR5 | 8000/7800/7600/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz | Memory slots 4 | 1xPCI-Express 3.0 1x | 2xPCI-Express 3.0 16x | 1xPCI-Express 4.0 16x | 3xM.2 | 1xHDMI | 1xDisplayPort | 3xUSB 2.0 | 4xUSB 3.2 | 1xUSB-C | 1xRJ45 | 5xAudio port | SATA | USB-C | USB 2.0 | USB 3.2 | Bluetooth | WiFi | Serial | Video Depending on CPU | LAN 2.5 Gigabit | RAID SATA 0, 1, 10; PCIe 0, 1, 10 AMD B850 | SAM5 | ATX | DDR5 | 8000 MHz | Memory slots 4 | Video Depending on CPU | Audio Realtek ALC897 | LAN 2.5 Gigabit | RAID SATA 0, 1, 10 | TPM Header
    Form factor
    		 Micro-ATX ATX
    Memory type
    		 DDR5 DDR5
    Memory slots
    		 4 4
    Chipset
    		 Intel B860 Express AMD B850
    Garantija
    		 36 36 36 36
    RAID
    		 SATA 0, 1, 5, 10 SATA 0, 1, 10
    SOCKET
    		 LGA1851 SAM5
    Category Code
    		 MBI MBI MBA
    Frequency speed
    		 5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz 8000 MHz
    Unit Box Height
    		 0.265 0.075
    Unit Box Length
    		 0.27 0.355
    Unit Box Width
    		 0.07 0.28
    Vendor Homepage
    		 www.gigabyte.com/Motherboard/B860M-DS3H-WIFI6E kf https://www.gigabyte.com/ www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650-e-wifi/ www.asrock.com/MB/AMD/B850%20Pro%20RS/index.asp
    Interface (SATA 3.0)
    		 Yes
    Interface (SATA)
    		 Yes Yes Yes
    Input/Output connectors (Audio port)
    		 5
    Input/Output connectors (HDMI)
    		 1 1 1
    Integrated audio
    		 Yes Realtek ALC897
    Integrated LAN
    		 2.5 Gigabit 2.5 Gigabit
    Integrated video
    		 Yes Depending on CPU
    Expansion slots (M.2)
    		 2 3 1
    Input/Output connectors (PS/2)
    		 1
    Input/Output connectors (RJ45)
    		 1 1 1
    Interface (Serial)
    		 Yes
    TPM
    		 Header Header
    Input/Output connectors (USB 2.0)
    		 3 3 6
    Interface (USB 2.0)
    		 Yes Yes Yes
    Input/Output connectors (Audio-In)
    		 1 1
    Input/Output connectors (Audio-Out)
    		 1 1
    Expansion slots (PCI-Express 3.0 16x)
    		 2
    Interface (Bluetooth)
    		 Yes Yes
    Input/Output connectors (DisplayPort)
    		 2 1
    Expansion slots (PCI-Express 3.0 1x)
    		 1
    Expansion slots (PCI-Express 4.0 16x)
    		 4 1 1
    Input/Output connectors (USB 3.2)
    		 4 5
    Interface (WiFi)
    		 Yes Yes
    Input/Output connectors (Microphone)
    		 1 1
    Expansion slots (PCI-Express 5.0 16x)
    		 1 1
    Interface (USB 3.2)
    		 Yes Yes
    MODEL
    		 B860M DS3H WIFI6E B860M GAMING WIFI6 B850 Pro RS
    Interface (USB 3.0)
    		 Yes
    Interface (USB-C)
    		 Yes Yes Yes
    CnCode (CnCode)
    		 84733020
    Input/Output connectors (USB-C)
    		 1 1 1
    Units per Shipping Box
    		 10 1 5
    Product Net Weight
    		 0.8 kg 1.3 kg
    Unit Calculated Weight
    		 1.16 kg 1.16 kg 2.16 kg
    Unit Calculated Volume
    		 0.006084 cubm 0.005008 cubm 0.008784 cubm
    CnCode
    		 84733020
    Summary
    		 GIGABYTE B860M GAMING WIFI6 Motherboard - Intel Core Ultra Series CPUs, 8+1+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible process
    Battery (Battery technology)
    		 Lithium-Manganese Dioxide (LiMnO2)
    Weight & dimensions (Width)
    		 244 mm
    Weight & dimensions (Depth)
    		 225 mm
    Weight & dimensions (Height)
    		 35 mm
    Packaging data (Package width)
    		 270 mm
    Packaging data (Package depth)
    		 268 mm
    Packaging data (Package height)
    		 68 mm
    Packaging data (Package weight)
    		 1293 g
    Battery (Battery capacity)
    		 220 mAh
    Network (Bluetooth)
    		 Yes
    Network (Ethernet LAN)
    		 Yes
    Network (Wi-Fi)
    		 Yes
    Network (Bluetooth version)
    		 5.3
    Network (Wi-Fi standards)
    		 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
    Battery (Battery type)
    		 CR2032
    Logistics data (Products per shipping (inner) case)
    		 1 pc(s)
    Other features (Weight)
    		 1225 g
    Packaging content (Batteries included)
    		 Yes
    Network (Top Wi-Fi standard)
    		 Wi-Fi 6E (802.11ax)
    Processor (Processor manufacturer)
    		 Intel
    Memory (Maximum internal memory)
    		 128 GB
    Memory (Memory channels)
    		 Dual-channel
    Memory (Memory slots type)
    		 DIMM
    Memory (Number of memory slots)
    		 2
    Memory (Supported memory clock speeds)
    		 5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz
    Memory (Supported memory types)
    		 DDR5-SDRAM
    Network (WLAN controller model)
    		 Intel Wi-Fi 6E AX211
    Features (Component for)
    		 PC
    Features (Cooling type)
    		 Passive
    Battery (Battery weight)
    		 3 g
    Network (LAN controller)
    		 Realtek RTL8125
    Features (Audio chip)
    		 Realtek ALC897
    Features (Audio output channels)
    		 7.1 channels
    Features (Motherboard chipset family)
    		 Intel
    Features (Motherboard form factor)
    		 micro ATX
    Features (PC health monitoring)
    		 Fan/Temperature/Voltage/Water cooling
    Features (Power source type)
    		 ATX
    Features (Product colour)
    		 Brown
    Features (Windows operating systems supported)
    		 Windows 10 x64/Windows 11 x64
    Processor (Compatible processor series)
    		 Intel Core Ultra (Series 2)/Intel Core Ultra (Series 1)
    Processor (Processor socket)
    		 LGA 1851 (Socket V1)
    Processor (Supported processor sockets)
    		 LGA 1851
    Memory (ECC сompatibility)
    		 ECC & Non-ECC
    Memory (Maximum internal memory per slot)
    		 64 GB
    Memory (Supported memory clock speed (max))
    		 9066 MHz
    Memory (Unbuffered memory)
    		 Yes
    Storage controllers (Number of HDDs supported)
    		 4
    Storage controllers (Number of storage drives supported)
    		 6
    Storage controllers (RAID levels)
    		 0/1/10/5
    Storage controllers (RAID support)
    		 Yes
    Storage controllers (Supported storage drive interfaces)
    		 M.2,SATA III
    Storage controllers (Supported storage drive types)
    		 HDD & SSD
    Graphics (DirectX version)
    		 12.0
    Graphics (HDCP)
    		 Yes
    Graphics (Maximum resolution)
    		 4096 x 2160 pixels
    Graphics (Parallel processing technology support)
    		 Not supported
    Internal I/O (ATX Power connector (24-pin))
    		 Yes
    Internal I/O (CPU fan connector)
    		 Yes
    Internal I/O (EPS power connector (8-pin))
    		 Yes
    Internal I/O (Front panel audio connector)
    		 Yes
    Internal I/O (Front panel connector)
    		 Yes
    Internal I/O (Number of chassis fan connectors)
    		 2
    Internal I/O (Number of CPU fan connectors)
    		 2
    Internal I/O (Number of EPS power connectors (8-pin))
    		 1
    Internal I/O (Number of RGB LED pin headers)
    		 4
    Internal I/O (Number of SATA III connectors)
    		 4
    Internal I/O (Number of water pump connectors)
    		 2
    Internal I/O (RGB LED pin header)
    		 Yes
    Internal I/O (TPM connector)
    		 Yes
    Internal I/O (USB 2.0 connectors)
    		 2
    Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
    		 1
    Rear panel I/O ports (DisplayPort version)
    		 2.1
    Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
    		 1
    Rear panel I/O ports (HDMI ports quantity)
    		 1
    Rear panel I/O ports (HDMI version)
    		 2.1
    Rear panel I/O ports (Headphone outputs)
    		 1
    Rear panel I/O ports (Line-in)
    		 Yes
    Rear panel I/O ports (WiFi-AP antenna jack)
    		 2
    Network (Ethernet interface type)
    		 2.5 Gigabit Ethernet
    Expansion slots (1st M.2 highest PCI Express generation)
    		 5.0
    Expansion slots (1st M.2 largest key size)
    		 2280
    Expansion slots (2nd M.2 highest PCI Express generation)
    		 4.0
    Expansion slots (2nd M.2 largest key size)
    		 2280
    Expansion slots (Number of M.2 (M) slots)
    		 2
    Expansion slots (PCI Express x16 (Gen 4.x) slots)
    		 1
    Expansion slots (PCI Express x16 (Gen 5.x) slots)
    		 1
    BIOS (ACPI version)
    		 5.0
    BIOS (BIOS memory size)
    		 256 Mbit
    BIOS (BIOS type)
    		 UEFI AMI
    BIOS (Clear CMOS jumper)
    		 Yes
    BIOS (Desktop Management Interface (DMI) version)
    		 2.7
    BIOS (System Management BIOS (SMBIOS) version)
    		 2.7
    Battery (Lithium weight per battery)
    		 0.07 g
    Battery (Number of battery cells)
    		 1
    Packaging content (Antenna included)
    		 Yes
    Packaging content (Bundled software)
    		 Norton Internet Security (OEM version) LAN bandwidth management software
    Packaging content (Screws included)
    		 Yes
    Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)
    		 1
    Rear panel I/O ports (DisplayPorts quantity)
    		 1
    Rear panel I/O ports (Microphone in)
    		 Yes
    Rear panel I/O ports (USB 2.0 ports quantity)
    		 3
    Internal I/O (Thunderbolt headers)
    		 2
    Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
    		 3
