• Išpardavimas!
  • -41,61 €

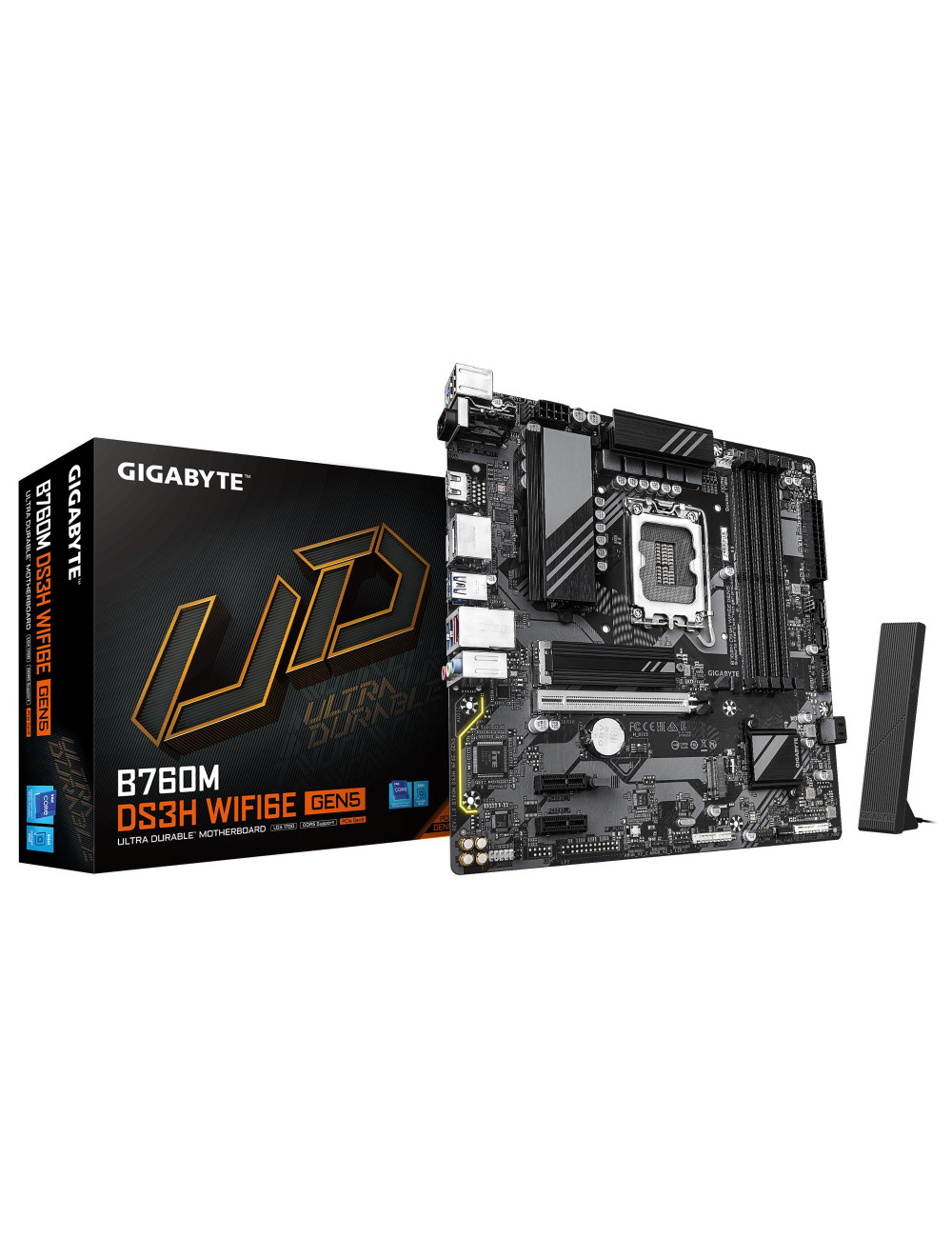

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|B760MDS3HWF6EGEN5
Gigabyte

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|B760MDS3HWF6EGEN5

141,56 €
99,95 € Sutaupote 41,61 €
Su mokesčiais
Intel B760 Express | LGA1700 | Micro-ATX | DDR5 | 7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MHz | Memory slots 4 | Video Depending on CPU | LAN 2.5 Gigabit | Audio | RAID SATA 0, 1, 5, 10 | TPM Header
Kiekis
  Paskutinė prekė

Išsaugoti prekę Pridėti į palyginimą

  • PCIe Gen5 Performance : Perfect Sync to Win
  • Supports Intel® Core™ 14th/ 13th /12th processors
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.
  • EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
  • PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
  • Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
  • Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
  • Fast Networks : 2.5 GbE LAN & Wi-Fi 802.11ax
  • Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
  • Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI
  • Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

Prekė detaliau

B760M DS3H WF6E GEN5
1 Vienetas

Charakteristikos

Form factor
Micro-ATX
Memory type
DDR5
Memory slots
4
Chipset
Intel B760 Express
Garantija
36
RAID
SATA 0, 1, 5, 10
SOCKET
LGA1700
Category Code
MBI
Frequency speed
4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Unit Box Height
0.07
Unit Box Length
0.27
Unit Box Width
0.27
Vendor Homepage
www.gigabyte.com/Motherboard/B760M-DS3H-WIFI6E-GEN5
Interface (SATA)
Yes
Input/Output connectors (Audio port)
3
Input/Output connectors (HDMI)
1
Integrated audio
Yes
Integrated LAN
2.5 Gigabit
Integrated video
Depending on CPU
Expansion slots (M.2)
2
Input/Output connectors (PS/2)
1
Input/Output connectors (RJ45)
1
TPM
Header
Input/Output connectors (USB 2.0)
2
Interface (Bluetooth)
Yes
Input/Output connectors (DisplayPort)
1
Expansion slots (PCI-Express 3.0 1x)
2
Input/Output connectors (USB 3.2)
3
Interface (WiFi)
Yes
Input/Output connectors (15pin D-sub)
1
Expansion slots (PCI-Express 5.0 16x)
1
MODEL
B760M DS3H WIFI6E GEN5
Input/Output connectors (USB-C)
1
Units per Shipping Box
1
Product Net Weight
0.5 kg
Unit Calculated Weight
1.1 kg
Unit Calculated Volume
0.005103 cubm
CnCode
84733020
